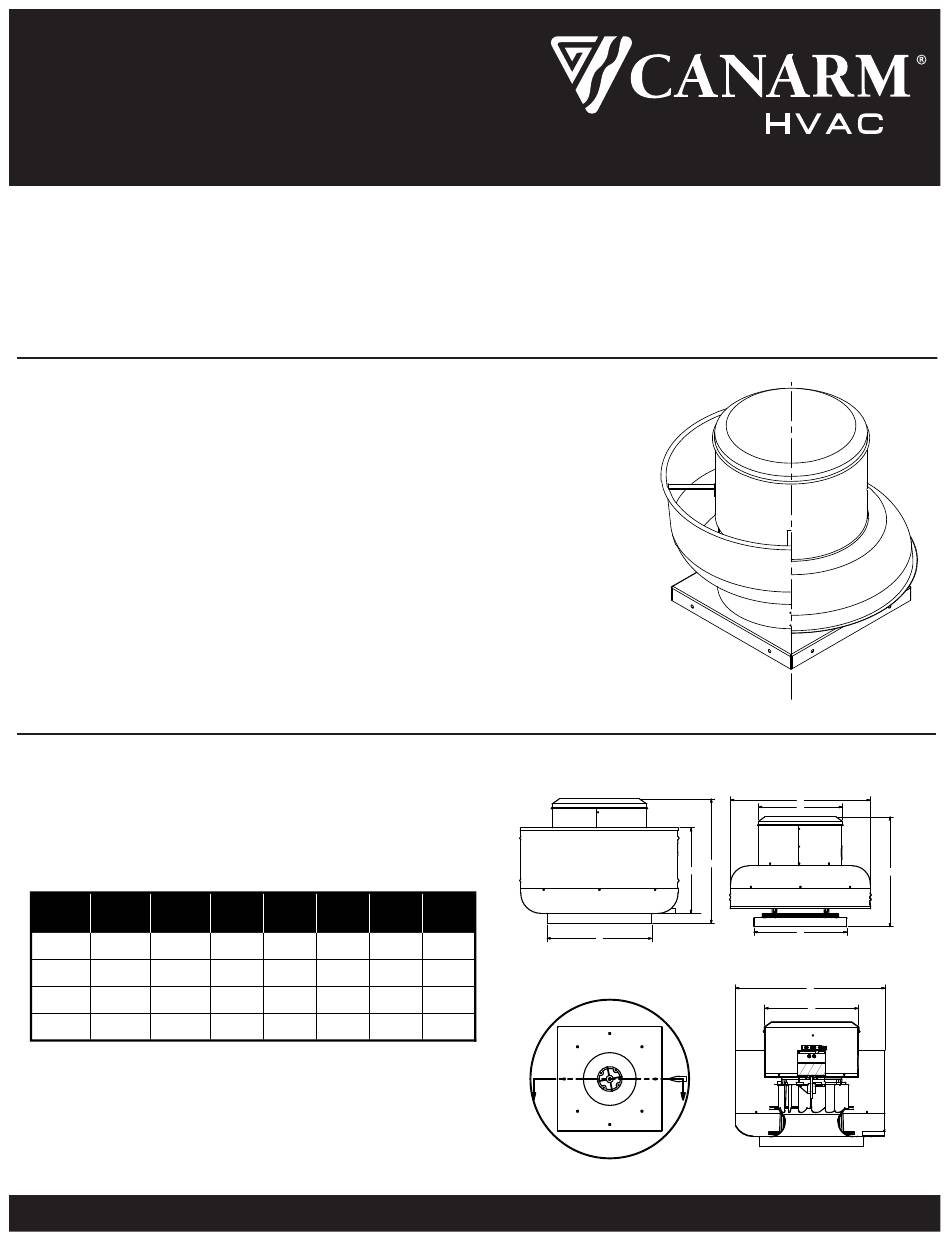

Canarm A2X Series Operation Instructions And Parts Manual

A2X SERIES
SPUN ALUMINUM EXHAUSTER
OPERATION INSTRUCTIONS AND PARTS MANUAL
READ AND SAVE THESE INSTRUCTIONS
The purpose of this manual is to aid in the proper installation and operation of the blowers. These instructions are intended to supplement good
general practices and are not intended to cover detailed instruction procedures.
IT IS THE RESPONSIBILITY OF THE PURCHASER TO ASSURE THAT THE INSTALLATION AND MAINTENANCE OF THIS EQUIPMENT IS
HANDLED BY QUALIFIED PERSONNEL.
Inspect all shipments carefully for damage. THE RECEIVER MUST NOTE ANY DAMAGE ON THE CARRIER'S BILL OF LADING AND FILE A
CLAIM IMMEDIATELY WITH THE FREIGHT COMPANY.
DO NOT LIFT THE UNIT BY THE HOOD OR MOTOR. PLEASE LIFT THE UNIT BY HORIZONTAL SUPPORTS.
GENERAL SAFETY
1. Now UL762 approved with guard.
2. All electrical work must be done in accordance with all applicable electrical codes by a
qualified electrician.
3. Prior to wiring ensure the power supply is locked in the OFF position and that the motor
nameplate voltage matches the supply voltage.
4. Do not install or operate this fan in an environment where combustible materials, gases or
fumes are present.
5. Caution: the fan contains rotating parts and electrical service. Appropriate safety
precautions should be taken during installation, operation and maintenance.
When servicing the fan motor may be hot, allow time for cooling down.
6. Before starting the unit, ensure the wheel rotates freely.
7. Check and tighten where necessary all nuts, bolts & set screws prior to fan start up (as
some may have loosened during shipment).
8. Please follow all applicable national, state/provincial and local codes, all of them will
supersede this manual.
9. Failure to follow the safety instructions in this manual may cause serious injury or
death due to electrical shock or high speed rotating parts.
DIMENSION & COMPONENT
WHEEL
MODEL DRIVE
DIA.
A2X105 10.5" DIRECT
A2X120 12.25" DIRECT
A2X135 13.5" DIRECT
A2X150 15" DIRECT
M-A2X_05_13_22
A B C D
19" 13.0" 21.633 13.125"
19" 13.0" 23.063 15.313"
21" 17.25" 24.027 16.875"
21" 17.25" 25.093 18.750"
E
A
19.852"
UPBLAST
23.160"
25.523"
28.359"
A
UPBLAST DOWNBLAST
E
D
C
B
A
DOWNBLAST
E
D
A
SECTION A-A
Page 1 of 5
C
