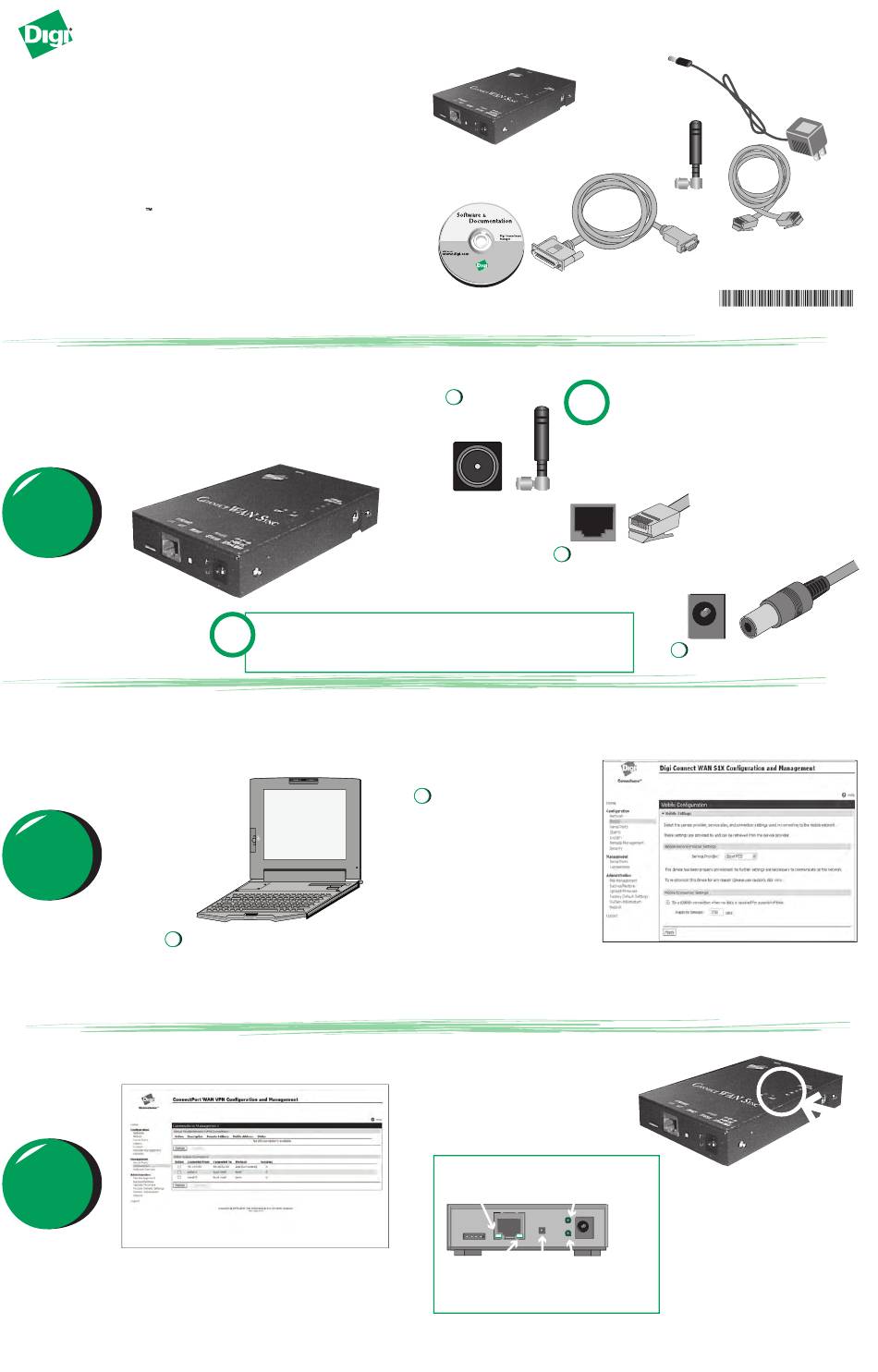

Digi Connect WAN Sync 1XRTT Quick Start Manual

Quick Start Guide
Connect WAN Sync 1XRTT
Connect Hardware
CONNECT
Configure Cellular Settings
CONFIGURE
Verify Cellular Connection
VERIFY
Under Management click Connections to verify your
device has been properly provisioned. To test your
configuration and verify proper Ethernet to cellular
routing, see the back of this guide.
© Digi International Inc., 2005.
Digi, Digi International, the Digi logo, the Making Device Networking Easy logo, Digi Connect, and RealPort
are trademarks or registered trademarks of Digi International, Inc. in the United States and other countries worldwide.
All other trademarks are the property of their respective owners.
The ConnectPort WAN has DHCP server enabled by default.
!
In order to discover your Digi device, make sure your host
computer is setup to obtain IP addresses automatically.
Also ensure all firewall software is temporarily disabled.
1
Open your web browser and enter
the IP 192.168.1.1 into the URL address
bar.
Connect WAN Sync
(shown)
DB-25M to DB-9F
Digi Connectware
Manager CD
!
1
Connect
antenna.
2
Connect
Ethernet cable
to your laptop.
2
From the web
interface, under
Configuration click
Mobile. Enter your
service provider name
and connection
parameters and click
Apply.
Power (green)
Network Link
(green) on steady blinking;
Ethernet activity or seeking or waiting
for an IP address
access point engaged
Reset Diagnostic (yellow)
ACT (yellow)
flashes 3 times
on - network
during startup or
traffic detected
reset indicating
(off when no
successful startup.
traffic detected)
What you will need
Antenna
Cross-over Ethernet
cable
PN:(1P)
90000779-88
Warning: Do not over-tighten the
antenna. Over-tightening may
damage internal connections.
Loosen antenna before adjusting
antenna angles.
3
Connect
p p power supply.
The Link LED will
remain on steady
and the Active
LED will blink
when connection
is active.
A
