1 Two 19-inch brackets
2 Extension rails and brackets for four-point
mounting
3 Eight number-12 Phillips pan-head 0.50"
long screws
Note
Order the optional 23-inch rack mount kit from your Cisco sales representative.

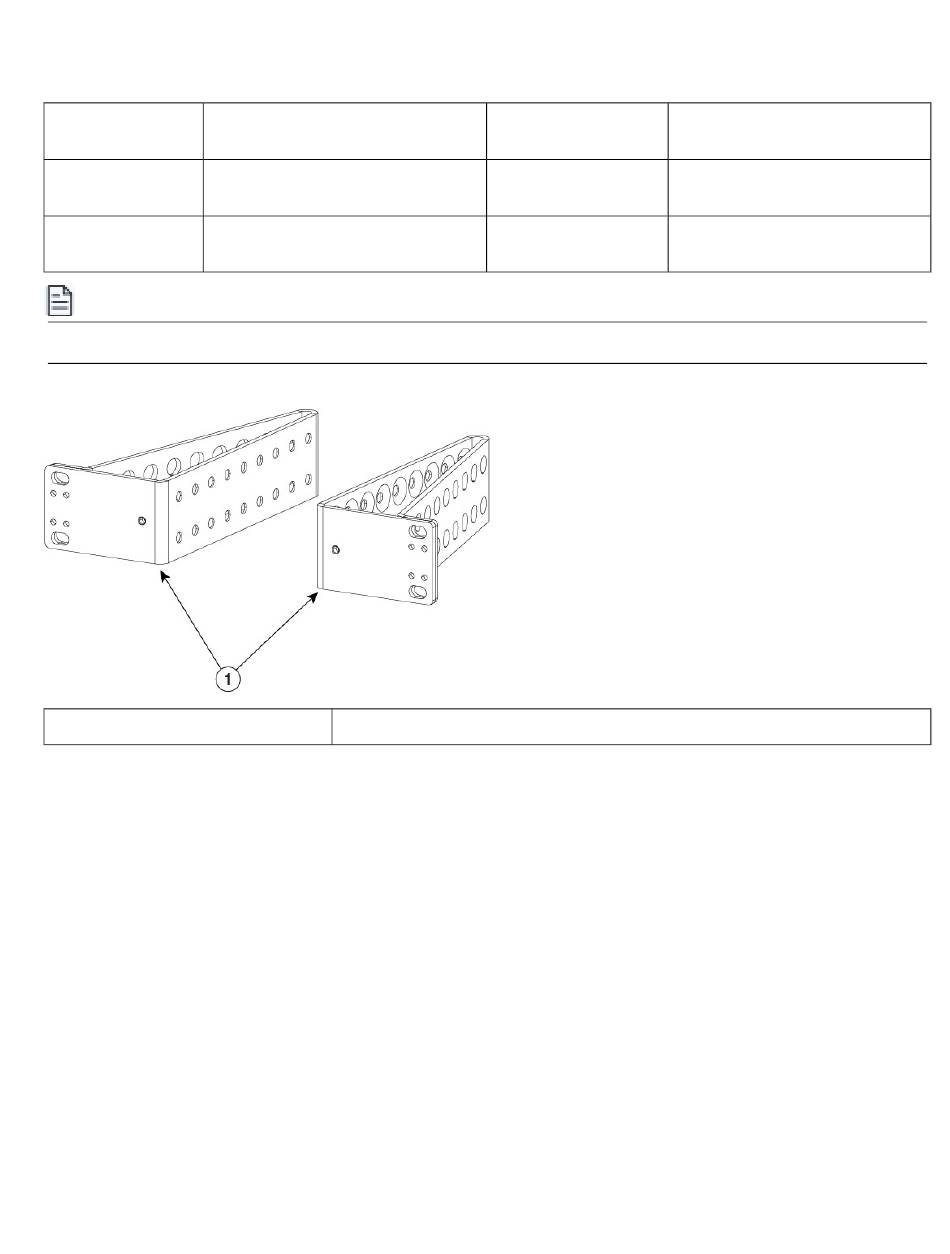

Figure 4: 23-inch Rack Mount Kit
1
Attach the rack-mount bracket
Step 1
Attach the rack-mount brackets to the switch.
a) Use M4.0x6mm Phillips flat-head screws to attach the long side of the bracket to each side of the switch for the front,
middle, or rear mounting positions.
b) Use 6 screws to install the bracket on one side of the switch.
4
5
-
23-inch rack mount bracket
Eight number-10 Phillips pan-head
0.625" long screws
24 M4.0 x 6mm Phillips flat-head
screws
-
