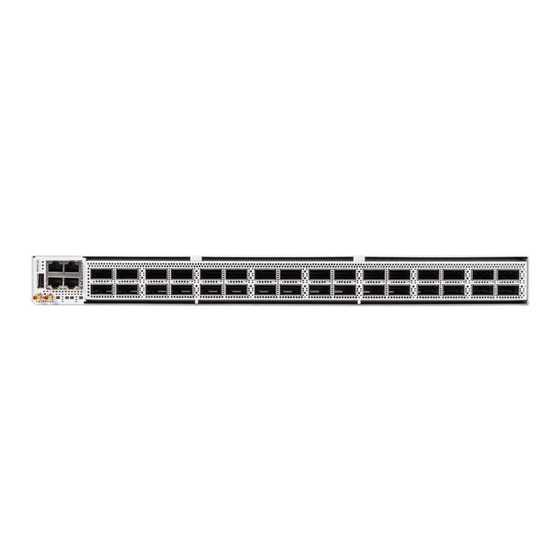

Install the Fan - HF6100-32D
Fan overview
The fan module is designed to be removed and replaced while the system is operating without presenting an electrical hazard or
damage to the system. Please keep the replacement fan modules ready prior to attempting this task.
Table 1: Fan part number and description
Part Number
FAN-1RU-PI-V2
FAN-1RU-PE-V2
Six individual fan modules are available. The switch can operate with five operational fans and one nonfunctional fan. Any failed
fan should be replaced as soon as possible to avoid service interruption due to a second fan fault.
Fan installation guidelines
The airflow direction must be the same for all power supply and fan modules in the chassis. Depending upon the required airflow
direction, you can change the fan type. You must then also change the power supply.
Description
Port Side intake airflow
Port Side exhaust airflow
1
Advertisement
Related Manuals for Cisco HF6100-32D
Summary of Contents for Cisco HF6100-32D
- Page 1 Revised: February 28, 2025 Install the Fan - HF6100-32D Fan overview The fan module is designed to be removed and replaced while the system is operating without presenting an electrical hazard or damage to the system. Please keep the replacement fan modules ready prior to attempting this task.
- Page 2 Figure 1: Airflow Direction Install a fan Step 1 Hold the fan module with the LED at the top. Step 2 Align the fan module to the open fan tray slot in the chassis, and press the module all the way into the slot until the left and right latches click and are locked on the chassis.
- Page 3 Follow the steps for Install a fan. Find the fan module serial number If you contact Cisco Technical Assistance regarding a fan module, you need to know the fan module serial number. See the following illustration to find the serial number.
- Page 4 Figure 2: Fan Module Serial Number...
