Revised: February 28, 2025
Install the Switch - HF6100-32D
Unbox or unpack the switch
Box contents
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are
optional, depending on your order.

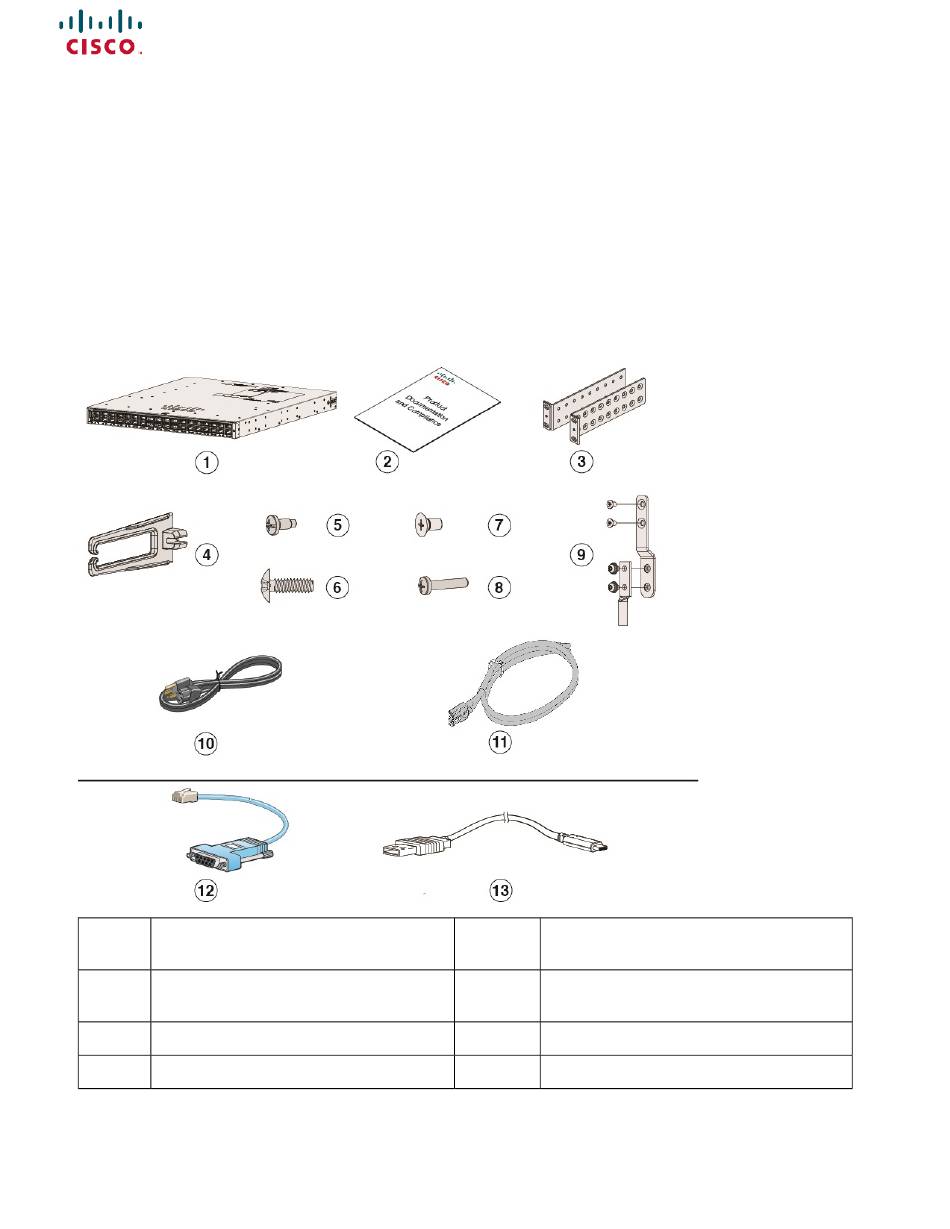

Figure 1: Components Delivered in the Shipping Box of Cisco Nexus Hyperfabric (HF6100-32D)
1
Cisco Nexus Hyperfabric HF6100-32D (power
supply and fan modules not shown)
2
Product documentation and compliance
document
3
Mounting brackets
4
Cable guide
8
One M4.0 x 20mm Phillips pan-head screw (Black
color)
9
Ground lug and four M4.0 x 6mm screws (two
pan-head and two flat-head screws)
10
(Optional) AC power cord
11
(Optional) DC power cord
1
