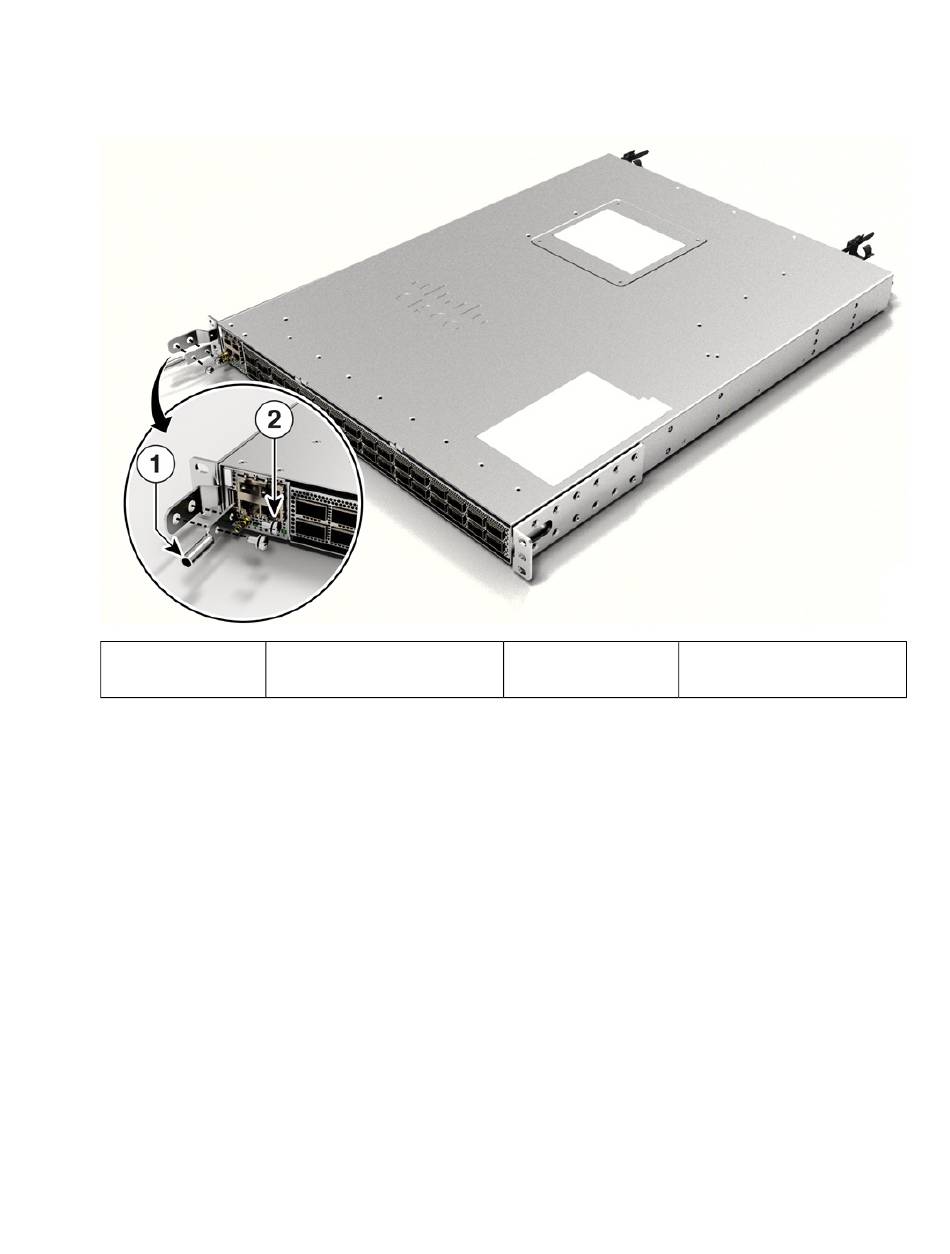

Figure 2: Installing the Grounding Lug
1
Step 6 Tighten the pan-head screws to torque value of 13.25 in-lbs (1.5 N-m).
Step 7
Ensure that the lug and cable do not interfere with other equipment.
Step 8 Prepare the other end of the grounding wire with a ring lug and secure it to the rack with a screw.
Install the rack

Rack installation guidelines

Before installing the chassis, ensure that the following guidelines are met:
• Site is properly prepared so that there is sufficient room for installation and maintenance.
• Operating environment is within the ranges that are listed in Environment and Physical specifications.
• Chassis is mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting the chassis in a partially filled rack, load the rack from the bottom to the top with the heaviest component at
the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the chassis in the rack.
4
Grounding lug 2 Grounding lug M4.0 x 6mm
pan-head screws
