Summary of Contents for FULGOR FO60DC

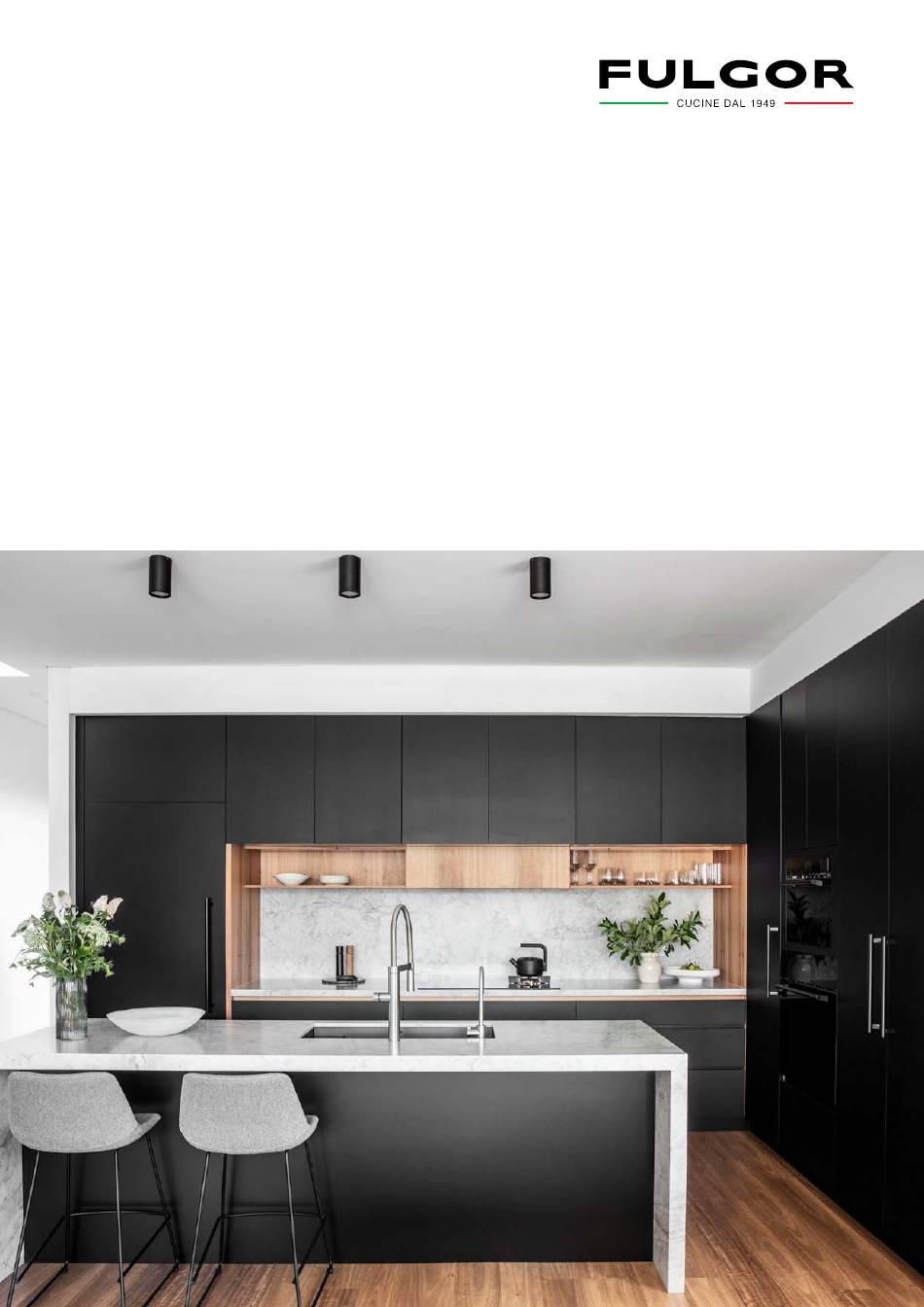

- Page 1 Operation & Installation Manual Knob Control 60cm, 75cm & 90cm Built-in Ovens FO60DC, FO60MMX, FO759, FO990X, FO994 www.fulgor.kitchen...
-
Page 2: Table Of Contents
CANCELLING A COOKING PROGRAMME TIMER TOUCH CONTRO REPLACING THE OVEN LIGHT REMOVING THE OVEN DOOR INSTALLATION INSTRUCTIONS FLUSH FITTING For FO60DC, FO60MMX, & FO994 ELECTRICAL CONNECTIONS FO60DC & FO60MMX FO759 FO994 WARRANTY R E V. 0 1. 0 3 . 2 0 24... -
Page 3: Dear Customer
We would therefore request you to read and follow these easy instructions which will allow you to obtain excellent results right from the start. Fulgor Appliances IMPORTANT The oven’s data plate is accessible even with the oven fully installed. The plate is visible simply by opening the door. -
Page 4: Safety Instruction
SAFETY INSTRUCTIONS Do not disassemble any parts prior to having disconnected the oven from the mains. ƒ Do not use the appliance if any part is broken (for example a glass). Disconnect it from the mains and ƒ call service. Before using the oven, it is recommended to make it operate at noload at the maximum temperature for an ƒ... -
Page 5: The First Time You Use The Oven
THE FIRST TIME YOU USE THE OVEN Clean the oven thoroughly with soapy water and rinse well. To remove the lateral frames from smooth-walled ovens, proceed as shown in the figure. Operate the oven for about 30 minutes at maximum temperature to burn off all traces of grease which might otherwise create unpleasant smells when cooking. -
Page 6: Respect For The Environment
RESPECT FOR THE ENVIRONMENT The documentation provided with this oven has been printed on chlorine free bleached paper or recycled paper to show respect for the environment. The packaging has also been designed to avoid environmental impact. Packaging material is ecological and can be re-used or recycled. By recycling the packaging, you will help save raw materials as well as reducing the bulk of domestic and industrial waste. -
Page 7: Control Panel Functions
CONTROL PANEL FUNCTIONS FUNCTION SYMBOLS ON THE SELECTOR Oven light (stays on while oven is in use). Bottom heating element. Thermostat setting from 50°C to MAX. Top and bottom heating elements. Thermostat setting from 50°C to MAX. Top and bottom heating elements with fan. Thermo- stat setting from 50°C to MAX. Circular heating element with fan. -
Page 8: Instructions For Use
INSTRUCTIONS FOR USE CONVENTIONAL COOKING Conventional cooking uses top and bottom heat to cook a single dish. Place the food in the oven only once cooking temperature has been reached, i.e. when the heating indicator goes out. If you want to increase top or bottom temperature to- wards the end of the cook- ing cycle, set the temperature control to the right position. -
Page 9: Grill Cooking
GRILL COOKING Use the grill to grill or brown foods. Some ovens may be equipped with an electric motor, spit and skewers for turning on the spit. Place the shelf with the food to be cooked in the 1st or 2nd position from the top. Pre-heat the oven for 5 minutes. -
Page 10: Key Electronic Timer
COOLING FAN CONT... It is turned off when the temperature of the outer shell of the oven descends under 60°C. By switching off the oven with the thermostat at 200°C the fan stops working after approx. 30 min. Use the thermostat to set the cooking temperature you need. THERMOSTAT The thermostat can be adjusted from 50°... -
Page 11: Setting The Clock
SETTING THE CLOCK Press the duration key and the end of cooking key simultaneously, then press the +/- keys to set the time. MANUAL OPERATION To start cooking without setting end of cooking time, press the manual key SETTING ONLY THE DURATION OF COOKING IN SEMI-AUTOMATIC MODE To set the duration of cooking, press the duration key and press the +/- keys to set the duration of cooking. -
Page 12: Timer Touch Contro
TIMER TOUCH CONTROL SETTING THE CLOCK Figure 1 “Auto” and “0:00” will start flashing when the unit is switched on for the first time. To set the clock, press the central button for about 3 seconds. When appears, press “+” or “-“ to set the correct time. Wait until a beep tells you that the clock has been set (figure 1). -
Page 13: End Of Cooking Time
END OF COOKING TIME Figure 4 The end of cooking time can also be set. Press the central button for 3 seconds. Press the central button twice consecutively and wait for “End” to appear (figure 4). Press “+” and “-” to set the required end of cooking time. The oven will work in the set mode and at the set temperature until the end of cooking time. -
Page 14: Replacing The Oven Light
REPLACING THE OVEN LIGHT IMPORTANT: The oven light must have these precise features: – it must be able to resist high temperatures (up to 300°C) – power supply: see V/Hz indicated on data plate. – power 25W. – E 14 connection. Before proceeding, dis- connect the appliance from the main electricity supply. –... -
Page 15: Removing The Oven Door
REMOVING THE OVEN DOOR The oven door can be removed quickly and easily. To do so, proceed as follows: Open the door fully. ƒ Lift the two levers shown in fig. ƒ Close the door as far as the first stop (caused by the raised levers). ƒ... -
Page 16: Installation Instructions
Allen screws provided. FOR FO60DC, FO60MMX, & FO994 Insert the bushings provided in the holes in the face. Use the four screws provided to fasten the bushings to the cabinet, taking care not to over tighten and break the bushing. - Page 17 The unit becomes very hot during use. Be careful not to touch the heating elements inside the oven. ƒ The different cooking levels where grids and drip pans where grids and drip pans the table on page 14. ƒ CABLE TYPES AND MINIMAL DIAMETERS SASO H05RR-F 3x1,5 mm²...
- Page 18 HEATING ELEMENT POWER RATING Roof element, external 1100 W Circular element 2300 W Bottom element 1300 W FO990X DIAGRAM min 5 • • • • • • • • • • • • • • • • • • • R E V.
-
Page 19: Fo60Dc & Fo60Mmx
FO60DC & FO60MMX • • • • • • • • • • • • FO759 • • • • • • • • • • • • • • • R E V. 0 1. 0 3 . 2 0 24... -
Page 20: Fo994
FO994 min 5 min 5 • • • • • • • • • • • • • The manufacturer declines all responsibility for possible inaccuracies contained in this pamphlet, due to printing or copying errors. We reserve the right to make on our own products those changes to be considered necessary or useful, without jeopardising the essential characteristics. -
Page 21: Warranty Registration
Our purpose in collecting the Personal Information is to keep a record of the Fulgor Milano product purchased by you, in order to provide a better warranty service to you in the unlikely event that there is a problem with your Fulgor Milano product. -
Page 22: What Is Not Covered By The Warranty
2. WHAT IS NOT COVERED BY THE WARRANTY. The Warranty does not apply if an Fulgor Milano product is defective by a factor other than a defect arising in the manufacture of the Fulgor Milano product, including but not limited to:... - Page 23 8. DEFECTS Any part of an Fulgor Milano product deemed to be defective and replaced by Worldwide Appliances is the property of Worldwide Appliances. Worldwide Appliances reserves the right to inspect and test Fulgor Milano products in order to determine the extent of any defect and the validity of a claim under the Warranty.
- Page 24 Product dimensions indicated in our literature is indicative only. Actual product only should be used to define dimension cutouts. Distributors, and retailers are not agents of Fulgor & Artusi and are not authorised to bind Fulgor or Artusi by any express or implied undertaking or representation.
