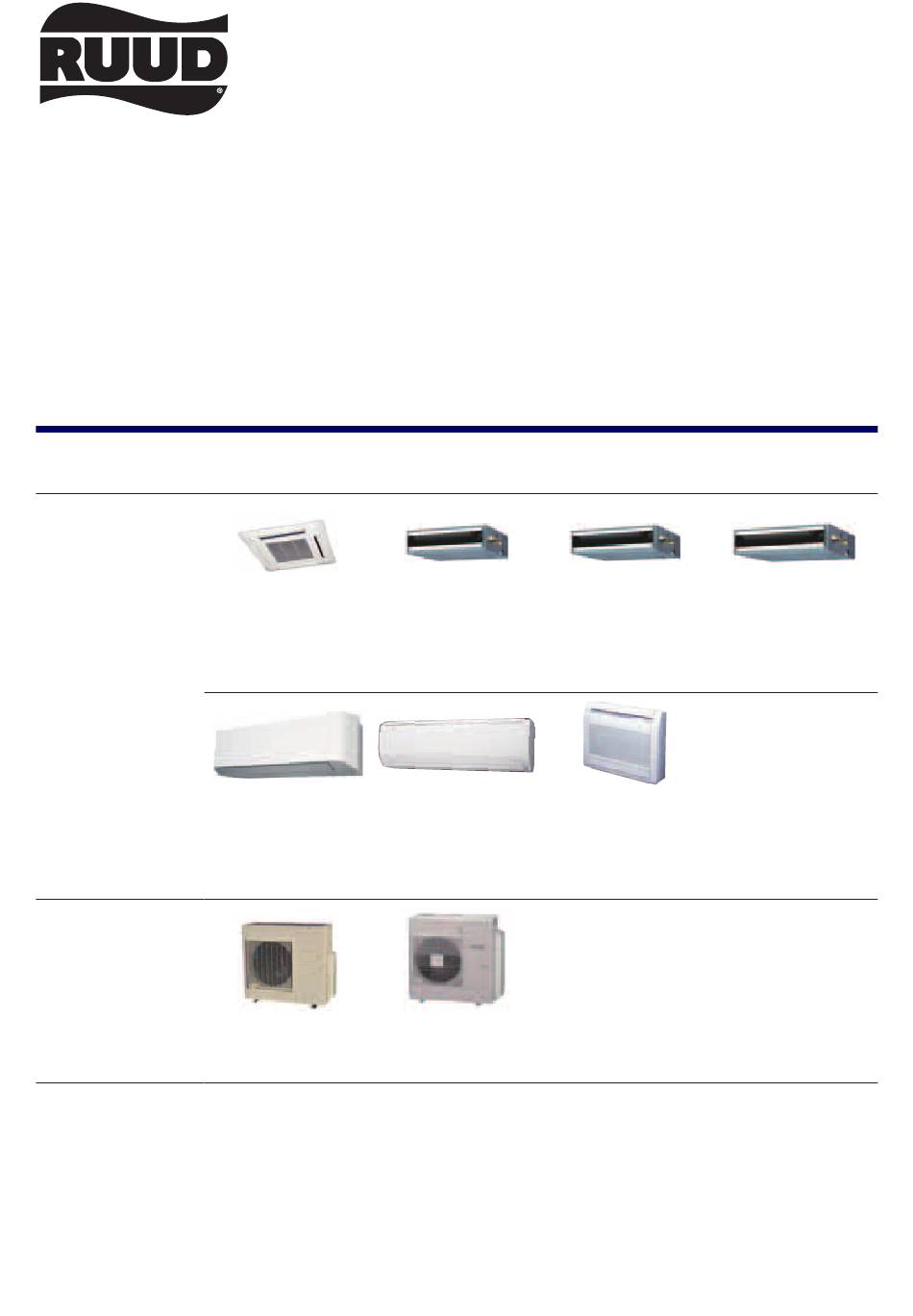

Page 1 R410A REFRIGERANT INVERTER AIR CONDITIONER Multi: 2, 3, 4 rooms type DESIGN & TECHNICAL MANUAL For Extra Cold Climate Area RICH07AVFJ RIDH07AVFJ RIDH18AVFJ RIDH24AVFJ RICH09AVFJ RIDH09AVFJ RICH12AVFJ RIDH12AVFJ RICH18AVFJ INDOOR UIWH07AVFJ UIWH18AVFJ RIFH09AVFJ UIWH09AVFJ UIWH24AVFJ RIFH12AVFJ UIWH12AVFJ RIFH15AVFJ UIWH15AVFJ OUTDOOR...
Page 2 Notices: • Product specifications and design are subject to change without notice for future improvement. • For further details, please check with our authorized dealer.
Page 3: Table Of Contents
CONTENTS Part 1. INDOOR UNIT................1 1. Model lineup ....................2 1-1. Connectable indoor units to each outdoor unit..............2 1-2. Indoor unit connection patterns..................3 2. Specifications....................5 2-1. Compact cassette type ....................5 2-2. Slim duct type ........................6 2-3. Wall mounted type ......................8 2-4. Floor type ........................10 3.
Page 4 CONTENTS (continued) 11-1.External input ........................80 11-2.External output......................82 12. Remote controller ..................89 12-1.Wireless remote controller (for UIWH18/24AVFJ)............89 12-2.Wireless remote controller (for UIWH07/09/12/15AVFJ and Floor type) .......91 12-3.Wired remote controller (UXRNNUM) ................93 12-4.Simple remote controller (UXRSNUM: Optional part) ...........97 13. Function settings ..................102 13-1.Indoor unit (setting by jumper wire) ................102 13-2.Indoor unit (setting by wireless remote controller)............103 13-3.Indoor unit (setting by wired remote controller) ............116...
Page 5 CONTENTS (continued) Part 2. OUTDOOR UNIT (2 ROOMS TYPE) ........145 1. Specifications....................146 2. Dimensions....................147 2-1. Model: UOMH18FXZHJ ....................147 3. Installation space ..................148 3-1. Model: UOMH18FXZHJ ....................148 4. Refrigerant circuit ..................151 4-1. Model: UOMH18FXZHJ ....................151 5. Wiring diagram ..................152 5-1. Model: UOMH18FXZHJ ....................152 6.
Page 6 CONTENTS (continued) Part 3. OUTDOOR UNIT (3 ROOMS TYPE) ........175 1. Specifications....................176 2. Dimensions....................177 2-1. Model: UOMH24FXZHJ ....................177 3. Installation space ..................178 3-1. Model: UOMH24FXZHJ ....................178 4. Refrigerant circuit ..................181 4-1. Model: UOMH24FXZHJ ....................181 5. Wiring diagram ..................182 5-1. Model: UOMH24FXZHJ ....................182 6.
Page 7 CONTENTS (continued) Part 4. OUTDOOR UNIT (4 ROOMS TYPE) ........217 1. Specifications....................218 2. Dimensions....................219 2-1. Model: UOMH36FXZHJ ....................219 3. Installation space ..................220 3-1. Model: UOMH36FXZHJ ....................220 4. Refrigerant circuit ..................223 4-1. Model: UOMH36FXZHJ ....................223 5. Wiring diagram ..................224 5-1. Model: UOMH36FXZHJ ....................224 6.
Page 9: Part 1. Indoor Unit
Part 1. INDOOR UNIT COMPACT CASSETTE SLIM DUCT TYPE: TYPE: RIDH07AVFJ RICH07AVFJ RIDH09AVFJ RICH09AVFJ RIDH12AVFJ RICH12AVFJ RIDH18AVFJ RICH18AVFJ RIDH24AVFJ WALL MOUNTED TYPE: FLOOR TYPE: UIWH07AVFJ RIFH09AVFJ UIWH09AVFJ RIFH12AVFJ UIWH12AVFJ RIFH15AVFJ UIWH15AVFJ UIWH18AVFJ UIWH24AVFJ...
Page 10: Model Lineup
1. Model lineup Indoor unit RICH07AVFJ RIDH07AVFJ RIDH18AVFJ RICH09AVFJ RIDH09AVFJ RICH12AVFJ RIDH12AVFJ RICH18AVFJ RIDH24AVFJ UIWH07AVFJ UIWH18AVFJ UIWH09AVFJ UIWH24AVFJ UIWH12AVFJ UIWH15AVFJ RIFH09AVFJ RIFH12AVFJ RIFH15AVFJ Outdoor unit UOMH18FXZHJ UOMH36FXZHJ UOMH24FXZHJ 1-1. Connectable indoor units to each outdoor unit ●: Connectable / -: Not connectable...
Page 11: Indoor Unit Connection Patterns
1-2. Indoor unit connection patterns ¢ 2 rooms Outdoor unit: UOMH18FXZHJ Room 1 Room 2 Total 7: 7,000Btu/h, 9: 9,000Btu/h, 12: 12,000Btu/h ¢ 3 rooms Outdoor unit: UOMH24FXZHJ Room 1 Room 2 Room 3 Total — — — — — —...
Page 12 ¢ 4 rooms Outdoor unit: UOMH36FXZHJ Room 1 Room 2 Room 3 Room 4 Total — — — — — — — — — — — — — — — — — — — — 7: 7,000Btu/h, 9: 9,000Btu/h, 12: 12,000Btu/h, 15: 14,000Btu/h, 18: 18,000Btu/h, 24: 24,000Btu/h *1: Optional kit RXK9FZ1818 shall be necessary for the dual zone system "18 + 18".
Page 13: Specifications
2. Specifications 2-1. Compact cassette type Model name RICH07AVFJ RICH09AVFJ RICH12AVFJ RICH18AVFJ Power supply 208/230 V ~ 60 Hz Available voltage range 187—253 V Capacity Btu/h class 7,000 9,000 12,000 18,000 Input power Running current 0.15 0.15 0.19 0.30 HIGH...
Page 14: Slim Duct Type
2-2. Slim duct type Model name RIDH07AVFJ RIDH09AVFJ RIDH12AVFJ Power supply 208/230 V ~ 60 Hz Available voltage range 187—253 V Capacity Btu/h class 7,000 9,000 12,000 Input power Running current 0.30 0.30 0.35 HIGH 324 (550) 353 (600) 383 (650) 288 (490) 324 (550) 353 (600)
Page 15 Model name RIDH18AVFJ RIDH24AVFJ Power supply 208/230 V ~ 60 Hz Available voltage range 187—253 V Capacity Btu/h class 18,000 24,000 Input power Running current 0.44 0.66 HIGH 554 (940) 783 (1,330) 518 (880) 730 (1,240) Cooling 483 (820) 648 (1,100) QUIET 441 (750) 607 (1,030)
Page 16: Wall Mounted Type
2-3. Wall mounted type Model name UIWH07AVFJ UIWH09AVFJ UIWH12AVFJ UIWH15AVFJ Power supply 208/230 V ~ 60 Hz Available voltage range 187—253 V Capacity Btu/h class 7,000 9,000 12,000 14,000 Input power Running current 0.13 0.15 0.19 0.25 HIGH 330 (560) 353 (600) 388 (660) 430 (730)
Page 17 Model name UIWH18AVFJ UIWH24AVFJ Power supply 208/230 V ~ 60 Hz Available voltage range 187—253 V Capacity Btu/h class 18,000 24,000 Input power Running current 0.32 0.53 HIGH 542 (920) 659 (1,120) 436 (740) 530 (900) Cooling 365 (620) 436 (740) QUIET 324 (550) 365 (620)
Page 18: Floor Type
2-4. Floor type Model name RIFH09AVFJ RIFH12AVFJ RIFH15AVFJ Power supply 208/230 V ~ 60 Hz Available voltage range 187—253 V Capacity Btu/h class 9,000 12,000 14,000 Input power Running current 0.15 0.18 0.20 HIGH 312 (530) 353 (600) 383 (650) 259 (440) 288 (490) 306 (520)
Page 19: Dimensions
3. Dimensions 3-1. Compact cassette type ¢ Models: RICH07AVFJ, RICH09AVFJ, RICH12AVFJ, and RICH18AVFJ Unit: in (mm) • Cassette grille mounting state 20-7/8 (530): Hanging bolt position 5-5/16 9-13/16 (250) (135) op view Be sure to leave Maintenance space maintenance space...
Page 20: Installation Space
• Grille (RXCCGF) Side view 27-9/16 (700) Bottom view  Installation space Unit: in (mm) Strong and durable ceiling 11 (262) or more 40 (1,000) 40 (1,000) or more or more 95 (2,400) or more Obstruction Floor Maximum height from floor to ceiling [Unit: in (mm)] Model name RICH07-09AVFJ RICH12-18AVFJ...
Page 21 • 3-way direction setting Unit: in (mm) 4 (100) or more* NOTES: • *: When installing the indoor unit, be careful about the maintenance space. • To set “3-direction”, optional Air outlet shutter plate (RXYDZB) must be installed, and the “outlet- direction”...
Page 22: Slim Duct Type
3-2. Slim duct type ¢ Models: RIDH07AVFJ, RIDH09AVFJ, and RIDH12AVFJ Unit: in (mm) 22-5/8 (574) 2 (51) View A Rear view Drain port 3-15/16 (100) x 6 = 23-5/8 (600) 1-7/8 (47) 25-9/16 (650) 2-3/16 (55) 3-1/16 (78) 28-7/8 (734) 3-1/2 (89) 1-7/8 (48) 4-11/16 (119)
Page 23 ¢ Model: RIDH18AVFJ Unit: in (mm) 2 (51) 30-1/2 (774) Rear view View A Drain port 1-7/8 (47) 3-15/16 (100) × 8 = 31-1/2 (800) 2-3/16 (55) 33-7/16 (850) 3-1/16 (78) 36-3/4 (934) 3-7/16 3-1/2 (89) (87) 4-11/16 (119) Top view 2-3/16 6-9/16 (56)
Page 24 ¢ Model: RIDH24AVFJ Unit: in (mm) 38-3/8 (974) 2 (51) Rear view View A Drain port 3-15/16 (100) x 10 = 39-3/8 (1,000) 1-7/8 (47) 2-3/16 (55) 3-1/16 (78) 41-5/16 (1,050) 44-5/8 (1,134) 3-1/2 (89) 4-11/16 (119) 3-7/16 (87) Top view 6-9/16 (167) 2-3/16 (56) 1-11/16 (43)
Page 25: Installation Space Requirement
¢ Installation space requirement Provide sufficient installation space for product safety. In ceiling-concealed installations: Unit: in (mm) 12 (300) or more Strong and durable ceiling 1 (20) or more Indoor unit Left Right side side 1 (20) or more 12 (300) 4 (100) Service access Ceiling...
Page 26: Maintenance Space Requirement
¢ Maintenance space requirement For future maintenance and service access, provide sufficient maintenance space. NOTE: Do not place any wiring or illumination in the maintenance space, as they will impede ser- vice. Unit: in (mm) Service access Unit Control 12 (300) or more Service space - 18 -...
Page 27: Wall Mounted Type
3-3. Wall mounted type ¢ Models: UIWH07AVFJ, UIWH09AVFJ, UIWH12AVFJ, and UI- WH15AVFJ Unit: in (mm) 8-1/16 (204) 34-1/4 (870) [34-1/4 (870)] 16-3/4 (426) 17-1/2 (444) 12-3/16 (310) 11-5/8 (295) Outline of unit 2-9/16 (65) 6-1/2 (165) 5-11/16 (144) 2-9/16 (65) for pipe inlet for pipe inlet 7 (178)
Page 28  Installation space requirement Provide sufficient installation space for product safety. CAUTION Do not place any other electrical products or household belongings under the product. Condensa- tion dripping from the product might get them wet, and may cause damage or malfunction to the property.
Page 29 ¢ Models: UIWH18AVFJ and UIWH24AVFJ Unit: in (mm) 39-5/16 (998) 9-3/8 (238) 39-5/16 (998) 18-9/16 (471) 17 (432) 2-5/8 (67) 1-1/8 (28) Outline of unit 2-3/8 (61) 17-1/4 (438) 15-5/8 (397) 4 (102) Ø 3-1/8 (80) hole Ø 3-1/8 (80) hole Piping inlet Piping inlet - 21 -...
Page 30  Installation space requirement Provide sufficient installation space for product safety. CAUTION Do not place any other electrical products or household belongings under the product. Condensa- tion dripping from the product might get them wet, and may cause damage or malfunction to the property.
Page 31: Floor Type
3-4. Floor type ¢ Models: RIFH09AVFJ, RIFH12AVFJ, and RIFH15AVFJ Unit: in (mm) 7-7/8 (200) 29-1/8 (740) Side view Front view ¢ Installation space Unit: in (mm) 4 (100) or more 4 (80) or more 4 (80) or more 2 (50) or more 5 (150) or less - 23 -...
Page 32: Wiring Diagrams
4. Wiring diagrams 4-1. Compact cassette type ¢ Models: RICH07AVFJ, RICH09AVFJ, RICH12AVFJ, and RICH18AVFJ - 24 - 4-1. Compact cassette type 4. Wiring diagrams...
Page 33: Slim Duct Type
4-2. Slim duct type ¢ Models: RIDH07AVFJ, RIDH09AVFJ, RIDH12AVFJ, RIDH18AVFJ, and RIDH24AVFJ - 25 - 4-2. Slim duct type 4. Wiring diagrams...
Page 34: Wall Mounted Type
4-3. Wall mounted type ¢ Models: UIWH07AVFJ, UIWH09AVFJ, UIWH12AVFJ, and UI- WH15AVFJ - 26 - 4-3. Wall mounted type 4. Wiring diagrams...
Page 35 ¢ Models: UIWH18AVFJ and UIWH24AVFJ - 27 - 4-3. Wall mounted type 4. Wiring diagrams...
Page 36: Floor Type
4-4. Floor type ¢ Models: RIFH09AVFJ, RIFH12AVFJ, and RIFH15AVFJ - 28 - 4-4. Floor type 4. Wiring diagrams...
Page 37: Air Velocity And Temperature Distributions
5. Air velocity and temperature distributions 5-1. Compact cassette type ¢ Models: RICH07AVFJ and RICH09AVFJ • Air velocity distribution Fan speed Operation mode Measuring conditions HIGH (ft) Unit: ft/s (m/s) 1 (0.25) 2 (0.5) 3 (1.0) 7 (2.0) 3 (1.0) 7 (2.0)
Page 38 Measuring conditions Fan speed Operation mode Outlet directions NOTE: Reference data HIGH HEAT 4-way air outlet • Air velocity distribution (ft) Unit: ft/s (m/s) 7 (2.0) 7 (2.0) 5 (1.5) 5 (1.5) 3 (1.0) 3 (1.0) 2 (0.5) 2 (0.5) Side view 1 (0.25) 1 (0.25)
Page 39 ¢ Model: RICH12AVFJ • Air velocity distribution Fan speed Operation mode Measuring conditions HIGH (ft) Unit: ft/s (m/s) 1 (0.25) 2 (0.5) 3 (1.0) 7 (2.0) 7 (2.0) 3 (1.0) 1 (0.25) Top view 2 (0.5) 2 (0.5) Vertical airflow direction louver: Up 1 (0.25) 7 (2.0) 7 (2.0)
Page 40 Measuring conditions Fan speed Operation mode Outlet directions NOTE: Reference data HIGH HEAT 4-way air outlet • Air velocity distribution Unit: ft/s (m/s) (ft) 5 (1.5) 5 (1.5) Side view 3 (1.0) 3 (1.0) Vertical airflow direction louver: Down 2 (0.5) 2 (0.5) 1 (0.25) 1 (0.25)
Page 41 ¢ Model: RICH18AVFJ • Air velocity distribution Fan speed Operation mode Measuring conditions HIGH (ft) Unit: ft/s (m/s) 1 (0.25) 2 (0.5) 3 (1.0) 7 (2.0) 7 (2.0) 1 (0.25) 2 (0.5) 3 (1.0) Top view 2 (0.5) 3 (1.0) Vertical airflow direction louver: Up 1 (0.25) 7 (2.0)
Page 42 Measuring conditions Fan speed Operation mode Outlet directions NOTE: Reference data HIGH HEAT 4-way air outlet • Air velocity distribution Unit: ft/s (m/s) (ft) 7 (2.0) 7 (2.0) 5 (1.5) 5 (1.5) 3 (1.0) 3 (1.0) Side view 2 (0.5) 2 (0.5) Vertical airflow direction louver: Down 1 (0.25)
Page 43: Slim Duct Type
5-2. Slim duct type ¢ Model: RIDH07AVFJ NOTE: This data is measured after installing optional Auto louver grille kit. Fan speed Operation mode Measuring conditions HIGH • Air velocity distribution (ft) Unit: ft/s (m/s) Top view 7 (2) 3 (1) 2 (0.5) Vertical airflow direction louver: Up Horizontal airflow direction louver: Center...
Page 44 Fan speed Operation mode Measuring conditions HIGH HEAT • Air velocity distribution (ft) Unit: ft/s (m/s) 7 (2) Side view 3 (1) Vertical airflow direction louver: Down Horizontal airflow direction louver: Center 2 (0.5) (ft) • Air temperature distribution (ft) Unit: °F (°C) 86 (30) 82 (28)
Page 45 ¢ Model: RIDH09AVFJ NOTE: This data is measured after installing optional Auto louver grille kit. Fan speed Operation mode Measuring conditions HIGH • Air velocity distribution (ft) Unit: ft/s (m/s) Top view 7 (2) 3 (1) 2 (0.5) Vertical airflow direction louver: Up Horizontal airflow direction louver: Center (ft) (ft)
Page 46 Fan speed Operation mode Measuring conditions HIGH HEAT • Air velocity distribution (ft) Unit: ft/s (m/s) 7 (2) Side view Vertical airflow direction louver: Down 3 (1) Horizontal airflow direction louver: Center 2 (0.5) (ft) • Air temperature distribution (ft) Unit: °F (°C) 86 (30) 82 (28)
Page 47 ¢ Model: RIDH12AVFJ NOTE: This data is measured after installing optional Auto louver grille kit. Fan speed Operation mode Measuring conditions HIGH • Air velocity distribution (ft) Unit: ft/s (m/s) Top view 3 (1) 7 (2) 2 (0.5) Vertical airflow direction louver: Up Horizontal airflow direction louver: Center (ft) (ft)
Page 48 Fan speed Operation mode Measuring conditions HIGH HEAT • Air velocity distribution (ft) Unit: ft/s (m/s) 7 (2) Side view Vertical airflow direction louver: Down 3 (1) Horizontal airflow direction louver: Center 2 (0.5) (ft) • Air temperature distribution (ft) Unit: °F (°C) 86 (30) 82 (28)
Page 49 ¢ Model: RIDH18AVFJ NOTE: This data is measured after installing optional Auto louver grille kit. Fan speed Operation mode Measuring conditions HIGH • Air velocity distribution (ft) Unit: ft/s (m/s) Top view 7 (2) 3 (1) 2 (0.5) Vertical airflow direction louver: Up Horizontal airflow direction louver: Center (ft) (ft)
Page 50 Fan speed Operation mode Measuring conditions HIGH HEAT • Air velocity distribution (ft) Unit: ft/s (m/s) 7 (2) Side view Vertical airflow direction louver: Down Horizontal airflow direction louver: Center 3 (1) 2 (0.5) (ft) • Air temperature distribution (ft) Unit: °F (°C) 86 (30) 82 (28)
Page 51 ¢ Model: RIDH24AVFJ NOTE: This data is measured after installing optional Auto louver grille kit. Fan speed Operation mode Measuring conditions HIGH • Air velocity distribution (ft) Unit: ft/s (m/s) Top view 3 (1) 7 (2) 2 (0.5) Vertical airflow direction louver: Up Horizontal airflow direction louver: Center (ft) (ft)
Page 52 Fan speed Operation mode Measuring conditions HIGH HEAT • Air velocity distribution (ft) Unit: ft/s (m/s) 7 (2) Side view Vertical airflow direction louver: Down Horizontal airflow direction louver: Center 3 (1) 2 (0.5) (ft) • Air temperature distribution (ft) Unit: °F (°C) 86 (30) Side view...
Page 53: Wall Mounted Type
5-3. Wall mounted type ¢ Model: UIWH07AVFJ Fan speed Operation mode Measuring conditions HIGH Unit: ft/s (m/s) (ft) 7 (2.0) Top view 3 (1.0) 2 (0.5) Vertical airflow direction louver: Up Horizontal airflow direction louver: Center (ft) Unit: ft/s (m/s) (ft) 3 (1.0) 7 (2.0)
Page 54 ¢ Model: UIWH09AVFJ Fan speed Operation mode Measuring conditions HIGH Unit: ft/s (m/s) (ft) 7 (2.0) Top view 3 (1.0) 2 (0.5) Vertical airflow direction louver: Up Horizontal airflow direction louver: Center (ft) (ft) Unit: ft/s (m/s) 3 (1.0) 7 (2.0) 2 (0.5) Top view Vertical airflow direction louver: Up...
Page 55 ¢ Model: UIWH12AVFJ Fan speed Operation mode Measuring conditions HIGH Unit: ft/s (m/s) (ft) 7 (2.0) Top view 3 (1.0) 2 (0.5) Vertical airflow direction louver: Up Horizontal airflow direction louver: Center (ft) Unit: ft/s (m/s) (ft) 3 (1.0) 7 (2.0) 2 (0.5) Top view Vertical airflow direction louver: Up...
Page 56 ¢ Model: UIWH15AVFJ Fan speed Operation mode Measuring conditions HIGH Unit: ft/s (m/s) (ft) Top view 7 (2.0) 2 (0.5) 3 (1.0) Vertical airflow direction louver: Up Horizontal airflow direction louver: Center (ft) (ft) Unit: ft/s (m/s) 7 (2.0) 2 (0.5) 3 (1.0) Top view Vertical airflow direction louver: Up...
Page 57 ¢ Model: UIWH18AVFJ Fan speed Operation mode Measuring conditions HIGH (ft) Unit: ft/s (m/s) Top view 2 (0.5) 3 (1.0) 7 (2.0) Vertical airflow direction louver: Up Horizontal airflow direction louver: Center (ft) (ft) Unit: ft/s (m/s) 2 (0.5) 7 (2.0) 3 (1.0) Top view Vertical airflow direction louver: Up...
Page 58 ¢ Model: UIWH24AVFJ Fan speed Operation mode Measuring conditions HIGH (ft) Unit: ft/s (m/s) Top view 2 (0.5) 7 (2.0) 3 (1.0) Vertical airflow direction louver: Up Horizontal airflow direction louver: Center (ft) (ft) Unit: ft/s (m/s) 2 (0.5) 7 (2.0) 3 (1.0) Top view Vertical airflow direction louver: Up...
Page 59: Floor Type
5-4. Floor type ¢ Models: RIFH09AVFJ, RIFH12AVFJ, and RIFH15AVFJ Fan speed Operation mode Fan select Measuring conditions HIGH Upper and lower (ft) Unit: ft/s (m/s) 3(1.0) 2(0.5) Top view Vertical airflow direction louver: Up Horizontal airflow direction louver: Center UPPER LOWER (ft) Unit: ft/s (m/s)
Page 60: Fan Performance
6. Fan performance 6-1. Slim duct type ¢ Model: RIDH07AVFJ 0.44 (110) 0.40 (100) Hi (SP mode 09) 0.36 (90) SP mode 09 upper limit 0.32 (80) 0.28 (70) Quiet (SP mode 09) SP mode 09 0.24 (60) lower limit 0.20 (50) Normal SP 0.16 (40)
Page 61  Characteristics of air volume and capacity • Cooling Capacitty (600) (700) (400) (500) (800) Airflow (CFM [m 3 /h]) • Heating Capacitty (600) (700) (400) (500) (800) Airflow (CFM [m 3 /h]) - 53 - 6-1. Slim duct type 6.
Page 62 ¢ Model: RIDH09AVFJ 0.44 (110) 0.40 (100) Hi (SP mode 09) 0.36 (90) SP mode 09 upper limit 0.32 (80) 0.28 (70) Quiet (SP mode 09) 0.24 (60) SP mode 09 lower limit 0.20 (50) 0.16 (40) Normal SP upper limit 0.12 (30) Quiet (Normal SP) Hi (Normal SP)
Page 63  Characteristics of air volume and capacity • Cooling Capacitty (600) (700) (400) (500) (800) Airflow (CFM [m 3 /h]) • Heating Capacitty (600) (700) (400) (500) (800) Airflow (CFM [m 3 /h]) - 55 - 6-1. Slim duct type 6.
Page 64 ¢ Model: RIDH12AVFJ 0.44 (110) 0.40 (100) SP mode 09 upper limit Hi (SP mode 09) 0.36 (90) 0.32 (80) 0.28 (70) 0.24 (60) Quiet (SP mode 09) SP mode 09 lower limit 0.20 (50) 0.16 (40) Normal SP upper limit 0.12 (30) Quiet (Normal SP) Hi (Normal SP)
Page 65  Characteristics of air volume and capacity • Cooling Capacitty (600) (700) (500) (800) (900) Airflow (CFM [m 3 /h]) • Heating Capacitty (600) (700) (500) (800) (900) Airflow (CFM [m 3 /h]) - 57 - 6-1. Slim duct type 6.
Page 66 ¢ Model: RIDH18AVFJ 0.44 (110) SP mode 09 0.40 (100) upper limit 0.36 (90) Hi (SP mode 09) Quiet (SP mode 09) 0.32 (80) 0.28 (70) 0.24 (60) SP mode 09 lower limit Normal SP 0.20 (50) upper limit Quiet (Normal SP) 0.16 (40) 0.12 (30) SP mode 00...
Page 67  Characteristics of air volume and capacity • Cooling Capacitty (800) (900) (1,000) (1,100) (700) Airflow (CFM [m 3 /h]) • Heating Capacitty (800) (900) (1,000) (1,100) (700) Airflow (CFM [m 3 /h]) - 59 - 6-1. Slim duct type 6.
Page 68 ¢ Model: RIDH24AVFJ 0.32 (80) 0.28 (70) SP mode 05 upper limit 0.24 (60) Hi (SP mode 05) Quiet (SP mode 05) 0.20 (50) 0.16 (40) Normal SP upper limit 0.12 (30) Quiet (Normal SP) 0.08 (20) SP mode 05 lower limit SP mode 00 Hi (Normal SP)
Page 69  Characteristics of air volume and capacity • Cooling Capacitty (1,100) (1,200) (1,300) (1,500) (800) (900) (1,000) (1,400) (1,600) Airflow (CFM [m 3 /h]) • Heating Capacitty (1,100) (1,200) (1,300) (1,500) (800) (900) (1,000) (1,400) (1,600) Airflow (CFM [m 3 /h]) - 61 - 6-1.
Page 70: Airflow
• 3.6 m /h = 1 l/s • 1.699 m /h = 1 CFM 7-1. Compact cassette type Airflow Model Operation mode Fan speed High Cooling Quiet RICH07AVFJ High Heating Quiet High Cooling Quiet RICH09AVFJ High Heating Quiet High Cooling...
Page 71: Slim Duct Type
7-2. Slim duct type Airflow Model Operation mode Fan speed High Cooling Quiet RIDH07AVFJ High Heating Quiet High Cooling Quiet RIDH09AVFJ High Heating Quiet High Cooling Quiet RIDH12AVFJ High Heating Quiet High Cooling Quiet RIDH18AVFJ High Heating Quiet High 1,330 1,240 Cooling 1,100...
Page 72: Wall Mounted Type
7-3. Wall mounted type Airflow Model Operation mode Fan speed High Cooling Quiet UIWH07AVFJ High Heating Quiet High Cooling Quiet UIWH09AVFJ High Heating Quiet High Cooling Quiet UIWH12AVFJ High Heating Quiet High Cooling Quiet UIWH15AVFJ High Heating Quiet High Cooling Quiet UIWH18AVFJ High...
Page 73: Floor Type
7-4. Floor type Airflow Model Operation mode Fan speed High Cooling Quiet RIFH09AVFJ High Heating Quiet High Cooling Quiet RIFH12AVFJ High Heating Quiet High Cooling Quiet RIFH15AVFJ High Heating Quiet - 65 - 7-4. Floor type 7. Airflow...
Page 74: Noise Level Curve
8. Noise level curve 8-1. Compact cassette type ¢ Model: RICH07AVFJ  Cooling  Heating NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 NC-45 NC-45 NC-40 NC-40 HIGH HIGH NC-35 NC-35 NC-30 NC-30 NC-25 NC-25 QUIET QUIET NC-20 NC-20 NC-15...
Page 75 ¢ Model: RICH12AVFJ  Cooling  Heating NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 HIGH NC-45 NC-45 HIGH NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 NC-25 NC-25 QUIET QUIET NC-20 NC-20 NC-15 NC-15 1,000 2,000 4,000 8,000 1,000 2,000 4,000 8,000 Octave band center frequency, Hz Octave band center frequency, Hz...
Page 76: Slim Duct Type
8-2. Slim duct type ¢ Model: RIDH07AVFJ  Cooling  Heating NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 NC-45 NC-45 NC-40 NC-40 NC-35 NC-35 HIGH HIGH NC-30 NC-30 NC-25 NC-25 NC-20 NC-20 QUIET QUIET NC-15 NC-15 1,000 2,000 4,000 8,000 1,000 2,000...
Page 77 ¢ Model: RIDH12AVFJ  Cooling  Heating NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 NC-45 NC-45 NC-40 NC-40 NC-35 NC-35 HIGH HIGH NC-30 NC-30 NC-25 NC-25 QUIET QUIET NC-20 NC-20 NC-15 NC-15 1,000 2,000 4,000 8,000 1,000 2,000 4,000 8,000 Octave band center frequency, Hz Octave band center frequency, Hz...
Page 78 ¢ Model: RIDH24AVFJ  Cooling  Heating NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 NC-45 NC-45 NC-40 HIGH NC-40 HIGH NC-35 NC-35 NC-30 NC-30 QUIET NC-25 QUIET NC-25 NC-20 NC-20 NC-15 NC-15 1,000 2,000 4,000 8,000 1,000 2,000 4,000 8,000 Octave band center frequency, Hz Octave band center frequency, Hz...
Page 79: Wall Mounted Type
8-3. Wall mounted type ¢ Model: UIWH07AVFJ  Cooling  Heating NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 NC-45 NC-45 HIGH HIGH NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 NC-25 NC-25 QUIET NC-20 NC-20 NC-15 NC-15 QUIET 1,000 2,000 4,000 8,000 1,000 2,000...
Page 80 ¢ Model: UIWH12AVFJ  Cooling  Heating NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 HIGH HIGH NC-45 NC-45 NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 NC-25 NC-25 QUIET NC-20 NC-20 QUIET NC-15 NC-15 1,000 2,000 4,000 8,000 1,000 2,000 4,000 8,000 Octave band center frequency, Hz Octave band center frequency, Hz...
Page 81 ¢ Model: UIWH18AVFJ  Cooling  Heating NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 HIGH HIGH NC-50 NC-50 NC-45 NC-45 NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 QUIET QUIET NC-25 NC-25 NC-20 NC-20 NC-15 NC-15 1,000 2,000 4,000 8,000 1,000 2,000 4,000 8,000 Octave band center frequency, Hz Octave band center frequency, Hz...
Page 82: Floor Type
8-4. Floor type ¢ Model: RIFH09AVFJ  Cooling  Heating NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 HIGH HIGH NC-45 NC-45 NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 NC-25 NC-25 NC-20 NC-20 NC-15 NC-15 QUIET QUIET 1,000 2,000 4,000 8,000 1,000 2,000 4,000...
Page 83 ¢ Model: RIFH15AVFJ  Cooling  Heating NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 HIGH HIGH NC-45 NC-45 NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 NC-25 NC-25 NC-20 NC-20 QUIET NC-15 NC-15 QUIET 1,000 2,000 4,000 8,000 1,000 2,000 4,000 8,000 Octave band center frequency, Hz Octave band center frequency, Hz...
Page 84: Sound Level Check Point
8-5. Sound level check point ¢ Compact cassette type Microphone Microphone - 76 - 8-5. Sound level check point 8. Noise level curve...
Page 85: Slim Duct Type
¢ Slim duct type 79 in (2 m) 40 in (1 m) Measuring duct Measuring duct Set the static pressure as rating in this area Microphone Microphone Side view Front view ¢ Wall mounted type Microphone Microphone 40 in (1 m) NOTE: Detailed shape of the actual indoor unit might be slightly different from the one illustrated above.
Page 86: Electrical Characteristics
9. Electrical characteristics Power supply Indoor rated Voltage Input power Type Model name RICH07AVFJ 0.19 / 0.19 17 / 18 0.15 / 0.15 RICH09AVFJ 0.19 / 0.19 17 / 18 0.15 / 0.15 Compact cassette RICH12AVFJ 0.24 / 0.24 22 / 23 0.19 / 0.19...
Page 87: Safety Devices
Terminal thermal Float Model name PCB* fuse type protector fuse switch Activate: 212 ± 27 °F (100 ± 15 °C) RICH07AVFJ Fan motor stop RICH09AVFJ Compact 250 V, 3.15 A ― ○ cassette Reset: 203 ± 18 °F RICH12AVFJ (95 ± 10 °C)
Page 88: External Input And Output
11. External input and output External input External output Indoor unit type Operation Fresh air Auxiliary heater Error status Control input status output control output output output Compact ● ● ● ― ― cassette Slim duct ● ● ● ● ―...
Page 89: Optional Part
1-pin 3-pin Indoor unit type (Polarity) (Polarity) Compact cassette Slim duct Wall mounted Floor • When function setting is "Operation/Stop" mode Input signal Operation Indoor unit Stop • When function setting is "Forced stop" mode Input signal Forced stop Command Normal Operation Indoor unit...
Page 90: 11-2.External Output
11-2. External output Use an external output cable with appropriate external dimension, depending on the number of ca- bles to be installed. ¢ Operation status output Indoor unit type Connector Compact cassette CN103 Slim duct CN103 UIWH07AVFJ, UIWH09AVFJ, UIWH12AVFJ, CNB01 UIWH15AVFJ Wall mounted UIWH18AVFJ, UIWH24AVFJ...
Page 91  Optional part Indoor unit type Part name Model name Compact cassette RXXWZX Slim duct RXECS5A UIWH07AVFJ, UIWH09AVFJ, UIWH12AVFJ, External connect kit RXXWZXZ5 UIWH15AVFJ Wall mounted UIWH18AVFJ, UIWH24AVFJ RXXWZX Floor RXXWZXZ5 Indoor unit type Part name Model name Compact cassette —...
Page 92: Fresh Air Control Output
¢ Fresh air control output Indoor unit type Connector Compact cassette Slim duct Wall mounted — Floor — Signal linked to air conditioner indoor fan on can be output. * However, signal becomes off during cold air prevention control operation. •...
Page 93: Auxiliary Heater Output
¢ Auxiliary heater output Indoor unit type Connector Compact cassette — Slim duct CN10 Wall mounted — Floor Signal is output from connector when indoor fan and compressor turn on under heating operation. *Signal output performance specifications are as shown as follows: Example: When Set Temperature (Ts) is 72 °F(22 °C) •...
Page 94 • Circuit diagram example Indoor unit Connected unit control PCB Example: Example: Heater 12 V Connector Relay unit Relay power On/Off supply 33 ft (10 m)* Signal Locally purchased – Relay spec.: Rated DC 12 V, 50 mA to less. –...
Page 95: Error Status Output
¢ Error status output Indoor unit type Connector Compact cassette — Slim duct — UIWH07AVFJ, UIWH09AVFJ, UIWH12AVFJ, CNB02 UIWH15AVFJ Wall mounted UIWH18AVFJ, UIWH24AVFJ — Floor CN21 Air conditioner error status signal can be output.  Circuit diagram example Indoor unit Connected unit control PCB *1 Connector...
Page 96 Indoor unit type Part name Model name Compact cassette — — Slim duct — — UIWH07AVFJ, UIWH09AVFJ, Communication kit RXXCBXZ2 UIWH12AVFJ, UIWH15AVFJ Wall mounted UIWH18AVFJ, UIWH24AVFJ — — Floor — — *For operating the external input function, the wall mounted (UIWH07AVFJ, UIWH09AVFJ, UI- WH12AVFJ, and UIWH15AVFJ) type requires Communication kit (RXXCBXZ2) in addition to the wire (RXXWZXZ5).
Page 97: Remote Controller
12. Remote controller 12-1. Wireless remote controller (for UIWH18/24AVFJ) ¢ Overview  AR-RAH2U a FAN button Selects the fan speed (AUTO, HIGH, MED, LOW, and QUIET). b START/STOP button Starts and stops operation. c SET button (vertical) Adjusts the vertical airflow direction. d SET button (horizontal) Adjusts the horizontal airflow direction.
Page 98 ¢ Specifications  Controller Unit: in (mm) Top view 3/4 (19) 2-3/16 (56) Front view Side view Rear view Size (H × W × D) in (mm) 6-11/16 × 2-3/16 × 3/4 (170 × 56 × 19) Weight oz (g) 3 (85) (without batteries) NOTE: Actual number of buttons might be different from the figure above.
Page 99: Display Panel
12-2. Wireless remote controller (for UIWH07/09/12/15AVFJ and Floor type) ¢ Overview • AR-REG1U Signal transmitter MODE button FAN button MIN. HEAT button TEMP. ECONOMY button SWING button button SET button POWERFUL button ON TIMER button REG1U OFF TIMER button Start/Stop button TIMER SELECT button REG1U...
Page 100 ¢ Specifications  Controller Unit: in (mm) Top view 11/16 2-3/8 (17) (61) Front view Side view Size (H × W × D) in (mm) 8-1/16 × 2-3/8 × 11/16 (205 × 61 × 17) Weight oz (g) 4.4 (124) (without batteries) ...
Page 101: 12-3.Wired Remote Controller (Uxrnnum)
12-3. Wired remote controller (UXRNNUM) ¢ Overview a START/STOP button Starts and stops operation. b SET TEMP. button Selects the setting temperature. c MODE button Selects the operating mode (AUTO , HEAT ,FAN COOL , and DRY d FAN button Selects the fan speed AUTO ,QUIET , LOW...
Page 102: System Diagram
¢ System diagram 1 remote controller: 2 remote controllers: Indoor unit Indoor unit A, B, C: Remote controller cable A ≤ 1,640 ft (500 m);B + C ≤ 1,640 ft (500 Primary Secondary Remote controller Remote controllers ¢ Electrical wiring 1 remote controller: 2 remote controllers: Indoor unit...
Page 103: Wiring Specifications
 Wiring specifications Cable size Wire type Remarks Remote controller cable Polar 3-core Use sheathed PVC cable. 22 AWG (0.33 mm ¢ Installation  Connection pattern NOTE: Connection pattern is different according to type of Indoor unit. Indoor unit types Connection pattern Compact cassette type Pattern A...
Page 104: Optional Parts
2. Connect the remote controller cable. • Connect the cable made in step 1. to the terminal (*1) of optional communication kit. • Connect the cable from the terminal (*2) of communication kit to the indoor unit PCB. CNC01 (for UIWH07—15AVFJ: RXXCBXZ2) CND01 (for UIWH07—15AVFJ: RXXCBXZ2) Terminal (*2)
Page 105: 12-4.Simple Remote Controller (Uxrsnum: Optional Part)
12-4. Simple remote controller (UXRSNUM: Optional part) ¢ Overview a START/STOP button Starts and stops operation. b Display backlight button Lights during operation. c Operation lamp Lights during operation. d FAN button Selects the fan speed (AUTO ,HIGH , MED , and QUIET ).
Page 106: Indoor Unit
¢ System diagram 1 remote controller: 2 remote controllers: Indoor unit Indoor unit A, B, C: Remote controller cable A ≤ 1,640 ft (500 m);B + C ≤ 1,640 ft (500 Primary Secondary Remote controller Remote controllers ¢ Electrical wiring 1 remote controller: 2 remote controllers: Indoor unit...
Page 107 ¢ Specifications Dimensions and other specifications on the wired remote controller are as follows. Unit: in (mm) 2-15/16 (75) 9/16 (14) 1-15/16 (49) 7/16 (11) hole x 2 1-9/16 (39) 1/4 (6) 2-3/8 (60) 3/16 (4) 5/16 (8) hole x 2 Front View Side View Rear View...
Page 108 ¢ Installation  Connection pattern NOTE: Connection pattern is different according to type of Indoor unit. Indoor unit types Connection pattern Compact cassette type Pattern A Slim duct type UIWH07AVFJ, UIWH09AVFJ, Pattern B UIWH12AVFJ, and UIWH15AVFJ Wall mounted type UIWH18AVFJ and UIWH24AVFJ Pattern C Floor type ...
Page 109 2. Connect the remote controller cable. • Connect the cable made in step 1. to the terminal (*1) of optional communication kit. • Connect the cable from the terminal (*2) of communication kit to the indoor unit PCB. CNC01 (for UIWH07—15AVFJ: RXXCBXZ2) CND01 (for UIWH07—15AVFJ: RXXCBXZ2) Terminal (*2)
Page 110: Function Settings
13. Function settings To adjust the functions of this product according to the installation environment, various types of function settings are available. NOTE: Incorrect settings can cause a product malfunction. 13-1. Indoor unit (setting by jumper wire) NOTE: This setting is necessary only for slim duct type. ¢...
Page 111: 13-2.Indoor Unit (Setting By Wireless Remote Controller)
13-2. Indoor unit (setting by wireless remote controller) • The function settings of the control of the indoor unit can be changed by this procedure according to the installation conditions. Incorrect settings can cause the indoor unit malfunction. • After the power is turned on, perform the “Function setting” according to the installation conditions using the remote controller.
Page 112 ¢ Model: AR-RAH2U  Button name and function During address setting mode, indoor unit reject the any operation command from remote con- troller. Function number Refer to Function details. MODE button Setting number - Starts the function setting mode Refer to Function details. - Changes the display digits FAN button START/STOP button...
Page 113 For confirming the custom code, press the TIMER MODE button to send the code to the indoor unit. 2 short beeps Press the MODE button to enter the function setting mode. Select the function number by pressing the or the button.
Page 114 Send the function mode information by pressing the TIMER MODE button once. 2 short beeps Send the function setting information by pressing the START/STOP button once. 2 short beeps will be emitted from the indoor unit when the signal is received correctly. If wrong code is set, no beep sound will be emitted.
Page 115  Resetting the power after setting up all indoor units Important: • If the reset is not performed, function cannot be read correctly. • After all the functions have been set, the circuit breaker needs to be switched off for at least 2 minutes.
Page 116  Remote controller custom code setting Custom code setting of wireless remote controller needs to be same as the setting of the indoor unit. When you change the custom code setting of the wireless remote controller, do as follows: Press the START/STOP button until only the clock is displayed on the remote controller dis- play.
Page 117 Press the MODE button again to return to the clock display. The custom code will be changed. • If no buttons are pressed within 30 seconds after the custom code is displayed, the system returns to the original clock display. In this case, start again from step 1. •...
Page 118 ¢ Model: AR-REG1U  Button name and function During address setting mode, indoor unit reject the any operation command from remote con- troller. Function number Refer to Function details Setting number Refer to Function details MIN HEAT button POWERFUL button Changes the display digits Switches between the setting number (bottom line) and function number (top...
Page 119 Select the function number by pressing the or the buttons. Each time the MIN. HEAT button is pressed, it switches between the right digit and the left digit. Change digit Change digit Proceed to the setting number by pressing the POWERFUL button. (To return to the function number selection, press the POWERFUL button again.) Select the function number by pressing the or the...
Page 120 Press the button once to transmit the function setting information. 2 short beeps will be emitted from the indoor unit when the signal is received correctly. If wrong code is set, no beep sound will be emitted. 2 short beeps NOTE: Press button within 30 seconds after pressing MODE button.
Page 121  Setting up each indoor unit Repeat step from 1. to 8. to set up each indoor unit. If the custom code is other than " ", steps from 1. to 2. and 8. need to be performed.  Resetting the power after setting up all indoor units Important: •...
Page 122  Remote controller custom code setting Custom code setting of wireless remote controller needs to be same as the setting of the indoor unit. When you change the custom code setting of the wireless remote controller, do as follows: Press the START/STOP button until only the clock is displayed on the display. Press the MODE button for at least 5 seconds to display the current custom code (initially set to Press the SET TEMP.
Page 123  Remote controller temperature unit To change the displayed temperature unit, press the "°C/°F" switching button to select the preferred temperature unit. (Factory setting is set to “°F”.): - 115 - 13-2. Indoor unit (setting by wireless remote controller) 13. Function settings...
Page 124: 13-3.Indoor Unit (Setting By Wired Remote Controller)
13-3. Indoor unit (setting by wired remote controller) • The function settings of the control of the indoor unit can be changed by this procedure according to the installation conditions. Incorrect settings can cause the indoor unit malfunction. • After the power is turned on, perform the “Function setting” according to the installation conditions using the remote controller.
Page 125 ¢ Model: UXRNNUM  Button name and function During address setting mode, indoor unit reject the any operation command from remote controller. Function number Refer to Function details Remote controller address Setting number Refer to Function details SET TEMP. “V” and “ Λ...
Page 126 Confirm the setting by pressing the TIMER SET button. The data will be transferred to the indoor unit. Not good Good ● Data is not set up on the indoor unit Data is correctly set up on the indoor unit correctly (-- is displayed.) (Flashing display changes to illuminated display.) ●...
Page 127: 13-4.Indoor Unit (Setting By Simple Remote Controller)
13-4. Indoor unit (setting by simple remote controller) • The function settings of the control of the indoor unit can be changed by this procedure according to the installation conditions. Incorrect settings can cause the indoor unit malfunction. • After the power is turned on, perform the “Function setting” according to the installation conditions using the remote controller.
Page 128 ¢ Model: UXRSNUM  Button name and function During address setting mode, indoor unit reject the any operation command from remote controller. Function number Setting number Refer to Function details Refer to Function details Remote controller address START/STOP button Transmits function setting FAN button SET TEMP.
Page 129 Select the setting number by pressing the SET TEMP. or SET TEMP. button. The setting number indicator flashes during setting number selection. Setting number Example) Function number : 30, Setting number : 01 Confirm the setting by pressing the TIMER SET button. The data will be transferred to the indoor unit.
Page 130  Resetting the power after setting up function of all indoor units NOTES: • If the reset is not performed, function cannot be read correctly. • After all the functions have been set, the circuit breaker needs to be switched off for at least 2 minutes.
Page 131: 13-5.Function Details
13-5. Function details ¢ Contents of function setting Each function setting listed in this section is adjustable in accordance with the installation environ- ment. NOTE: Setting will not be changed if invalid numbers or setting values are selected.  Function setting list Compact Wall Functions...
Page 132: Ceiling Height
2) Ceiling height Select the appropriate ceiling height according to the place of installation. Function number Setting value Setting description Factory setting Standard ♦ High ceiling For the specific height for each setting value, refer to “Installation space” in Chapter 3. "Dimensions"...
Page 133: Factory Setting
6) Room temperature control for indoor unit sensor NOTE: Before performing this setting, refer to Function 95. Depending on the installed environment, correction of the room temperature sensor may be re- quired. Select the appropriate control setting according to the installed environment. The temperature correction values show the difference from the Standard setting "00"...
Page 134 9) Remote controller custom code (Only for wireless remote controller) The indoor unit custom code can be changed. Select the appropriate custom code. Function number Setting value Setting description Factory setting ♦ 10) External input control "Operation/Stop" mode or "Forced stop" mode can be selected. Function number Setting value Setting description...
Page 135 13) Room temperature control for wired remote controller sensor NOTE: Before performing this setting, refer to Function 95. Depending on the installed environment, correction of the room temperature sensor may be re- quired. Select the appropriate control setting according to the installed environment. To change this setting, set Function 42 to "Both"...
Page 136: 13-6.Wired Remote Controller (Uxrnnum)
13-6. Wired remote controller (UXRNNUM) Prohibited Dual remote controller setting Prohibited DIP switch 1 °F/°C switch Prohibited Memory backup setting * Do not use DIP switch 2. ¢ Switch location Front case (back side) DIP switch 2 DIP switch 1 ¢...
Page 137  SW6: Memory backup setting Set to “ON” to use batteries for the memory backup. When batteries are not used, all of settings stored in memory will be deleted if there is a power failure. Memory backup Factory setting Disable ♦...
Page 138: 13-7.Simple Remote Controller (Uxrsnum)
13-7. Simple remote controller (UXRSNUM) Prohibited Dual remote controller setting °F/°C switch DIP switch Prohibited Prohibited Prohibited ¢ Switch location DIP Switch ¢ DIP switch setting  SW2: Dual remote controller setting Set the remote controller SW2 according to the following table. Primary unit Secondary unit Number of remote controller...
Page 139: Accessories
14. Accessories 14-1. Compact cassette type ¢ Models: RICH07AVFJ, RICH09AVFJ, RICH12AVFJ, and RICH18AVFJ Part name Exterior Q’ty Part name Exterior Q’ty Operating manual Drain hose Installation manual Hose band Coupler heat insulation Drain hose insulation (Large) Coupler heat insulation Remote controller...
Page 140: 14-2.Slim Duct Type
14-2. Slim duct type ¢ Models: RIDH07AVFJ, RIDH09AVFJ, RIDH12AVFJ, RIDH18AVFJ, and RIDH24AVFJ Part name Exterior Q’ty Part name Exterior Q’ty Operating manual Cable tie (large) Installation manual Cable tie (small) Installation template Drain hose Washer Hose band Coupler heat insulation Drain hose insulation B (large) Coupler heat insulation...
Page 141: 14-3.Wall Mounted Type
14-3. Wall mounted type ¢ Models: UIWH07AVFJ, UIWH09AVFJ, UIWH12AVFJ, and UI- WH15AVFJ Part name Exterior Q’ty Part name Exterior Q’ty Operating manual Cloth tape Installation manual Tapping screw (large) Wall hook bracket Tapping screw (small) Remote controller Air cleaning filter Battery Filter holder Seal A...
Page 142 ¢ Models: UIWH18AVFJ and UIWH24AVFJ Part name Exterior Q’ty Part name Exterior Q’ty Operating manual Drain hose insulation Installation manual Cloth tape Wall hook bracket Tapping screw (large) Remote controller Tapping screw (small) Battery Air cleaning filter Remote controller Air cleaning filter frame holder - 134 - 14-3.
Page 143: 14-4.Floor Type
14-4. Floor type ¢ Models: RIFH09AVFJ, RIFH12AVFJ, and RIFH15AVFJ Part name Exterior Q’ty Part name Exterior Q’ty Operating manual Cable tie Installation manual Cloth tape Wall hook bracket Tapping screw (large) Remote controller Tapping screw (small) Battery Air cleaning filter Remote controller holder - 135 -...
Page 144: Optional Parts
15. Optional parts 15-1. Controllers ¢ Lineup Type Wired remote Wireless remote controller Indoor unit type controller AR-RAH2U AR-REG1U UXRNNUM Compact cassette ● ◌ — Slim duct ● — — UIWH07AVFJ UIWH09AVFJ ◌* — ● UIWH12AVFJ Wall mounted UIWH15AVFJ UIWH18AVFJ ◌...
Page 145 ¢ Parts Wired remote controller Simple remote controller IR receiver unit UXRNNUM UXRSNUM UXLRHUM Wireless remote controller REG1U AR-RAH2U AR-REG1U - 137 - 15-1. Controllers 15. Optional parts...
Page 146: 15-2.Cassette Grille
15-2. Cassette grille ¢ Lineup Indoor unit type Model Compact cassette RXCCGF ¢ Part Cassette grille RXCCGF - 138 - 15-2. Cassette grille 15. Optional parts...
Page 147: 15-3.Others
15-3. Others ¢ Lineup Type Air outlet shutter Insulation kit for Fresh air intake External control Indoor unit type plate high humidity RXYDZB RXKXGC RXVXAA RXECS5A Compact cassette ◌ ◌ ◌ — Slim duct — — — ◌ UIWH07AVFJ UIWH09AVFJ —...
Page 148 ¢ Parts Air outlet shutter plate Insulation kit for high humidity Model: RXYDZB Model: RXKXGC Insulation For compact cassette type For compact cassette type Fresh air intake kit External control set Model: RXVXAA Model: RXECS5A (×1) (×2) (×1) (×2) For compact cassette type For slim duct type External connect kit External connect kit...
Page 149: Indoor Unit Installation Precautions
16. Indoor unit installation precautions NOTE: The information listed below are general precautions. Some models also include items that do not apply. 16-1. Places where prohibited for use • Places where there is a danger of combustible gas leakage. • Places where sulfur gas, chlorine gas, acid, alkali, or other matter which effects equipment is gen- erated.
Page 150: 16-2.Points To Remember When Installing
16-2. Points to remember when installing • The product shall be installed at a place which can withstand the weight and vibration of the in- door. • To allow maintenance after refrigerant piping, drain piping, and electric wiring connection and in- stallation, provide an installation service space and an inspection port, as required.
Page 151 Work method when reinforcing the heat insulation of on-site piping Slit of heat insulating material Heat insulation reinforcement material Flare connection facing upward (locally purchased) To indoor unit Covered gas pipe (heat insulation strengthened) Fit tightly Heat insulating material Small exposed part Binding material (purpose is to cover the sealant) (locally purchased)
Page 152 - 144 - 16-2. Points to remember when installing 16. Indoor unit installation precautions...
Page 153: Part 2. Outdoor Unit (2 Rooms Type)
Part 2. OUTDOOR UNIT (2 ROOMS TYPE) MULTI TYPE: UOMH18FXZHJ...
Page 154: Specifications
1. Specifications Type Inverter heat pump Model name UOMH18FXZHJ Power source 1Ø 208/230 V 60 Hz Available voltage range 187—253V Number Connectable indoor unit Total capacity range 14,000 to 21,000 Btu/h Non-duct Duct Combination of indoor unit UIWH09AVFJ × 2 RIDH09AVFJ ×...
Page 155: Dimensions
2. Dimensions 2-1. Model: UOMH18FXZHJ Unit: in (mm) Top view 1-9/16 1-1/4 35-7/16 (900) 13 (330) (40) (31) (12) 15-3/4 (400) Side view Front view 25-9/16 (650) 3/16 (5) 4-Ø1/2 (Ø12) 1/2 (12) Bottom view 1-5/8 (41) - 147 - 2-1.
Page 156: Installation Space
3. Installation space 3-1. Model: UOMH18FXZHJ ¢ Space requirement Provide sufficient installation space for product safety.  Single outdoor unit installation • When the upper space is open: Unit: in (mm) When there are obstacles at the rear only. When there are obstacles at the rear and sides.
Page 157: Multiple Outdoor Unit Installation
 Multiple outdoor unit installation • When the upper space is open: Unit: in (mm) When there are obstacles at the rear only. When there are obstacles at the front only. 60 (1,500) or more 10 (250) 12 (300) or more or more When there are obstacles at the front and rear.
Page 158: Outdoor Unit Installation In Multi-Row
 Outdoor unit installation in multi-row Unit: in (mm) Single parallel unit arrangement Multiple parallel unit arrangement 6 (150) or more 20 (500) or more 79 (2,000) or more 119 (3,000) or more 24 (600) or more 24 (600) or more 60 (1,500) or more 40 (1,000) or more 10 (250) or more...
Page 159: Refrigerant Circuit
4. Refrigerant circuit 4-1. Model: UOMH18FXZHJ OUTDOOR UNIT HEAT EXCHANGER HEAT EXCHANGER PRESSURE SWITCH STRAINER DISTRIBUTOR EXPANSION EXPANSION VALVE VALVE STRAINER STRAINER Charging Valve Charging Valve HEAT EXCHANGER HEAT EXCHANGER INDOOR UNIT A INDOOR UNIT B : Thermistor (Room temperature) : Thermistor (Discharge temperature) : Thermistor (Pipe temperature) : Thermistor (Outdoor temperature)
Page 160: Wiring Diagram
5. Wiring diagram 5-1. Model: UOMH18FXZHJ - 152 - 5-1. Model: UOMH18FXZHJ 5. Wiring diagram...
Page 161: Capacity Table
6. Capacity table 6-1. Combinations ¢ Model: UOMH18FXZHJ  Cooling 1) Non-ducted Rated capacity for each in- Maximum capacity for each Total capacity Combination of indoor unit Input power (kW) door unit (kBtu/h) indoor unit (kBtu/h) (kBtu/h) Room 1 Room 2 Total Room 1 Room 2...
Page 162 ¢ Model: UOMH18FXZHJ  Heating 1) Non-ducted Rated capacity for each in- Maximum capacity for each in- Total capacity Combination of indoor unit Input power (kW) door unit (kBtu/h) door unit (kBtu/h) (kBtu/h) Room 1 Room 2 Total Room 1 Room 2 Room 1 Room 2...
Page 163: Cooling Capacity
6-2. Cooling capacity NOTE: Values mentioned in the table are calculated based on the maximum capacity. ¢ Model: UOMH18FXZHJ • TC: Total Capacity, SHC: Sensible Heat Capacity, IP: Input Power • The data is based on the following conditions: Pipe length: 24.6 ft (7.5 m), Height difference: 0 ft (0 m) [Outdoor unit—Indoor unit] ...
Page 164  Indoor units: 9,000 Btu Indoor temperature °FDB °FWB °FDB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 7.54 6.16 0.31 8.52 6.15 0.31 8.99 6.78 0.31 9.62 7.12 0.32 10.29 7.28 0.32 10.60 8.09 0.32 7.23 6.01 0.35 8.17 6.00 0.35 8.61 6.62 0.35...
Page 165  Indoor units: 7,000 Btu + 7,000 Btu Indoor temperature °FDB °FWB °FDB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 12.74 10.15 0.59 14.40 10.14 0.60 15.18 11.18 0.60 16.25 11.73 0.61 17.38 12.00 0.62 17.91 13.34 0.62 12.21 9.90 0.66 13.80 9.89 0.67...
Page 166  Indoor units: 7,000 Btu + 12,000 Btu Indoor temperature °FDB °FWB °FDB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 15.12 11.76 0.73 17.08 11.74 0.70 18.01 12.95 0.71 19.28 13.59 0.72 20.61 13.90 0.73 21.25 15.45 0.73 14.49 11.47 0.78 16.37 11.45 0.80...
Page 167  Indoor units: 9,000 Btu + 12,000 Btu Indoor temperature °FDB °FWB °FDB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 15.31 12.02 0.76 17.31 12.00 0.73 18.24 13.24 0.74 19.53 13.89 0.75 20.88 14.22 0.76 21.52 15.80 0.76 14.68 11.72 0.82 16.58 11.71 0.83...
Page 168: Heating Capacity
6-3. Heating capacity NOTE: Values mentioned in the table are calculated based on the maximum capacity. ¢ Model: UOMH18FXZHJ • TC: Total Capacity, IP: Input Power • The data is based on the following conditions: Pipe length: 24.6 ft (7.5 m), Height difference: 0 ft (0 m) [Outdoor unit—Indoor unit] ...
Page 169  Indoor units: 9,000 Btu Indoor temperature °FDB °FDB °FWB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 8.18 1.38 7.99 1.41 7.79 1.44 7.60 1.47 7.40 1.50 11.84 1.87 11.56 1.90 11.27 1.94 10.99 1.98 10.71 2.02 15.03 2.22 14.67 2.27 14.31 2.32 13.96 2.36...
Page 170  Indoor units: 7,000 Btu + 7,000 Btu Indoor temperature °FDB °FDB °FWB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 10.74 1.98 10.49 2.03 10.23 2.07 9.98 2.11 9.72 2.15 15.54 2.68 15.17 2.73 14.80 2.79 14.43 2.85 14.06 2.90 19.73 3.19 19.26 3.26 18.79...
Page 171  Indoor units: 7,000 Btu + 12,000 Btu Indoor temperature °FDB °FDB °FWB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 12.66 2.12 12.36 2.16 12.06 2.20 11.76 2.25 11.46 2.29 18.32 2.86 17.88 2.92 17.45 2.97 17.01 3.03 16.58 3.09 23.26 3.40 22.71 3.48 22.15...
Page 172  Indoor units: 9,000 Btu + 12,000 Btu Indoor temperature °FDB °FDB °FWB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 12.66 2.12 12.36 2.16 12.06 2.20 11.76 2.25 11.46 2.29 18.32 2.86 17.88 2.92 17.45 2.97 17.01 3.03 16.58 3.09 23.26 3.40 22.71 3.48 22.15...
Page 173: Capacity Compensation Rate For Pipe Length And Height Difference
7. Capacity compensation rate for pipe length and height difference Height difference H Indoor unit is higher than outdoor unit Indoor unit is lower than outdoor unit Outdoor unit Indoor unit Outdoor unit Indoor unit Connection pipe Connection pipe 7-1. Model: UOMH18FXZHJ NOTE: Values mentioned in the table are calculated based on the maximum capacity.
Page 174: Indoor Unit: 9,000 Btu
¢ Indoor unit: 9,000 Btu Pipe length COOLING 0.956 0.942 0.928 0.977 0.963 0.950 0.936 Indoor unit is higher than outdoor unit *1 0.988 0.981 0.967 0.953 0.940 0.999 0.992 0.985 0.971 0.957 0.943 1.007 1.000 0.993 0.979 0.965 0.951 1.007 1.000 0.993...
Page 175: Additional Charge Calculation
8. Additional charge calculation 8-1. Model: UOMH18FXZHJ Refrigerant type R410A lb oz 4 lb 3 oz Refrigerant amount 1,900 ¢ Refrigerant charge 98 or less 164 (Max.) Total pipe length 0.21 oz/ft 30 or less 50 (Max.) lb oz 7.1 oz 14.1 oz (20 g/m) Additional charge...
Page 176: Airflow
9. Airflow 9-1. Model: UOMH18FXZHJ  Cooling 2,800 1,647  Heating 2,800 1,647 - 168 - 9-1. Model: UOMH18FXZHJ 9. Airflow...
Page 177: Operation Noise (Sound Pressure)
10. Operation noise (sound pressure) 10-1. Noise level curve ¢ Model: UOMH18FXZHJ  Cooling  Heating NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 NC-45 NC-45 NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 NC-25 NC-25 NC-20 NC-20 NC-15 NC-15 1,000 2,000 4,000 8,000 1,000...
Page 178: Electrical Characteristics
11. Electrical characteristics Model name Item Unit UOMH18FXZHJ Voltage 208/230 ~ Power supply Frequency MCA *1 19.7 Starting current MAX. CKT. BKR *3 Wiring spec. *2 Power cable Connection cable *1: Minimum Circuit Ampacity (Calculation based on UL1995) *2: Selected sample based on Japan Electrotechnical Standards and Codes Committee E0005. As the regulations of wire size and circuit breaker differ in each country or region, select appropriate de- vices complied to the regional standard.
Page 179: Safety Devices
12. Safety devices Model Type of protection Protection form UOMH18FXZHJ 250 V, 5 A Current fuse (Main PCB) 250 V, 3.15 A Circuit protection Current fuse 250 V, 10 A (Near the terminal) 251 ±16 °F Activate (122 ±9 °C) Fan motor stop Fan motor protection Temperature thermistor...
Page 180: Accessories
13. Accessories Part name Exterior Q’ty Part name Exterior Q’ty Installation manual - 172 - 13. Accessories...
Page 181: Outdoor Unit Installation Precautions
14. Outdoor unit installation precautions NOTE: The information listed below are general precautions. Some models also include items that do not apply. 14-1. Places where prohibited for use • Places where there is a danger of combustible gas leakage. • Places where sulfur gas, chlorine gas, acid, alkali, or other matter which effects equipment is gen- erated.
Page 182 - 174 - 14-2. Points to remember when installing 14. Outdoor unit installation precautions...
Page 183: Part 3. Outdoor Unit (3 Rooms Type)
Part 3. OUTDOOR UNIT (3 ROOMS TYPE) MULTI TYPE: UOMH24FXZHJ...
Page 184: Specifications
1. Specifications Type Inverter heat pump Model name UOMH24FXZHJ Power source 1Ø 208/230 V 60 Hz Available voltage range 187—253V Number 2 to 3 Connectable indoor unit Total capacity range 14,000 to 21,000 Btu/h Non-duct Duct UIWH09AVFJ RIDH09AVFJ Combination of indoor unit + UIWH07AVFJ ×...
Page 185: Dimensions
2. Dimensions 2-1. Model: UOMH24FXZHJ Unit: in (mm) Top view 1-9/16 1-1/4 35-7/16 (900) 13 (330) (40) (31) (12) 15-3/4 (400) Side view Front view 25-9/16 (650) 3/16 (5) 4-Ø1/2 (Ø12) 1/2 (12) Bottom view 1-5/8 (41) - 177 - 2-1.
Page 186: Installation Space
3. Installation space 3-1. Model: UOMH24FXZHJ ¢ Space requirement Provide sufficient installation space for product safety.  Single outdoor unit installation • When the upper space is open: Unit: in (mm) When there are obstacles at the rear only. When there are obstacles at the rear and sides.
Page 187: Multiple Outdoor Unit Installation
 Multiple outdoor unit installation • When the upper space is open: Unit: in (mm) When there are obstacles at the rear only. When there are obstacles at the front only. 60 (1,500) or more 10 (250) 12 (300) or more or more When there are obstacles at the front and rear.
Page 188: Outdoor Unit Installation In Multi-Row
 Outdoor unit installation in multi-row Unit: in (mm) Single parallel unit arrangement Multiple parallel unit arrangement 6 (150) or more 20 (500) or more 79 (2,000) or more 119 (3,000) or more 24 (600) or more 24 (600) or more 60 (1,500) or more 40 (1,000) or more 10 (250) or more...
Page 189: Refrigerant Circuit
4. Refrigerant circuit 4-1. Model: UOMH24FXZHJ OUTDOOR UNIT HEAT EXCHANGER HEAT EXCHANGER PRESSURE SWITCH STRAINER DISTRIBUTOR EXPANSION EXPANSION EXPANSION VALVE VALVE VALVE STRAINER STRAINER STRAINER Charging Valve Charging Valve Charging Valve INDOOR UNIT A INDOOR UNIT B INDOOR UNIT C : Thermistor (Room temperature) : Thermistor (Discharge temperature) : Thermistor (Pipe temperature)
Page 190: Wiring Diagram
5. Wiring diagram 5-1. Model: UOMH24FXZHJ - 182 - 5-1. Model: UOMH24FXZHJ 5. Wiring diagram...
Page 191: Capacity Table
6. Capacity table 6-1. Combinations ¢ Model: UOMH24FXZHJ  Cooling 1) Non-ducted Rated capacity for each indoor Maximum capacity for each in- Total capacity Combination of indoor unit Input power (kW) unit (kBtu/h) door unit (kBtu/h) (kBtu/h) Room 1 Room 2 Room 3 Total Room 1...
Page 192 ¢ Model: UOMH24FXZHJ  Heating 1) Non-ducted Rated capacity for each indoor Maximum capacity for each in- Total capacity Combination of indoor unit Input power (kW) unit (kBtu/h) door unit (kBtu/h) (kBtu/h) Room 1 Room 2 Room 3 Total Room 1 Room 2 Room 3 Room 1...
Page 193: Cooling Capacity
6-2. Cooling capacity NOTE: Values mentioned in the table are calculated based on the maximum capacity. ¢ Model: UOMH24FXZHJ • TC: Total Capacity, SHC: Sensible Heat Capacity, IP: Input Power • The data is based on the following conditions: Pipe length: 24.6 ft (7.5 m), Height difference: 0 ft (0 m) [Outdoor unit—Indoor unit] ...
Page 194  Indoor units: 9,000 Btu Indoor temperature °FDB °FWB °FDB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 7.54 6.16 0.31 8.52 6.15 0.31 8.99 6.78 0.31 9.62 7.12 0.32 10.29 7.28 0.32 10.60 8.09 0.32 7.23 6.01 0.35 8.17 6.00 0.35 8.61 6.62 0.35...
Page 195  Indoor units: 14,000 Btu Indoor temperature °FDB °FWB °FDB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 13.58 10.38 0.60 15.34 10.37 0.61 16.18 11.44 0.62 17.32 12.00 0.62 18.51 12.28 0.63 19.08 13.65 0.63 13.01 10.13 0.68 14.70 10.12 0.69 15.50 11.16 0.70...
Page 196  Indoor units: 7,000 Btu + 7,000 Btu Indoor temperature °FDB °FWB °FDB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 12.74 10.15 0.51 14.40 10.14 0.52 15.18 11.18 0.53 16.25 11.73 0.53 17.38 12.00 0.54 17.91 13.34 0.54 12.21 9.90 0.58 13.80 9.89 0.59...
Page 197  Indoor units: 7,000 Btu + 12,000 Btu Indoor temperature °FDB °FWB °FDB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 16.27 12.65 0.73 18.39 12.64 0.74 19.38 13.94 0.75 20.75 14.63 0.76 22.18 14.96 0.77 22.87 16.63 0.77 15.59 12.34 0.83 17.62 12.33 0.84...
Page 198  Indoor units: 7,000 Btu + 18,000 Btu Indoor temperature °FDB °FWB °FDB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 19.44 14.44 1.05 21.97 14.42 1.06 23.16 15.91 1.07 24.80 16.70 1.08 26.51 17.08 1.10 27.33 18.98 1.10 18.63 14.09 1.18 21.06 14.07 1.21...
Page 199  Indoor units: 9,000 Btu + 12,000 Btu Indoor temperature °FDB °FWB °FDB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 15.69 12.43 0.71 17.73 12.42 0.72 18.69 13.70 0.72 20.01 14.37 0.73 21.39 14.71 0.74 22.05 16.34 0.74 15.04 12.13 0.80 16.99 12.12 0.81...
Page 200  Indoor units: 9,000 Btu + 18,000 Btu Indoor temperature °FDB °FWB °FDB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 19.67 14.86 1.05 22.23 14.84 1.06 23.43 16.37 1.07 25.09 17.18 1.08 26.82 17.57 1.10 27.65 19.53 1.10 18.85 14.50 1.18 21.30 14.48 1.21...
Page 201  Indoor units: 12,000 Btu + 14,000 Btu Indoor temperature °FDB °FWB °FDB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 20.43 15.69 1.05 23.08 15.67 1.06 24.34 17.28 1.07 26.05 18.13 1.08 27.85 18.55 1.10 28.71 20.62 1.10 19.58 15.30 1.18 22.12 15.28 1.21...
Page 202  Indoor units: 7,000 Btu + 7,000 Btu + 9,000 Btu Indoor temperature °FDB °FWB °FDB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 18.79 15.33 0.79 21.24 15.31 0.81 22.39 16.88 0.81 23.97 17.72 0.84 25.62 18.13 0.83 26.41 20.15 0.84 18.01 14.95 0.90...
Page 203  Indoor units: 7,000 Btu + 9,000 Btu + 9,000 Btu Indoor temperature °FDB °FWB °FDB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 18.83 15.35 0.88 21.28 15.33 0.90 22.43 16.91 0.90 24.02 17.75 0.91 25.68 18.16 0.92 26.47 20.18 0.93 18.05 14.98 1.00...
Page 204: Heating Capacity
6-3. Heating capacity NOTE: Values mentioned in the table are calculated based on the maximum capacity. ¢ Model: UOMH24FXZHJ • TC: Total Capacity, IP: Input Power • The data is based on the following conditions: Pipe length: 24.6 ft (7.5 m), Height difference: 0 ft (0 m) [Outdoor unit—Indoor unit] ...
Page 205  Indoor units: 9,000 Btu Indoor temperature °FDB °FDB °FWB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 7.78 1.12 7.59 1.14 7.41 1.17 7.22 1.19 7.04 1.21 11.00 1.37 10.74 1.40 10.48 1.43 10.22 1.46 9.96 1.49 14.23 1.62 13.89 1.66 13.55 1.69 13.21 1.73...
Page 206  Indoor units: 14,000 Btu Indoor temperature °FDB °FDB °FWB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 9.75 1.40 9.52 1.43 9.29 1.46 9.06 1.49 8.82 1.52 13.80 1.72 13.47 1.75 13.14 1.79 12.81 1.82 12.48 1.86 17.84 2.03 17.42 2.07 16.99 2.12 16.57 2.16...
Page 207  Indoor units: 7,000 Btu + 7,000 Btu Indoor temperature °FDB °FDB °FWB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 10.95 1.60 10.69 1.63 10.43 1.67 10.17 1.70 9.91 1.73 15.49 1.96 15.12 2.00 14.76 2.04 14.39 2.08 14.02 2.12 20.04 2.32 19.56 2.37 19.08...
Page 208  Indoor units: 7,000 Btu + 12,000 Btu Indoor temperature °FDB °FDB °FWB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 13.02 2.22 12.71 2.27 12.40 2.31 12.09 2.36 11.78 2.40 18.42 2.72 17.98 2.77 17.55 2.83 17.11 2.89 16.67 2.94 23.82 3.22 23.26 3.28 22.69...
Page 209  Indoor units: 7,000 Btu + 18,000 Btu Indoor temperature °FDB °FDB °FWB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 13.96 2.42 13.63 2.47 13.29 2.52 12.96 2.57 12.63 2.62 19.75 2.96 19.28 3.02 18.81 3.08 18.34 3.15 17.87 3.21 25.54 3.50 24.93 3.58 24.32...
Page 210  Indoor units: 9,000 Btu + 12,000 Btu Indoor temperature °FDB °FDB °FWB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 13.47 2.24 13.15 2.28 12.83 2.33 12.50 2.38 12.18 2.42 19.05 2.74 18.60 2.80 18.15 2.85 17.69 2.91 17.24 2.97 24.64 3.24 24.05 3.31 23.47...
Page 211  Indoor units: 9,000 Btu + 18,000 Btu Indoor temperature °FDB °FDB °FWB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 14.31 2.42 13.96 2.47 13.62 2.52 13.28 2.57 12.94 2.62 20.24 2.96 19.76 3.02 19.27 3.08 18.79 3.15 18.31 3.21 26.17 3.50 25.55 3.58 24.93...
Page 212  Indoor units: 12,000 Btu + 14,000 Btu Indoor temperature °FDB °FDB °FWB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 14.55 2.35 14.21 2.40 13.86 2.45 13.51 2.50 13.17 2.55 20.59 2.88 20.10 2.94 19.61 3.00 19.12 3.06 18.63 3.12 26.63 3.41 25.99 3.48 25.36...
Page 213  Indoor units: 7,000 Btu + 7,000 Btu + 9,000 Btu Indoor temperature °FDB °FDB °FWB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 14.70 2.42 14.35 2.47 14.00 2.52 13.65 2.57 13.30 2.62 20.80 2.96 20.30 3.02 19.81 3.08 19.31 3.15 18.82 3.21 26.89 3.50...
Page 214  Indoor units: 7,000 Btu + 9,000 Btu + 9,000 Btu Indoor temperature °FDB °FDB °FWB kBtu/h kBtu/h kBtu/h kBtu/h kBtu/h 14.80 2.42 14.45 2.47 14.09 2.52 13.74 2.57 13.39 2.62 20.94 2.96 20.44 3.02 19.94 3.08 19.44 3.15 18.94 3.21 27.07 3.50...
Page 215: Capacity Compensation Rate For Pipe Length And Height Difference
7. Capacity compensation rate for pipe length and height difference Height difference H Indoor unit is higher than outdoor unit Indoor unit is lower than outdoor unit Outdoor unit Indoor unit Outdoor unit Indoor unit Connection pipe Connection pipe 7-1. Model: UOMH24FXZHJ NOTE: Values mentioned in the table are calculated based on the maximum capacity.
Page 216: Indoor Unit: 9,000 Btu
¢ Indoor unit: 9,000 Btu Pipe length COOLING 0.956 0.942 0.928 0.977 0.963 0.950 0.936 Indoor unit is higher than outdoor unit *1 0.988 0.981 0.967 0.953 0.940 0.999 0.992 0.985 0.971 0.957 0.943 1.007 1.000 0.993 0.979 0.965 0.951 1.007 1.000 0.993...
Page 217: Indoor Unit: 14,000 Btu
¢ Indoor unit: 14,000 Btu Pipe length COOLING 0.969 0.962 0.953 0.982 0.977 0.970 0.961 Indoor unit is higher than outdoor unit *1 0.988 0.986 0.981 0.973 0.965 0.994 0.992 0.990 0.985 0.977 0.968 1.002 1.000 0.998 0.993 0.985 0.976 1.002 1.000 0.998...
Page 218: Additional Charge Calculation
8. Additional charge calculation 8-1. Model: UOMH24FXZHJ Refrigerant type R410A lb oz 4 lb 14 oz Refrigerant amount 2,200 ¢ Refrigerant charge 98 or less 229 (Max.) Total pipe length 0.21 oz/ft 30 or less 70 (Max.) lb oz 7.1 oz 14.1 oz 21.2 oz 28.2 oz...
Page 219: Airflow
9. Airflow 9-1. Model: UOMH24FXZHJ  Cooling 3,300 1,942  Heating 3,300 1,942 - 211 - 9-1. Model: UOMH24FXZHJ 9. Airflow...
Page 220: Operation Noise (Sound Pressure)
10. Operation noise (sound pressure) 10-1. Noise level curve ¢ Model: UOMH24FXZHJ  Cooling  Heating NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 NC-45 NC-45 NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 NC-25 NC-25 NC-20 NC-20 NC-15 NC-15 1,000 2,000 4,000 8,000 1,000...
Page 221: Electrical Characteristics
11. Electrical characteristics Model name Item Unit UOMH24FXZHJ Voltage 208/230 ~ Power supply Frequency MCA *1 25.1 Starting current MAX. CKT. BKR *3 Wiring spec. *2 Power cable Connection cable *1: Minimum Circuit Ampacity (Calculation based on UL1995) *2: Selected sample based on Japan Electrotechnical Standards and Codes Committee E0005. As the regulations of wire size and circuit breaker differ in each country or region, select appropriate de- vices complied to the regional standard.
Page 222: Safety Devices
12. Safety devices Model Type of protection Protection form UOMH24FXZHJ 250 V, 5 A Current fuse (Main PCB) 250 V, 3.15 A Circuit protection Current fuse 250 V, 10 A (Near the terminal) 251 ±16 °F Activate (122 ±9 °C) Fan motor stop Fan motor protection Temperature thermistor...
Page 223: Accessories
13. Accessories Part name Exterior Q’ty Part name Exterior Q’ty Adapter assy Installation manual 1/2 in → 3/8 in (12.70 mm) → (9.52 mm) - 215 - 13. Accessories...
Page 224: Outdoor Unit Installation Precautions
14. Outdoor unit installation precautions NOTE: The information listed below are general precautions. Some models also include items that do not apply. 14-1. Places where prohibited for use • Places where there is a danger of combustible gas leakage. • Places where sulfur gas, chlorine gas, acid, alkali, or other matter which effects equipment is gen- erated.
Page 225: Part 4. Outdoor Unit (4 Rooms Type)
Part 4. OUTDOOR UNIT (4 ROOMS TYPE) MULTI TYPE: UOMH36FXZHJ...
Page 226: Specifications
1. Specifications Type Inverter heat pump Model name UOMH36FXZHJ Power source 1Ø 208/230 V 60 Hz Available voltage range 187—253V Number 2 to 4 Connectable indoor unit Total capacity range 27,000 to 39,000 Btu/h Non-duct Duct Combination of indoor unit UIWH09AVFJ ×...
Page 227: Dimensions
2. Dimensions 2-1. Model: UOMH36FXZHJ Unit: in (mm) 6-9/16 (166) 25-9/16 (650) 6-1/16 (154) Top view 14-9/16 1-5/16 (33) (370) 9/16 (14) 3-3/4 (95) 38-3/16 (970) (22.2) (cable port) 3 (76.3) Front view 17-5/16 (440) Side view Bottom view 7/8 (22.2) (cable port) 1-2/16 (27.8) (cable port)
Page 228: Installation Space
3. Installation space 3-1. Model: UOMH36FXZHJ ¢ Space requirement Provide sufficient installation space for product safety.  Single outdoor unit installation • When the upper space is open: Unit: in (mm) When there are obstacles at the rear only. When there are obstacles at the rear and sides.
Page 229  Multiple outdoor unit installation • When the upper space is open: Unit: in (mm) When there are obstacles at the rear only. When there are obstacles at the front only. 10 (250) or more 60 (1,500) or more 10 (250) or more 12 (300) or more...
Page 230  Outdoor unit installation in multi-row Unit: in (mm) Single parallel unit arrangement Multiple parallel unit arrangement 20 (500) 20 (500) or more or more 119 (3,000) 138 (3,500) or more or more 24 (600) or more 24 (600) or more 60 (1,500) or more 60 (1,500) or more 10 (250)
Page 231: Refrigerant Circuit
4. Refrigerant circuit 4-1. Model: UOMH36FXZHJ CONDENSER STRAINER STRAINER SOLENOID VALVE PRESSURE SENSOR FUSIBLE PLUG MUFFLER CHARGING CHARGING VALVE VALVE EXPANSION EXPANSION EXPANSION EXPANSION VALVE VALVE VALVE VALVE STRAINER STRAINER STRAINER STRAINER HEAT EXCHANGER HEAT EXCHANGER HEAT EXCHANGER HEAT EXCHANGER Indoor unit A Indoor unit B Indoor unit C...
Page 232: Wiring Diagram
5. Wiring diagram 5-1. Model: UOMH36FXZHJ - 224 - 5-1. Model: UOMH36FXZHJ 5. Wiring diagram...
Page 233: Capacity Table
6. Capacity table 6-1. Combinations ¢ Model: UOMH36FXZHJ  Cooling 1) Non-ducted Rated capacity for each indoor Maximum capacity for each in- Total capacity Combination of indoor unit Input power (kW) unit (kBtu/h) door unit (kBtu/h) (kBtu/h) room room room Total Min.
Page 234 Rated capacity for each indoor Maximum capacity for each in- Total capacity Combination of indoor unit Input power (kW) unit (kBtu/h) door unit (kBtu/h) (kBtu/h) room room room Total Min. Rated Max. Min. Rated Max. 12.0 35.2 39.0 0.80 2.93 3.53 10.9 12.0...
Page 235 ¢ Model: UOMH36FXZHJ  Heating 1) Non-ducted Rated capacity for each indoor Maximum capacity for each in- Total capacity Combination of indoor unit Input power (kW) unit (kBtu/h) door unit (kBtu/h) (kBtu/h) room room room Total Min. Rated Max. Min. Rated Max.
Page 236 NOTES: • Power source of specifications: 230 V • 7: 7,000 Btu/h, 9: 9,000 Btu/h, 12: 12,000 Btu/h, 15: 14,000 Btu/h, 18: 18,000 Btu/h, 24: 24,000 Btu/h • 2 or more indoor units should be connected. • Heating: Indoor temperature of 70 °FDB (21.1 °CDB)/ 60 °FWB (15.6 °CWB), and outdoor tem- perature of 47 °FDB (8.3 °CDB) / 43 °FWB (6.1 °CWB).
Page 237: Cooling Capacity
6-2. Cooling capacity ¢ Model: UOMH36FXZHJ NOTE: Values mentioned in the table are calculated based on the maximum capacity.  Cooling capacity in kBtu/h TC: Total Capacity (kBtu/h), IP: Input Power (kW) Indoor temperature Indoor unit connect- Outdoor temperature 64 °FDB 70 °FDB 75 °FDB 80 °FDB...
Page 238 Indoor temperature Indoor unit connect- Outdoor temperature 64 °FDB 70 °FDB 75 °FDB 80 °FDB 85 °FDB 90 °FDB ing capacity 54 °FWB 60 °FWB 63 °FWB 67 °FWB 71 °FWB 73 °FWB kBtu/h °FDB 28.0 1.09 31.7 1.11 33.4 1.12 35.8 1.13...
Page 239 NOTE: Specifications are based on the following conditions. • Power source of specifications: 230 V • 2 or more indoor units should be connected. • Pipe length: 24.6 ft (7.5 m), Height difference: 0 ft (0 m) [Outdoor unit - Indoor unit] •...
Page 240  Cooling capacity in kW TC: Total Capacity (kW), IP: Input Power (kW) Indoor temperature Indoor unit connect- Outdoor temperature 17.8 °CDB 21.1 °CDB 23.9 °CDB 26.7 °CDB 29.4 °CDB 32.2 °CDB ing capacity 12.2 °CWB 15.6 °CWB 17.2 °CWB 19.4 °CWB 21.7 °CWB 22.8 °CWB...
Page 241 Indoor temperature Indoor unit connect- Outdoor temperature 17.8 °CDB 21.1 °CDB 23.9 °CDB 26.7 °CDB 29.4 °CDB 32.2 °CDB ing capacity 12.2 °CWB 15.6 °CWB 17.2 °CWB 19.4 °CWB 21.7 °CWB 22.8 °CWB kBtu/h °CDB -10.0 7.96 1.04 9.00 1.06 9.48 1.07 10.10...
Page 242 • TC: Total Capacity (kBtu/h), SHC: Sensible Heat Capacity (kBtu/h). • The data is based on the following conditions: Pipe length: 24.6 ft (7.5 m), Height difference: 0 ft (0 m) [Outdoor unit - Indoor unit] MODEL: RICH07AVFJ Indoor temperature (°FDB / °FWB) 64.0 / 54.0 70.0 / 60.0...
Page 243 MODEL: RICH18AVFJ Indoor temperature (°FDB / °FWB) 64.0 / 54.0 70.0 / 60.0 75.0 / 63.0 80.0 / 67.0 85.0 / 71.0 90.0 / 73.0 Outdoor temperature (°FDB) 14.0 15.29 9.26 17.28 10.55 18.21 12.15 19.50 13.65 20.85 14.93 21.49 17.10 23.0 15.29...
Page 244 • TC: Total Capacity (kW), SHC: Sensible Heat Capacity (kW). • The data is based on the following conditions: Pipe length: 24.6 ft (7.5 m), Height difference: 0 ft (0 m) [Outdoor unit - Indoor unit] MODEL: RICH07AVFJ Indoor temperature (°CDB / °CWB) 17.8 / 12.2 21.1 / 15.6...
Page 245 MODEL: RICH18AVFJ Indoor temperature (°CDB / °CWB) 17.8 / 12.2 21.1 / 15.6 23.9 / 17.2 26.7 / 19.4 29.4 / 21.7 32.2 / 22.8 Outdoor temperature (°CDB) -10.0 4.48 2.71 5.06 3.09 5.34 3.56 5.72 4.00 6.11 4.38 6.30 5.01 -5.0 4.48...
Page 246 ¢ Slim duct type  Cooling capacity in kBtu/h • TC: Total Capacity (kBtu/h), SHC: Sensible Heat Capacity (kBtu/h). • The data is based on the following conditions. • Pipe length: 24.6 ft (7.5 m), Height difference: 0 ft (0 m) [Outdoor unit - Indoor unit] MODEL: RIDH07AVFJ Indoor temperature (°FDB / °FWB) 64.0 / 54.0...
Page 247 MODEL: RIDH18AVFJ Indoor temperature (°FDB / °FWB) 64.0 / 54.0 70.0 / 60.0 75.0 / 63.0 80.0 / 67.0 85.0 / 71.0 90.0 / 73.0 Outdoor temperature (°FDB) 14.0 15.29 9.52 17.28 10.85 18.21 12.50 19.50 14.04 20.85 15.36 21.49 17.59 23.0 15.29...
Page 248  Cooling capacity in kW • TC: Total Capacity (kW), SHC: Sensible Heat Capacity (kW). • The data is based on the following conditions: Pipe length: 24.6 ft (7.5 m), Height difference: 0 ft (0 m) [Outdoor unit - Indoor unit] MODEL: RIDH07AVFJ Indoor temperature (°CDB / °CWB) 17.8 / 12.2...
Page 249 MODEL: RIDH18AVFJ Indoor temperature (°CDB / °CWB) 17.8 / 12.2 21.1 / 15.6 23.9 / 17.2 26.7 / 19.4 29.4 / 21.7 32.2 / 22.8 Outdoor temperature (°CDB) -10.0 4.48 2.79 5.06 3.18 5.34 3.66 5.72 4.11 6.11 4.50 6.30 5.16 -5.0 4.48...
Page 250 ¢ Wall mounted type  Cooling capacity in kBtu/h • TC: Total Capacity (kBtu/h), SHC: Sensible Heat Capacity (kBtu/h). • The data is based on the following conditions: Pipe length: 24.6 ft (7.5 m), Height difference: 0 ft (0 m) [Outdoor unit - Indoor unit] MODEL: UIWH07AVFJ Indoor temperature (°FDB / °FWB) 64.0 / 54.0...
Page 251 MODEL: UIWH15AVFJ Indoor temperature (°FDB / °FWB) 64.0 / 54.0 70.0 / 60.0 75.0 / 63.0 80.0 / 67.0 85.0 / 71.0 90.0 / 73.0 Outdoor temperature (°FDB) 14.0 12.78 8.29 14.44 9.45 15.22 10.88 16.30 12.23 17.42 13.37 17.96 15.32 23.0 12.78...
Page 252  Cooling capacity in kW • TC: Total Capacity (kW), SHC: Sensible Heat Capacity (kW). • The data is based on the following conditions: Pipe length: 24.6 ft (7.5 m), Height difference: 0 ft (0 m) [Outdoor unit - Indoor unit] MODEL: UIWH07AVFJ Indoor temperature (°CDB / °CWB) 17.8 / 12.2...
Page 253 MODEL: UIWH15AVFJ Indoor temperature (°CDB / °CWB) 17.8 / 12.2 21.1 / 15.6 23.9 / 17.2 26.7 / 19.4 29.4 / 21.7 32.2 / 22.8 Outdoor temperature (°CDB) -10.0 3.75 2.43 4.23 2.77 4.46 3.19 4.78 3.58 5.11 3.92 5.26 4.49 -5.0 3.75...
Page 254 ¢ Floor type  Cooling capacity in kBtu/h • TC: Total Capacity (kBtu/h), SHC: Sensible Heat Capacity (kBtu/h). • The data is based on the following conditions: Pipe length: 24.6 ft (7.5 m), Height difference: 0 ft (0 m) [Outdoor unit - Indoor unit] MODEL: RIFH09AVFJ Indoor temperature (°FDB / °FWB) Outdoor temperature...
Page 255  Cooling capacity in kW • TC: Total Capacity (kW), SHC: Sensible Heat Capacity (kW). • The data is based on the following conditions: Pipe length: 24.6 ft (7.5 m), Height difference: 0 ft (0 m) [Outdoor unit - Indoor unit] MODEL: RIFH09AVFJ Indoor temperature (°CDB / °CWB) Outdoor temperature...
Page 256: Heating Capacity
6-3. Heating capacity ¢ Model: UOMH36FXZHJ NOTE: Values mentioned in the table are calculated based on the maximum capacity.  Heating capacity in kBtu/h TC: Total Capacity (kBtu/h), IP: Input Power (kW) Indoor temperature Indoor unit connect- Outdoor temperature ing capacity 60 °FDB 65 °FDB 70 °FDB...
Page 257 Indoor temperature Indoor unit connect- Outdoor temperature ing capacity 60 °FDB 65 °FDB 70 °FDB 75 °FDB 78 °FDB kBtu/h °FDB °FWB 21.3 3.14 20.8 3.20 20.3 3.27 19.8 3.34 19.3 3.40 24.2 3.31 23.6 3.38 23.0 3.45 22.5 3.52 21.9 3.59 35.0...
Page 258 NOTE: Specifications are based on the following conditions. • Power source of specifications: 230 V • 2 or more indoor units should be connected. • Pipe length: 24.6 ft (7.5 m), Height difference: 0 ft (0 m) [Outdoor unit - Indoor unit] •...
Page 259  Heating capacity in kW TC: Total Capacity (kW), IP: Input Power (kW) Indoor temperature Indoor unit connect- Outdoor temperature ing capacity 15.6 °CDB 18.3 °CDB 21.1 °CDB 23.9 °CDB 25.6 °CDB kBtu/h °CDB °CWB -26.1 -27.0 6.81 3.46 6.65 3.53 6.40 3.60...
Page 260 Indoor temperature Indoor unit connect- Outdoor temperature ing capacity 15.6 °CDB 18.3 °CDB 21.1 °CDB 23.9 °CDB 25.6 °CDB kBtu/h °CDB °CWB -26.1 -27.0 6.05 3.03 5.91 3.09 5.70 3.16 5.62 3.22 5.48 3.28 -20.6 -21.7 6.87 3.20 6.70 3.27 6.50 3.33 6.38...
Page 261  Heating capacity in kBtu/h • TC: Total Capacity (kBtu/h). • The data is based on the following conditions: Pipe length: 24.6 ft (7.5 m), Height difference: 0 ft (0 m) [Outdoor unit - Indoor unit] MODEL: RICH07AVFJ Indoor temperature (°FDB) Outdoor temperature 60.0 65.0...
Page 262  Heating capacity in kW • TC: Total Capacity (kW). • The data is based on the following conditions: Pipe length: 24.6 ft (7.5 m), Height difference: 0 ft (0 m) [Outdoor unit - Indoor unit] MODEL: RICH07AVFJ Indoor temperature (°CDB) Outdoor temperature 15.6 18.3...
Page 263 ¢ Slim duct type  Heating capacity in kBtu/h • TC: Total Capacity (kBtu/h). • The data is based on the following conditions: Pipe length: 24.6 ft (7.5 m), Height difference: 0 ft (0 m) [Outdoor unit - Indoor unit] MODEL: RIDH07AVFJ Indoor temperature (°FDB) Outdoor temperature...
Page 264 MODEL: RIDH24AVFJ Indoor temperature (°FDB) Outdoor temperature 60.0 65.0 70.0 75.0 78.0 (°FDB) (°FWB) -15.0 -17.0 14.67 14.32 13.97 13.62 13.27 -5.0 -7.0 16.64 16.25 15.85 15.45 15.06 24.12 23.54 22.97 22.39 21.82 14.0 12.0 25.60 24.99 24.38 23.77 23.16 23.0 19.0 27.06...
Page 265  Heating capacity in kW • TC: Total Capacity (kW). • The data is based on the following conditions: Pipe length: 24.6 ft (7.5 m), Height difference: 0 ft (0 m) [Outdoor unit - Indoor unit] MODEL: RIDH07AVFJ Indoor temperature (°CDB) Outdoor temperature 15.6 18.3...
Page 266 MODEL: RIDH18AVFJ Indoor temperature (°CDB) Outdoor temperature 15.6 18.3 21.1 23.9 25.6 (°CDB) (°CWB) -26.1 -27.0 3.41 3.33 3.25 3.16 3.08 -20.6 -21.7 3.87 3.77 3.68 3.59 3.50 -15.0 -16.1 5.60 5.47 5.33 5.20 5.07 -10.0 -11.1 5.94 5.80 5.66 5.52 5.38 -5.0...
Page 267 ¢ Wall mounted type  Heating capacity in kBtu/h • TC: Total Capacity (kBtu/h). • The data is based on the following conditions: Pipe length: 24.6 ft (7.5 m), Height difference: 0 ft (0 m) [Outdoor unit - Indoor unit] MODEL: UIWH07AVFJ Indoor temperature (°FDB) Outdoor temperature...
Page 268 MODEL: UIWH18AVFJ Indoor temperature (°FDB) Outdoor temperature 60.0 65.0 70.0 75.0 78.0 (°FDB) (°FWB) -15.0 -17.0 11.63 11.35 11.07 10.80 10.52 -5.0 -7.0 13.19 12.88 12.56 12.25 11.93 19.11 18.66 18.20 17.75 17.29 14.0 12.0 20.28 19.80 19.32 18.83 18.35 23.0 19.0 21.45...
Page 269  Heating capacity in kW • TC: Total Capacity (kW). • The data is based on the following conditions: Pipe length: 24.6 ft (7.5 m), Height difference: 0 ft (0 m) [Outdoor unit - Indoor unit] MODEL: UIWH07AVFJ Indoor temperature (°CDB) Outdoor temperature 15.6 18.3...
Page 270 MODEL: UIWH12AVFJ Indoor temperature (°CDB) Outdoor temperature 15.6 18.3 21.1 23.9 25.6 (°CDB) (°CWB) -26.1 -27.0 2.27 2.22 2.16 2.11 2.06 -20.6 -21.7 2.58 2.52 2.45 2.39 2.33 -15.0 -16.1 3.73 3.64 3.56 3.47 3.38 -10.0 -11.1 3.96 3.87 3.77 3.68 3.59 -5.0...
Page 271 ¢ Floor type  Heating capacity in kBtu/h • TC: Total Capacity (kBtu/h). • The data is based on the following conditions: Pipe length: 24.6 ft (7.5 m), Height difference: 0 ft (0 m) [Outdoor unit - Indoor unit] MODEL: RIFH09AVFJ Indoor temperature (°FDB) Outdoor temperature 60.0...
Page 272  Heating capacity in kW • TC: Total Capacity (kW). • The data is based on the following conditions: Pipe length: 24.6 ft (7.5 m), Height difference: 0 ft (0 m) [Outdoor unit - Indoor unit] MODEL: RIFH09AVFJ Indoor temperature (°CDB) Outdoor temperature 15.6 18.3...
Page 273: Capacity Compensation Rate For Pipe Length And Height Difference
7. Capacity compensation rate for pipe length and height difference Height difference H Indoor unit is higher than outdoor unit Indoor unit is lower than outdoor unit Outdoor unit Indoor unit Outdoor unit Indoor unit Connection pipe Connection pipe 7-1. Model: UOMH36FXZHJ NOTE: Values mentioned in the table are calculated based on the maximum capacity.
Page 274 ¢ Indoor unit: 9,000 Btu Pipe length COOLING — — — 0.956 0.942 0.928 — — 0.977 0.963 0.950 0.936 Indoor unit is higher than outdoor unit *1 — 0.988 0.981 0.967 0.954 0.940 0.999 0.992 0.985 0.971 0.957 0.943 1.007 1.000 0.993...
Page 275 ¢ Indoor unit: 14,000 Btu Pipe length COOLING — — — 0.955 0.937 0.922 — — 0.974 0.962 0.945 0.930 Indoor unit is higher than outdoor unit *1 — 0.988 0.978 0.966 0.948 0.934 0.997 0.992 0.982 0.970 0.952 0.937 1.005 1.000 0.990...
Page 276: Indoor Unit: 24,000 Btu
¢ Indoor unit: 24,000 Btu Pipe length COOLING — — — 0.978 0.969 0.953 — — 0.986 0.986 0.977 0.961 Indoor unit is higher than outdoor unit *1 — 0.988 0.990 0.990 0.981 0.965 0.989 0.992 0.994 0.994 0.984 0.968 0.997 1.000 1.002...
Page 277: Additional Charge Calculation
8. Additional charge calculation 8-1. Model: UOMH36FXZHJ Refrigerant type R410A lb oz 8 lb 13 oz Refrigerant amount 4,000 ¢ Refrigerant charge Total pipe length ft (m) 164 (50) or less 197 (60) 230 (70) (Max.) 0.22 oz/ft Additional charge lb oz (g) 7.1 oz (200) 14.1 oz (400)
Page 278: Airflow
9. Airflow 9-1. Model: UOMH36FXZHJ  Cooling 4,200 1,167 2,472  Heating 4,200 1,167 2,472 - 270 - 9-1. Model: UOMH36FXZHJ 9. Airflow...
Page 279: Operation Noise (Sound Pressure)
10. Operation noise (sound pressure) 10-1. Noise level curve ¢ Model: UOMH36FXZHJ  Cooling  Heating NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 RATING RATING NC-50 NC-50 NC-45 NC-45 QUIET QUIET NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 NC-25 NC-25 NC-20 NC-20 NC-15 NC-15 1,000...
Page 280: Electrical Characteristics
11. Electrical characteristics Model name Item Unit UOMH36FXZHJ Voltage 208/230 ~ Power supply Frequency 31.5 Starting current 12.9 CKT. BKR Wiring spec. * Power cable Connection cable *: Selected sample based on Japan Electrotechnical Standards and Codes Committee E0005. As the regulations of wire size and circuit breaker differ in each country or region, select appropriate de- vices complied to the regional standard.
Page 281: Safety Devices
12. Safety devices Model Type of protection Protection form UOMH36FXZHJ 250 V, 10 A 250 V, 5 A Current fuse (PCB) 400 V, 5 A Circuit protection 250 V, 3.15 A Protector 500 V, 45 A (PCB) 239±27 °F Activate (115±15 °C) Fan motor stop Fan motor protection...
Page 282: Function Settings
13. Function settings 13-1. Setting methods WARNING Never touch electrical components such as the terminal blocks or reactor except the switch on the display board. It may cause a serious accident such as electric shock. CAUTION • Once refrigerant charging is completed, be sure to open the valve prior to performing the local settings.
Page 283: Setting Method
¢ Setting method 1. Be sure to disconnect the power supply or turn off the breaker. 2. Change the DIP switch setting according to the required setting. • Various settings can be adjusted by changing DIP switches and push switches on the board of the outdoor unit.
Page 284: Description Of Display
¢ Description of display LED display lamp Function or operation method • Turns on when the power supply is ON (Including when error occurs). (1) POWER/MODE Green • Indicate the MODE by the number of flashes when the installation function is active. (2) ERROR Flashes at high-speed when there is an error.
Page 285: 13-2.Base Heater Forced Off Function
13-2. Base heater forced off function The power to the base heater can be cut off by changing the DIP switch setting. SET1-3 Setting Heater on Forced off setting 13-3. Outdoor unit low noise operation function (option) Change the outdoor unit low noise operation by using this setting. Optional Central remote con- troller is necessary to use this function.
Page 286: Check And Test
14. Check and test 14-1. Check run • The check run is a function to screen and detect any wiring errors. • After carrying out the check run, you can use the automatic wiring correction function to correct the wiring. •...
Page 287: Operating Procedure For Check Run
¢ Operating procedure for check run CAUTION Initiate check run after more than 12 hours after the power supply is connected. NOTE: Be sure that the indoor unit and outdoor unit are not operating before starting the check run. 1. Press the "CHECK" switch for 3 seconds or more. CHECK 2.
Page 288 4. After the check run is completed, results will be displayed. Fill the displayed results in the result table accordingly. • If the connection is correct (Example: When 4 indoor units are connected) After the number of connected units are displayed, the LED for each unit will light up in order from A to D.
Page 289 [How to record the contents] • Fill the displayed results according to the following example. Example: When piping A to D is connected but the wires for B and C are connected in reverse. <Displayed results> The LEDs will light up in 7 second intervals in the following order. POWER ERROR MONITOR...
Page 290 NOTES: • *1: By using this function, the wiring is automatically corrected according to the piping. • *2: When correcting the wiring manually, please disconnect the power supply or turn off the breaker during results display, and then change the wiring manually according to the obtained test results.
Page 291: Check Run Judgment Failure Display
¢ Check run judgment failure display If check run cannot be performed, the following is displayed. In this case, the check run will stop. Please check by using the cooling test run of the indoor unit.  Temperature out of range judgment POWER ERROR MONITOR...
Page 292: Test Run Method
14-2. Test run CAUTION Always connect the power supply 12 hours prior to the start of the operation in order to protect the compressor. 1. Indoor unit a. Is the drain normal? b. Is there any abnormal noise and vibration during operation? 2.
Page 293: 14-3.Error Code
5. Press "TEST RUN" switch for more than 3 seconds. POWER ERROR MONITOR MODE POWER/MODE LED will turn on, and test run stops. 14-3. Error code If an error occurs, the LED will light up to display the error location and the error code. ¢...
Page 294: Error Code Display
¢ Error code display While the error is occurring, briefly press SW1. The error code is displayed. Example: Coil error (Error cord = 9A.1) POWER ERROR MONITOR MODE Blink [A(10)] (High-speed) (9-blink) Display mode LED on: LED off: Blink: (0.5s Light on / 0.5s Light off) Number of blinking: ( )
Page 295: Error Type
Error code Error type 11.3 Serial communication error 11.4 Serial communication error during operation 16.5 Communication error between controller and outdoor unit 22.1 Indoor unit capacity error 5U.1 Indoor unit error 62.1 PCB model information error 62.3 EEPROM access error 62.8 EEPROM data corruption error 63.1...
Page 296: Pump Down Operation
14-4. Pump down WARNING During the pump down operation, make sure that compressor is off before you remove the refriger- ant piping. Do not remove the connection pipe while the compressor is in operation with valve open. This may cause abnormal pressure in the refrigeration cycle that leads to breakage and even injury.
Page 297 7. Disconnect the power supply or turn off the breaker. NOTE: If the pump down is not stopped by pressing the switch as in step 6, it will stop auto- matically after 15 minutes and the LED will light as follows. If the pump down is com- plete, disconnect the power supply or turn off the breaker.
Page 298: Accessories
15. Accessories Part name Exterior Q’ty Part name Exterior Q’ty Adapter K 1/2 in (12.70 mm) Installation manual 1 set 3/8 in (9.52 mm) Adapter L Cable tie with clip 1/2 in (12.70 mm) 1 set (Large) 5/8 in (15.88 mm) Adapter H Cable tie with clip 3/8 in (9.52 mm)
Page 299: Outdoor Unit Installation Precautions
16. Outdoor unit installation precautions NOTE: The information listed below are general precautions. Some models also include items that do not apply. 16-1. Places where prohibited for use • Places where there is a danger of combustible gas leakage. • Places where sulfur gas, chlorine gas, acid, alkali, or other matter which effects equipment is gen- erated.

This manual is also suitable for:

Rich09avfj Rich12avfj Rich18avfj Ridh07avfj Ridh09avfj Ridh12avfj ... Show all

Ruud RICH07AVFJ Design & Technical Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ruud RICH07AVFJ

Summary of Contents for Ruud RICH07AVFJ

This manual is also suitable for:

Table of Contents
