• New composite base pan – dampens sound, captures louver

panels, eliminates corrosion and reduces number of fasteners

needed

• Powder coat paint system – for a long lasting professional finish

• Scroll compressor – uses 70% fewer moving parts for higher

efficiency and increased reliability

• Modern cabinet aesthetics – increased curb appeal with visu-

ally appealing design

• Curved louver panels – provide ultimate coil protection,

enhance cabinet strength, and increased cabinet rigidity

• Optimized fan orifice – optimizes airflow and reduces unit

sound

• Rust resistant screws – confirmed through 1500-hour salt spray

testing

• PlusOne™ Expanded Valve Space – 3"-4"-5" service valve

space – provides a minimum working area of 27-square inches

for easier access

• PlusOne™ Triple Service Access – 15" wide, industry lead-

ing corner service access – makes repairs easier and faster.

The two fastener removable corner allows optimal access to

internal unit components. Individual louver panels come out

once fastener is removed, for faster coil cleaning and easier

cabinet reassembly

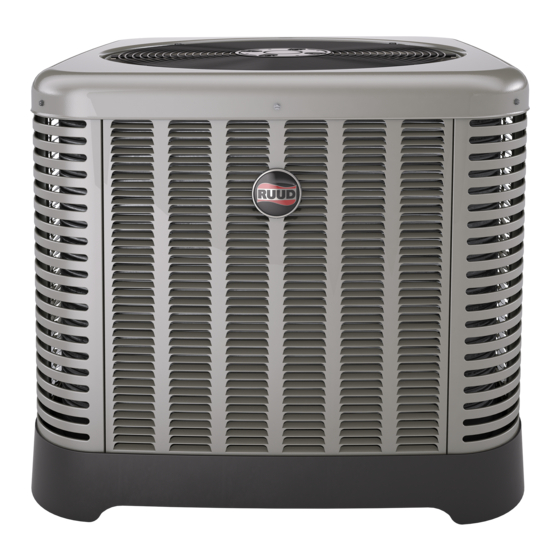

Ruud Achiever

Air Conditioners

• Diagnostic service window with two-fastener opening –

provides access to the high and low pressure.

• External gauge port access – allows easy connection of

"low-loss" gauge ports

• Single-row condenser coil – makes unit lighter and allows thor-

ough coil cleaning to maintain "out of the box" performance

• 35% fewer cabinet fasteners and fastener-free base – allow for

faster access to internal components and hassle-free panel

removal

• Service trays – hold fasteners or caps during service calls

• QR code – provides technical information on demand for faster

service calls

• Fan motor harness with extra long wires allows unit top to be

removed without disconnecting fan wire.

Series

RA14 Series

Efficiencies up to 16 SEER/13 EER

Nominal Sizes 1

to 5 Ton [5.28 to 17.6 kW]

Cooling Capacities 17 .3 to 60.5 kBTU

[5.7 to 17 .7 kW]

"Proper sizing and installation of equipment is critical to achieve

optimal performance. Split system air conditioners and heat

pumps must be matched with appropriate coil components to

meet Energy Star. Ask your Contractor for details or visit

www.energystar.gov."

Air Conditioners

RA14 Series

16.0

Rely on Ruud.™

FORM NO. A22-220 REV. 5

Table of Contents

Need help?

Do you have a question about the Achiever RA1418AJ1NA and is the answer not in the manual?

Questions and answers

Javier

February 15, 2025

Are pressure switches different on outside unit

1 comments:

Mr. Anderson

February 15, 2025

The Ruud Achiever RA1418AJ1NA outdoor unit includes high and low-pressure switches. If a model without these switches was purchased but they are desired, they can be installed in the field. The service window can be removed for easy access to the high and low-side Schrader fittings, and the entire corner of the unit can be removed for ultimate access to install the high and low-pressure switches.

This answer is automatically generated

Michael Windsor

January 31, 2025

Is this unit considered a variable speed? I notice more air coming out of the supply vents at times. Sorry if I missed it in the manual.

1 comments:

Mr. Anderson

February 10, 2025

No, the Ruud Achiever RA1418AJ1NA unit is a single-stage air conditioner, which means it does not have variable speed operation.

This answer is automatically generated

Summary of Contents for Ruud Achiever RA1418AJ1NA

Page 1 – makes repairs easier and faster. The two fastener removable corner allows optimal access to internal unit components. Individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly Rely on Ruud.™ FORM NO. A22-220 REV. 5...
Page 2: Table Of Contents
Model Number Identification ................6-7 General Data/Electrical Data ..................8 Accessories ......................9 Weighted Sound Power ....................9 Thermostats......................9 Unit Dimensions......................10 Clearances ......................11 Wiring Diagrams ....................12 Application Guidelines ....................12 Refrigerant Line Size Information ..............13-14 Performance Data ....................15-59 Guide Specifications ....................60 Limited Warranty ....................61 Rely on Ruud.™...
Page 3: Standard Feature
Series 3 1/2 ton 14 SEER Single-Stage Air Conditioner w/ High/Low Pressure-460/3/60 RA1448AD1NB Achiever ® Series 4 ton 14 SEER Single-Stage Air Conditioner w/ High/Low Pressure-460/3/60 RA1460AD1NB ® Series 5 ton 14 SEER Single-Stage Air Conditioner w/ High/Low Pressure-460/3/60 Achiever Rely on Ruud.™...
Page 4 RA14 Series Introduction to RA14 Air Conditioner The RA14 is our 14 SEER air conditioner and is part of the Ruud air conditioner product line that extends from 13 to 20 SEER. This highly featured and reliable air conditioner is designed for...
Page 5: Optional Accessories
All units are fully charged from the factory for up to 15 feet of piping. All units are factory run tested. The RA14 has a 10-year conditional compressor and parts war- ranty (registration required). Rely on Ruud.™...
Page 6 Model Number Identiﬁcation RA14 Series Rely on Ruud.™...
Page 7 Model Number Identiﬁcation RA14 Series Rely on Ruud.™...
Page 8: Physical Data
¹Refrigerant charge sufficient for 15 ft. length of refrigerant lines. For longer line set requirements see the installation instructions for information about set length and additional refrigerant charge required. ²HACR type circuit breaker of fuse. ³Refer to National Electrical Code manual to determine wire, fuse and disconnect size requirements. Rely on Ruud.™...
Page 9: Accessories
54.3 Thermostats 200-Series * Programmable 500-Series * 300-Series * Communicating/ Deluxe Programmable Programmable 400-Series * Special Applications/ Programmable * Photos are representative. Actual models may vary. For detailed thermostat match-up information, see specification sheet form number T22-001. Rely on Ruud.™...
Page 10: Unit Dimensions
32.38 RA1430A 29.75 29.75 28.75 32.38 32.38 28.75 36.38 36.38 RA1436A 33.75 33.75 RA1442B 33.75 33.75 32.75 36.38 36.38 RA1448A 35.75 35.75 32.75 38.38 38.38 RA1460A 35.75 35.75 36.75 38.38 38.38 ST-A1226-02-00 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 11: Clearances
Clearances RA14 Series WALL Rely on Ruud.™...
Page 12: Control Wiring
5. Use only copper wire for electric connections at unit. Aluminum and clad aluminum are not acceptable for the type of connector provided. 6. Do not apply capillary tube indoor coils to these units. 7. Factory – supplied filter drier must be installed. Rely on Ruud.™...
Page 13: Refrigerant Line Size Information
Refrigerant Line Size Information RA14 Series Rely on Ruud.™...
Page 14 Refrigerant Line Size Information RA14 Series Rely on Ruud.™...
Page 15: Performance Data
14500 [4.2] 14.50 12.00 1600 [755.1] 7492414 RCF4824STAM+RXMD-C04 46000 [13.5] 33800 [9.9] 12200 [3.6] 14.00 11.70 1450 [684.3] 7492437 RA1460AJ1 RCF6024HTAM+RXMD-C04 57000 [16.7] 39900 [11.7] 17100 [5.0] 14.00 11.70 1575 [743.3] 7492636 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 16 13.00 650 [306.8] 8386963 RA1418AJ1 R801TA075317ZSB RCF2421MTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8386983 RA1418AJ1 R801TA075317ZSB RCF2421MTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 650 [306.8] 8386983 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 17 13.00 650 [306.8] 7500957 RA1424AJ1 R801TA075317ZSA RCF2421MTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 7500959 RA1424AJ1 R801TA075317ZSA RCF2421MTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 875 [413.0] 7500959 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 18 13.00 875 [413.0] 8387182 RA1430AJ1 R801TA075317ZSB RCF3621STAM 28600 [8.4] 21200 [6.2] 7400 [2.2] 15.10 12.50 875 [413.0] 8387211 RA1430AJ1 R801TA075317ZSB RCF3621STAM 28600 [8.4] 21200 [6.2] 7400 [2.2] 15.10 12.50 875 [413.0] 8387211 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 19 13.00 1050 [495.5] 8387240 RA1430AJ1 R801TA075421MXA RCF3624MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1025 [483.7] 8387265 RA1430AJ1 R801TA075421MXA RCF3624MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1025 [483.7] 8387265 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 20 7000 [2.1] 15.50 13.00 1000 [471.9] 8052826 RCF3621STAM 29200 [8.6] 22200 [6.5] 7000 [2.1] 15.50 13.00 1000 [471.9] 8052826 RA1430AJ1 R801TA100521MXA RCF3624HTAM 30000 [8.8] 21800 [6.4] 8200 [2.4] 16.00 13.00 1100 [519.1] 8052837 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 21 13.00 925 [436.6] 8052850 RA1430AJ1 R801TA125524ZXA RCF3624MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 925 [436.6] 8052850 RA1430AJ1 R801TA125524ZXB RCF3624HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 975 [460.1] 8387246 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 22 12.50 1000 [471.9] 8053157 RA1436AJ1 R801TA075417MXA RCF3621STAM 34600 [10.1] 24800 [7.3] 9800 [2.9] 15.10 12.50 1000 [471.9] 8053157 RA1436AJ1 R801TA075421MSA RCF3621HTAM 36000 [10.6] 25900 [7.6] 10100 [3.0] 16.00 13.00 1250 [589.9] 8083468 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 23 10000 [2.9] 15.10 12.50 950 [448.4] 8387909 RCF3621STAM 34200 [10.0] 24200 [7.1] 10000 [2.9] 15.10 12.50 950 [448.4] 8387909 RA1436AJ1 R801TA075521ZXB RCF3624HTAM 36000 [10.6] 25900 [7.6] 10100 [3.0] 16.00 13.00 1250 [589.9] 8387936 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 24 13.00 975 [460.1] 8053184 RA1436AJ1 R801TA100521ZXA RCF3624MTAM 36000 [10.6] 25900 [7.6] 10100 [3.0] 16.00 13.00 975 [460.1] 8053184 RA1436AJ1 R801TA100521ZXB RCF3621MTAM 36000 [10.6] 25900 [7.6] 10100 [3.0] 16.00 13.00 975 [460.1] 8387882 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 25 12.00 1250 [589.9] 8388647 RA1442AJ1 R801TA075317ZXB RCF4821STAM 41000 [12.0] 29700 [8.7] 11300 [3.3] 14.50 12.00 1250 [589.9] 8388647 RA1442AJ1 R801TA075417MSA RCF4821MTAM 42000 [12.3] 31600 [9.3] 10400 [3.0] 15.10 12.50 1300 [613.5] 8083550 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 26 12.00 1425 [672.5] 8053422 RA1442AJ1 R801TA075521ZXA RCF4824STAM 42000 [12.3] 31700 [9.3] 10300 [3.0] 14.50 12.00 1425 [672.5] 8053422 RA1442AJ1 R801TA075521ZXB RCF4821MTAM 42000 [12.3] 31600 [9.3] 10400 [3.0] 15.10 12.50 1250 [589.9] 8388589 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 27 12.00 1425 [672.5] 8053424 RA1442AJ1 R801TA100521ZXA RCF4824STAM 42000 [12.3] 31700 [9.3] 10300 [3.0] 14.50 12.00 1425 [672.5] 8053424 RA1442AJ1 R801TA100521ZXB RCF4821MTAM 42000 [12.3] 31600 [9.3] 10400 [3.0] 15.10 12.50 1225 [578.1] 8388594 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 28 12.00 1400 [660.7] 8954558 RA1442BJ1 R801TA075421M RCF4824STA 40500 [11.9] 30500 [8.9] 10000 [2.9] 14.50 12.00 1400 [660.7] 8954558 RA1442BJ1 R801TA075521Z RCF4821MTA 41000 [12.0] 28600 [8.4] 12400 [3.6] 15.10 12.50 1250 [589.9] 8954455 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 29 12.00 1225 [578.1] 8389381 RA1448AJ1 R801TA075317ZXB RCF4821STAM 45000 [13.2] 31400 [9.2] 13600 [4.0] 14.50 12.00 1225 [578.1] 8389381 RA1448AJ1 R801TA075417MSA RCF4821MTAM 46500 [13.6] 31300 [9.2] 15200 [4.5] 15.00 12.50 1300 [613.5] 8083629 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 30 12.00 1400 [660.7] 8053688 RA1448AJ1 R801TA075521ZXA RCF4824STAM 46000 [13.5] 33400 [9.8] 12600 [3.7] 14.50 12.00 1400 [660.7] 8053688 RA1448AJ1 R801TA075521ZXB RCF4821MTAM 47000 [13.8] 32500 [9.5] 14500 [4.2] 14.50 12.00 1425 [672.5] 8389333 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 31 12.00 1400 [660.7] 8053691 RA1448AJ1 R801TA100521ZXA RCF4824STAM 46000 [13.5] 33400 [9.8] 12600 [3.7] 14.50 12.00 1400 [660.7] 8053691 RA1448AJ1 R801TA100521ZXB RCF4821MTAM 47000 [13.8] 32500 [9.5] 14500 [4.2] 14.50 12.00 1425 [672.5] 8389338 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 32 11.70 1450 [684.3] 7501252 RA1460AJ1 R801TA075521ZSA RCF6024STAM 56500 [16.6] 38400 [11.3] 18100 [5.3] 14.00 11.70 1450 [684.3] 7501252 RA1460AJ1 R801TA075521ZSB RCF6024HTAM 56500 [16.6] 38400 [11.3] 18100 [5.3] 14.00 11.70 1450 [684.3] 8389854 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 33 12.00 1650 [778.7] 8053902 RA1460AJ1 R801TA125524MXA RCF6024STAM 58000 [17.0] 41500 [12.2] 16500 [4.8] 14.50 12.00 1650 [778.7] 8053902 RA1460AJ1 R801TA125524ZSA RCF6024HTAM 57500 [16.9] 41200 [12.1] 16300 [4.8] 14.00 11.70 1675 [790.5] 7501251 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 34 11.70 1675 [790.5] 8389859 RA1460AJ1 R801TA125524ZXB RCF6024STAM 57500 [16.9] 41200 [12.1] 16300 [4.8] 14.00 11.70 1675 [790.5] 8389886 RA1460AJ1 R801TA125524ZXB RCF6024STAM 57500 [16.9] 41200 [12.1] 16300 [4.8] 14.00 11.70 1675 [790.5] 8389886 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 35 13.00 675 [318.6] 8386976 RA1418AJ1 R802VA075421MSA RCF2421HTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 675 [318.6] 8052699 RA1418AJ1 R802VA075421MXA RCF2421HTAM 18000 [5.3] 13700 [4.0] 4300 [1.3] 16.00 13.00 675 [318.6] 8107734 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 36 13.00 900 [424.8] 8052768 RA1424AJ1 R802VA050317MSA RCF2421HTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 800 [377.6] 7599568 RA1424AJ1 R802VA050317MXA RCF2421HTAM 24000 [7.0] 18100 [5.3] 5900 [1.7] 15.10 12.50 800 [377.6] 8052754 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 37 21400 [6.3] 7400 [2.2] 15.50 13.00 900 [424.8] 8052831 RCF3624HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1075 [507.3] 8052840 RCF3624MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1075 [507.3] 8052851 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 38 7300 [2.1] 16.00 13.00 1050 [495.5] 8387281 RCF3624HTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 7599633 RA1430AJ1 R802VA125524MSA RCF3624MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 7599639 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 39 25900 [7.6] 9300 [2.7] 15.10 12.50 1125 [530.9] 8107773 RCF3624HTAM 36000 [10.6] 25900 [7.6] 10100 [3.0] 16.00 13.00 1250 [589.9] 8107774 RCF3624MTAM 36000 [10.6] 25900 [7.6] 10100 [3.0] 16.00 13.00 1125 [530.9] 8107775 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 40 10100 [3.0] 16.00 13.00 1250 [589.9] 8053191 RCF3624HTAM 36000 [10.6] 25900 [7.6] 10100 [3.0] 16.00 13.00 1250 [589.9] 7600195 RA1436AJ1 R802VA125524ZSA RCF3624MTAM 36000 [10.6] 25900 [7.6] 10100 [3.0] 16.00 13.00 1075 [507.3] 7600201 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 41 11000 [3.2] 14.50 12.00 1300 [613.5] 8388662 RA1442AJ1 R802VA075421ZXB RCF4824HTAM 42000 [12.3] 31600 [9.3] 10400 [3.0] 15.50 13.00 1125 [530.9] 8388698 RCF4824STAM 41500 [12.2] 30500 [8.9] 11000 [3.2] 14.50 12.00 1300 [613.5] 8388724 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 42 11600 [3.4] 15.10 12.50 1100 [519.1] 8954499 RA1442BJ1 R802VA075421M RCF4824HTA 42000 [12.3] 31400 [9.2] 10600 [3.1] 15.50 13.00 1350 [637.1] 8954534 RCF4824STA 39500 [11.6] 27900 [8.2] 11600 [3.4] 15.10 12.50 1100 [519.1] 8954564 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 43 13200 [3.9] 14.50 12.00 1300 [613.5] 8389396 RA1448AJ1 R802VA075421ZXB RCF4824HTAM 47000 [13.8] 31900 [9.3] 15100 [4.4] 15.00 12.50 1300 [613.5] 8389430 RCF4824STAM 45500 [13.3] 32300 [9.5] 13200 [3.9] 14.50 12.00 1300 [613.5] 8389456 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 44 17300 [5.1] 14.00 11.70 1550 [731.5] 8389893 RCF6024HTAM 57000 [16.7] 39700 [11.6] 17300 [5.1] 14.00 11.70 1550 [731.5] 8053891 RA1460AJ1 R802VA075421ZXA RCF6024STAM 57000 [16.7] 39700 [11.6] 17300 [5.1] 14.00 11.70 1550 [731.5] 8053907 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 45 17100 [5.0] 14.00 11.70 1575 [743.3] 8053913 RCF6024HTAM 57000 [16.7] 39900 [11.7] 17100 [5.0] 14.00 11.70 1575 [743.3] 8389871 RA1460AJ1 R802VA125524ZXB RCF6024STAM 57000 [16.7] 39900 [11.7] 17100 [5.0] 14.00 11.70 1575 [743.3] 8389898 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 46 10100 [3.0] 15.50 13.00 975 [460.1] 8083476 RA1436AJ1 R95TA0701317MSA RCF3621MTAM 36000 [10.6] 25900 [7.6] 10100 [3.0] 15.10 12.50 1075 [507.3] 7491546 RCF3621STAM 33800 [9.9] 23700 [6.9] 10100 [3.0] 14.50 12.00 925 [436.6] 7491574 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 47 10700 [3.1] 14.00 11.50 1275 [601.7] 8954572 RCF4821MTAM 45500 [13.3] 29900 [8.8] 15600 [4.6] 14.00 11.70 1225 [578.1] 8083636 RA1448AJ1 R95TA0601317MSA RCF4821STAM 45000 [13.2] 31400 [9.2] 13600 [4.0] 14.00 11.70 1225 [578.1] 7492370 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 48 18200 [5.3] 14.00 11.70 1425 [672.5] 8389905 RCF6024HTAM 56500 [16.6] 38400 [11.3] 18100 [5.3] 14.00 11.70 1450 [684.3] 8561841 RA1460AJ1 R95TB0851521MSA RCF6024STAM 56500 [16.6] 38400 [11.3] 18100 [5.3] 14.00 11.70 1450 [684.3] 8561842 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 49 7300 [2.1] 16.00 13.00 1050 [495.5] 8083401 RA1430AJ1 R96VA0702317MSA RCF3621MTAM 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 875 [413.0] 7490986 RCF3621STAM 28600 [8.4] 21200 [6.2] 7400 [2.2] 15.10 12.50 875 [413.0] 7491014 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 50 11000 [3.2] 14.50 12.00 1300 [613.5] 7491999 RA1442AJ1 R96VA0852521MSB RCF4824HTAM 42000 [12.3] 31600 [9.3] 10400 [3.0] 15.50 13.00 1150 [542.7] 7492024 RCF4824STAM 41500 [12.2] 30500 [8.9] 11000 [3.2] 14.50 12.00 1300 [613.5] 7492048 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 51 17300 [5.1] 14.00 11.70 1550 [731.5] 8389907 RCF6024HTAM 57000 [16.7] 38900 [11.4] 18100 [5.3] 14.50 12.00 1450 [684.3] 7601044 RA1460AJ1 R96VA1152524MSA RCF6024STAM 57000 [16.7] 38900 [11.4] 18100 [5.3] 14.50 12.00 1450 [684.3] 7601050 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 52 7300 [2.1] 16.00 13.00 1050 [495.5] 8914705 RCF3624HTA 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 8914703 RA1430AJ1 R97VA115M524U RCF3624MTA 30000 [8.8] 22700 [6.7] 7300 [2.1] 16.00 13.00 1050 [495.5] 8914706 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 53 10300 [3.0] 14.50 12.00 1350 [637.1] 8954578 RCF4824HTA 42000 [12.3] 30200 [8.9] 11800 [3.5] 15.50 13.00 1400 [660.7] 8954549 RA1442BJ1 R97VA115M524U RCF4824STA 39500 [11.6] 27900 [8.2] 11600 [3.4] 15.10 12.50 1100 [519.1] 8954579 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 54 12300 [3.6] 14.50 12.00 1450 [684.3] 8914932 RCF6024HTA 58000 [17.0] 42100 [12.3] 15900 [4.7] 14.00 11.70 1725 [814.1] 8953112 RA1460AJ1 R97VA115M524U RCF6024STA 58000 [17.0] 42100 [12.3] 15900 [4.7] 14.00 11.70 1725 [814.1] 8953113 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 55 31600 [9.3] 10400 [3.0] 15.00 12.50 1425 [672.5] 8083579 RH1V4821STAN 41500 [12.2] 30100 [8.8] 11400 [3.3] 15.00 12.50 1225 [578.1] 7492163 RH2V4824HTAC 44500 [13.0] 33300 [9.8] 11200 [3.3] 15.50 13.00 1600 [755.1] 7492165 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 56 40600 [11.9] 16900 [5.0] 14.50 12.00 1600 [755.1] 7492675 RH1V6021STAN 56500 [16.6] 39000 [11.4] 17500 [5.1] 14.00 11.70 1700 [802.3] 8083695 RH1V6024STAN 59000 [17.3] 43700 [12.8] 15300 [4.5] 14.50 12.00 1800 [849.5] 7492674 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 57 12.50 1350 [637.1] 8389469 RA1460AJ1 RHWB-08WRX60B RCF6024STAM 57000 [16.7] 39300 [11.5] 17700 [5.2] 14.50 12.00 1500 [707.9] 8389908 RA1460AJ1 RHWB-10WRX60B RCF6024STAM 57500 [16.9] 40000 [11.7] 17500 [5.1] 14.50 12.00 1525 [719.7] 8389909 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 58 11400 [3.3] 14.50 12.00 1225 [578.1] 8443832 RCF4821MTA 41500 [12.2] 29400 [8.6] 12100 [3.5] 15.10 12.50 1300 [613.5] 8954487 RA1442BJ1 RW1T06A3617N RCF4821STA 40500 [11.9] 29800 [8.7] 10700 [3.1] 14.50 12.00 1275 [601.7] 8954525 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 59 11900 [3.5] 14.00 11.70 1500 [707.9] 8443856 RCF6024HTAM 57500 [16.9] 40200 [11.8] 17300 [5.1] 14.00 11.70 1550 [731.5] 8443865 RA1460AJ1 RW1T10A6024NAA RCF6024STAM 57500 [16.9] 40200 [11.8] 17300 [5.1] 14.00 11.70 1550 [731.5] 8443866 [ ] Designates Metric Conversions Rely on Ruud.™...
Page 60: Guide Specifications
_____ v to _____ v. — Unit electrical power will be single point connection. — Control circuit will be 24v. Special Features — Refer to section of this literature identifying accessories and descriptions for specific features and available enhancements. Rely on Ruud.™...
Page 61: Limited Warranty
Limited Warranty RA14 Series GENERAL TERMS OF LIMITED WARRANTY* Ruud will furnish a replacement for any part of this product Conditional Parts which fails in normal use and service within the applicable (Registration Required) .......Ten (10) Years period stated, in accordance with the terms of the limited warranty.
Page 62 Notes RA14 Series Rely on Ruud.™...
Page 63 Notes RA14 Series Rely on Ruud.™...
Page 64 In keeping with its policy of continuous progress and product improvement, Ruud reserves the right to make changes without notice. Ruud Heating, Cooling & Water Heating • P.O. Box 17010 Ruud Canada • 125 Edgeware Road, Unit 1 Fort Smith, Arkansas 72917 • www.ruud.com Brampton, Ontario •...
