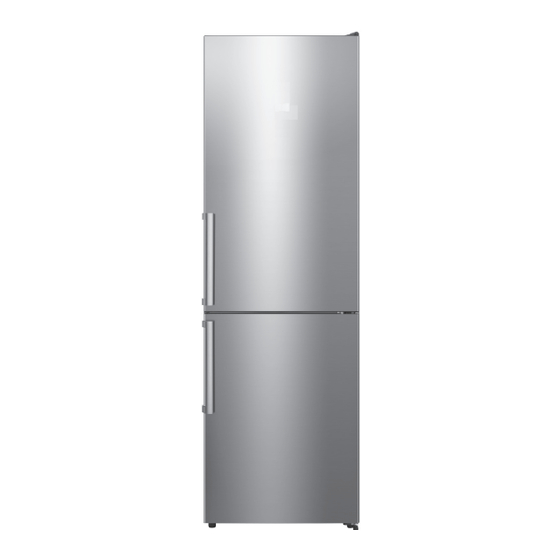

60cm total frost free fridge freezer

Advertisement

Quick Links

60cm Total Frost Free
Fridge Freezer
KNF60X17 / KNF60X17A
installation / instructions manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KNF60X17 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kenwood KNF60X17

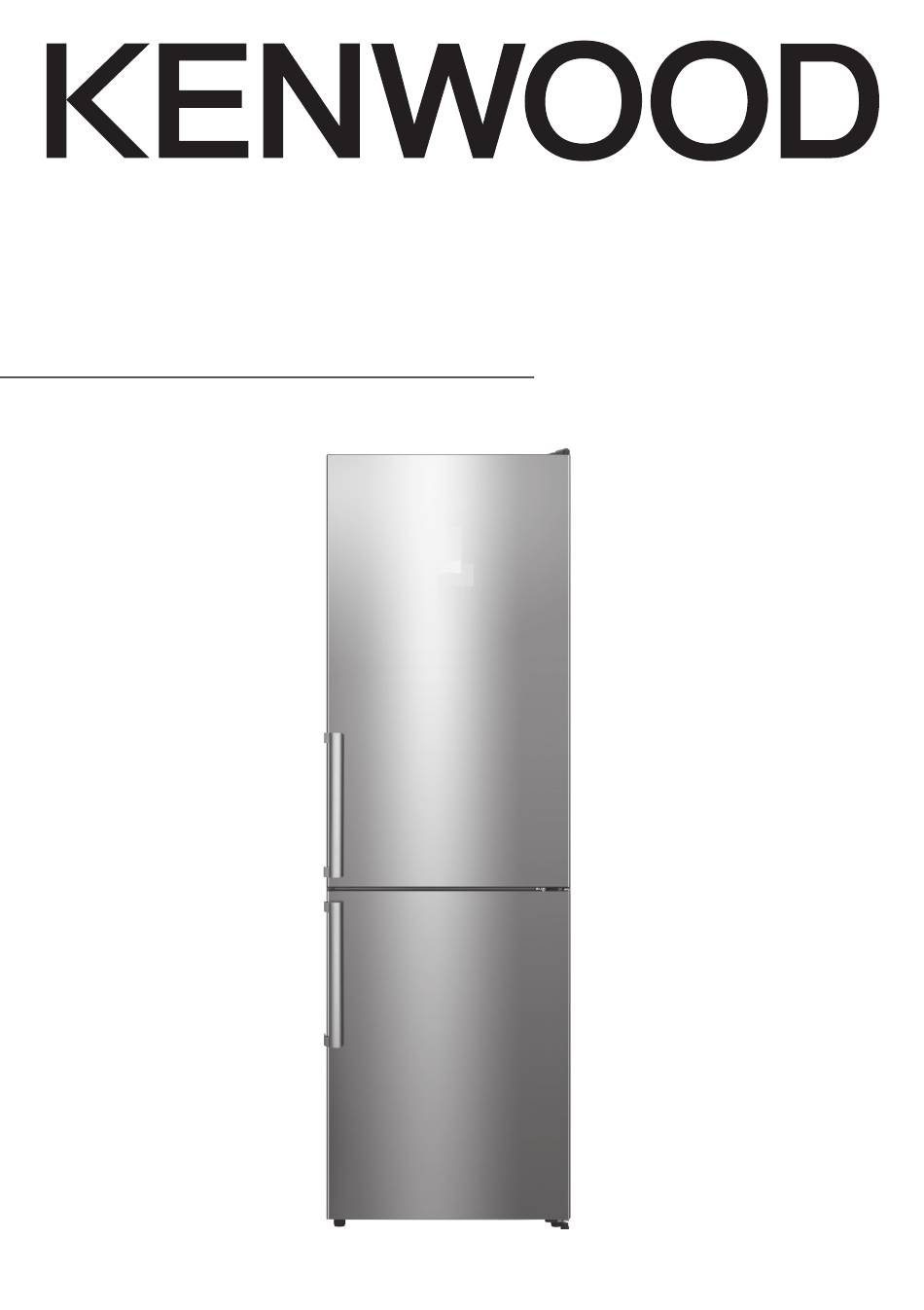

  • Page 1 60cm Total Frost Free Fridge Freezer KNF60X17 / KNF60X17A installation / instructions manual...
  • Page 3: Table Of Contents

    ....................8 cleaning before use ......................11 before using your unit .....................11 product overview ......................12 main unit (KNF60X17) ....................12 main unit (KNF60X17A) ....................13 operation ........................... 14 switching on your unit ....................14 super freeze mode ......................14 holiday mode .........................
  • Page 4: Safety Warnings

    safety warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
  • Page 5 • Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment.
  • Page 6: Unpacking

    Thank you for purchasing your new Kenwood Fridge Freezer. These operating instructions will help you use it properly and safely. We recommend that you spend some time reading this installation/instruction manual in order that you fully understand all the operational features it offers.
  • Page 7: Installation

    installation installation location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 10°C and 43°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption.
  • Page 8: Reversing The Door Swing

    installation reversing the door swing tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner • Ensure the unit is unplugged and empty. • To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g.
  • Page 9 installation 3. Remove the middle hinge. Lift the lower door and place it on a padded surface to prevent from being scratched. 4. Remove the screw and stop block from the bottom of the lower door and move it to the opposite side.
  • Page 10 installation 7. Screw the levelling feet fix board, bottom hinge and levelling feet tightly on their new position. 8. Stand the unit. Remove the middle hinge hole covers and swap their position with the middle hinge. Reverse the middle hinge. 9.
  • Page 11: Cleaning Before Use

    installation 11. Cover the upper hinge with the upper hinge cover. 12. Transfer the door handles to the other side of the doors accordingly. Remove the 2 door screw hole covers from the other side of the door and swap their position with the door handles.
  • Page 12: Product Overview

    (KNF60X17) Control Panel LED Light Fridge Door Shelf (with cover) Fridge Glass Shelf Fridge Door Shelf Bin Cover Shelf Salad Bin Freezer Drawer Bottle Stopper Wine Rack Egg Tray Ice Tray (recommend to hang on the lower fridge door...
  • Page 13: Main Unit (Knf60X17A)

    main unit (KNF60X17A) Control Panel LED Light Fridge Door Shelf (with cover) Fridge Glass Shelf Fridge Door Shelf Bin Cover Shelf Meat & Fish Bin Bin Cover Shelf Salad Bin Freezer Drawer Bottle Stopper Egg Tray Wine Rack Ice Tray (recommend to hang on the lower fridge door shelf)
  • Page 14: Operation

    operation switching on your unit 1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by an electronic control panel. 2. Press repeatedly to set temperature for the fridge compartment (2 to 6°C) and press repeatedly to set temperature for the freezer compartment (-16 to -22°C).
  • Page 15: Noises Inside The Unit

    noises inside the unit! You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them! These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases.
  • Page 16: Defrosting Frozen Food

    • Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging. • Leave a small amount of air space when freezing liquids to allow expansion. • You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, e.g.
  • Page 17: Maintenance

    maintenance changing the internal LED light The internal light is an LED panel that cannot be changed by the user. Please contact a qualified service agent. care when handling / moving your unit Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.
  • Page 18: Specifications

    Model KNF60X17 KNF60X17A Appliance Category Category 7 (Refrigerator – Freezer) Overall Dimension (H x W x D) 1882 x 595 x 637 mm Fresh Food Storage Volume 223 L 197 L / 22 L Frozen Food Storage Volume 89 L...
  • Page 20 Need Help with your product? Your product is supported by Knowhow under a Trademark Licence from Fisher & Paykel Appliances Italy SpA. For help or spare parts please call us on: 0344 561 1234 The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste.
