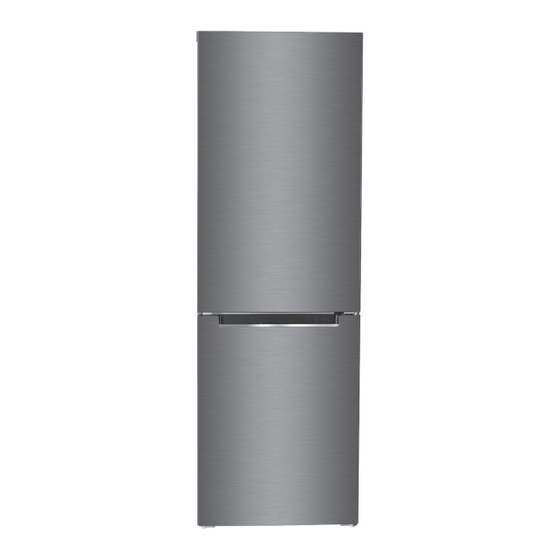

- Page 1 60cm Total Frost Free Fridge Freezer KNF60X19 installation / instructions manual...
-
Page 3: Table Of Contents
Contents safety warnings ........................4 unpacking ..........................6 installation ........................... 7 location ..........................7 levelling the unit ....................... 7 free space requirements ....................7 reversing the door swing ....................8 cleaning before use ......................11 before using your unit .....................11 product overview ......................12 main unit ........................ -
Page 4: Safety Warnings
safety warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. - Page 5 • Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment.
-
Page 6: Unpacking
Thank you for purchasing your new Kenwood Fridge Freezer. These operating instructions will help you use it properly and safely. We recommend that you spend some time reading this installation/instruction manual in order that you fully understand all the operational features it offers. -
Page 7: Installation
installation installation location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 10°C and 43°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. -
Page 8: Reversing The Door Swing
installation reversing the door swing tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner • Ensure the unit is unplugged and empty. • To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. - Page 9 installation 3. Remove the middle hinge. Lift the lower door and place it on a padded surface to prevent from being scratched. 4. Remove both levelling feet and bottom hinge. • Do not lay the unit flat as this may damage the coolant system. • During door reversal, when swapping the position of the bottom hinge or adjusting the levelling feet, tilt the unit.
- Page 10 installation 6. Screw the bottom hinge tightly to its new position. Screw back the levelling feet tightly. 7. Remove the middle hinge hole covers and swap their position with the middle hinge. Reverse the middle hinge. 8. Place the bottom hole of the lower door onto the bottom hinge pin.
-
Page 11: Cleaning Before Use
installation 10. Replace and screw the upper screw hole cover on the right. In some cases, the door seal may be crushed after prolonged storing pressure, resulting to the door seal not able to close properly when reversed. Follow the steps below to solve the issue: • Peel off the door seal from the upper or lower corner and warm it with a hairdryer;... -
Page 12: Product Overview
product overview main unit Control Panel & Light Wine Rack Fridge Door Shelf Fridge Glass Shelf Freezer Control Salad Bin Cover Shelf Salad Bin Freezer Freezer Drawer Glass Shelf Egg Tray Ice Tray... -
Page 13: Operation
operation switching on your unit 1. Connect the mains cable to the mains socket. 2. To adjust the fridge temperature, press Set button repeatedly to set temperature for the fridge compartment (2°C to 8°C). The selected temperature will light up. For normal use, 4°C is recommended. -
Page 14: Tips For Keeping Food In The Unit
tips for keeping food in the unit • Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf. • Leave space around your food, to allow air to circulate inside the compartments. -
Page 15: Defrosting Frozen Food
defrosting frozen food • Take the frozen food out from the freezer compartment and uncover the frozen food. Let it defrost at room temperature. Don’t forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria. • Drain off and throw away any liquid lost during defrosting. -
Page 16: Maintenance
maintenance changing the internal LED light The internal light is an LED panel that cannot be changed by the user. Please contact a qualified service agent. care when handling / moving your unit Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface. -
Page 17: Specifications
Brand Kenwood Model KNF60X19 Household Appliance Category Energy Efficiency Class Energy consumption 306 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located. - Page 20 DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK Manufactured for DSG Retail Limited under Licence from Fisher & Paykel Appliances Italy SpA. DSG Retail Limited is responsible for after sales service. IB-KNF60X19-190122V1...
