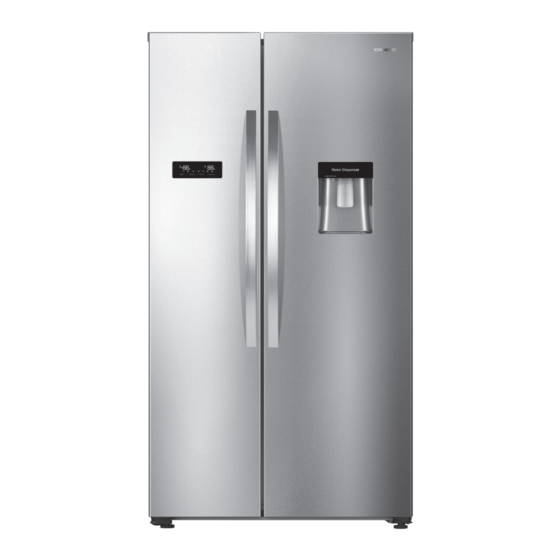

- Page 1 American Style Fridge Freezer with Water Dispenser KSBSDB19 / KSBSDX19 installation / instructions manual...
-
Page 3: Table Of Contents
Contents safety warnings ........................4 unpacking ..........................8 installation ........................... 9 location ..........................9 levelling the unit ....................... 9 free space requirements ....................9 installing the water tank ....................9 cleaning before use ....................... 10 before using your unit ....................10 product overview .......................11 main unit .........................11 operation ........................... -
Page 4: Safety Warnings
safety warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. - Page 5 flammable propellant in this appliance. • Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment. (If applicable) • To avoid contamination of food, pay attention to the following: - opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance;...
- Page 6 The table below contains general guidelines on the storage of food in the refrigerator. Refrigerator location Type of food Fridge door • Foods with natural preservatives, such as jams, juices, drinks, condiments. • Do not store perishable foods. Crisper bin (salad bin) •...
- Page 7 WARNING • Keep ventilation openings in the unit enclosure or in the built- in structure clear of obstructions. • Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. • Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.
-
Page 8: Unpacking
Thank you for purchasing your new Kenwood Fridge Freezer. These operating instructions will help you use it properly and safely. We recommend that you spend some time reading this installation/instruction manual in order that you fully understand all the operational features it offers. -
Page 9: Installation
installation installation location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 10°C and 43°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. -
Page 10: Cleaning Before Use
installation cleaning before use Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the drawers. Clean the exterior of the unit with a damp cloth. If you require more information refer to the Cleaning section. -
Page 11: Product Overview
product overview main unit Fridge Door Shelf LED Light Freezer Door Water Tank Fresh Box Shelf Water Dispenser Freezer (inside the fridge Glass Shelf door) Twistable Ice Tray with Ice Box Wine Rack Fridge Glass Shelf Freezer Salad Bin Drawer Freezer Drawer Salad Bin Cover Shelf... -
Page 12: Operation
operation Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by an electronic control panel on the door. Before changing any setting, ensure the lock is disabled by pressing and holding the Unlock button for 3 seconds. -
Page 13: Holiday Mode
holiday mode • If you will be away for a period of time, you can set the refrigerator to holiday mode. Press the Mode button repeatedly to select the holiday mode. Wait for the light to be steadily illuminated to indicate holiday setting is completed. •... -
Page 14: Filling The Water Tank
filling the water tank Turn the small cap anticlockwise then remove it from the water tank. Fill drinking water into the water tank. • Do not fill above the level, otherwise, it may overflow. • Before filling with water, ensure that the water tank is steady and in a correct position. -
Page 15: Noises Inside The Unit
noises inside the unit! You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them! These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. -
Page 16: Defrosting Frozen Food
defrosting frozen food 1. Take the frozen food out from the unit and uncover the frozen food. Let it defrost at room temperature. Don’t forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria. 2. -
Page 17: Maintenance
maintenance changing the internal LED light The internal light is an LED panel that cannot be changed by the user. Please contact a qualified service agent. care when handling / moving your unit Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface. -
Page 18: Specifications
Features and specifications are subject to change without prior notice. product fiche Brand Kenwood Model KSBSDB19 / KSBSDX19 Household Appliance Category Category 7 (Refrigerator – Freezer) Energy Efficiency Class Energy consumption 464 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located. - Page 20 Need Help with your product? Your product is supported by Knowhow under a Trademark Licence from Fisher & Paykel Appliances Italy SpA. For help or spare parts please call us on: 0344 561 1234 The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste.
