Powrmatic MC200V3 User Instructions

Hide thumbs Also See for MC200V3:
1
2
3
4
5
6

Advertisement

Table of Contents

MC200V3
Users
Instructions
BSI Registered Firm
FM 414
Ind. & Comm. Air Heaters;
Air Moving Equipment;
Flues & Chimneys; Natural
Smoke & Heat Ventilators;
Powered Supply & Extract
ISO 9001
Fans & Systems.
HEATING DIVISION
Hort Bridge
Ilminster, Somerset TA19 9PS
Tel: 01460 53535 Fax: 01460 52341
Every effort is made to ensure accuracy at time of going to press. However as part of our policy of continual product improvement, we reserve the right to alter specifications without prior notice.
MC200 User Instructions Issue 4.1 January 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC200V3 and is the answer not in the manual?

Questions and answers

Related Manuals for Powrmatic MC200V3

Summary of Contents for Powrmatic MC200V3

  • Page 1 MC200V3 Users Instructions BSI Registered Firm FM 414 Ind. & Comm. Air Heaters; Air Moving Equipment; Flues & Chimneys; Natural Smoke & Heat Ventilators; Powered Supply & Extract ISO 9001 Fans & Systems. HEATING DIVISION Hort Bridge Ilminster, Somerset TA19 9PS Tel: 01460 53535 Fax: 01460 52341 Every effort is made to ensure accuracy at time of going to press.

  • Page 2: Time Switch

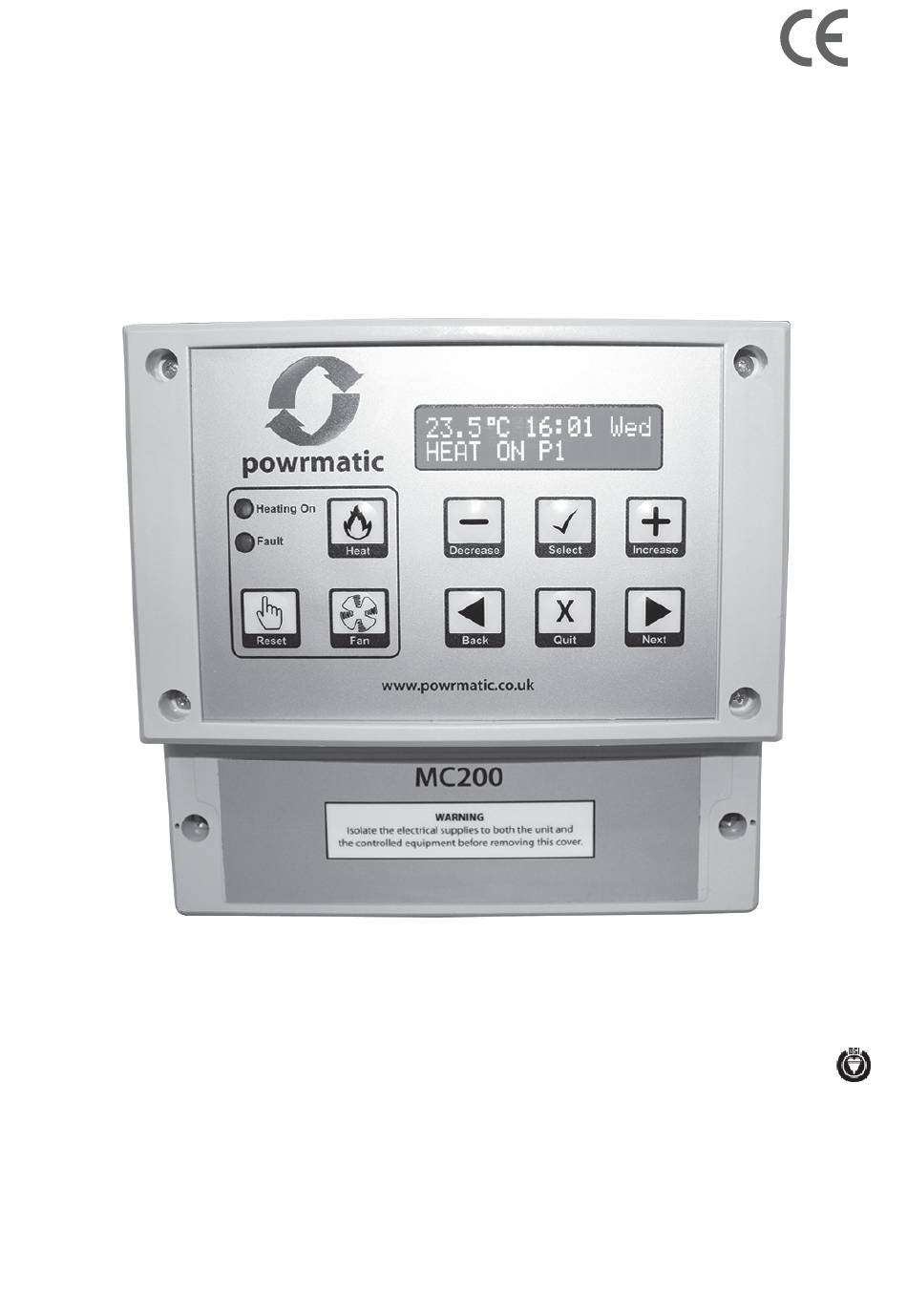

    1. General Description The MC200 is a high specification heating controller designed specifically to meet the demands of modern fuel efficient heating equipment and the latest energy saving and environmental guidelines. Optimum start technology is available that will continually monitor the heating systems previous performance to determine the optimum time to turn the heating on to raise the space temperature to the required level for when occupancy begins.
