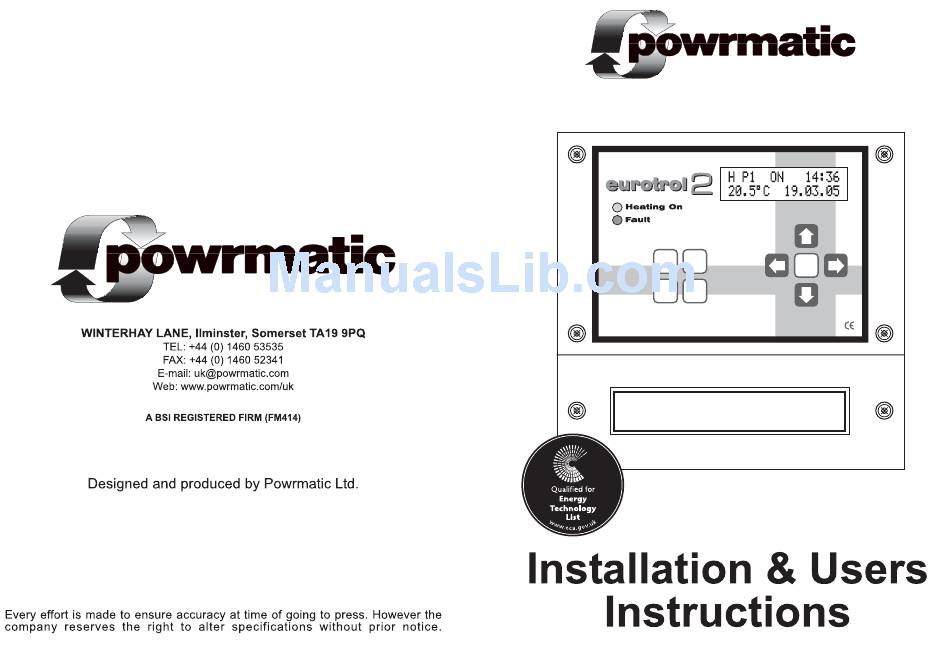

- Page 1 Reset Heating Override Fan Only powrmatic Ltd · tel: 01460 53535 · fax: 01460 52341 www.powrmatic.co.uk · email: eurotrol@powrmatic.co.uk WARNING Isolate supplies to both Eurotrol & heater before removing this cover...
- Page 2 Notes...
-
Page 3: Table Of Contents
Contents Page Description Specifications Dimensions Installation Electrical Connections User Keypad Programming Keypad Overview Programming date and time Basic and advanced operating modes Heating / Fan Only modes Entering the switching program Advanced operation Quick mode / temp offset Menu options Menu layout Sensor wiring Connection diagrams... -
Page 4: Description
+/- 3°C without the use of a password. The Eurotrol 2 is protected by 3 levels of password. The first will allow access to the day to day operation of the (ie. setting... -
Page 5: Specifications
7 x 0.2mm² if multistrand. Fault Indicator Yellow L.E.D. The screen must be grounded only Protection Rating IP20 at the Eurotrol 2. Wiring for the Time Switch temperature sensor MUST BE RUN Display 2 line 5mm L.C.D. SEPARATELY and apart from ALL... -
Page 6: Installation
Set number of sensors Eurotrol 2 Siting of the Eurotrol 2 is important in that it must be fitted where the temperature Set length of extension time will be generally representative of the area to be heated. It should be installed 1.7m above floor level and away from draughty areas or areas subjected to direct heat from sunlight, radiators etc. -
Page 7: User Keypad
Menu Layout User keypad (4 Buttons) Heating A short press of either button will place the control into that respective mode until midnight of that day. (Indicated by a flashing H for heating Main display Fan Only or F for fan only,in the display) Pressing either button for 5 secs. -
Page 8: Overview
Overview Constant Run Fan The eurotrol 2 comes preprogrammed with a typical heating program. Heater fan runs constantly during program times in After installation the minimum setup required will be to program the current time and heating mode. date. Power up... -
Page 9: Basic And Advanced Operating Modes
Menu options Basic & advanced operating modes The eurotrol 2 is supplied in the BASIC operating mode: Run Mode This allows easy adjustment of the temperature set point after entering the first level password and allows entering 3 switching programs per day Turns the controller On or OFF. -
Page 10: Entering The Switching Program
Note: A basic program of Monday to Friday on at 08:00 (8am) and off at 17:00 (5pm) Entering the switching program (ADVANCED OPERATION) and a set point temperature of 20ºC is preprogrammed into the eurotrol 2. The ADVANCED programming is similar to BASIC operation with the addition of:...
