Installation and Setting
Instructions
MC200 Installation and Setting Instructions Issue 2.1 January 2010
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Powrmatic FuelSaver MC200
Summary of Contents for Powrmatic FuelSaver MC200

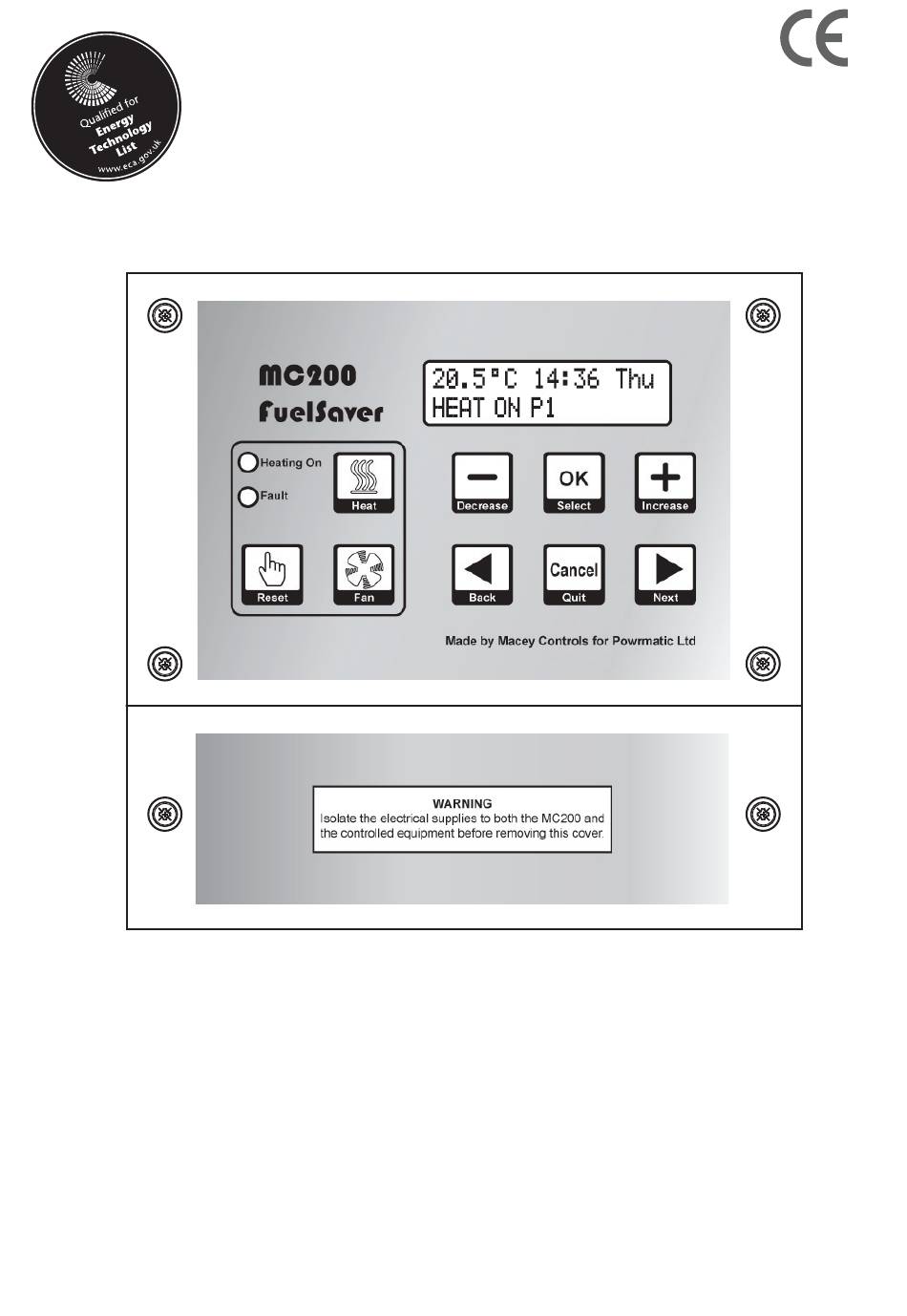

- Page 1 Installation and Setting Instructions MC200 Installation and Setting Instructions Issue 2.1 January 2010...
- Page 2 User Controls Engineer Controls Temperature Sensors Outputs Handover Short List of Parts Terminal Layout Connections to Powrmatic Heaters BSI Registered Firm FM 414 Ind. & Comm. Air Heaters; Air Moving Equipment; Flues & Chimneys; Natural Smoke & Heat Ventilators; Powered Supply & Extract ISO 9001 Fans &...

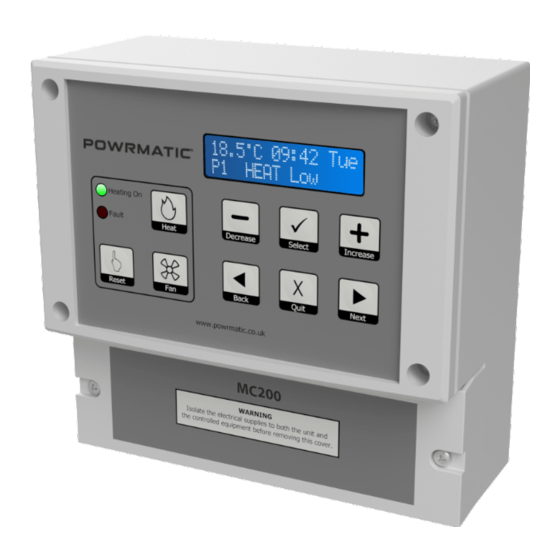

- Page 3 1. General Description The MC200 is a high specification heating controller designed specifically to meet the demands of modern fuel efficient heating equipment and the latest environmental guidelines. The MC200 uses optimum start technology. It is continually monitoring the heating systems previous performance to determine the optimum time to turn the heating on to raise the building temperature to the required level when occupancy begins.
- Page 4 3 Dimensions 4 Installation IMPORTANT The MC200 and sensor MUST NOT be sited in areas of high electromagnetic fields, i.e. distribution boards, transformers or heavy duty supply cables. MC200 Location Siting of the MC200 is important in that it must be fitted where the temperature will be generally representative of the area to be heated.
- Page 5 6 Keypad Layout 6.1 User keypad (3 Buttons) Heat Button - Switching heat ON or OFF in all modes is completed with a short press (less than 2 seconds) of the Heat button. Pressing for longer than 3 seconds controls extension time. If the button is held down, the extension timer will increase in 30minute steps, up to the maximum allowed period, and then it will revert to 0minutes again.
- Page 6 7 User Controls 7.1 Direct Control The User has the following direct control of the heater without using the menu. - If the Fault LED is on, the user can reset the heater by pressing the Reset button. - If configured during the commissioning stage, the user can switch on or off heating by pressing the Heat button. -If configured during the commissioning stage, the user can start or cancel extension time by pressing the Heat button longer than 3 seconds.
- Page 7 Set which days are associated with this programme, then > Press OK to save this programme in response to prompt. Select another programme using + or -, or Press Cancel a second time to return to main menu Press > for next menu option Holiday date A future date can be set so that the heating will not operate on that date, and remains “OFF”...
- Page 8 Select maximum extension time using +/- keys, then OK to save Press > for next menu option Cost Log This option shows the total hours run and the total cost of running since the log was last cleared. The display will show the date when it was last cleared.
- Page 9 Burner High Rating - Defines the high ( and Low) heat input ( in kW) of the controlled burner for cost calculations. Use +/- to enter the rating one digit at a time. Use < > keys to move between digits. Press OK to save, Press >...
- Page 10 Setback Temperature - Sets the frost protection/night setback temperatue value. Use +/- to select temperature (1°C to 15°C) Press OK to save Press > to go to next option Optimum Start - Sets whether Optimum Start is active Use +/- to select ON or OFF Press OK to save Press >...
- Page 11 11. Handover Demonstrate the setting up and operation of the control to the end user. Leave the User Instructions with the end user. 12. Short List of Parts Item Powrmatic Part # Complete unit MC200 PCB alone 143070033...
- Page 12 14. Connections to Powrmatic Heaters MC200 Fuelsaver 6.3A HEAT L MAIN MC200 CONTROLLING L MAIN STANDARD NV / VP / DHM SL fitted with Pactrol Control N MAIN N CAP MC200 Fuelsaver 6.3A MC200 CONTROLLING STANDARD NV / VP / DHM SL...
- Page 13 MC200 Fuelsaver 6.3A HEAT L MAIN L MAIN MC200 CONTROLLING HI/LO NV / VP / DHM SL N MAIN fitted with Pactrol Control N CAP MC200 Fuelsaver 6.3A MC200 CONTROLLING Hi/Lo NV / VP / DHM SL fitted with Brahma Control...
- Page 14 MC200 Fuelsaver 6.3A HEAT L MAIN L MAIN MC200 CONTROLLING N MAIN MODULATING NV / VP / DHM SL N CAP fitted with Pactrol Control MC200 Fuelsaver 6.3A MC200 CONTROLLING MODULATING NV / VP / DHM SL fitted with Brahma Control...
- Page 15 MC200 fuelsaver 6.3A MC200 CONTROLLING STANDARD CABINET HEATER MC200 fuelsaver 6.3A MC200 CONTROLLING HI/LO CABINET HEATER...
- Page 16 MC200 fuelsaver 6.3A MC200 CONTROLLING MODULATING CABINET HEATER...
- Page 17 BSI Registered Firm FM 414 Ind. & Comm. Air Heaters; Air Moving Equipment; Flues & Chimneys; Natural Smoke & Heat Ventilators; Powered Supply & Extract ISO 9001 Fans & Systems. HEATING DIVISION Hort Bridge Ilminster, Somerset TA19 9PS Tel: 01460 53535 Fax: 01460 52341 Every effort is made to ensure accuracy at time of going to press.
