Doc Ref: M401 Issue 5.4 Feb 2018

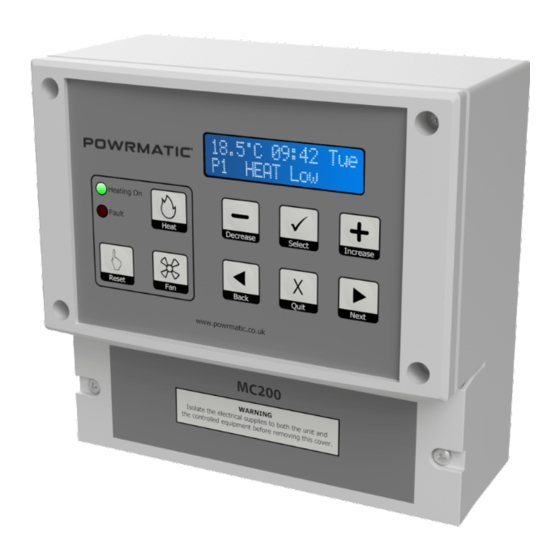

MC200/V3 Control System
Industrial & Commercial Heating Systems
User, Installation
& Servicing Manual
+ 4 4 ( 0 ) 1 4 6 0 5 3 5 3 5
i n f o @ p o w r m a t i c . c o . u k
w w w . p o w m a t i c . c o . u k

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC200/V3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Powrmatic MC200/V3

Summary of Contents for Powrmatic MC200/V3

  • Page 1 Doc Ref: M401 Issue 5.4 Feb 2018 MC200/V3 Control System Industrial & Commercial Heating Systems User, Installation & Servicing Manual + 4 4 ( 0 ) 1 4 6 0 5 3 5 3 5 i n f o @ p o w r m a t i c . c o . u k...

  • Page 2: Mc200/V3 Users, Installation & Servicing Instructions Doc Ref M401 Issue 5.4 Feb

    1. The appliance type and order number. 2. The original commissioning documentation. As much detail as possible on the fault. 3. Your supplier, or installer, will then contact Powrmatic to make a guarantee claim on your behalf. Conditions of Guarantee 1.

  • Page 3: Table Of Contents

    We appreciate you buying one of our high quality products and know that you have made the best choice. By choosing Powrmatic, you are investing in UK manufacturing & its workforce. We pride ourselves by manufacturing products that provide clean, comfortable and safe working environments worldwide together with the personal &...

  • Page 4: User Instructions

    Decrease Button - Press to decrease values. maximum allowed period, and then revert to 0 minutes. Release the button when the required heating period is Decrease showing. page no. 4 of 24 MC200/V3 Users, Installation & Servicing Instructions Doc Ref M401 issue 5.4 Feb 2018.
  • Page 5 • Pressing of the next button will scroll through the screen or weekend. displays available to the user C 09:42 HEAT ON page no. 5 of 24 MC200/V3 Users, Installation & Servicing Instructions Doc Ref M401 issue 5.4 Feb 2018.
  • Page 6 The + button will automatically wrap round from the maximum value to the minimum value and the – button will wrap the other way. page no. 6 of 24 MC200/V3 Users, Installation & Servicing Instructions Doc Ref M401 issue 5.4 Feb 2018.
  • Page 7 ► button to move to the number, ensuring that the holiday shutdown date is not automatically repeated the following year. next setting. page no. 7 of 24 MC200/V3 Users, Installation & Servicing Instructions Doc Ref M401 issue 5.4 Feb 2018.
  • Page 8 ► button to move to the briefly, press the X button to exit without saving, press the ► button to move to the next setting. next setting. page no. 8 of 24 MC200/V3 Users, Installation & Servicing Instructions Doc Ref M401 issue 5.4 Feb 2018.

  • Page 9: Introduction

    • It is possible to schedule timers so that one starts before another has finished. The heating will be on while page no. 9 of 24 MC200/V3 Users, Installation & Servicing Instructions Doc Ref M401 issue 5.4 Feb 2018.
  • Page 10 • The MC200/V3 keeps a note of how many minutes are output will be 10v. taken for the temperature to drop the number of degrees entered against this parameter when the heating period Cost logging operates as usual.

  • Page 11: Technical Data

    Red when the burner is a Hi-Low type, Yellow when the burner is a Modulating type. Fault (Lockout) Indicator Orange L.E.D. Protection Rating IP20 Software versions Dimensions 165mm 85mm page no. 11 of 24 MC200/V3 Users, Installation & Servicing Instructions Doc Ref M401 issue 5.4 Feb 2018.

  • Page 12: Fitting The Unit

    MC200/V3. Siting of the MC200/V3 is important in that it must be fitted where the temperature will be representative of the Remove the four screws that secure the top (keypad and area being heated.

  • Page 13: Electrical Cable Installation

    3 Volt Free pair - If a voltage is required (230V, 24V, 110V etc) the appropriate voltage must be applied to the corresponding input terminal. page no. 13 of 24 MC200/V3 Users, Installation & Servicing Instructions Doc Ref M401 issue 5.4 Feb 2018.
  • Page 14 2.2.2 External Wiring 2.2.2.1 Wiring details for current Powrmatic heaters utilising fused live output terminal 14 and detailing 'link' wires. 2.2.2.2 Wiring details for older Powrmatic heaters utilising volt free heat and fan terminals Notes: 3 Wiring for external remote sensor only...

  • Page 15: Interconnecting Wiring Diagrams

    Modulating ErP NVx or VPC MC200 Fuelsaver OUH ErP High/Low 6.3A L N E L N E MC200 Controlling High/Low ErP OUH page no. 15 of 24 MC200/V3 Users, Installation & Servicing Instructions Doc Ref M401 issue 5.4 Feb 2018.
  • Page 16 ON/OFF NVx or VPc MC200 Fuelsaver Hi/Lo 6.3A NVx or VPc MC200 Controlling MC200 CONTROLLING HI/LOW NVx or VPC Hi/Lo NVx / VPc page no. 16 of 24 MC200/V3 Users, Installation & Servicing Instructions Doc Ref M401 issue 5.4 Feb 2018.
  • Page 17 Modulation NVx or VPC Modulating NVx / VPc MC200 Fuelsaver ON/OFF 6.3A MC200 Controlling ON/OFF CPx MC200 Fuelsaver Hi/Lo 6.3A MC200 Controlling HI/LOW CPx page no. 17 of 24 MC200/V3 Users, Installation & Servicing Instructions Doc Ref M401 issue 5.4 Feb 2018.
  • Page 18 ON/OFF NVS MC200 Fuelsaver Hi/Lo 6.3A MC200 Controlling HI/LOW NVS MC200 Fuelsaver ON/OFF 6.3A 10 11 12 13 14 MC200 Controlling ON/OFF OUH page no. 18 of 24 MC200/V3 Users, Installation & Servicing Instructions Doc Ref M401 issue 5.4 Feb 2018.

  • Page 19: Commissioning And Output Sequences

    Range of adjustment: 0.5°C to 10.0°C the Engineer code permits access to both the Engineer your setting here menu and the User menu. page no. 19 of 24 MC200/V3 Users, Installation & Servicing Instructions Doc Ref M401 issue 5.4 Feb 2018.
  • Page 20 ON: fan runs 24/7. (Default: OFF) goes off your setting here Open = on A switch is fitted. When it opens, heating goes on your setting here page no. 20 of 24 MC200/V3 Users, Installation & Servicing Instructions Doc Ref M401 issue 5.4 Feb 2018.
  • Page 21 0-10v+ and 0-10v-) increases, reaching 10v when the sensor temperature falls to the threshold set i.e 0V at low fire, 10V at High Fire. page no. 21 of 24 MC200/V3 Users, Installation & Servicing Instructions Doc Ref M401 issue 5.4 Feb 2018.

  • Page 22: Fault Displays And Fault Finding

    Also check the ribbon cable between the two pcb's is *only be undertaken by a competent person. making good contact If the screen remains blank, contact Powrmatic technical department. page no. 22 of 24 MC200/V3...
  • Page 23 If the temperature doesn't increase past a particular point, the range could be limited within the engineers setting. UserTempMax 30.0 Increase the max available temperature. page no. 23 of 24 MC200/V3 Users, Installation & Servicing Instructions Doc Ref M401 issue 5.4 Feb 2018.
  • Page 24 Every effort is made to ensure accuracy at time of going to press. However as part of continued product improvement, we reserve the right to alter specification without prior notice. page no. 24 of 24 MC200/V3 Users, Installation & Servicing Instructions Doc Ref M401 issue 5.4 Feb 2018.
