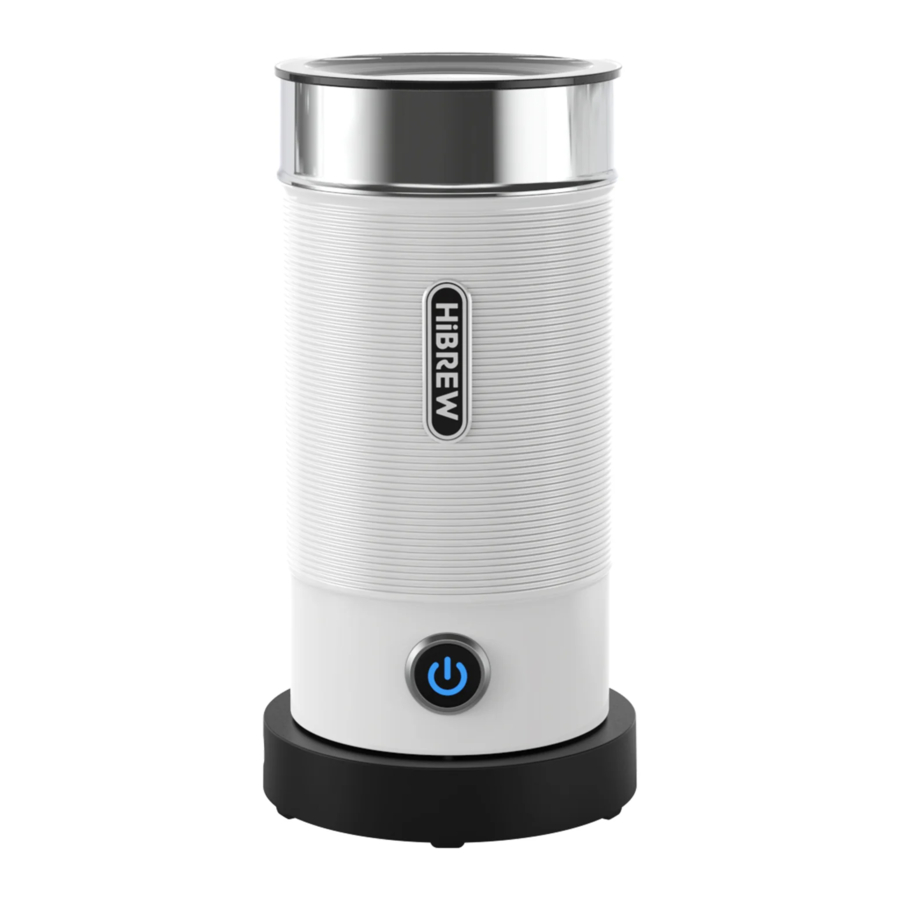

HiBREW M1A (BM-02B) Manual

QUICK START GUIDE

OPERATING INSTRUCTION

Before The First Use

• Unpack the box with care, remove all the packing materials away from the appliance and keep it for later use;
• Keep the packing material(bag and etc.) away from children for safety;
• Before using the appliance for the first time, please clean the jug and the accessories as described under the chapter "Cleaning and maintenance" to remove the dust or production residues;

Quick Steps

UHT whole milk is the best choice!

Function Definition

FUNCTION	Operation	Indication	Whisk	Milk Level
Hot & Thick Foam	One Quick Click it	Steady Red	Whisk with Spring
Hot & Thin Foam	Double Quick Click it	Flashing Red
Cold & Thick Foam	Press it for 3 seconds	Steady Blue

Note: The data in this table were provided by HiBREW Lab in accordance to certain brand milk/Chocolate, your local milk/Chocolate from different countries may be various and get different temperature as well as volume, you should take these data for reference only, not criteria.

Operating Steps

• Insert whisk firmly inside the jug;
• Pour desired milk into the jug but not more than the maximum to avoid overflow;
• When the product is connected to power, the On/Off Indicator will flash 2 times red and 2 times blue lights.
• When press the button with One Quick Click, the frother is set to make hot cappuccino with thick foam, the indicator will be lit in steady Red.
• When press the button with Two Quick Click ( twice click with 2 seconds), the frother is set to make hot cappuccino with thin foam, the indicator will be lit in flashing Red.
• When press the button for 3 seconds, the frother is set to make cold cappuccino with thick foam, the indicator will be lit in steady Blue.
• The milk frother will switch off automatically.
• The operating can be cancelled by pressing the On/Off button during working.

Hints and tips

Here are some tips to help you understand better of this device:

• Keep the milk in refrigerator at 4~8℃ degree.
• Use whole milk (fat content ≥3.0%) for best result.
• Keep your whisks in a safe place to prevent from missing.
• Heated milk with thick foam is good for Espresso or Chocolate.
• Heated milk with thin foam is good for art Cappuccino.
• Cold milk with thick foam is good for cold beverage, such as Protein.
• Always wash the jug after use.
• Do Not operate it without milk or water inside to avoid scald.
• The device may not start when the milk jug is hot, this is for protection, not malfunction, the device will work normally when it is cold down.
• Suggest to let it have break for 10 minutes between each operation.

TIPS FOR HOT DRINKS

*For reference purposes, tested based on HBREW Lab.

CLEANING AND MAINTENANCE

Unplug from the power before cleaning, remove the lid from the jug.
Never immerse the jug or base into water.
This device is NOT designed for dishwasher.

1. The jug & base: Clean the jug immediately after each use, clean the wall and bottom with warm soapy water and use the brush to clean the residue if there is, Never use sharp object such as metal brush and never use abrasives cleaning agent to clean the surface to avoid scratches. Then dry with a soft cloth.
2. The lid: Rinse under water directly.
3. The whisks: Fill in tap water to middle Max level, run the cold frothing to clean the whisk itself without removal.

SPECIFICATION

TROUBLESHOOTING

IMPORTANT INSTRUCTIONS

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Read all instructions before using.
2. In case of emergency, immediately unplug the machine from the power outlet.
3. Check that the voltage indicated on the rating label of the appliance does in fact match that of your electrical system.
4. This appliance is not intended to for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience, and knowledge, unless they are supervised or instructed concerning the use of the appliance by a person responsible for their safety. Never leave the appliance unattended during operation. Keep it out of the reach of children.
5. Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, has been dropped or damaged in any manner. Return the appliance to an authorized service facility for examination, electrical or mechanical adjustment, or repair.
6. Always unplug the appliance when not in use or before cleaning. Allow it to cool before adding or removing parts, and before cleaning the appliance.
7. To protect against fire, electric shock and personal injury, do not immerse cord, plug or appliance in water or other liquid. Never clean the appliance or the power cord if they are humid. Avoid touching the appliance with wet hands.
8. Do not run the cord under carpeting. Do not cover the power cord with throw rugs, runners or similar floor coverings. Arrange the cord away from high traffic areas to a place where it will not be tripped over.
9. Avoid the use of an extension cord as it may overheat and become a fire hazard. If you must use an extension cord, it should be rated no less than 1,000 watts. Only use a grounded socket to connect the appliance.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. It is normal for the plug to feel warm to the touch; however, a loose fit between the AC outlet receptacle and plug may cause overheating and distortion of the plug. Contact a qualified electrician to replace loose or worn outlets.
12. Use the appliance only as the described in this manual. Any other use or accessory attachments not recommend by the manufacture may cause fire, electric shock, or injury.
13. Never wash in the dishwasher or immerse the machine into water.
14. Only use the milk frothier with the power base provided. Do not use the power base with anything else.
15. Do not operate without milk in the jug. Do not insert any object or fingers into the jug when operating. Do not overfill the jug. Filling past the maximum levels indicated inside the jug can cause overflowing during operation. Never touch rotating parts. Risk of injury!
16. This appliance is intended to be used in household(in door) and similar applications such as: staff kitchen areas in shops, offices and other working environments like farm houses; by clients in hotels, motels. No liability is accepted for any damage resulting from use for other purposes, faulty operation or amateur repairs.
