BelFone BF-CM629 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.belfone.com
－ＣＭ６２９
Ｔｗｏ－ｗａｙ　Ｒａｄｉｏ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BF-CM629 and is the answer not in the manual?

Questions and answers

Related Manuals for BelFone BF-CM629

Summary of Contents for BelFone BF-CM629

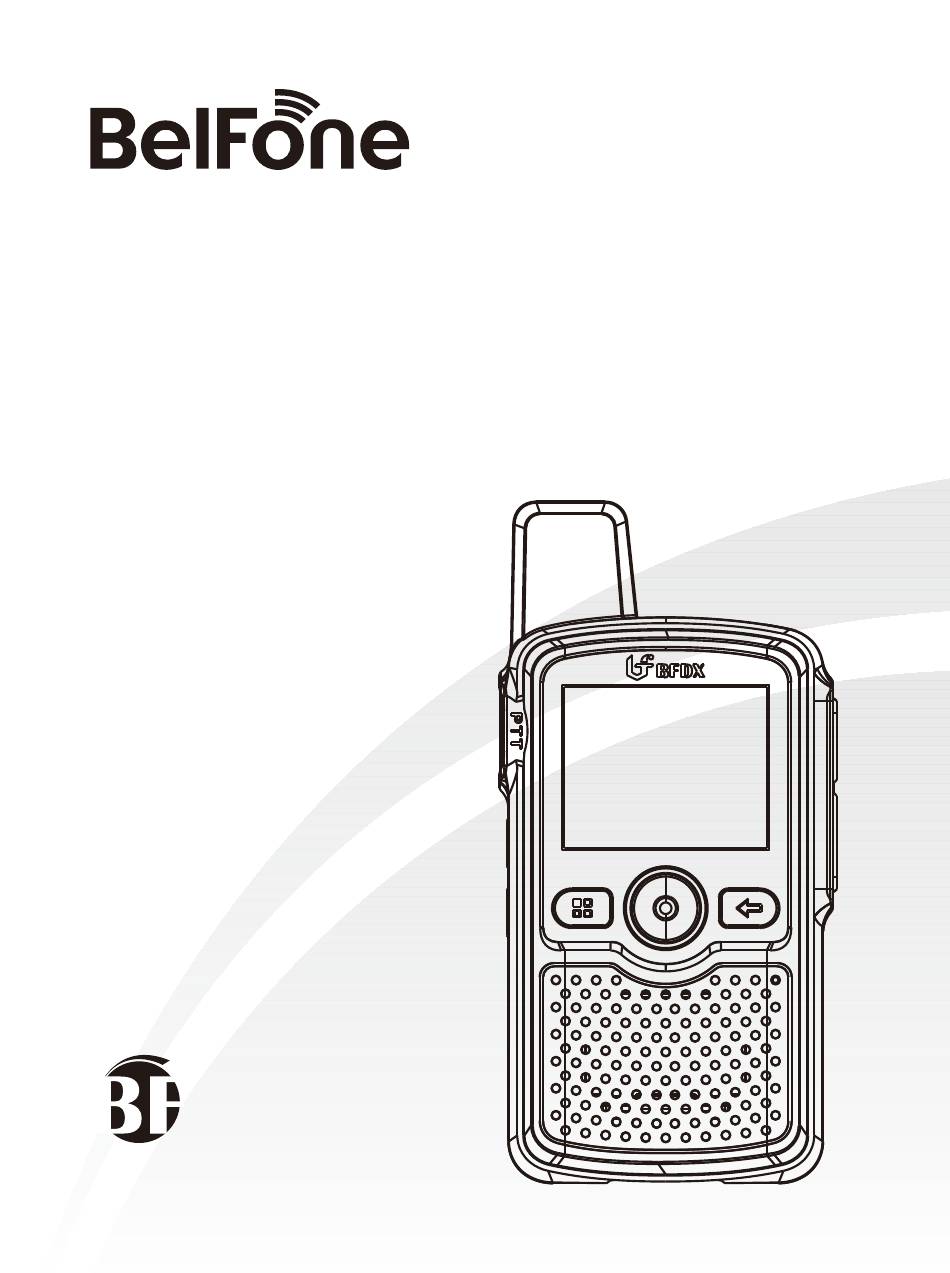

  • Page 1 －ＣＭ６２９ Ｔｗｏ－ｗａｙ　Ｒａｄｉｏ...
  • Page 3 THANK YOU! Founded in 1989, BelFone is a leading technology and solution provider of mission and business-critical communications, dedicated to bringing cut-edge communications technologies and empowering our customers with integrated radio solutions. With outstanding performance and excellent communication capabilities, BelFone products are the proper choices for mastering the overall situation and achieving intelligent dispatching and command delivery.

  • Page 4: Instructions Before Use

    Please find a certified technician to repair it. ◆ If secondary development is required, please contact with BelFone or thelocal dealer for technical assistance. ◆Please keep the surface of radio clean and dry. To clean the radio, use...

  • Page 5: Standard Accessories

    Unpacking and Device Inspection Note: The following instructions regarding unpacking are only for BelFone’s distributors, and service agencies or factories authorized by BelFone. After carefully unpacking the radio, identify the items listed in the table below. If any items are missing or have been damaged during shipment please contact dealer or BelFone immediately.

  • Page 6: Accessories Installation

    Accessories Installation Ｉｎｓｔａｌｌ　ＳＩＭ　Ｃａｒｄ Remove the waterproof cover, slide up to open the latch, insert the SIM card with the chip facing down and the bevel of the SIM card aligned with the card slot on the radio, adjust it to the appropriate position, slide down to lock the latch, then close the waterproof cover, and install the battery back cover of the radio.

  • Page 7: Install/Remove Battery

    Install/Remove Battery Warning！ 1. Don’t short-circuit the battery, which may cause damaged or catch fire; 2. Do not attempt to remove the battery casing to prevent battery short circuit. 3. Batteries are flammable and explosive objects. Please do not throw batteries into fire or use them in dangerous areas such as gas stations.

  • Page 8: Battery Information

    Applicable battery To reduce the risk of injury, please only use the battery and charger specified by BelFone, other batteries may burst, causing bodily injury and property damage. Battery Tips 1.When charging the battery, keep it at a temperature among 4℃—40℃.

  • Page 9: Extend Battery Life

    Extend Battery Life 1.The battery performance will be decreased under 0℃. Please prepare a spare battery in cold weather. A battery does not work properly in a cold environment does not mean that it is damaged. Please keep the battery and reconfirm at room temperature.

  • Page 10: Install/Remove The Belt Clip

    It is recommended to use the standard power adapter. If, for personal reasons, a non-standard high-voltage power adapter is used, any damage to the battery caused by this is not covered by BelFone’s warranty. Any damage caused by the battery should be borne by the individual.
  • Page 11 Ａｔｔａｃｈ　ｔｈｅ　Ｓｐｅａｋｅｒ／Ｍｉｃｒｏｐｈｏｎｅ Open the earphone cover and plug the speaker/microphone earphone directly into the speaker/microphone jack. Get Familiar with the Device...
  • Page 12 ① Power button ●In the shutdown state, long press this key for about 3~4 seconds to turn on the radio; ●In the boot state, long press this key for about 2~3 seconds to turn off the radio; ●After startup, short press this key to wake up or turn off the radio screen. ②...

  • Page 13: Basic Operation

    ⑨ Volume up key ●Short press this key increases the volume, with each press increasing the volume by one level, up to a maximum of level 9. ⑩ Voice Down ●Short pressing this key decreases the volume by 1 level each time, with a minimum of 0 level and mute.

  • Page 14: Select Group

    Note: The volume adjustment changes the volume of both the reception and the alert tone, that is, the alert tone of the radio changes with the volume adjustment. Select Group After the radio is powered on, it automatically logs into the group. Press the menu button on the main interface to enter the menu page.

  • Page 15: Private Call

    Note: 1.To maintain optimal sound quality, it is recommended to speak between 5-10cm away from the Mic; 2. The radio can only talk to members within the same group. Private Call After selecting the private contact to be called from the "Member List" menu, press the confirm button to create a temporary call group.
  • Page 16 ●Software update: Check if a new software version has been released. If a new version is found, select "Update" and press the confirm button to proceed with the update. Select "Later" and press the confirm button to skip the update and exit the update check page.

  • Page 17: Solutions To Common Problems

    Solutions to Common Problems If the radio shows abnormalities during use, please first refer to the possible problems in the table (the problems described in the table are usually faults encountered during operation, not caused by the radio). If the problem is still not resolved, please contact the dealer or relevant personnel.
  • Page 18 If any doubt, please contact us promptly, and we will provide you with detailed answers immediately. Due to the rapid development of wireless communication technology, BelFone reserves the right to modify product design and specifications without further notice. We...
  • Page 20 Add: A-15 Huaqiao Economic Development Zone, Shuangyang,Luojiang,Quanzhou,Fujian,China Tel: +86 595 28396717 Fax: +86 595 22771635 Email: overseas@belfone.com Website: www.belfone.com...
