Summary of Contents for BelFone BP660

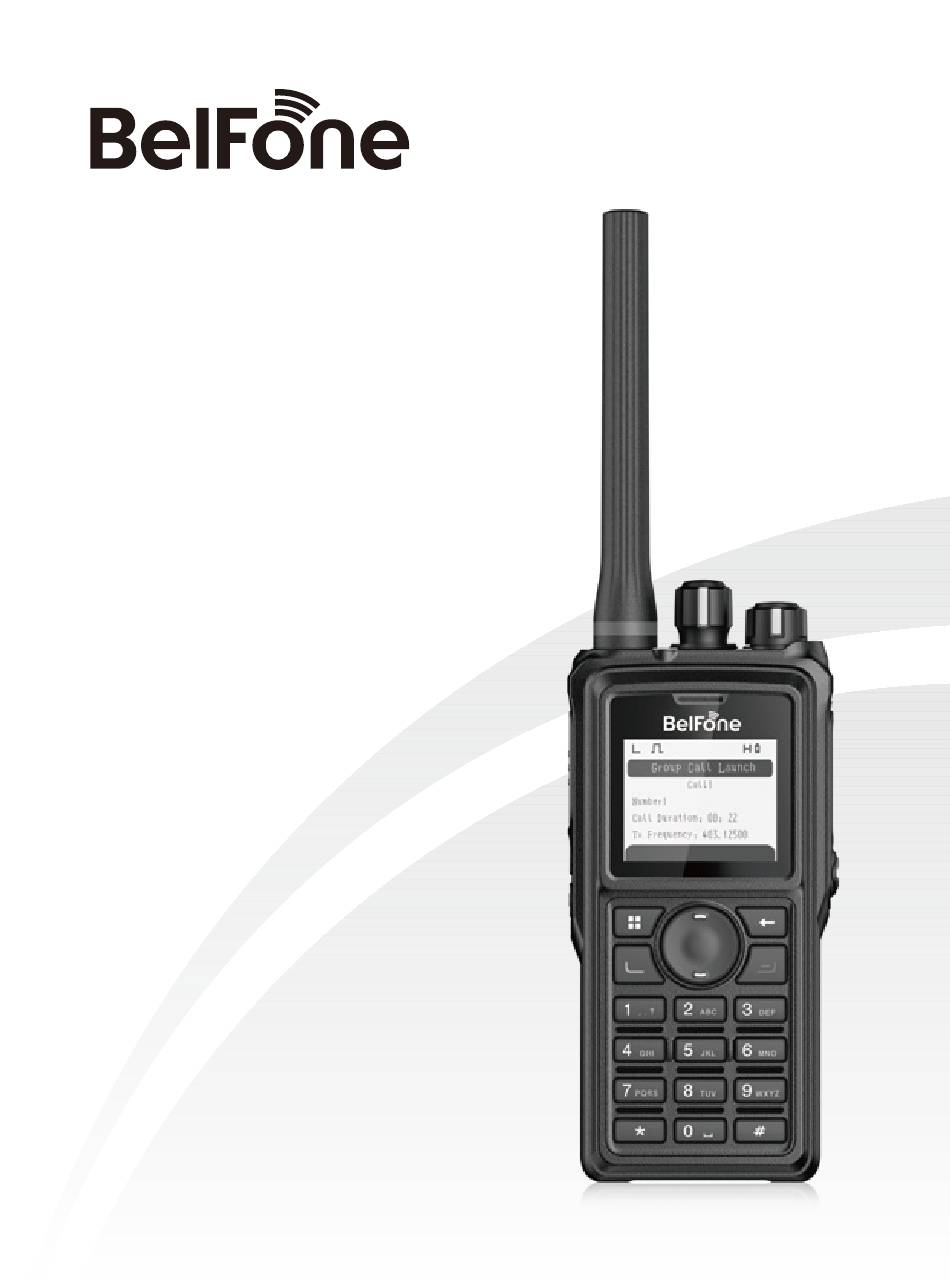

- Page 1 ＢＰ６６０ Ｄｉｇｉｔａｌ ＦＭ Ｔｗｏ－ｗａｙ Ｒａｄｉｏ...
- Page 3 Illegal operation is punishable by fine or imprisonment or both. THANK YOU! Founded in 1989, BelFone is a leading technology and solution provider of mission and business-critical communications, dedicated to bringing cut-edge communications technologies and empowering our customers with integrated radio solutions.
-
Page 4: Instructions Before Use
Please find a certified technician to repair it. ◆If secondary development is required, please contact BelFone or the local dealer for technical assistance. ◆Please keep the surface of radio clean and dry. To clean the radio, use... -
Page 5: Table Of Contents
Content Unpacking and Device Inspection ..........01 IInstallation of Accessories ............02 Installation / Removing the Antenna........02 Installation/ Removing the Belt Clip......... 02 Attaching / Removing the Strap..........02 Attaching / Removing the Battery ..........03 Battery Information ..............04 Charging the Battery ............... - Page 6 Networking Feature ..............22 TDMA Direct Mode ..............23 Pseudo Trunk................23 SVT ..................23 Radio Priority-Based Interrupt ..........25 Voice With Location Information..........25 Alias Display ................25 Time Out Timer (TOT) ............. 25 TX Permission ................. 25 Reject Stranger Call ..............
-
Page 7: Unpacking And Device Inspection
Unpacking and Device Inspection Note: The following instructions regarding unpacking are only for BelFone’s distributors, and service agencies or factories authorized by BelFone. After carefully unpacking the radio, identify the items listed in the table below. If any items are missing or have been damaged during shipment please contact dealer or BelFone immediately. -
Page 8: Iinstallation Of Accessories
Installation of Accessories Ｉｎｓｔａｌｌｉｎｇ ／ Ｒｅｍｏｖｉｎｇ ｔｈｅ ａｎｔｅｎｎａ Hold the base of antenna, then screw it into the connector on the top of the radio until fasten. Turn the antenna anti-clockwise to remove it. Ｉｎｓｔａｌｌｉｎｇ／ Ｒｅｍｏｖｉｎｇ ｔｈｅ Ｂｅｌｔ Ｃｌｉｐ Align the belt clip with the groove on the back of the radio and press it down. -
Page 9: Attaching/Removing The Battery
Attaching/Removing the Battery Warning！ Don’t short-circuit the battery, which may cause damaged or catch fire; Never attempt to remove the casing from battery, the battery terminals may short circuit; Battery is flammable objects, don’t throw it into fire or don’t use it on dangerous area. Match the guides of the battery with the corresponding grooves on the rear of the radio, then push the battery upwards until a click is heard to lock it in place. -
Page 10: Battery Information
Applicable Battery To reduce the risk of injury, please only use the battery and charger specified by Belfone, other batteries may burst, causing person bodily injury and property damage. Battery Tips 1.When charging the battery, keep it at a temperature among 5℃— 40℃. -
Page 11: Charging The Battery
Charging the battery Use only the charger specified by the manufacturer. The charge indicator indicates the charging progress. Charger Status Charger Indicator Standby(No-load) Charge Indicator glows green Battery is charging Charge Indicator glows red Battery is fully charged Charge Indicator glows green Charge Steps: 1.Plug the connector of the AC adapter into the AC outlet socket. -
Page 12: Getting Acquainted
Getting Acquainted Channel encoder ① ⑧ Orange Button Power switch/Volume adjust keys ② ⑨ OK key ③ ⑩ LED Indicator Key P1 ④ PTT key ⑤ Key 1 Back Key ⑥ Key P2 Key 2 ⑦ Speaker MIC-SP-USB Port... -
Page 13: Basic Operation
Basic Operation LCD Icons Signal Strength USB connected Unread Message Inbox/Outbox full High/Low TX Power Positioning on （Yellow） Recording on Digital Mode Message sent Roaming on Analog mode Message sent failed A&D mode Battery level Message read Bluetooth on D&A mode Message unread Bluetooth PTT Individual Call... -
Page 14: Selecting A Channel
Selecting a Channel Rotate the channel selector knob to select channel 1 to 16, rotate the knob clockwise to increase the channel number, or rotate the knob anti-clockwise to decrease the channel number. While all tone alert is enabled, change channel and a channel number will sound. - Page 15 ●Individual Call If the feature “individual call ACK” is enabled, the called needs to press the answer button before establishing the call （1）If a individual call contact is preset for current digital channel, press PTT key to set up the individual call; （2）Enter contacts menu to select the individual call number, then press PTT key to set up the individual call;...
-
Page 16: Receiving And Calling Back
Long Press Key Call In digital mode, users can set 0-9on the numeric keypad, and set individual call, group call or all call contacts to the corresponding numeric keys. Long press the numeric keys to enter the call interface and then press “PTT” to directly initiate a call or send a pre-set message. - Page 17 Shortcut Keys Description Zone Toggle Quickly select a zone Priority Interrupt Interrupt activity of current channel forcibly AD Switch Temporarily switch channel to AD or DA mode Power Switch Switch High/Low Power quickly Repeater/Talk Around Enable or disable talk around quickly Nuisance Delete Temporarily ignore unused channel activity Radio Enable...
-
Page 18: Functions And Operations
Quick access to Contact List menu Contact List Quick access to telephone contact list menu Telephone Contact Quick access to Message menu Message Quick access to root menu Root Menu Quick return to home screen Back to Main Interface Functions and Operations Contacts Contacts list can contain a maximum of 1024 members, including individual call contact, group call contact and all call contact. -
Page 19: Telephone
●Delete: Delete unwanted contacts from the address list, if individual call contact is set as channel default address or call number on one touch call, it’s unable to delete. 3.All Call While the contact type is All Call, select the menu to view its ID 16777215, join in or exit the group. -
Page 20: Scanning
Scanning 1. Scan On/Off For scan to work, the current channel must be added to the scan list and the list must contain 2 channels at least. Scanning allows the radio to search the scan list connected to the current channel to locate qualified channel for receiving or voicing. -
Page 21: Zone
2. Lock/Unlock Site When the site is locked, the radio will be locked in the current channel and will not automatically roam to other valid sites. 3. Manual Site Roam When manual site roaming is enabled, the radio will search for the next valid site and switch to that channel. -
Page 22: Answered Calls
2. Inbox The Inbox can save up to 30 received messages, and a (/) is displayed behind the inbox menu. The number in front indicates the number of unread received messages, and the number behind indicates the total number of messages in the inbox. -
Page 23: Settings
Allow a user to enable or disable the boot screen via menu. If the Intro screen is enabled, while the radio is power on, the screen displays BelFone Logo and device name; while the Intro screen is disabled, the screen only displays device name. - Page 24 ●VOX: While VOX is enabled and the earphone is plugged in a, the radio displays: , users can enjoy hands-free communication. The radio will automatically begin transmitting when speaking, and terminate transmitting when stopping talking with no need of PTT press. Allows the user to enable the voice control function and set the voice control delay through the menu, can select the voice control level 1~8 or disable;...
-
Page 25: Voice Recording
Note: The modified parameters will only be saved to the radio after exiting the interface. Voice Recording 1. Voice Recording Configure When voice recorder is enabled, the radio will display and continuously record all transmitted and received signals. 2. Voice Records In the recording list menu, users can view or play the recording. -
Page 26: Digital Emergency
4. PTT Pairing When using Bluetooth PTT for the first time, pairing is required to connect them. The operation steps are as follows: 1) Turn on the Bluetooth PTT and automatically enter a state of waiting for connection and pairing. At this time, the LED indicator lights will flash alternately in red and blue;... -
Page 27: Lone Worker
channel, press the programmed “emergency on/off” key to send alarm information, LED indicator glows red, the radio displays icon in regular type. 2. Exit emergency mode Long press the transmitter programmable button which is programmed as "Emergency Off" to exit emergency state. In regular type and emergency alarm mode, when ACK command is received or the alarm cycles expire, the radio will exit the emergency mode automatically. -
Page 28: Encryption
Networking Feature The radio supports registration to the network system, and can adapt to the Belfone Smart Dispatching Connection (SDC) System or the Smart Virtual Trunking (SVT) system to realize the interconnection communication under the networking mode. In "SDC" mode, the channel will not support scanning, roaming and normal digital emergency alarm features. -
Page 29: Tdma Direct Mode
Note: The patrol system feature is only valid for the SDC/SVT version. TDMA Direct Mode If it is enabled, the members in the same group call must use the same slot. One frequency supports calls in two slots synchronously in order to avoid interfering communications in the other slot. - Page 30 The radio is synchronized with repeater, and the repeater is Unregistered connected to controller, but the radio is not successfully registered Single site The radio is synchronized with Single site repeater, the repeater is connected Multi site to controller, and the radio is IP interconnection disconnection successfully registered, but the...
-
Page 31: Radio Priority-Based Interrupt
SVT Setting This is to set the belonging group and cross station roaming list for the radio on the pesudo trunk channel. After entering the pesudo trunk channel, the radio will login its belonging group. When the authentication feature of the repeater which the radio is belonging to is enabled, it is also necessary to configure the activation authentication key to be consistent with the repeater. -
Page 32: Reject Stranger Call
Analog Channel This feature is available in the analog mode and can restrict the channel to transmit if it is already in use. If "Off" is set, whenever pressing PTT key the radio can transmit directly; If "carrier" is set, the radio will be unable to transmit on the channel if the channel is being used by others;... -
Page 33: Monitor
Monitor On analog or digital channel, if the Monitor feature is enabled, the icon: appears. Press and hold down the programmed [Monitor] key to activate the monitor feature, release the key to exit monitor mode; or press programmed [Permanent Monitor] key to enable the monitor feature, the radio will remain on monitor mode until press it again to exit. -
Page 34: Ctcss Frequency Table
CTCSS Standard Frequency Table CTCSS Freq. CTCSS Freq. CTCSS Freq. CTCSS Freq. [Hz] [Hz] [Hz] [Hz] 67.0 103.5 159.8 199.5 69.3 107.2 162.2 203.5 71.9 110.9 165.5 206.5 74.4 114.8 167.9 210.7 77.0 118.8 171.3 218.1 79.7 123.0 173.8 225.7 82.5 127.3 177.3... -
Page 35: Cdcss Standard Table
CDCSS Standard Code Table CDCSS Positive Negative CDCSS Positive Negative CDCSS Positive Negative Code Code Code Code Code Code D023N D023I D174N D174I D445N D445I D025N D025I D205N D205I D464N D464N D026N D026I D223N D223I D465N D465N D031N D031I D226N D226I D466N D466I... -
Page 36: Specifications
Ｓｐｅｃｉｆｉｃａｔｉｏｎｓ General VHF：136-174MHz/ UHF1：400-480MHz Frequency range UHF2：450-520MHz/ UHF3：350-400MHz Channel Capacity 1024 Zones Channel Spacing 12.5KHz/25KHz Operating Voltage DC 7.4V(±20%) Battery capacity 2000 mAh Battery Life（5/5/90） Digital 22 hours, Analog 16 hours Frequency Stability ±1.5ppm Antenna Impedance 50Ω Dimensions (L×W×H) 60(L)*38(W)*125 (H)mm Display Screen 1.77inches, 10 lines Weight... - Page 37 Receiver Digital Sensitivity 0.25μV /BER5% Analog Sensitivity 0.25uV (12 dB SINAD) Intermodulation 60dB Adjacent Channel Selectivity 60dB Spurious Response Rejection 60dB FM Noise -40dB Audio Response +1/-3 dB Rated Audio output power 1.0W Max Audio output power 1.5W Audio Distortion Conducted Spurious Emission -57dBm Environmental...
-
Page 38: Statement
Statement In the process of compiling this manual, we have strived for accuracy and completeness in its content.. For any doubt, please contact Belfone. We will give you professional answers. As radio communication technologies develop rapidly, Belfone reserves the right to change product design and... - Page 40 Add: A-15 Huaqiao Economic Development Zone, Shuangyang,Luojiang,Quanzhou,Fujian,China Tel: +86 595 28396717 Fax: +86 595 22771635 Email: overseas@belfone.com Website: www.belfone.com...
