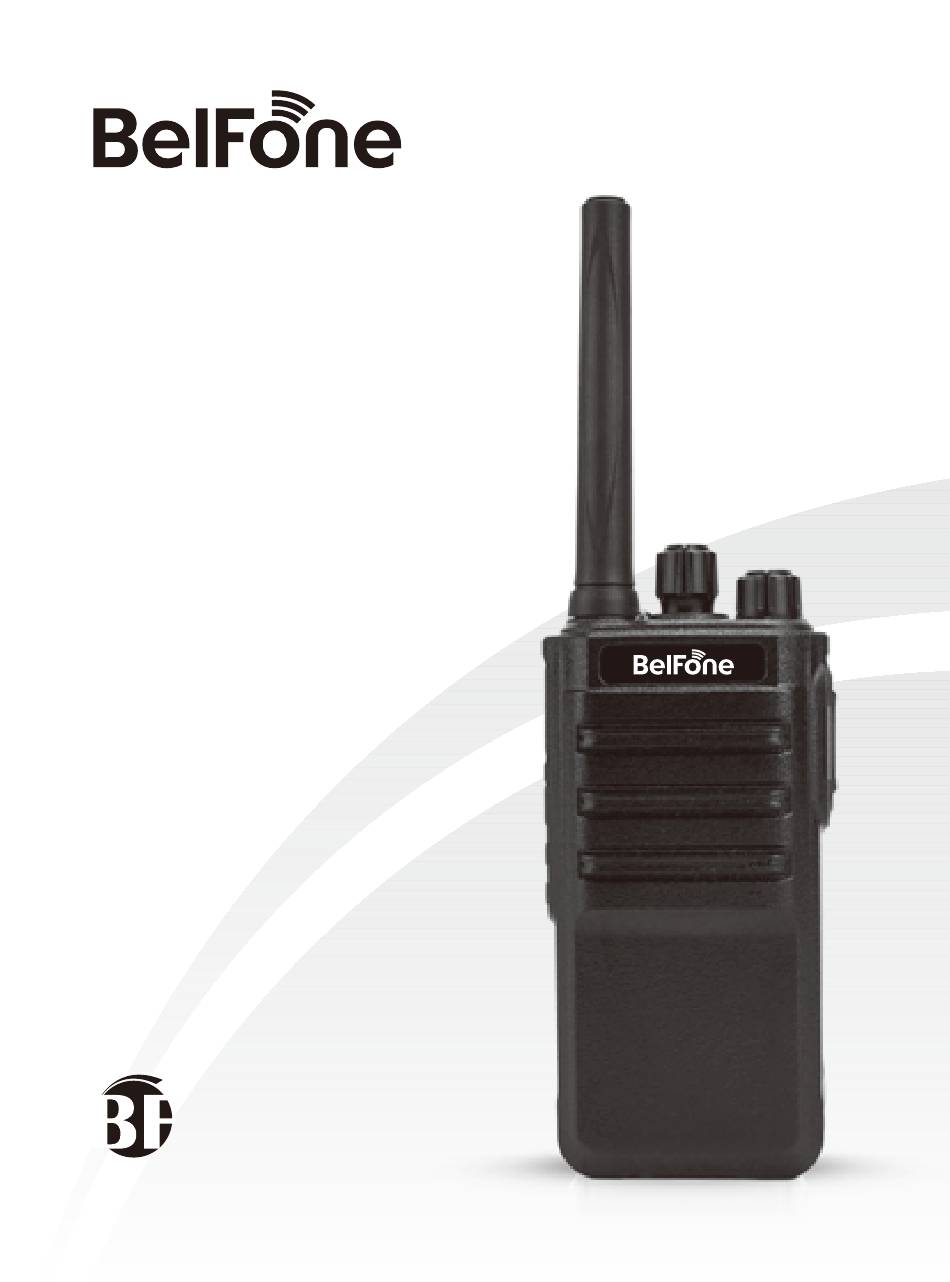

  • Page 1 -500 Analog Two-way Radio...
  • Page 3 We are grateful you choose BelFone series professional radio communications products! Since 1989, BelFone has been always engaging in research and exploration of radio communications technologies, In order to lead intelligent technologies in the industry. We make every effort to research and design products according to modern complicated communications environment, and we offer complete and customized communication solutions to clients.
  • Page 4 Instructions before Use It’s important for the operator to understand the hazards common with the operation of the radio. Please observe the following safety precautions to prevent radio damage or personal injury. These precautions shall be observed during operation, service and repair of this radio. ◆The recommended usage rate is 1 minute for TX and 4 minutes for RX.
  • Page 5: Table Of Contents

    Content Supplied Accessories· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 01 Install of Accessories·...
  • Page 6 Content Squelch Level· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 10 Low Battery Warning·...
  • Page 7: Supplied Accessories

    Supplied Accessories Notes: The accessories listed below are supplied by BelFone dealer, authorized BelFone agents and dealers. After carefully unpacking the transceiver, identify the items listed in the table below. If any item(s) are missing or have been damaged during shipment please contact your dealer immediately.
  • Page 8: Install Of Accessories

    Install of Accessories Installing/ Removing the  Antenna Hold the supplied antenna by its base, then screw it into the connector on the top panel of the radio until fasten. Turn the antenna anti-clockwise to remove it. Installing/ Removing  the belt clip Attach the belt clip using the two supplied3*4mm binding screws.
  • Page 9: Attaching/Removing The Battery

    Attaching/Removing the Battery Warning! Don’t short-circuit the battery, it may cause the battery to be damaged or explode; Never attempt to remove the battery housing, to avoid short circuiting the battery terminal; Dispose an exhausted battery properly. Do not dispose it in an open flame or highly flammable environment.
  • Page 10 Applicable Battery To reduce the risk of injury, please use only approved battery and charger specified by BelFone. Battery Tips ● When charging your battery, keep it at a temperature between 5°C - 40°C to avoid damage to the battery.
  • Page 11: Attaching The Speaker/Microphone

    Charge the Battery Use only the charger specified by the manufacturer, the charge indicator indicates the charging progress. Charger Status Charger Indicator Standby(No-load) Charge Indicator glows green Battery is charging Charge Indicator glows red Battery is fully charged Charge Indicator glows green Charge Steps: 1.Plug the AC connector of the switching power into the AC outlet socket.
  • Page 12: Getting Acquainted

    Getting Acquainted Channel Encoder Main PTT Key ① ⑦ Power switch/volume Sub PTT Key ② ⑧ adjust keys Side Button 1: press and hold down the LED Indicator ③ ⑨ key to enable monitor feature, release the key to disable it. Side Button 2: Short press to switch Lamp ④...
  • Page 13: Led Indicator Status

    LED Indicator Status: LED Indicator Working Status Glow Green Receiving Glow Red Transmitting Flash green internal 0.5 second Scanning Flash green internal 8 second The battery capacity is sufficient Flash red internal 8 second The battery capacity is insufficient...
  • Page 14: Basic Operation

    Basic Operation Power on /off Rotate the power switch/volume adjusting keys clockwise to turn the power on. Rotate the power switch/volume adjusting keys anti-clockwise to turn the power off. Adjusting the volume After the radio is powered on, you can rotate the power switch/volume adjust keys to adjust the volume level, rotate the knob clockwise to increase the volume, or rotate the knob anti-clockwise to decrease the volume.
  • Page 15: Call

    Call To call on main channel, press and hold down the main PTT key, and then speak to the microphone or press and hold down the sub PTT key to transmit on sub channel. Please hold the radio about 3 to 4 centimeters away from your mouth, and speak at normal voice level.
  • Page 16: Introduction To Functions And Operations

    Introduction to Functions and Operations Voice Prompts Voice prompts allows you to hear a sound of the new channel number when you are changing the channels. Squelch Level Squelch feature allows you to adjust the squelch threshold required for the radio to un-mute.
  • Page 17: Flashlight

    Flashlight There are three flashlight modes: normal, flashing and SOS mode (three short lights, three long lights, three short lights of the cycle). Short press [side button 2] and the flashlight keeps on. Short press [side button 2] again to switch flash mode, and short press [side button 2] to switch to SOS mode.
  • Page 18: Bandwidth

    Bandwidth There are two types of bandwidths available. You can choose bandwidth as Wide (25 KHz) or Narrow (12.5 kHz) via programming software. Note: In order to guarantee the stability of communication, the receiver bandwidth of radio should set the same as the transmitter. CTCSS/CDCSS You can set unique CTCSS/CDCSS to guarantee the quality of your communication.
  • Page 19: Ctcss Standard Frequency Table

    CTCSS Standard Frequency Table CTCSS Freq. CTCSS Freq. CTCSS Freq. CTCSS Freq. [Hz] [Hz] [Hz] [Hz] 67.0 94.8 131.8 186.2 69.3 97.4 136.5 192.8 71.9 100.0 141.3 203.5 74.4 103.5 146.2 210.7 77.0 107.2 151.4 218.1 79.7 110.9 156.7 225.7 82.5 114.8 162.2 233.6 85.4 118.8...
  • Page 20: Cdcss Standard Code Table

    CDCSS Standard Code Table Positive Negative Positive Negative Positive Negative Code Code Code Code Code Code D445N D445I D023N D023I D174N D174I D464N D464I D025I D205N D205I D025N D465N D465I D026I D223N D223I D026N D466I D226N D226I D466N D031N D031I D503I D243N D243I D503N D032N D032I...
  • Page 21: Specifications

    Specifications General Frequency Range UHF: 400-480MHz Channel Capacity Channel Spacing 25 KHz /12.5 KHz Operating Temperature Range -20℃~+60℃ Antenna Impedance 50Ω Operating Voltage DC 3.7V (±20%) Battery Capacity 4000mAh Frequency Stability ≤±2.5 ppm Dimensions 59(L)*36(W)*115(H)mm Weight 252g(Including Battery) Transmitter RF Output Power ≤5W Modulation 11KφF3E/16KφF3E...
  • Page 22: Statement

    Statement This manual is compiled to be accurate and complete for operator’s use. For any doubt, please contact BelFone. We will give you professional answers. As radio communication technologies develop rapidly, BelFone reserves the right to change product design and specification without...
