Notice to the user
Government law prohibits the operation of unlicensed radio transmitters within the
territories under government control. Illegal operation is punishable by fine or
imprisonment or both.
THANK YOU
We are grateful you choose BelFone series professional radio communications
products! Since 1989, BelFone has been always engaging in research and
exploration of radio communications technologies, In order to lead intelligent
technologies in the industry. We still make every effort to research and design
products according to modern complicated communications environment, and we
offer complete and customized communication solutions to clients. Our products
will satisfy you because of its excellent performance and outstanding
communications strength. No matter what field you are in. You will be Satisfied
with the radio.

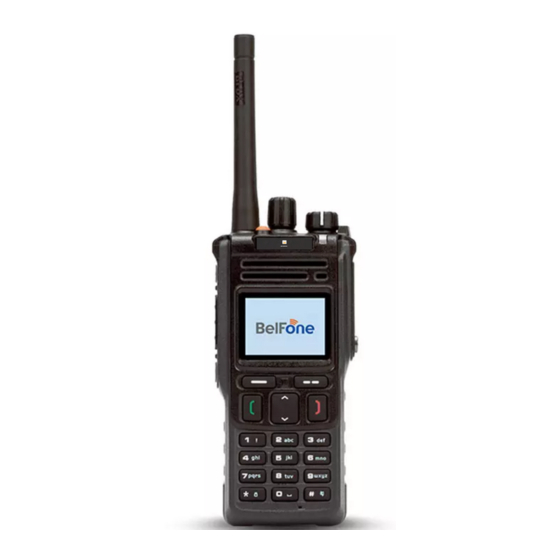

Digital transceiver model: BF-TD950
Warning！
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BelFone BF-TD950
Summary of Contents for BelFone BF-TD950
- Page 1 THANK YOU We are grateful you choose BelFone series professional radio communications products! Since 1989, BelFone has been always engaging in research and exploration of radio communications technologies, In order to lead intelligent technologies in the industry. We still make every effort to research and design products according to modern complicated communications environment, and we offer complete and customized communication solutions to clients.
- Page 2 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 or transmitter. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Your radio should be used in its normal operating position when hand-held, worn on the body or secured within a cradle. Always ensure that the antenna is pointed away from the body, particularly the eyes.
- Page 4 ◆If you want to use the machine for secondary development, please contact with BelFone’s technical engineer or dealer for technical assistance; ◆Please keep the surface of radio is clean and dry, clean the radio using a...
-
Page 5: Table Of Contents
Content Supplied Accessories ....................6 Installation of Accessories....................7 Getting Acquainted......................12 Basic Operation ......................14 LCD Icons ........................ 14 Turning the power on /off ..................14 Adjusting the volume ....................15 Selecting a Channel ....................15 Selecting a Zone ...................... 15 Dual Modes Switching ..................... -
Page 6: Supplied Accessories
Supplied Accessories Notes: The accessories listed below are covered by BelFone dealer、 authorized BelFone agents or factories . After carefully unpacking the transceiver, identify the items listed in the table below. If any items are missing or have been damaged during shipment please contact with dealer immediately. -
Page 7: Installation Of Accessories
Charger Li-ion Battery Screws Installation off Accessories Installation/ removing the antenna Hold the supplied antenna by its base, then screw it into the connector on the top panel of the radio until fasten. Turn the antenna anti-clockwise to remove it. Installation/ removing the belt clip Attach the belt clip using the two supplied3*4mm binding screws. - Page 8 Attaching/Removing thee Strap Thread the hand strap to the loop back of your two-way radio. Attaching/Removing thee Battery...
- Page 9 If you notice the battery power runs lows, please recharge the battery. Applicable Battery To reduce the risk of injury, please only use the battery and charger specified by belfone, other batteries may burst, causing bodily injury and property damage.
- Page 10 Battery Tips 1. When charging your battery, keep it at a temperature among 5℃—40℃. Temperature out of the limit may cause battery leakage or damage. 2. When charging a battery attached to a radio, turn the radio off to ensure a full charge. 3.
- Page 11 Charge Steps: 1. Plug the AC connector of the switching power into the AC outlet socket. 2. Place the battery or the radio is attached with a battery in the charger. 3. Making sure the battery is connected to the charger, the charging process initiates when the charger indicator glows red.
-
Page 12: Getting Acquainted
Getting Acquainted Number Component MIC-SP-USB Jack Battery latch Antenna OK/Menu Key Up Key P1 Key Number Key Top Key（Alarm Key Default） Channel Selector Knob Power switch/Volume adjust Knob Speaker belt clip Back Key P2 Key Down Key Button 1 PTT Key Button 2 Battery Basic Operation... -
Page 13: Adjusting The Volume
Note: If you active power on password function via program software ,each time you turn on transceiver, must be enter 6 digit password, while occur password error, the transceiver will restart automatically and then input password again . When 3 times wrong in input password continuously, after it transceiver must be kill, only reprogram it then device work normal. - Page 14 Private Call If the feature “private call ACK” is enabled, to transmit a private call need to confirm whether it is power on or activate on the current channel. （1） If you preset a private call contact for current digital channel. Press PTT key to transmit a private call;...
-
Page 15: Button Setting
Receiving and responding to a call On digital channel, while a private call is received, you may press the PTT key within the preset time period to call back. If you do not respond to a received private call within the preset time period, the radio will display the missed call icon;... -
Page 16: Functions And Operations
Shortcut Keys Description Unassigned Not assigned with any function Quick transmit group call/private On Touch Call 1-6 call/call alert or press SMS Manual Dial For Quick access to Manual Dial Private To send emergency information, Emergency On only set short press on orange button To exit emergency mode, only set Emergency Off... - Page 17 While select a contact as private call, a private call can view its detail、send call alert 、 send message、edit name or number 、 delete、send device check、disable or enable、 send remote monitor. Call Alert： Call alert is used for prompting the private receiver; ask them respond to transmitter if communication is available.
-
Page 18: Scan
1. All Call While the contacts type as group call, you can select the menu to view its ID or press PTT to call. 2. Manual Dial You can manually input the private call number for calling or sending call alert , send message ,device check, remote monitor ,device enable ,device disable. -
Page 19: Zone
While button 1 or 2 programmed as Scan on/off, press it to enable scan feature. View/Edit List Allow a user to view/edit the scan list via menu, "View Member" allows a user to view the scan member, deleting a member from the scan list; Add Member allow a user to add a new member to the scan list, the list contain 16 channels at most. -
Page 20: Call Logs
Note: Preset text messages also can assign to one touch call, and press the programmed key to send messages. 4. Outbox Enter outbox menu, you can view the message is sent successfully or failed, outbox can save up 30 sent messages. If sent message is successful displays you can choose to forward or delete it;... -
Page 21: Settings
Settings 1. Settings Allow a user to perform basic settings for the radio. ● Talk Around: When your repeater malfunctions, or when radio is out of repeater’s range, you can continue to communicate in talk around mode. While enable talk around feature, the screen displays: ，By this time TX frequency the same as to RX frequency. -
Page 22: Digital Emergency
indicator are off. Please use this function with due care. VOX: While this function is enabled, you can enjoy hands-free communication. The radio will automatically begin transmitting when you speaking, and terminate transmitting when you stop talking with no need of PTT press. Allow user to set the VOX level (level 1-8) and VOX delay (0.5~10second) via menu. - Page 23 mode, there are three emergency types and three emergency mode available. Emergency Type: Regular: In emergency mode, the radio will give audible and visible indication; Silent: In emergency mode, the radio won’t give any audible or visible indication; Silent with Voice: In emergency mode, the radio won’t give any audible or visible indication, but will receive voice.
-
Page 24: Alone Worker
3. Receive Emergency Information When the feature” emergency alarm indication” is enable, if received emergency information, the radio displays icon , the transmitter’s ID and name, an alarm tone will sound. To exit the emergency mode, long press the programmed emergency key. Alone Worker This function is useful for persons who work lonely and encounter an incident;... -
Page 25: Voice Encryption
Voice Encryption The voice encryption can encrypt your audio signals to guarantee the privacy of your communication, via the programming software user can select encryption type as static or dynamic. If the encrypt feature is enabled, the transmitter and receiver will be set as the same encryption type and same encryption key, otherwise the receiver is mute. -
Page 26: Time Out Timer (Tot)
Time Out Timer (TOT) The purpose of TOT is to prevent any user occupy a channel for an extended period. If a channel is busy, the time will be shorter. If the preset time expires, the radio will generate beep and terminate transmission automatically. Via programming software, you can set TOT as 15-495 second. -
Page 27: Specifications
Specifications UHF1: 400 - 470MHz Frequency Range Channel Spacing 25 / 12.5KHz Frequency Stability ±0.5ppm Antenna Impedance 50 Ω Operating Voltage 7.4V (rated) GNSS GPS & BeiDou Bluetooth Battery 3350mAh (Li-ion) Dimensions (HxWxD) 150mm X 65mm X 32mm Weight 320g LCD Display 320*240 pixels, 65535 colors 2.0 inch Operating Temperature... - Page 28 Conducted/Radiated -36dBm<1GHz Emission -30dBm>1GHz 2.5KHz @ 12.5KHz; 5.0KHz @ 25KHz Modulation Limiting FM Hum & Noise 40dB @ 12.5KHz ; 45dB @ 25KHz 60dB @ 12.5KHz Adjacent Channel Power 70dB @ 25KHz Audio Response +1 ~ -3dB Audio Distortion ≤3% Digital Vocoder Type AMBE++ or NVOC Digital Protocol...
-
Page 29: Statement
Statement Our Company endeavors to achieve the accuracy and completeness of this manual, if you have any question, you can contact with us, and we will make a detailed answer to you in time. All the above specifications and design are subject to change without prior notice due to continuous development.
