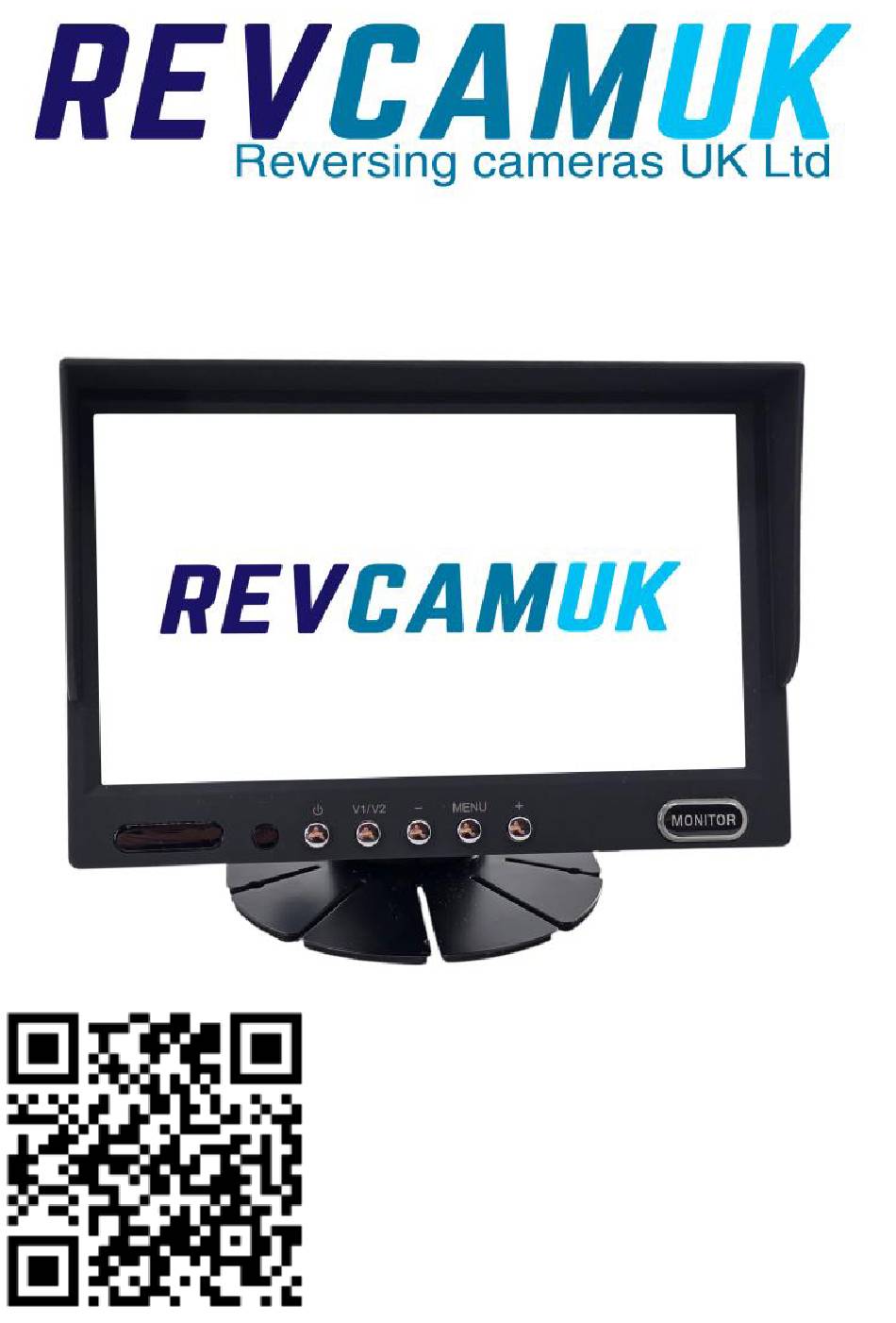

- Page 1 Instructions for our MON509D 7” LCD Panel Monitor Scan the QR code to the left using your camera app or QR reader app to view our video relating to this monitor.
-
Page 2: Technical Specification
Technical Specification Screen Ratio : 16:9 Back Light Luminance : LED, 300 cd/㎡ Resolution : 800 x RGB x 480 Compatible System : NTSC & PAL (automatically) OSD Control : Colour, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portuguese, Italian, Dutch, Simplified Chinese) View Angle : Horizontal L(60) R(60), Vertical UP(40) DOWN(60) Image Reversion : UP/Down and Left/Right Power Requirement : DC 12–24V... - Page 3 Introduction Thank you for choosing the MON509D 7" monitor for your reversing and rear-view camera system. This high-resolution display is designed to provide a clear and reliable view of your surroundings, helping to improve safety and convenience when manoeuvring your vehicle in various driving conditions.
- Page 4 Contents and Wiring Harness Layout • Monitor • Wiring Harness • Standard Hardwire / Power Wire • Remote Control • Quick Release Bracket...
- Page 5 You will notice that the monitor has a short fly lead, this then plugs in to a lead that we refer to as the monitor wiring harness. One end of this has a 8 pin connector that fits in to the monitor fly lead, whilst the other end has the following inputs/ wires listed below : •...
-
Page 6: Buttons / Controls
Buttons / Controls Choosing a power supply and earth We recommend that you use a switched ignition power supply, either 12V or 24V (it will automatically work on either). We advise against going directly to the vehicle battery. Otherwise the system will be at risk due to the voltage fluctuations experienced as the alternator kicks on/off. -
Page 7: Menu Guide
Menu Guide The menu is very simple and easy to operate. We have written a brief description of what each of the menu settings does. To go between the menus simply press the M button until you reach the one you wish to change. This booklet has them listed in the same order as you will find them in the menu. -
Page 8: Bracket Installation
Thanks for choosing REVCAMUK for your reversing camera safety needs. If you require any support or further information, please email us at :...
