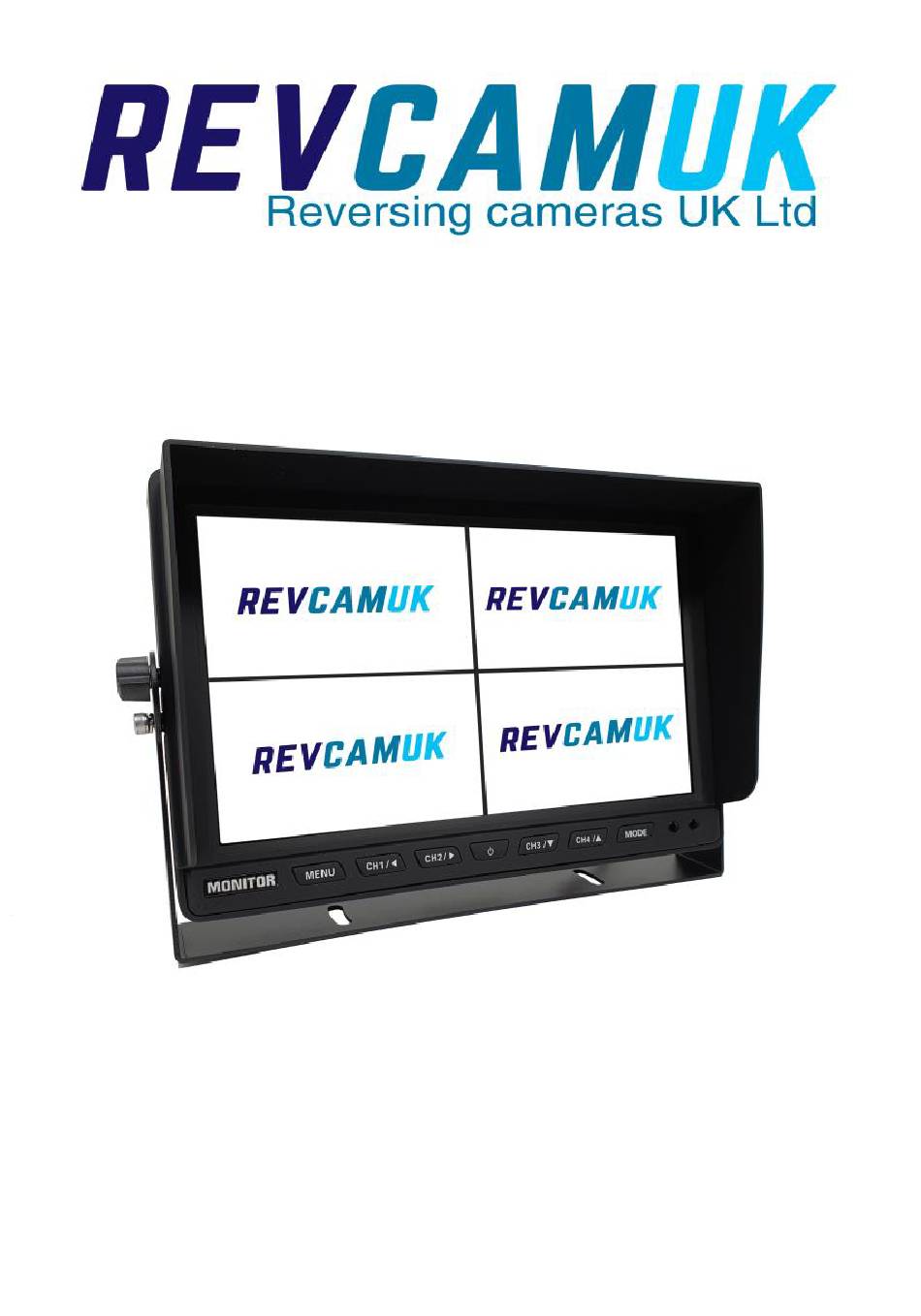

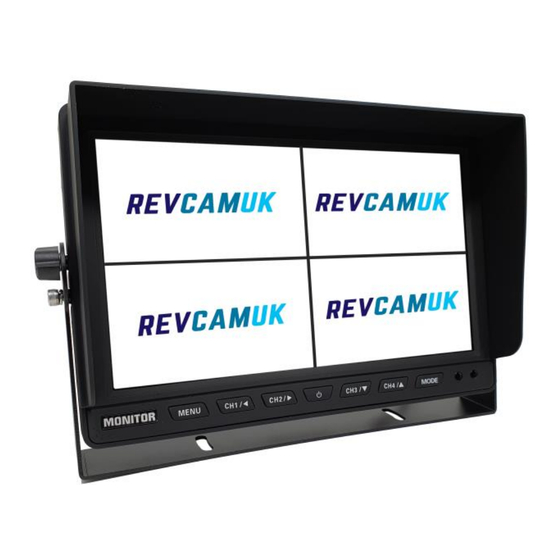

Instructions for our MON1010Q-AHD
4 Channel Quad Split-Screen Monitor
B24+ Update Model
This 4 channel vehicle monitor can be used to display various reversing
cameras and side cameras, as well as producing a split screen arrangement
if desired.
The menu system is quite powerful and allows for various functions and
adjustments. This booklet will help navigate you through some of these
features, as well as give guidance on wiring the display.
Advertisement
Related Manuals for REVCAMUK MON1010Q-AHD
Summary of Contents for REVCAMUK MON1010Q-AHD
- Page 1 Instructions for our MON1010Q-AHD 4 Channel Quad Split-Screen Monitor B24+ Update Model This 4 channel vehicle monitor can be used to display various reversing cameras and side cameras, as well as producing a split screen arrangement if desired. The menu system is quite powerful and allows for various functions and adjustments.
- Page 2 Safety and Installation Precautions If you are not using a cigarette lighter to connect to the vehicle electrics we recom- mend disconnecting the negative terminal of your vehicles battery. Be aware this may reset your clocks/computer/radio code. The display panel of the monitor is delicate and pressing the front can cause the thin glass sheet inside to crack.
- Page 3 Technical Specification Power supply: 12 - 24v DC Dimensions: 250 x 165 x 31mm (not including bracket) TV system: PAL or NTSC 7 Buttons + Light Sensor Resolution: 1024 x R.G.B x 600 4 trigger wires to link to indicators or 10 inch Colour IPS panel display reversing light with time delay Working temperature: 0 - 60 degrees C...
- Page 4 Please kindly note that these trigger wires are not necessary to attach. If you do not want to wire up to your reverse lights etc you can leave these wires blank. We usually recommend adding a bit of insulation tape over the ends just in case. If you wish to setup your monitor to run full time, you simply have to connect the red wire to a positive, and the black wire to earth.
- Page 5 Standby / Power Icon - This will turn the monitor display ON/OFF CH3/Down Arrow - If you are not in the menu system, pressing this will full screen Channel 3. If you are in the menu system, pressing this will move the selection or adjust downwards.
- Page 6 Menu Guide The monitor menu system can be accessed to change various settings. The following pages will guide you through the various options that you can modify. To access the menu, press the menu button, then use the arrow keys to navigate around. Picture To access ensure the blue selection box is over the picture settings, then press the CH2/ right arrow.
- Page 7 whole display including text. We suggest leaving it on setting 2. If you are looking to mirror/un-mirror one channel please see the mirror flip menu setting (page 8). Blue Screen As standard this is switched to OFF, which will show any empty channels as black backgrounds.
- Page 8 We stock a range of brackets to fix the display to various locations in the vehicle. See the image to the right, which shows our optional brackets for mounting to the rear channel of this monitor. Thanks again from the REVCAMUK team. Safe travels.
