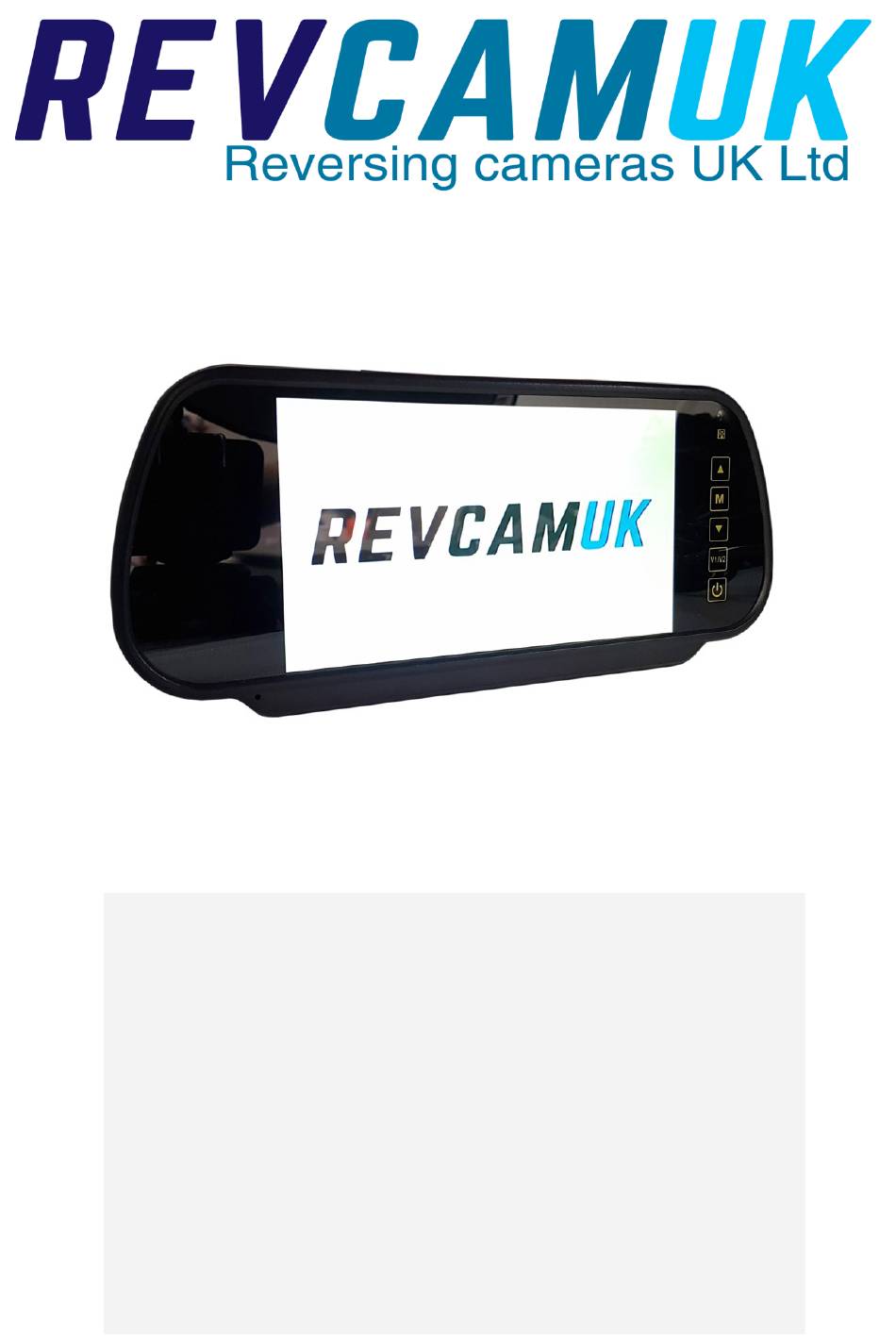

Menu Guide for our MON293B V1.2

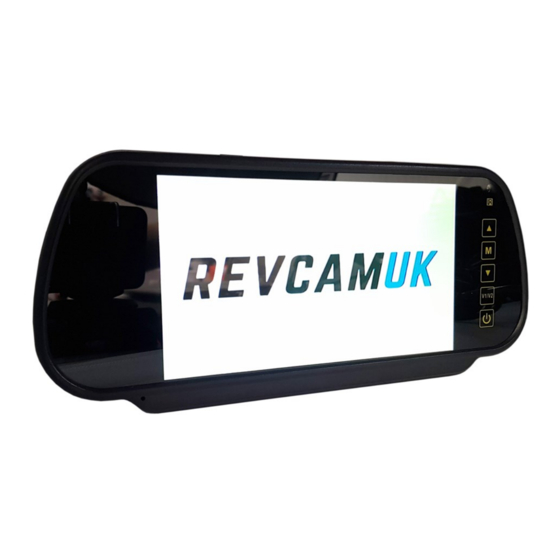

This booklet contains information about our mirror monitor capable of

fitting swan neck brackets, and its menu functions.

• 7" Colour LCD screen

• Power supply: 12V/24V

• Power Consumption: 8.64W or lower

• Digital Screen Resolution: 800 x3(RGB)x480

• Operating Temperature: -10C to +65C

• 2 Inputs

• PAL/NTSC/AUTO

Rotation/Mirror on both channel

•

Full function Remote Control

•

bracket mirror monitor

Technical Specifications

Table of Contents

Do you have a question about the MON293B and is the answer not in the manual?

Page 1 Menu Guide for our MON293B V1.2 bracket mirror monitor This booklet contains information about our mirror monitor capable of fitting swan neck brackets, and its menu functions. Technical Specifications • 7” Colour LCD screen • Power supply: 12V/24V • Power Consumption: 8.64W or lower •...
Page 2 Button Layout The mirror monitor has touch sensitive buttons, as opposed to physical push in buttons. We find these really responsive and easy to use. We have included a quick guide below to what each of the buttons Up Arrow - Adjustment up of the menu setting that your screen is currently showing eg brightness/colour...
Page 3 Menu Screen 2 - Contrast (Press M button 2 times) This screen changes the contrast of the monitor. To adjust the contrast please use the up or down arrows until the desired contrast is set. Menu Screen 3 - Colour (Press M button 3 times) This screen changes the colour of the monitor.
Page 4 Setting Monitor Guideline Position If you wish to use guideline function from the monitor, you must first ensure that : • The green wire on the monitor wiring harness is connected to a reverse light supply • If your camera (most brake light cameras) has guideline function, you should remove them by cutting the little loop near the camera plug (check camera instructions/box stickers).
