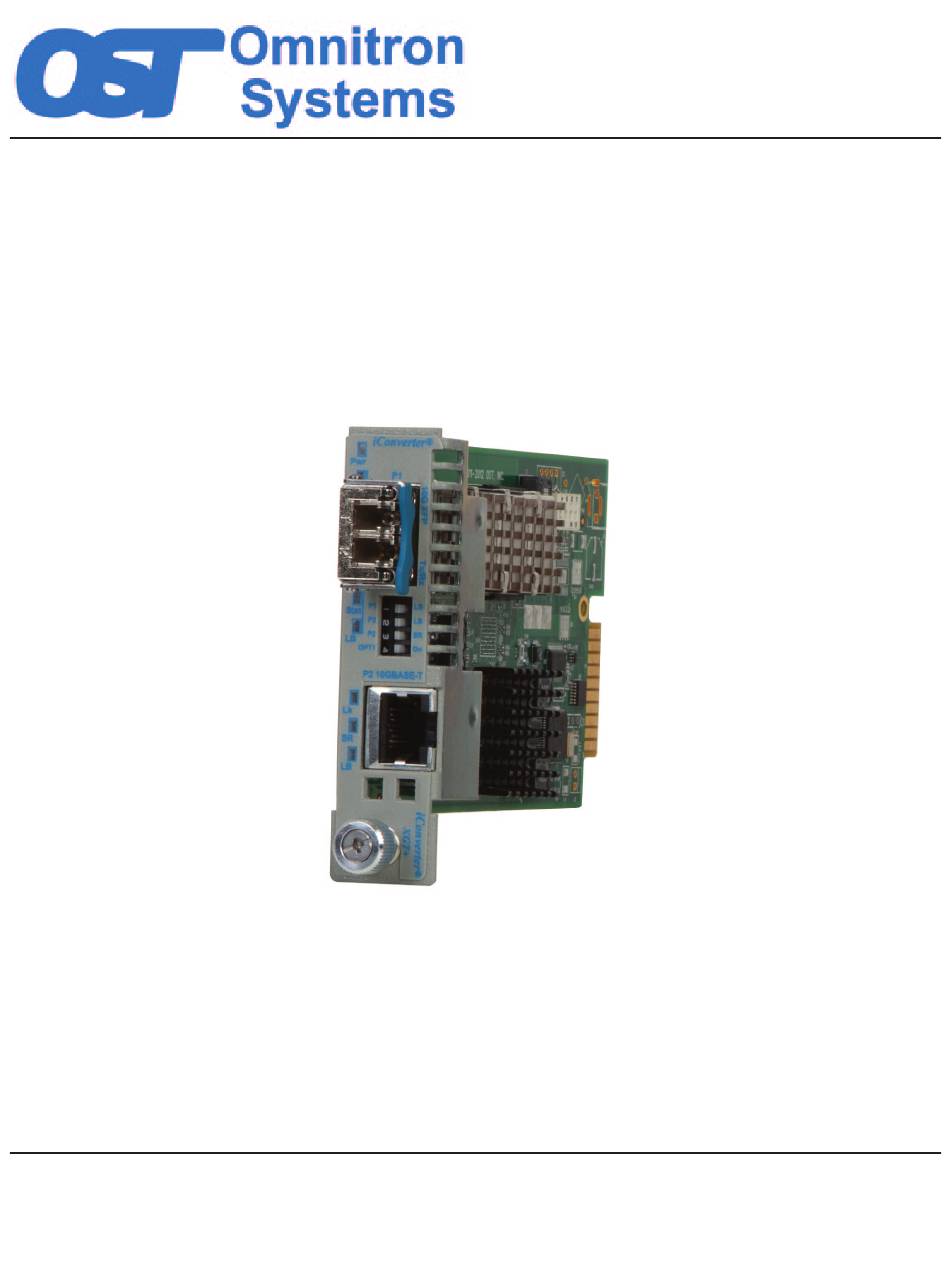

- Page 1 iConverter XGT+ ® Plug-In Module USER MANUAL Product Release 2.0...
-
Page 2: Table Of Contents
Table of Contents Overview ..........................3 Port Structure ........................4 Overview ..........................4 Fiber Port ..........................4 RJ-45 Port ........................... 4 Installation Procedure ....................4 Overview ..........................4 3.2 Configuring DIP-switches and Jumper ................5 3.2.1 Board-Mounted Bank 1 Settings ......................5 3.2.1.1 SW1 - P1 LOOPBACK “P1-LB” ....................5 3.2.1.2 SW2 - P2 LOOPBACK “P2-LB”... -
Page 3: Overview
This manual provides information on the installation and configuration of the module using the menu- driven interface via the Serial Console Port on the Network Management Module. For ongoing network management, Omnitron Systems recommends NetOutlook , an SNMP-based Network Management ®... -
Page 4: Port Structure
2.0 PORT STRUCTURE OVERVIEW The XGT+ front panel provides the access to the fiber and RJ-45 ports and DIP-switches. Front Panel FIBER PORT The XGT+ supports the following port configurations: XFP (8589N-1) The XGT+ model 8589N-1 supports 10G Ethernet standard, CWDM and high-power (power level 4) XFP transceivers, and the latest generation of wavelength tunable DWDM XFP transceivers. -
Page 5: Configuring Dip-Switches And Jumper
3.2 CONFIGURING DIP-SWITCHES AND JUMPER The XGT+ has front-panel and board-mounted banks of DIP-switches. The locations of DIP-switch Bank 1 and Bank 2 are illustrated below. DIP-switch Locations 3.2.1 Board-Mounted Bank 1 Settings The functions of DIP-switch Bank 1 are described in the table below. DOWN Switch (Default) Normal... -
Page 6: Sw4 - P1 Bist (Sfp+ Model Only)
3.2.1.4 SW4 - P1 BIST (SFP+ Model Only) When this DIP-switch is in the DOWN position (factory default), port P1 Built-In Self Test is disabled. When this DIP-switch is in the UP “P1-Tst” position, the port will transmit a Pseudo Random Bit Sequence (PRBS). When two XGT+ converters are connected via port P1 (Port 1 to Port 1), the BIST function is supported. The XGT+ initiating BIST (DIP-switch SW4 UP) will generate and send a PRBS pattern out Port 1 to the other module. -
Page 7: Installing The Module And Connecting Cables
3.3 INSTALLING THE MODULE AND CONNECTING CABLES The XGT+ module must be installed using the following chassis configurations/guidelines: 19-Module High Airflow Chassis 8201-x (AC) or 8207-x (DC): Each 120W High Airflow power supply can support up to 6 iConverter modules installed in the chassis, and three of the six modules can be XGT+. The XGT+ modules must be installed directly in front of the installed High Airflow power supply and the slot on the right side of the installed XGT+ module must be empty. -
Page 8: Verify Operation
VERIFY OPERATION Once the module has been installed and configured per steps 1 and 2, verify the module is operational by viewing the LED indicators. Legend OFF State Color ON/Blinking State Off – No power. Green Green – Power On Green Green Solid – Fiber link (signal detect). Off – No Transceiver detected P1 Lk Amber Blinking (1Hz) – Port is disabled due to installed transceiver... -
Page 9: Configuring The Module Via Network Management Module
3.5 CONFIGURING THE MODULE VIA NETWORK MANAGEMENT MODULE The XGT+ module must be installed in the same chassis as the Network Management Module (NMM2) or a media converter with integrated management (such as an iConverter GX/TM2 or NID) to configure, monitoring, and provide trap notifications. Management access is through the installed Management Module. The management module can be configured by attaching the serial port to a DB-9 serial (RS-232) equipped computer with terminal emulation software such as ProComm or Putty. - Page 10 Once connected, press <ENTER>, the Password Entry screen will be displayed. Type the username and password. Press <ENTER>. If a password has not been configured, the Password Entry screen will be skipped and the Management Options screen will be displayed. Omnitron Systems Technology, Inc. iConverter Copyright 2001-2015 OST, Inc.
- Page 11 To access the XGT+ Module configuration menu, select 1 at the Management Options screen, and press <ENTER>. The Chassis Selection screen will be displayed. Chassis Selection iConverter Number Chassis Name NMM2 Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available...
-
Page 12: Module Configuration Screen
The XGT+ Module configuration screen will displayed. Module - iConverter XGT+ iConverter Identifier - Chassis Number Slot Number Model Number = 8589N-1 Front Panel Switches Serial Number = 00815910 ON Condition OFF Condition Actual Manufacturing Date = 20130118 1: P1 Loopback P1 Normal Product Revision = 10... -
Page 13: Sfp Information Screen
3.5.2 SFP Information Screen The SFP ports provide general and specific information on the installed optical transceivers. The information is displayed using hexadecimal values per SFF-8472 specification. To view the information on the installed transceivers, select S from the Module screen, and press <ENTER>. The SFP Information screen for Port 1 Address A0 Page will be displayed. - Page 14 SFP Information - iConverter XGT+ iConverter Identifier - Chassis Number = 1 Slot Number = 3 Model Number = 8589N-1 Port = 1 Address A2 Page Contents =================================================== 00: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ....10: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ....
- Page 15 The following information is available depending on the installed transceiver: SFP+ A0 Information Display This section displays fixed SFP Module information for the following areas. Identifier Values Vendor Revision Number Extended Identifier Laser Wavelength Connector Values Options ...
- Page 16 XFP Up A0 Block Information Display This section displays fixed XFP Module information for the following areas. Identifier Values CDR Support 10G Ethernet Compliance Loopback Support 10G Fibre Channel Compliance Vendor OUI 10G Copper Links Part Number ...
-
Page 17: Control Screen
3.5.3 Control Screen The Control screen allows the user to configure the wavelength, vendor channel, ITU channel or TX dither of tunable XFP transceivers. The Control screen is only available on XFP models. To access the Control screen, select C from the Module screen, and press <ENTER>. The Control screen will be displayed. - Page 18 Under the Features column, the installed XFP transceiver displays the following information (if available); part number, first and last supported DWDM frequency, frequency spacing, the number of available vendor channels, the first and last supported ITU channel and the ITU channel increment. Under the Configurations column, the current and saved configuration is displayed.
- Page 19 Control - iConverter XGT+ iConverter Identifier - Chassis Number = 1 Slot Number = 3 Model Number = 8589N-1 Port = 1 Diagnostics Alarm Status ------------------------------------- -------------------------------------- Laser TX Power 0.50dBm RX Loss of Signal Laser RX Power -40.00dBm TX CDR Not Locked Laser Bias Current 17.12mA RX CDR Not Locked...
-
Page 20: Xgt+ Specifications
4.0 XGT+ SPECIFICATIONS iConverter XGT+ Description 10GBASE-T Ethernet Media Converter Standard IEEE 802.3, 802.3an, 802.3az Compliances Regulatory UL, CE, FCC Class A, NEBS 3 Compliant, RoHS2, WEEE, Compliances REACH, SFF-8077, SFF-8477 Frame Size Unlimited Copper: 10GBASE-T (RJ-45) Fiber: 10GBASE-SR (SFP+, XFP) 10GBASE-LR (SFP+, XFP) Port Types 10GBASE-ER (SFP+, XFP) 10GBASE-ZX (XFP) 10GBASE-BR (Single-fiber: SFP+, XFP) Copper: EIA/TIA 568-B.2-10, Cat 6A UTP and higher Cable Types Fiber: Multimode: 50/125µm, 62.5/125µm Single-mode: 9/125µm AC Adapter: 100 - 120VAC/60Hz (US) 0.20A @ 120VAC (max) AC Power Requirements AC Adapter:... -
Page 21: Appendix A - Itu Channels
5.0 APPENDIX A - ITU CHANNELS Frequency Wavelength Frequency Wavelength ITU Channel ITU Channel (THz) (nm) (THz) (nm) 191.900 1562.23 190.100 1577.03 19.5 191.950 1561.83 190.150 1576.61 192.000 1561.42 190.200 1576.20 20.5 192.050 1561.01 190.250 1575.78 192.100 1560.61 190.300 1575.37 21.5 192.150 1560.20 190.350 1574.95 192.200 1559.79... - Page 22 Frequency Wavelength Frequency Wavelength ITU Channel ITU Channel (THz) (nm) (THz) (nm) 195.500 1533.47 193.700 1547.72 55.5 195.550 1533.07 37.5 193.750 1547.32 195.600 1532.68 193.800 1546.92 56.5 195.650 1532.29 38.5 193.850 1546.52 195.700 1531.90 193.900 1546.12 57.5 195.750 1531.51 39.5 193.950 1545.72 195.800...
-
Page 23: Warranty And Copyright
Omnitron logo. All other company or product names may be trademarks of their respective owners. The information contained in this publication is subject to change without notice. Omnitron Systems Technology, Inc. is not responsible for any inadvertent errors. -
Page 24: Customer Service Information
In case of small items the symbol may be printed only on the packaging or in this manual. If you have questions regarding the correct disposal of equipment go to www.omniton-systems. com/support or e-mail to Omnitron at intlinfo@omnitron-systems.com. ©2016 Omnitron Systems Technology, Inc. 7.0 CUSTOMER SERVICE INFORMATION...
