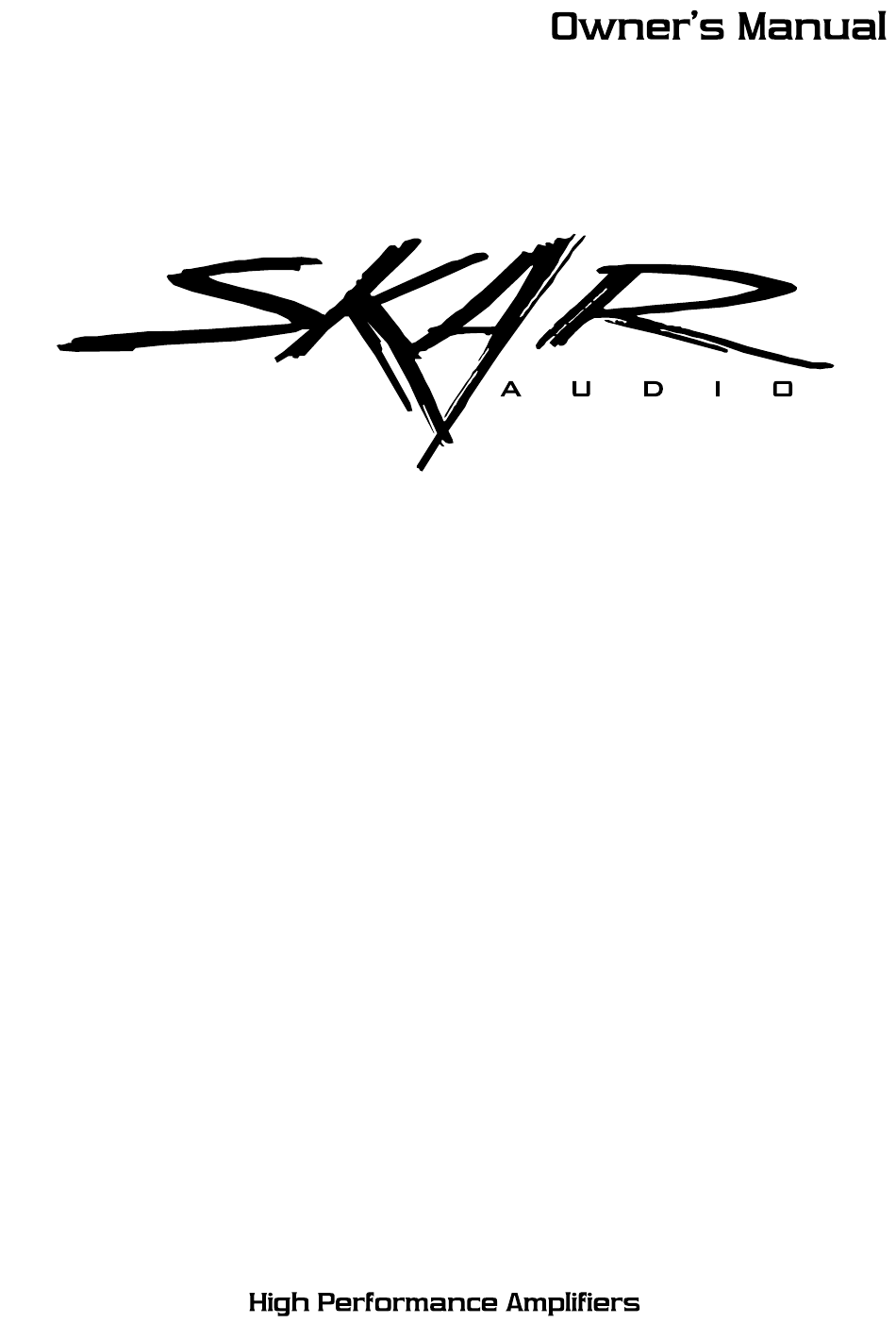

- Page 1 RP-350.1D RP-800.1D RP-1200.1D RP-1500.1D RP-2000.1D RP-3500.1D RP-4500.1D RP-75.4AB RP-150.4AB RP-600.5...
- Page 2 INTRODUCTION Congratulations and thank you for purchasing Skar Audio amplifiers, the logical choice in mobile audio amplification. Your amplifiers have been designed and engineered with the highest quality components and top of the line workmanship to help you reach the superior sound you are after.
- Page 3 DIGITAL MONOBLOCK FEATURES STABLE INTO 1 OHM LOAD REMOTE CONTROL HIGH SPEED MOSFET POWER SUPPLY LINKABLE CONNECTION TO 2 OHM 24dB/OCT, VARIABLE SUBSONIC FILTER HIGH PURITY AND THICKNESS PRINTED 24dB/OCT, LOW PASS FILTER CIRCUIT BOARDS ( RP-3500.1D : 2oz, VARIABLE BASS EQ RP-4500.1D : 3oz ) VARIABLE PHASE CONTROL DIGITAL MONOBLOCK SPECIFICATIONS...
-
Page 4: Power Connection
MULTI-CHANNEL SPECIFICATIONS Rated power output RP-75.4AB RP-150.4AB RP-600.5 - RMS power @ 4 ohm 75Watts x 4 150Watts x 4 60Watts x 4 + 170Watts x 1 - RMS power @ 2 ohm 115Watts x 4 250Watts x 4 90Watts x 4 + 270Watts x 1 - RMS power @ 1 ohm 370Watts x 1 - RMS power @ 4 ohm mono... - Page 5 BATT 12V POWER ) Before mounting amplifiers, disconnect the negative cable from the battery to protect any accidential damage to your amplifiers and audio system. RP-2000.1D, RP-3500.1D & RP-4500.1D are designed to use o ga power and ground connection Rest of RP amplifiers are designed to use 4 gauge power and ground connection. Connect the power cables to power terminal 12V.
- Page 6 DIGITAL MONOBLOCK SPEAKER CONNECTION 4 ~ 1 ohms 8 ~ 2 ohms 8 ~ 2 ohms...
- Page 7 STRAPPABLE CONNECTION Strappable connection makes two of same amplifiers strapped to 2 ohm. Strappable connection makes the power double than their 1 ohm power. Please read the following connection and diagram carefully to make correct connection. INPUT CONNECTION ; Step 1. Connect the Master amplifier to the head-unit and set its output master / input slave switch to output master.
- Page 8 +12V SOURCE Remote turn on MASTER AMPLIFIER Ground BATTERY SLAVE AMPLIFIER...
- Page 9 4 CHANNELS RCA INPUT CONNECTION HEADUNIT Ch1/2 Input GAIN X-Over Bass EQ Power LP/BP 12dB Min Max 20Hz 5KHz 50Hz 500Hz Protect Full Remote Min Max 20Hz 5KHz 50Hz 500Hz LP/BP 12dB Ch3/4 Full 4 CHANNELS SPEAKER CONNECTIONS Mid Range Tweeter Passive Bridged...
- Page 10 Mid Range Tweeter Passive POWER Bridged Bridged 8 ~ 4 ohms 5 CHANNEL RCA INPUT CONNECTION HEADUNIT...
- Page 11 5 CHANNEL SPEAKER CONNECTIONS 8 ~ 4 ohms 8 ~ 4 ohms Mid Range Tweeter Passive...
-
Page 12: Troubleshootings
PROTECTION @ Please check overload, overheat ( thermal ), short and voltage, DC offset. @ Minimum working impedance is 1 ohm for RP-350.1D, RP-800.1D, RP-1200.1D, RP-1500.1D, RP-2000.1D, RP-3500.1D and RP-4500.1D. RP-75.4AB and RP-150.4AB is 2 ohm stereo or 4 ohm mono.
