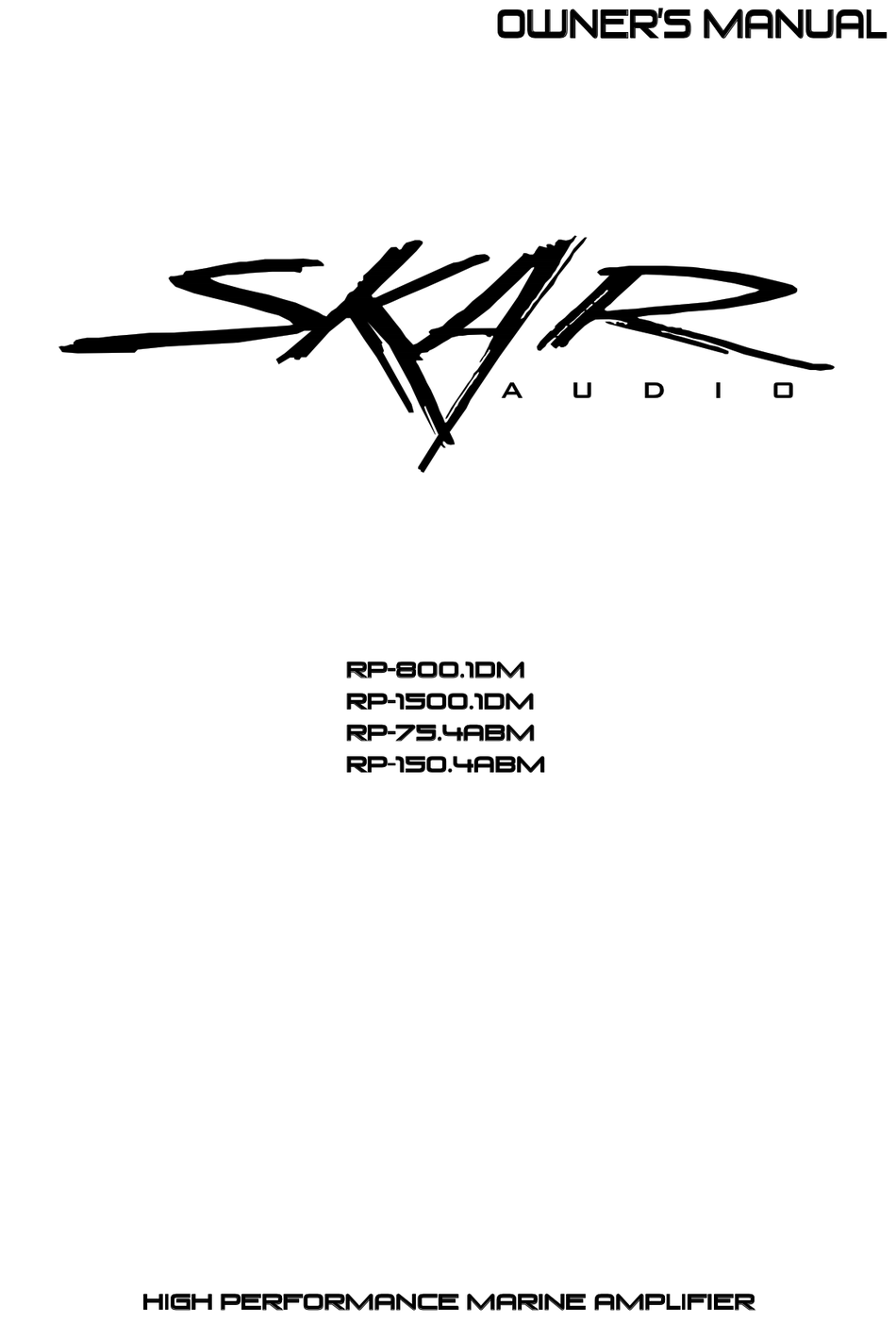

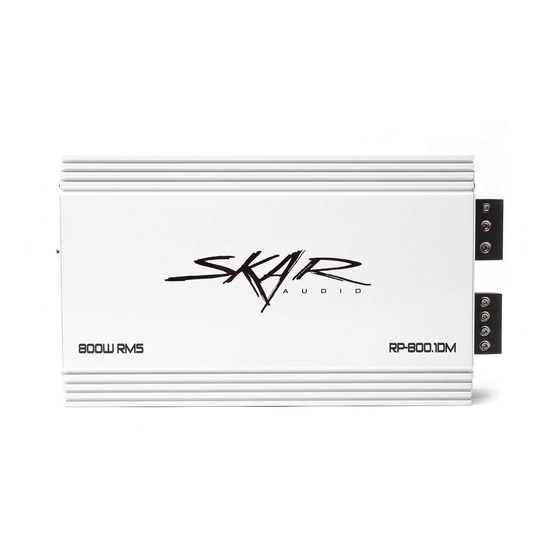

- Page 1 amplifier...
- Page 2 INTRODUCTION Congratulations and thank you for purchasing SKAR AUDIO marine amplifiers. the logical choice in mobile audio amplification. Your marine amplifiers have been designed and engineered with the highest quality components and top of the line workmanship to help you reach the superior sound you are after.
- Page 3 MULTI-CHANNEL FEATURES * smt technology * STABLE INTO 2OHM STEREO OR 4OHM MONO * heavy duty printed circuit board * HIGH SPEED MOSFET POWER SUPPLY * COMPACT DESIGN * 12dB/OCT, HIGH PASS FILTER * Water-proof coating on pcb * 12dB/OCT, LOW PASS FILTER * rust-proof painting on mechanical cases * 6dB / 12dB SELECTABLE BASS BOOST * BAND-PASS CAPABLE...
- Page 4 POWER CONNECTION HEAD UNIT GROUND Fuse rate BATTERY BATT 12V POWER ) Before mounting amplifiers, disconnect the negative cable from the battery to protect any accidental damage to your awesome amplifiers and audio system. All amplifiers are designed to use 4 gauge power and ground connection. Connect the power cables to power terminal 12V.
- Page 5 DIGITAL MONOBLOCK INPUT CONNECTION HEAD UNIT Remote Input GAIN SUBSONIC Bass EQ Protect Power MIN MAX 50Hz 220Hz OFF 50Hz 12dB Wired Remote Control DIGITAL MONOBLOCK SPEAKER CONNECTION 4 ~ 1 ohms...
- Page 6 4 ~ 2 ohms 4 ~ 2 ohms 4 CHANNELS RCA INPUT CONNECTION HEAD UNIT Ch1/2 Input GAIN X-Over Bass EQ Power LP/BP 12dB Min Max 20Hz 5KHz 50Hz 500Hz Protect Full Remote Min Max 20Hz 5KHz 50Hz 500Hz LP/BP 12dB Ch3/4 Full...
- Page 7 4 CHANNELS SPEAKER CONNECTIONS Mid Range Tweeter Passive Bridged POWER Bridged Mid Range Tweeter Passive POWER Bridged Bridged 8 ~ 4 ohms...
- Page 8 PROTECTION @ Please check overload, overheat ( thermal ), short and voltage, DC offset. @ Minimum working impedance is 1 ohm for RP-800.1DM AND RP-1500.1DM. RP-75.4ABM and RP-150.4ABM ARE 2ohm stereo or 4ohm mono. @ If amplifiers are shut down due to heat, they will be on some minutes later after cooling down.
Need help?
Do you have a question about the RP-800.1DM and is the answer not in the manual?
Questions and answers
can you use the signal directly from the subwoofer wires rather then the speaker wires on the factory radio and the other end going to the front of the amp rca input connections ? RP-8001D
does the remote need to be hooked up for amp to work? The red & green lights are not lit. The main power & ground are hooked up.
