BABYSTYLE Oyster 4 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SCAN TO REGISTER
INSTRUCTION MANUAL
YOUR WARRANTY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Oyster 4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BABYSTYLE Oyster 4

Summary of Contents for BABYSTYLE Oyster 4

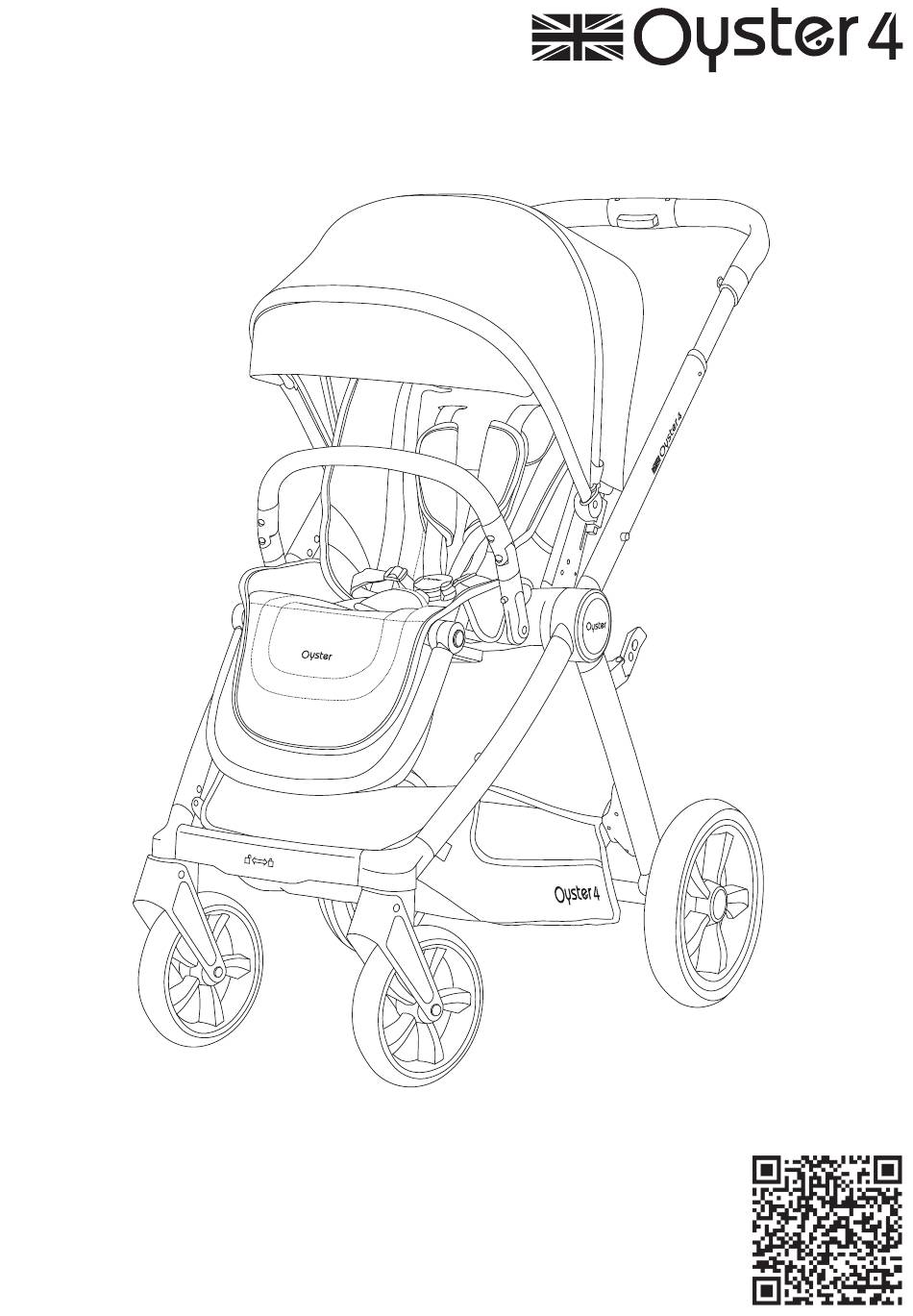

  • Page 1 SCAN TO REGISTER INSTRUCTION MANUAL YOUR WARRANTY...

  • Page 2: Table Of Contents

    CONTENTS Important information and warnings Stroller overview 10 Fitting and removing of front wheels 10 Fitting and removing of rear wheels Locking and unlocking the front swivel wheels Opening the chassis with the seat unit 12 Folding the chassis with the seat unit fitted 14 Folding the chassis with the seat unit / carrycot / car seat removed 14 Adjusting the handle height 15 Using the parking brake...
  • Page 3 22 Fitting the carrycot to the chassis 23 Removing the carrycot 24 Adjusting the carrycot hood 24 Rocking/stabilising carrycot 24 Fitting the carrycot rain cover 25 Fitting the Oyster capsule car seat to the chassis 26 Removing the Oyster capsule car seat from the chassis 27 Fitting and removing the tandem adaptors 28 Fitting and removing rear wheel guard 28 Fitting and removing the tandem seat units...
  • Page 4 IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. Important Safety Information • Single seat mode: This mode (single seat) is suitable for children from newborn to 4 years or up to a maximum weight of 22kg, whichever comes first. With a car seat attached birth to 13kg, with a carrycot attached birth to 9kg.
  • Page 5 WARNING: • Always use the crotch strap in combination with the waist belt. • Always check that the pram body/carrycot or seat unit or car seat attachment devices are correctly engaged before use. • Check the chassis correctly engaged before use. •...
  • Page 6 WARNING: • Always use the seat in the most reclined position for new born babies to approx. 6 months. • Never leave the stroller without first engaging the parking device. Avoid uphill or downhill parking. • Pram body/carrycot: This product is suitable for a child who cannot sit up unaided, roll over and cannot push itself up on its hands and knees.
  • Page 7 Only use compatible seat units, pram bodies/carrycots as stated by the manufacturer, otherwise you may be putting the child at risk. Please check babystyle.co.uk for infant car seat compatibility with other brands. Manufactured and tested in compliance with...

  • Page 8: Stroller Overview

    STROLLER OVERVIEW What’s in the box • Manual • Chassis with attached basket • Seat unit with bumper bar • 2 x front wheels • 2 x rear wheels • Rain cover Recline and folding lever Carry handle Cargo lock Flip-Flop friendly brake...
  • Page 9 All-round suspension For a full list of features, head to babystyle.co.uk. The illustrations in this manual are used to demonstrate the operation of the product. Where there are small differences between the physical object and the illustrations, the physical stroller shall prevail.

  • Page 10: Fitting And Removing Of Front Wheels

    FITTING AND REMOVING OF FRONT WHEELS Ensure the swivel lock under the support bar between the front wheels is in the unlock position (see section 4). 1. Push the wheel unit onto the front wheel axle stub until it clicks into position.

  • Page 11: Locking And Unlocking The Front Swivel Wheels

    LOCKING AND UNLOCKING THE FRONT SWIVEL WHEELS 4. Push the switch left or right under the support bar between the front wheels to lock or unlock the swivel wheels. When locked the front wheels will not be able to swivel and this may help when travelling over uneven surfaces (e.g cobblestones).

  • Page 12: Folding The Chassis With The Seat Unit Fitted

    7. Lift the handle up and the front wheels will come out at the same time, until it clicks into place. 8. Lift up backrest until seat unit clicks into position. Pull down the leg rest so it locks into position. Adjust the bumper bar so that it locks into position.
  • Page 13 the lever and then lift up the recline lever to release the seat. 9.b. Push the whole seat back to the handlebar and the stroller will self-fold. NOTE: Before folding, lock the wheels in the backward position, so the stroller free-stands. NOTE: Before folding, tuck away the sun visor/peak on the canopy.

  • Page 14: Folding The Chassis With The Seat Unit / Carrycot / Car Seat Removed

    FOLDING THE CHASSIS WITH THE SEAT UNIT / CARRYCOT / CAR SEAT REMOVED 12. Apply the brake. Supporting the handlebar, press down on one of the release levers inside the central hub and proceed to press down on the other side. The chassis will then self fold.

  • Page 15: Using The Parking Brake

    USING THE PARKING BRAKE 15. To engage the brake, firmly press down on the brake lever found in the middle of the rear axle. Check that the brake is fully engaged before letting go of the handle. To release the brake, press forwards or lift up the brake lever until the wheel moves freely.

  • Page 16: Adjusting The Seat Unit Backrest

    18. Gently hold the seat unit at the top of the back rest and with your other hand locate the handle under the seat padding, pull forwards and lift up. This will release the seat from the attachment device. ADJUSTING THE SEAT UNIT BACKREST 19.

  • Page 17: Using The Hood/Sun Canopy

    21. The calf rest also has a pop-up feature. Push up from beneath the calf support until it pops into position. There is also a small secret zipped pocket under the footrest. USING THE HOOD/SUN CANOPY 22. The seat unit has a multi- function hood that helps to protect your child from the elements.

  • Page 18: Upf Indicator

    24. To utilise the peekaboo ventilation window fold over the fabric of the panel nearest the back rest. 25. The sun visor is neatly folded inside the front of the hood. Simply reach in and pull the visor and it will spring forward into position.

  • Page 19: Adjusting The Hood/Canopy/Harness Shoulder Height

    ADJUSTING THE HOOD / CANOPY / HARNESS SHOULDER HEIGHT 27. Push in the buttons on both sides at the base of the hood. Whilst the buttons are pressed, lift to raise the height of the hood/ canopy or lower to reduce the height of the hood/canopy.
  • Page 20 29.b. Join the sides together using the magnets until you hear a click. Place the buckle from the crotch strap on top until you hear a click. The buckle is now secure. 30. To release the 5-point magnetic buckle, firmly press the buttons either side and pull the front part away.

  • Page 21: Fitting The Stroller Rain Cover

    FITTING THE STROLLER RAIN COVER 31. To fit the stroller rain cover the hood needs to fully extended. Unfold and place the rain cover so that it covers all the textile parts. Pull the elasticated bottom of the rain cover over the leg support. To secure the rain cover fasten the press stud on the strap around the back of the backrest.

  • Page 22: Assembling The Carrycot

    ASSEMBLING THE CARRYCOT WARNING: This product is only suitable for a child who cannot sit Pull the stay bars up unaided. Max. 9kg. into position WARNING: Only use on a firm, horizontal level and dry surface. 33. Remove the apron and mattress.

  • Page 23: Removing The Carrycot

    WARNING: The carrycot can not be fitted forward facing. WARNING: Only use on a firm, horizontal level and dry surface. WARNING: Do not use if any part of the carrycot is broken, torn or missing. WARNING: Do not add another mattress on top of the mattress provided or recommended by the manufacturer.

  • Page 24: Adjusting The Carrycot Hood

    ADJUSTING THE CARRYCOT HOOD 37. Press in the buttons on the sides of the hood and pull up until you hear them click into place. Press in the buttons again to put the hood down . ROCKING / STABILISING CARRYCOT 38.

  • Page 25: Fitting The Oyster Capsule Car Seat To The Chassis

    FITTING THE OYSTER CAPSULE FITTING THE OYSTER CAPSULE FITTING THE OYSTER CAPSULE CAR SEAT TO THE CHASSIS CAR SEAT TO THE CHASSIS CAR SEAT TO THE CHASSIS 40. The car seat can not be attached to the chassis until the seat unit or carrycot has been removed.

  • Page 26: Removing The Oyster Capsule Car Seat From The Chassis

    REMOVING THE OYSTER CAPSULE CAR SEAT FROM THE CHASSIS 42. To remove the car seat from the chassis: Press down on the two buttons on the sides of the car seat and lift the car seat away from the chassis. 43.

  • Page 27: Fitting And Removing The Tandem Adaptors

    FITTING AND REMOVING THE TANDEM ADAPTORS 44. Insert the tandem adaptors into the left and right sides of the main chassis housings until they lock into place with a click. Ensure the adaptors are also clicked in near the rear legs. 45.

  • Page 28: Fitting And Removing Rear Wheel Guard

    FITTING AND REMOVING REAR WHEEL GUARD NOTE: When using the tandem adaptors, with the seat in the lower position, the rear wheel guards should be used. 46. To fit, remove the rear wheel (fig 3), and push the guard onto the inside of the wheel, lining up with the spokes until you hear a click.

  • Page 29: Fitting And Removing The Tandem Carrycots

    NOTE: In tandem mode the seat units are only designed to face forward. They will not click into place reward facing. NOTE: Always fit the lower tandem seat first in the forward-facing position. Always fit the upper seat in the forward-facing position. WARNING: Never attempt to fit or remove the seat unit while it is occupied, the child could be injured.

  • Page 30: Fitting And Removing The Tandem Car Seat Adaptors

    51. Fit the upper carrycot into the upper position facing rearward. NOTE: Always fit the lower carrycot first in the forward- facing position. Always fit the upper seat in the rearward-facing position. 52. To remove the tandem carrycots, hold the carrycot by the carry handle with one hand and with the other hand lift up the lever at the back of the carrycot.

  • Page 31: Fitting And Removing The Tandem Car Seats

    54. Fit the upper car seat adaptors as normal, with Left and Right from the perspective of standing behind the handlebar. 55. To remove the adaptors from the tandem adaptors push in the buttons on the bottom of the adaptors and lift the adaptors away from the attachment device.

  • Page 32: Approved Tandem Configurations

    Removing the upper car seat first. WARNING: Always remove the upper car seat first. For car seat compatibility head to babystyle.co.uk. Do not use a car seat other than those recommended. 59. APPROVED TANDEM CONFIGURATIONS...
  • Page 33 59.B. Tandem carrycots • Max 9kg per carrycot 59.C. Tandem car seats • Max 13kg car seat 59.D. Forward facing lower carrycot and rearward facing upper car seat. • Max 9kg carrycot • Max 13kg car seat...
  • Page 34 59.E. Forward facing lower carrycot and forward facing upper seat unit. • Max 9kg carrycot • Max 15kg seat NOTE: Forward facing upper seat must be in the upright position. 59.F. Forward facing lower car seat and forward facing upper seat unit. •...
  • Page 35 59.H. Forward facing lower seat unit and rearward facing upper car seat. Lower seat must be reclined to its second position. NOTE: rear wheel guards must be used when seat is in the lower position. WARNING: Stability hazards. Do not use the stroller in any of the following configurations.

  • Page 36: Oyster Basket Configurations

    59.K. DO NOT USE: Tandem adaptors with any car seat in upper position only. 60. OYSTER BASKET CONFIGURATIONS 60.A. Using the tandem adaptors, fit the Oyster Basket into the lower position, with the seat at the top forward facing. • Max 9kg basket •...
  • Page 37 60.C. Oyster Basket in lower position, with car seat in upper position. • Max 9kg basket • Max 13kg car seat WARNING: Do not use the Oyster Basket in the upper position. Always fit the Oyster Basket in the lower position first. WARNING: Always remove the upper seat/carrycot/car seat first.

  • Page 38: Using The Oyster Ride-On Board

    USING THE OYSTER RIDE-ON BOARD 61. Pull the trigger on each side to open the clasp, then place over the axle. 61a. To secure, fully close the clasps ensuring they are locked. Check that the ride-on board is secure. 61b. To stow the ride-on board, lift up the board and push into position until it locks into place.

  • Page 39: Oyster Ride-On Board Configurations

    62. OYSTER RIDE-ON BOARD CONFIGURATIONS 62.A. Ride-on board with forward facing seat unit. NOTE: When using the ride-on board with the seat unit, the seat unit should be in the upright position. 62.B. Ride-on board with rearward facing seat unit. 62.C.

  • Page 40: Fitting The Carrycot To The Oyster Carrycot Stand

    62.D. Ride-on board with car seat. FITTING THE CARRYCOT TO THE OYSTER CARRYCOT STAND 63 . To fit the Oyster Carrycot - line up the carrycot attachment devices with the fixtures on the stand and push down until you hear a click on both sides. To remove, use the lever on the back of the carrycot and pull the carrycot up.
  • Page 41 manufacturer. • When the stand is not in use, it shall be stored away from children. • For correct and safe assembly and use of the carrycot check the Oyster instructions. WARNING: • Never leave the child unattended. • Only use on a firm, horizontal level, flat and dry surface. •...
  • Page 42 WARNING: • It is recommended you ask a health professional for advice on safe sleeping. • It is recommended that the carrycot canopy is folded back and the apron - top cover - is removed when the child is sleeping in the carrycot indoors.

  • Page 43: Care And Maintenance

    • Check on a regular basis that all chassis locking devices are working correctly. • If any part of the product is damaged, contact your local BabyStyle retailer immediately without using the pushchair. • Do not expose the product to excessive sunlight, even normal exposure to sunlight may cause change to the colour of the fabrics.

  • Page 44: Warranty Policy

    SERVICING OF YOUR OYSTER4 STROLLER We recommend that this product is regularly maintained and is serviced by a BabyStyle authorised dealer at least every 12 months. Only replacement parts supplied or recommended by the manufacturer/ distributor shall be used.

  • Page 45: Warranty Terms

    WARRANTY TERMS Chassis: 24 consecutive months. Fabrics, accessories and PVC rain cover: 6 consecutive months. The warranty only applies to the original purchaser and is non- transferable. The warranty will be invalidated in the following circumstances: • The product has not been used for its intended purpose as described within the instruction manual.
  • Page 48 36 Charles Street, Sileby, Leicestershire LE12 7RJ. T: 01509 816444 E: info@babystyle.co.uk www.babystyle.co.uk ©BabyStyle UK Ltd RP1509 04122024...
