Summary of Contents for BABYSTYLE Qyster 3
- Page 1 Instruction Manual Register your product at www.babystyledirect.co.uk...
-
Page 3: Table Of Contents
CONTENTS P GE Important Safety Information Fitting and Removing of Front Wheels Fitting and Removing of Rear Wheels Locking and Unlocking the Front Swivel Wheels Opening the Chassis with the Seat Unit Fitted Folding the Chassis with the Seat Unit Fitted 9-10 Folding the Chassis with the Seat Unit / Carrycot / Car Seat Removed 10 djusting the Handle Height... -
Page 4: Important Safety Information
IMPORT NT – Read these instructions before use and keep for future reference. Important Safety Information. This vehicle is intended for children from birth to a maximum of 22kg. Age and weight usage: Pram body/carrycot 0 to 9Kg, Car seat 0 to 13kg (follow manufacturers guidelines), Seat unit 0 to 22kg, Ride on board/platform max 20kg. - Page 5 W RNING: Do not use the vehicle on steps, stairs or escalators; as it may be dangerous to your child. W RNING: Always descend/mount kerbs on the back wheels, do not tip the stroller forward. W RNING: Any load attached to the handle and/or the back of the backrest and/or the sides of the vehicle will affect the stability of the vehicle.
-
Page 6: Fitting And Removing Of Front Wheels
ll references to left and right are given from the perspective of a person standing in the pushing position. FITTING ND REMOVING PUSH OF FRONT WHEELS Ensure the swivel lock under the support bar between the front wheels is in the unlock position (see section 4). -
Page 7: Locking And Unlocking The Front Swivel Wheels
LOCKING ND UNLOCKING THE FRONT SWIVEL WHEELS 4. Push the switch left or right under the support bar between the front wheels to lock or unlock the swivel wheels. When locked the front wheels will not be able to swivel and this may help when travelling over uneven surfaces (e.g cobblestones). - Page 8 OPENING THE CH SSIS WITH THE SE T UNIT FITTED (CONT) LIFT 7. Lift the handle until it clicks into its correct H NDLE position. 8. Continue to bring the handle towards you until the rear wheels come into contact with the floor. Push down on the handle and the chassis will fully open and lock into position.
-
Page 9: Folding The Chassis With The Seat Unit Fitted
FOLDING THE CH SSIS WITH THE SE T UNIT FITTED W RNING: Ensure the child is well clear of moving parts and all items are removed from the shopping basket. The stroller will fold with the seat unit both forward facing &... -
Page 10: Folding The Chassis With The Seat Unit / Carrycot / Car Seat Removed
FOLDING THE CH SSIS WITH THE SE T UNIT FITTED (CONT) LIFT 13. Pull the carry handle upwards to fold the chassis. Squeeze the chassis together if required so that the chassis locking clip locks into place. The folded chassis can now free-stand or lie flat. To fold the chassis with the seat unit forward facing: Apply the rear brake. -
Page 11: Djusting The Handle Height
DJUSTING THE H NDLE HEIGHT 16. The handle height is adjustable to four positions. To adjust the handle height, hold in the button in the middle of the handle grip, slide the handle up or down to one of the four positions. The handle will click into one of the pre-set positions when the button is released. -
Page 12: Fitting The Seat Unit
FITTING THE SE T UNIT 19. Align the seat attachments into the central hubs on either side of the chassis. Push down until the seat unit clicks and locks into position. Ensure the seat unit is locked in position by trying to pull the seat from the chassis. The seat unit can be fitted facing forwards or rearwards. -
Page 13: Djusting The Leg Rest
DJUSTING THE LEG REST 22. To lower the leg rest press in the buttons on both sides at the top of the leg rest and push down. To raise the leg rest into higher positions, lift the leg rest and it will automatically click into the next position. - Page 14 HOOD/SUN C NOPY (CONT) UNZIP 25. To extend the hood unzip the zip across the centre of the hood to get the full extension. 26. To utilise the peekaboo ventilation window fold over the fabric of the panel nearest the back FOLD rest.
-
Page 15: Djusting The Hood / Canopy / Harness Shoulder Height
HOOD/SUN C NOPY (CONT) 28. The hood can be removed altogether by simply pushing up on the round fittings on either side at the bottom of the hood. DJUSTING THE HOOD / C NOPY / H RNESS SHOULDER HEIGHT 29. Push in the buttons on both sides at the base of the hood. - Page 16 USING THE RESTR INT SYSTEM (CONT) 31. Place the two shoulder straps over the child’s shoulder and the waist belt around the waist. The crotch strap should be placed between the child’s legs. To secure: fit together the left connector from the shoulder strap with the left connector from the waist belt.
-
Page 17: Fitting The Stroller Rain Cover
FITTING THE STROLLER R IN COVER 33. To fit the stroller rain cover the hood needs to fully extended. Unfold and place the rain cover so that it covers all the textile parts. Pull the elasticated bottom of the rain cover over the leg support. -
Page 18: Fitting The Carrycot To The Chassis
FITTING THE C RRYCOT TO THE CH SSIS 36. The carrycot can only be fitted to the chassis when the seat unit has been removed. The carrycot can only be fitted to the chassis facing the parent. Lower the carrycot into the attachment devices left and right. -
Page 19: Removing The Carrycot
REMOVING THE C RRYCOT 37. Hold the carrycot using the handle at the front of the hood. While holding this, pull the handle situated at the back of the carrycot and lift. The carrycot will release from the chassis. W RNING: Before carrying or lifting, make sure that the handle is in the correct locked position. -
Page 20: Fitting The Carrycot Rain Cover
FITTING THE C RRYCOT R IN COVER 40. Fully extend the hood. Unfold and place the rain cover over the hood of the carrycot so that the flap on the rain cover corresponds with the opening in the in the carrycot hood. Pull the rain cover down at the rear of the hood so that the elasticated edge covers the rear of the carrycot. -
Page 21: Removing The Oyster Carapace Infant Car Seat From
FITTING THE OYSTER C R P CE INF NT C R SE T USING THE MULTI D PTORS (CONT) 43. Hold the car seat by the carry handle and lower the car seat onto the multi adaptors, the adaptors should slot into the cavity at the base of the car seat handle left &... - Page 23 • Check on a regular basis that all chassis locking devices are working correctly. • If any part of the product is damaged, contact your local BabyStyle retailer immediately without using the pushchair. • Do not expose the product to excessive sunlight for periods of time, even normal exposure to sunlight may cause change to the colour of the fabrics.
-
Page 24: Your Warranty Policy
SERVICING OF YOUR OYSTER 3 STROLLER We recommend that this product is regularly maintained and is serviced by a BabyStyle authorised dealer at least every 12 months. Only replacement parts supplied or recommended by the manufacturer/distributor shall be used. - Page 25 WARRANTY TERMS • Chassis and seat frames: 24 consecutive months. • Seat fabrics, carrycot, accessories and PVC rain cover: 6 consecutive months. • The warranty only applies to the original purchaser and is non-transferable. The warranty will be invalidated in the following circumstances: •...
-
Page 26: Notes
NOTES... - Page 28 36 Charles Street, Sileby, Leicestershire LE12 7RJ. T: 01509 816444 E: info@babystyle.co.uk www.babystyle.co.uk ©BabyStyle UK Ltd 2018 AJB1400/20122018v2...
Need help?
Do you have a question about the Qyster 3 and is the answer not in the manual?
Questions and answers

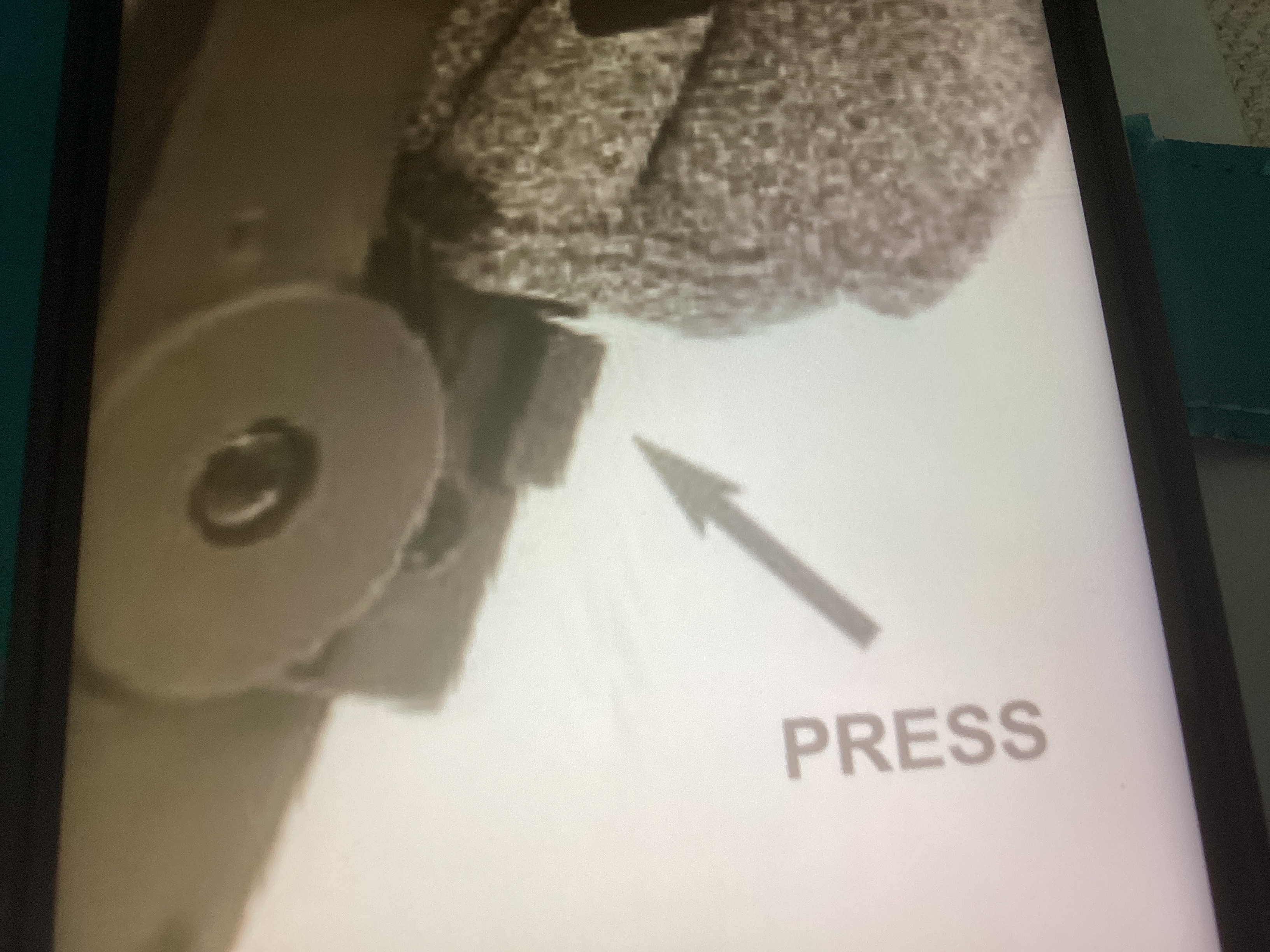

I have purchased the oyster 3 travel system and am trying to find how the carrycot hood goes up and lowers. There is no instruction manual included and online shows buttons that you have to press in,but on mine there are no such buttons !!!
