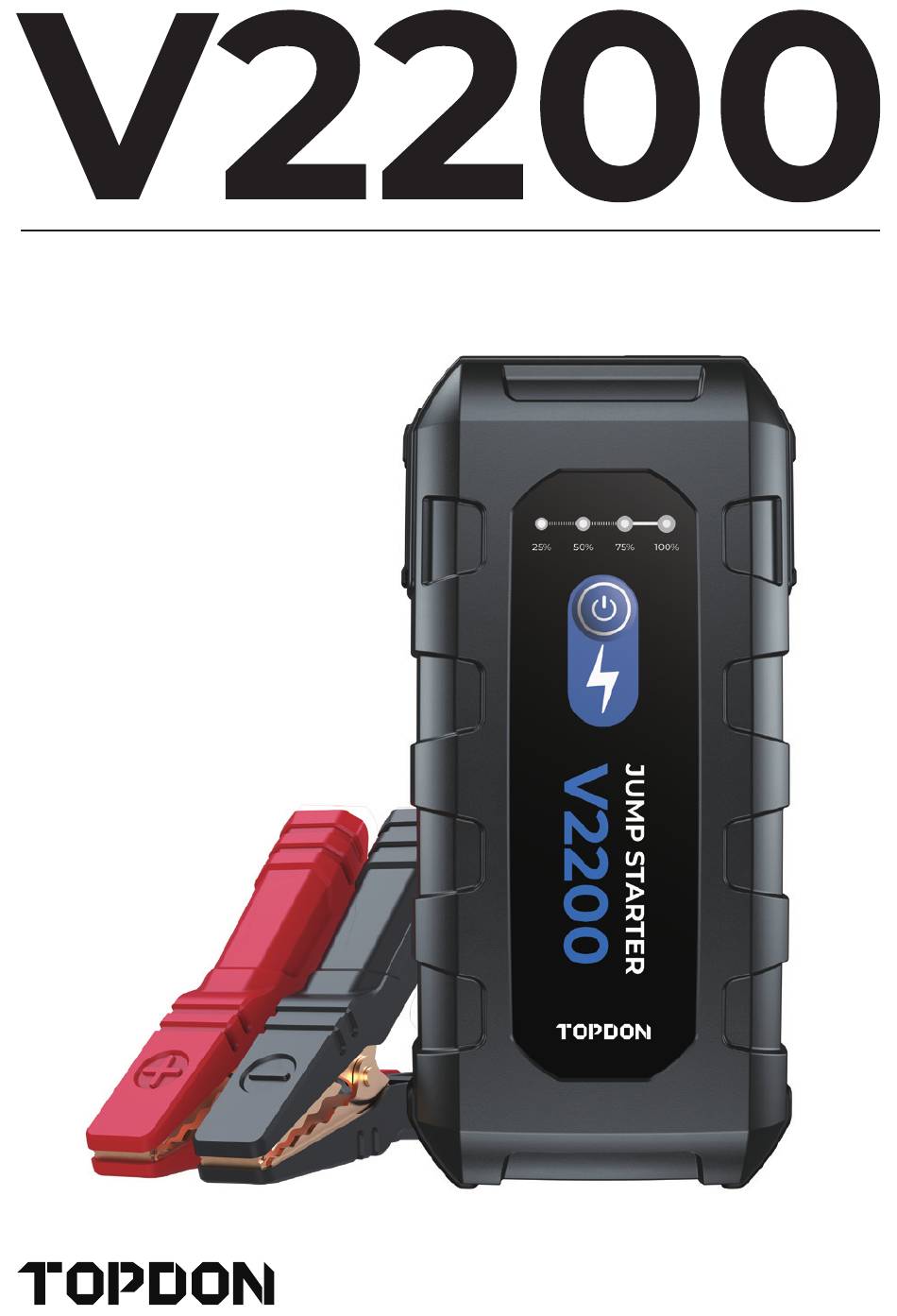

- Page 1 USER MANUAL Jump Starter...
-
Page 3: Table Of Contents
CONTENTS Safety Is Always the First Priority! Section 1 About V2200 Section 2 What's in the Box? Section 3 Product Overview Section 4 Recharge the Jump Starter Section 5 How to Jump Start a 12V Battery Vehicle? Section 6 Specifications... - Page 4 ENGLISH...
-
Page 5: Safety Is Always The First Priority
SAFETY IS ALWAYS THE FIRST PRIORITY! READ ALL INSTRUCTIONS BEFORE USE For your safety, the safety of others, and to avoid any damage to the product and your vehicle, CAREFULLY READ AND MAKE SURE YOU FULLY UNDERSTAND ALL THE SAFETY INSTRUCTIONS AND MESSAGES ON THIS MANUAL BEFORE OPERATING. -
Page 6: Section 1 About V2200
SECTION 1 ABOUT V2200 TOPDON's V2200 is a portable jump starter that delivers 2,200 peak amps for jump starting a 12V lead-acid battery in seconds. It supports quick and safe starts for 12V cars, boats, motorcycles, trucks, etc., with up to 8.0-liter gasoline or 6.0-liter diesel engines. -
Page 7: Section 3 Product Overview
SECTION 3 PRODUCT OVERVIEW Jump Starter... - Page 8 Power Button Short press to power ON; long press to turn on the LED light, then short press to toggle the LED light among the following modes: Flashlight, SOS, Strobe and OFF. Battery Level Indicators Indicate the charge level of the internal battery. Note: Only jump start vehicles when the battery level of the jump starter is above 50%.
- Page 9 Battery Clamps Status Indicator Flashing red and green: The jumper starter is in standby mode. Solid green: The jumper starter is ready for use. Solid red (with buzzer ringing in the meantime): If reverse polarity, over temperature, or other error is detected.
-
Page 10: Section 4 Recharge The Jump Starter
SECTION 4 RECHARGE THE JUMP STARTER The jump starter comes partially charged and needs to be fully charged prior to use. Please charge it through the Type-C input port once you receive it. SECTION 5 HOW TO JUMP START A 12V BATTERY VEHICLE? IMPORTANT Make sure you have turned off all of the power loads of the... - Page 11 (+), black clamp to the negative polarity (-). The status indicator will illuminate green, which indicates it is ready for jump starting. Just by clamping the terminals correctly, the V2200 delivers a jump to the battery.
- Page 12 Step 3: Try starting the vehicle. If it fails, disconnect the clamps from the vehicle's battery and wait for 20 seconds, then reconnect and try again. Do not attempt more than 3 consecutive jump starts within 2 minutes. Note: • The jump starter has a built-in buzzer that will ring when reverse polarity, over temperature, short circuit, or other improper connections are detected.
-
Page 13: Section 6 Specifications
SECTION 6 SPECIFICATIONS Battery Capacity 59.2Wh/16000mAh, 3.7V USB1 Output QC18W 12V 1.5A, 9V 2A, 5V 3A USB2 Output QC18W 12V 1.5A, 9V 2A, 5V 3A DC Output Max 16.8V 10A Type-C Input/Output PD60W 20V 3A, 15V 3A, 12V 3A, 9V 3A, 5V 3A Peak Current 2200A -10℃... -
Page 14: Section 7 Warranty
12 months from the date of purchase (Warranty Period). For the defects reported during the Warranty Period, TOPDON will either repair or replace the defective part or product according to its technical support analysis and confirmation. TOPDON shall not be liable for any incidental or consequential damages arising from the device's use, misuse, or mounting. - Page 15 SECTION 8 FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
