PNI CT28WIFI Manual

Gateway hub
Hide thumbs

Advertisement

Table of Contents

PNI CT28WIFI
Gateway Hub

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT28WIFI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PNI CT28WIFI

Summary of Contents for PNI CT28WIFI

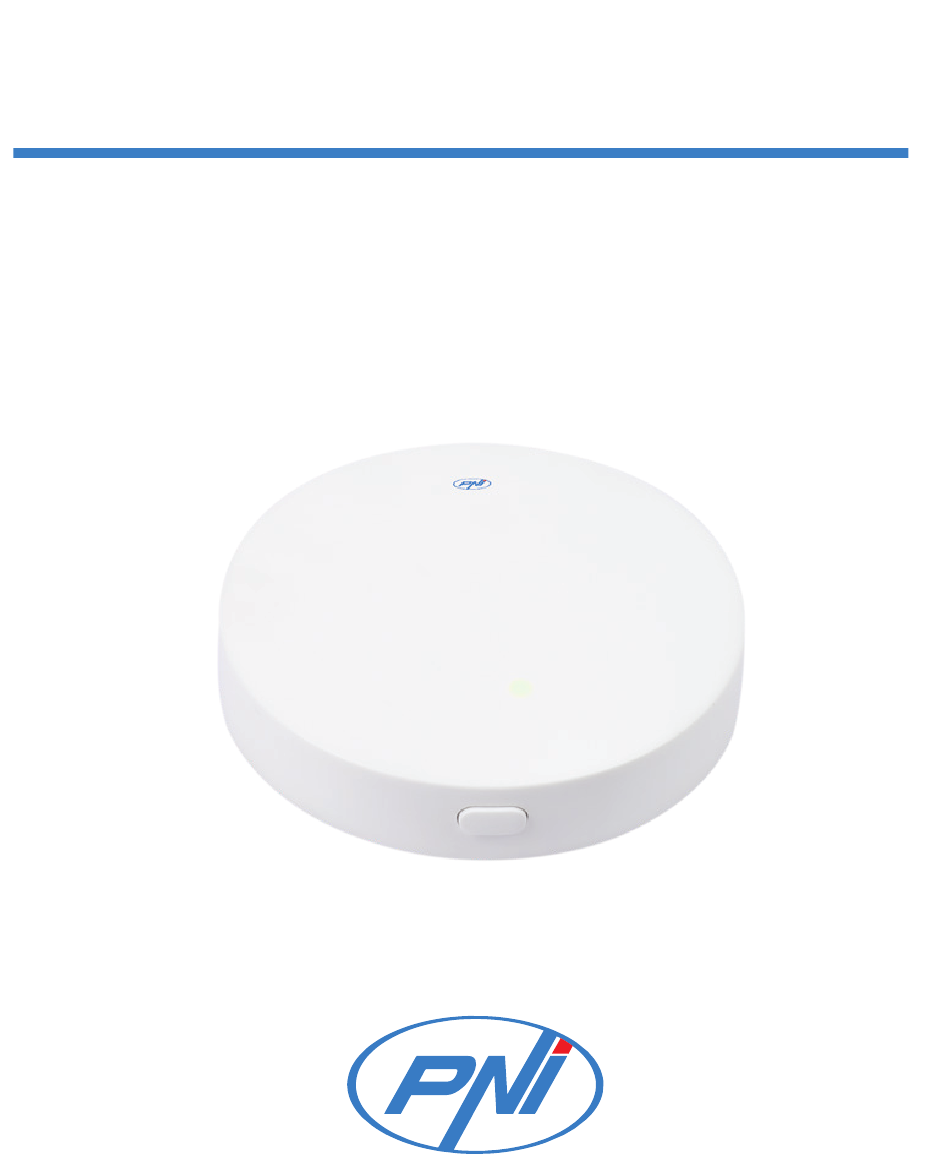

  • Page 1 PNI CT28WIFI Gateway Hub...
  • Page 2 Contents English ..... 3 Romana ..... 10...

  • Page 3: Technical Specifications

    Technical specifications Supply voltage: 5V Operating current: 1A Connector: USB-C RF frequency: 868MHz / <25mW WiFi frequency: 2.4 GHz / 100 mW Dimensions: Ø 65 x 15mm Operating temperature: -26 ~ +80°C Protection grade: IP30 Usage instructions Insert the included power cable into the USB-C port on the hub.
  • Page 4 Note: Due to the numerous updates to the Tuya Smart application, the images and information described in this manual may be different from the version you installed. Make sure you have your mobile phone connected to the WiFi 2.4GHz network, the Bluetooth function and the location activated.
  • Page 5 the “Add device” button. Select the “Others” option from the left side of the screen. From the list of devices displayed on the right side of the screen, select “Connector (Wi-Fi)”. Select the WiFi network you want to connect to and add the network password.
  • Page 6 Pairing with PNI CT28 PRO control unit Note: The PNI CT28 PRO unit must be purchased separately. After adding the hub to the application, press “Add subdevice”. In the interface that appears, click on “More device reset methods”.
  • Page 7 From the list of devices, select “Heater”. Turn off the thermostat from the on/off button. Press and hold the M key until a four-character code appears on the screen. Press the + or - key. The code and the signal indicator start blinking.

  • Page 9: Simplified Eu Declaration Of Conformity

    Simplified EU declaration of conformity ONLINESHOP SRL declares that the PNI CT28WIFI Internet Hub is in compliance with the RED Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.mypni.eu/products/10520/download/ certifications...

  • Page 10: Specificatii Tehnice

    Specificatii tehnice Tensiune de alimentare: 5V Curent de functionare: 1A Conector: USB-C Frecventa RF: 868MHz / <25mW Frecventa WiFi: 2,4 GHz / 100 mW Dimensiuni: Ø 65 x 15mm Temperatura de lucru: -26 ~ +80°C Clasa de rezistenta la apa: IP30 Alimentare dispozitiv Introduceti conectorul cablului de alimentare inclus in portul USB-C de pe hub.
  • Page 11 Tuya Smart este posibil ca imaginile si informatiile descrise in acest manual sa fie diferite de versiunea pe care ati instalat-o. Asigurati-va ca aveti telefonul mobil conectat la reteaua WiFi 2.4GHz , functia Bluetooth si locatia activate. Descarcati aplicatia Tuya Smart. Android Deschideti aplicatia, creati-va cont si autentificati-va.
  • Page 12 Selectati din partea stanga a ecranului optiunea “Others”. Din lista de dispozitive afisate in partea dreapta a ecranului, selectati “Connector (Wi-Fi)”. Selectati reteaua WiFi la care doriti sa va conectati si adaugati parola retelei. Click “Next”. Tineti lung apasat butonul de pe hub. LED-urile verde si rosu clipesc des.
  • Page 13 Imperechere cu unitatea de control termostat PNI CT28 PRO Nota: Unitatea PNI CT28 PRO se achizitioneaza separat. Dupa ce ati adaugat hub-ul in aplicatie, apasati pe “Add subdevice“. In interfata care apare, apasati pe “More device reset methods“.
  • Page 14 Din lista de dispozitive, selectati “Heater“. Opriti termostatul din butonul de pornire/oprire. Apasati lung tasta M pana cand pe ecran apare un cod format din patru caractere. Apasati tasta + sau -. Codul si indicatorul de semnal incep sa clipeasca. In aplicatie, apasati pe “Confirm the indicator is blinking rapidly“.
  • Page 16 Declaratie UE de conformitate simplificata ONLINESHOP SRL declara ca Hub Internet PNI CT28WIFI este in conformitate cu Directiva RED 2014/53/UE. Textul integral al declaratiei UE de conformitate este disponibil la urmatoarea adresa de internet: https://www.mypni.eu/products/10520/download/ certifications...
  • Page 17 Certificate of quality and commercial warranty The warranty period for natural persons is 24 months as of the delivery date for the manufacturing and material defects. The warranty period for legal entities is 12 months as of the delivery date for the manufacturing and material defects.
  • Page 18 Certificat de calitate si garantie comerciala Perioada de garantie pentru persoane fizice este de 24 luni de la data livrarii pentru defectele de fabricatie si de material. Perioada de garantie pentru persoane juridice este de 12 luni de la data livrarii pentru defectele de fabricatie si de material.
  • Page 19 Please download the full version of the warranty certificate: Va rugam descarcati versiunea completa a certificatului de garantie:...
  • Page 20 Please download the full version of the user manual: Va rugam descarcati versiunea completa a manualului de utilizare:...
