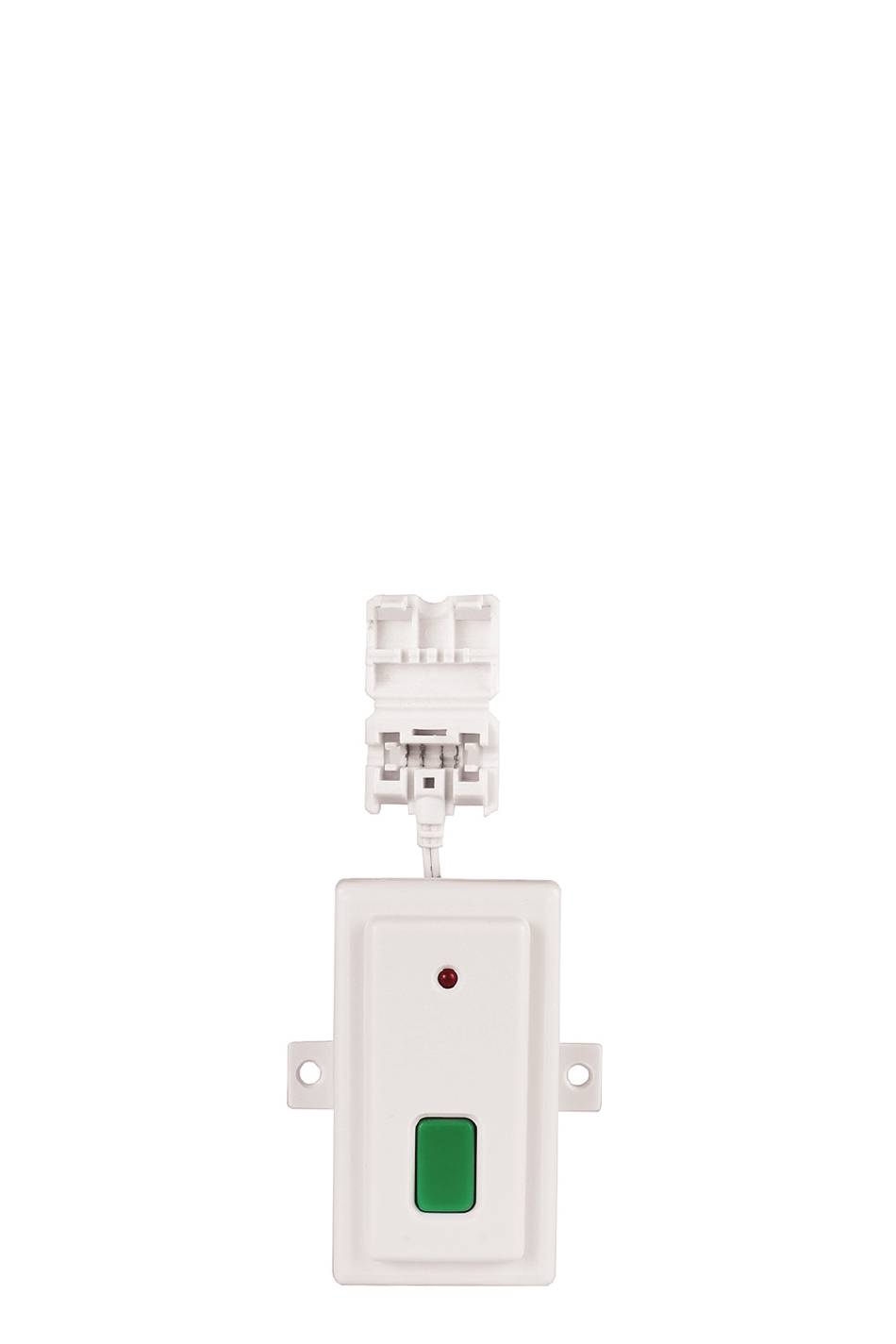

- Page 1 Releu inteligent PNI SmartHome SM433 Manual de utilizare...
-
Page 2: Caracteristici Tehnice
INTRODUCERE: Releul inteligent va ofera posibilitatea de a deschide de la distanta usa de la garaj in mod simplu si rapid. Instalarea lui este facila. Puteti inlocui butonul pe care deja il aveti pentru deschiderea usii garajului sau il puteti conecta in paralel cu acesta. - Page 3 2. Pozitionati corect in interiorul canalului cele doua fire. Nota: Asigurati-va ca firele nu sunt rasucite in interiorul clamei. wires wires press/lock 3. Dupa ce ati introdus firele, fixati capacul clamei folosindu- va de clestele inclus. Inchideti capacul si strangeti-l cu clestele pana auziti un click.
- Page 4 5. Daca firele butonului pentru usa de la garaj sunt ascunse in perete, conectati clama releului inteligent direct la firele care pleaca din dispozitivul de deschidere a usii garajului. 6. Alimentati dispozitivul de deschidere a usii garajului. Ledul rosu de pe releul inteligent va clipi rar timp de 2 minute. Daca ledul rosu nu clipeste dupa ce releul inteligent a fost conectat la butonul de deschidere a usii garajului, dispozitivul de deschidere a usii garajului nu ofera probabil suficienta...
- Page 5 Cititi pasul 4 din acest manual si urmati instructiunile. CONTROLUL RELEULUI INTELIGENT Releul PNI SmartHome 433 este compatibil cu sistemul de alarma PNI SmartHome 400. Exista trei modalitati de control a releului inteligent: 1.
- Page 6 PNI SmartHome 400 3. Prin aplicatia ”PNI Casa inteligenta”. Pentru instructiuni privind inrolarea in sistem a releului inteligent prin aplicatia ”PNI Casa inteligente”, cititi manualul kit-ului PNI SmartHome NOTA: Daca ledul rosu de pe releu clipeste rar, acesta este in repaos. buton...
- Page 7 5. Acum puteti deschide / inchide usa de la garaj folosind telecomanda. Antena Buton invatare Stergerea unei telecomenzi: Pentru a sterge o telecomanda din memoria releului inteligent, mai intai stergeti toate telecomenzile invatate, dupa care re- invatati telecomenzile pe care doriti sa le pastrati. 1.
- Page 8 Smart button PNI SmartHome SM433 User manual...
-
Page 9: Installation
INTRODUCTION: PNI SmartHome 433 offers you the possibility to open remotely the door of the garage. It is easy to install. Thus, you can replace the push button you already have for opening the garage door or you can connect the smart button in parallel to your exiting wall console. - Page 10 Note: Ensure the ribbon wires are not twisted but laid flat inside the clip. wires wires press/lock 3. Press and lock the clip by snapping it together. The included crimper helps you lock the clip. Close the cover and press down to lock the cover using this crimper until you hear a “click”.
- Page 11 5. If the wall button wires are hidden inside the wall, please connect the clip to the exposed wires attached to the terminals of the garage door opener. 6. Power up the garage door opener, the red LED on the smart button should keep flashing slowly within 2 minutes If the smart button’s red LED does not flash after it has been connected to the wall button’s wires for 2 minutes, your...
- Page 12 Do not re-use the clip, refer to step 4 to re-install it. SMART BUTTON’S CONTROL PNI SmartHome 433 is compatible with the alarm system PNI SmartHome 400. There are 3 possibilities to control the smart button: 1.
- Page 13 Nota: PNI SmartHome 433 is compatible with the remote control from the alarm kit PNI SmartHome 400 3. Using ”PNI Casa inteligenta” app. For more info read PNI SmartHome SM400 user manual open/close button LEARN ADDITIONAL REMOTE CONTROLS Smart ButtonTM GB-434 can learn up to 16 remote controls.
- Page 14 Antenna Learn button Erase remote controls: To erase unwanted remote control(s)from the memory of smart button, first erase all remote controls, then learn the one(s) you would like to keep. 1. Press and hold the learn button for approximate 10 seconds 2.
