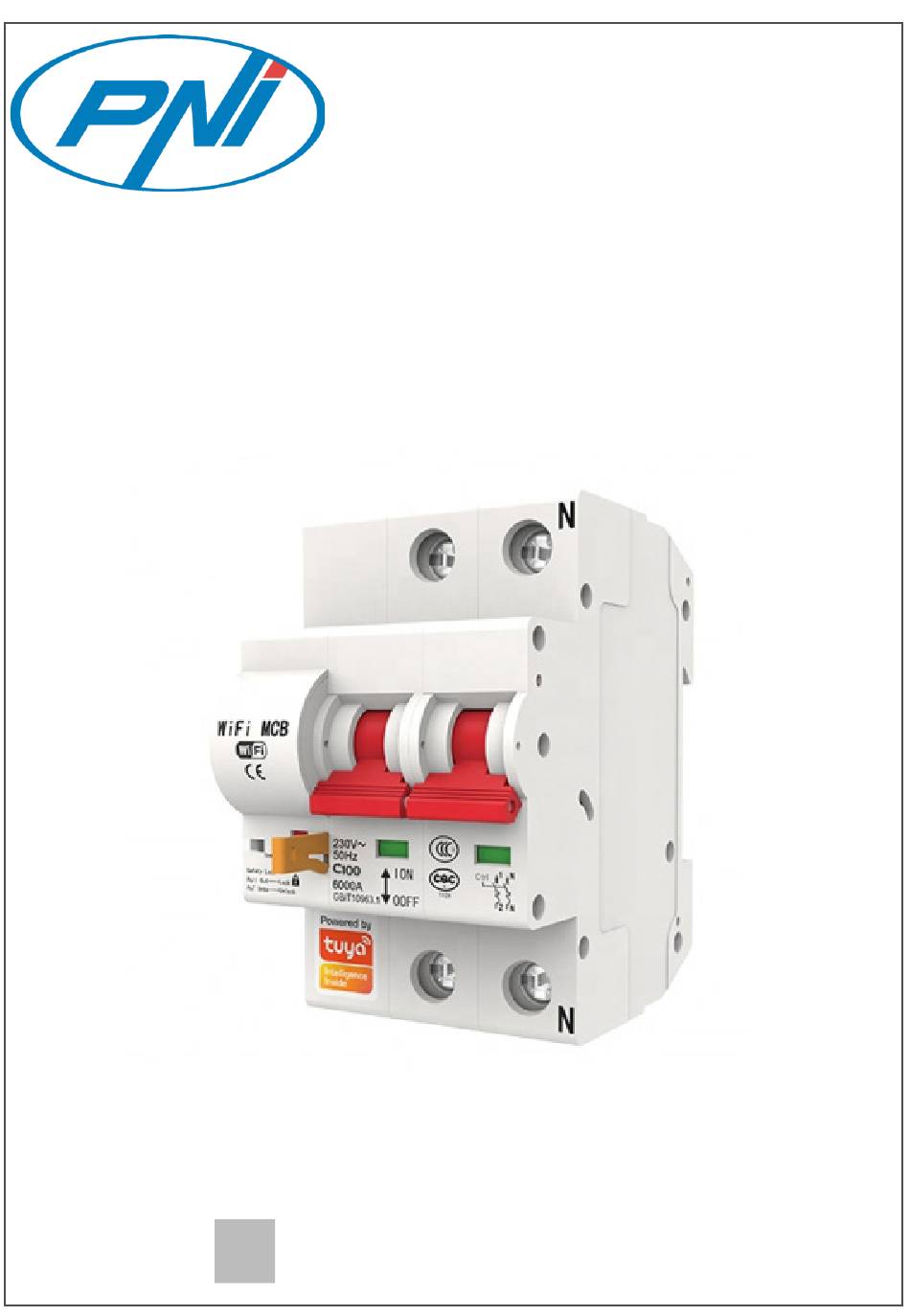

- Page 1 PNI PT802P Switch Wifi circuit breaker Tuya app P2P Quick Start Guide / Ghid rapid de configurare User manual ..........Manual de utilizare ........

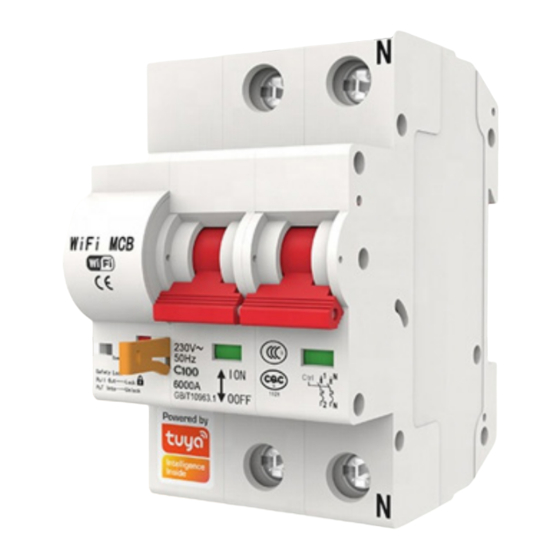

- Page 2 Product introduction and main features: PNI PT802P product is an inteligent circuit breaker intended for residential or industrial use to remotely switch ON or OFF a circuit, delay or program a certain connection. Also it has classic functions of a circuit breaker: to protect from from overload and short circuit .
- Page 3 3.2 Register If you have already registered an account, you can skip the creating a new account,click “Log in with existing account”, enter the log in page. (1) The system automatically select the current Country/Region, or you can manually select the Country/ Region.
-
Page 4: Add Device
4. ADD DEVICE 4.1 Product description LED explanation: - Blue led On - Breaker ON Position - Blue led Off - Breaker Off Position - Red led blinking quickly - product in pairing mode - Red led On - Product paired, connected to wifi and connected in the application - Red led Off - Product unpaired / disconnected from Wifi and deleted from the application. - Page 5 ● When the mobile phone is connected to Wi-Fi, click “Add Device” or “+“ icon (right upper corner) on the Home screen of the App, select “Electrician”(figure 1)→ “Breaker(Wi-Fi)” ● Check Wi-Fi network name and enter Wifi password, click “Next” (figure 2). Figure 1 Figure 2 Figure 3...
-
Page 6: Function Description
● The pairig configuration and connection to wifi is carried out ( Figure 5). ● Device added successfully (figure 6), you can choose the device name and room scene. 4.3 AP mode Connection is an alternative that can be selected from Figure 3 Step from Right Corner. -
Page 7: Frequently Asked Questions
Q:Indicator light is Off no mather the Breaker position A:Check product Input . Check if supply voltage is normal. Check is connection diagram is correct ( Null line and phase line). 9. PRODUCT SPECIFICATIONS Nume PT802P Tuya Smart / SmartLife Input Voltage AC 230V Output Voltage... - Page 8 1. DESPRE SIGURANTA AUTOMATA WIFI PNI PT802P 1080P DISJUNCTOR Introducere produs si caracteristici principale: Produsul PNI PT802P este o siguranta automata inteligenta destinata utilizarii rezidentiale sau industriale pentru a porni sau opri de la distanta un circuit, intarzia sau programa o anumita alimentare de curent.
- Page 9 3.2 Inregistrare Daca aveti deja un cont in aplicatia Tuya, puteti sari peste crearea unui cont nou si faceti clic pe „Log in with existing account” pentru a accesa pagina de autentificare. (1) Sistemul selecteaza automat Tara / Regiunea curenta sau puteti selecta manual Tara / Regiunea. (2) Introduceti adresa dvs.
- Page 10 4. ADAUGARE / IMPERECHERE DISPOZITIV 4.1 Descriere produs LED detaliere: - Led albastru aprins - Siguranta pe pozitia ON ( pornit) - Led albastru stins - Siguranta pe pozitia OFF (oprit) - Led rosu clipeste rapid - produs in modul de asociere/imperechere - Led rosu aprins - Produs imperecheat/asociat, conectat la wifi si conectat in aplicatie - Led rosu oprit - Produs deconectat de la Wifi si sters din aplicatie.
- Page 11 ● Cand telefonul mobil este conectat la Wi-Fi, faceti clic pe pictograma „Adaugare dispozitiv” sau „+“ (coltul din dreapta sus) pe ecranul de pornire al aplicatiei, selectati „Electrician” (figura 1) → „Breaker (Wi-Fi) ” ● Verificati numele retelei Wi-Fi afisate si introduceti parola Wifi, faceti clic pe „Next” (figura 2). Figure 1 Figure 2 Figure 3...
- Page 12 ● Configurarea pairig si conexiunea la wifi se efectueaza (Figura 5). ● Dispozitivul a fost adaugat cu succes (figura 6), puteti alege numele dispozitivului si scena camerei. 4.3 Conexiunea in modul AP este o alternativa care poate fi selectata din figura 3 apasand pictograma din coltul drept.
- Page 13 A: Verificati alimentarea produsului. Verificati daca tensiunea de alimentare este normala. Verificati daca diagrama de conexiune este corecta (pozitia firului de nul si a firului faza). 9. SPECIFICATII Nume PT802P Tuya Smart / SmartLife Tensiune Alimentare 230V AC Tensiune Iesire...
- Page 14 Déclaration de conformité simplifiée de l’UE SC ONLINESHOP SRL déclare que Sécurité automatique PNI PT802P est conforme à la directive EMC 2014/30/ EU, directive ROHS 2011/65/EU et RED 2014/53/UE. Le texte complet de la déclaration de conformité UE est disponible à...
