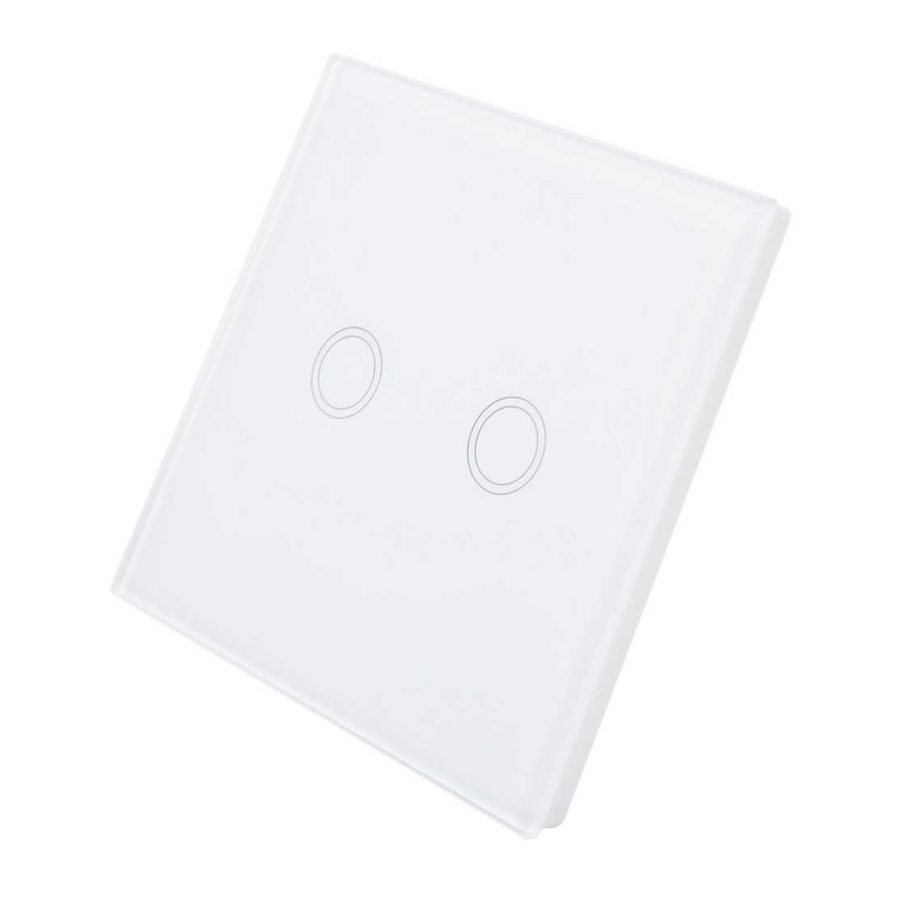

PNI SH101, SH202, SH303 - Touch Switch Manual

Installation Wiring Diagram

1. Remove the panel with a screwdriver
   ( It is mandatory that you turn off electricity when installing )
   ( Installation must be made only by authorized personnel )


   Make shure electricity is cut off during the installation.
2. Prepare to connect wires

   1. Live wire connects " L " terminal on back panel
   2. Lamp wire connects " L1, L2, L3 " terminal on back panel
      1 way(gang) connects "L2" terminal
      2 way(gang) connects "L1, L2" terminal
      3 way(gang) connects "L1, L2, L3" terminal
3. Fix the switch onto wall

   1. Put the switch into switch box in the wall
   2. Mount the two side screws
   3. Install the glass panel ( install from above)
   4. Finish installation
   5. Turn on electricity, touch and test after 10 seconds

Note: The switch must be installed without electricity. Electricity must be turn on after the installation (cover the glass touch panel). Touch for test only after 10 seconds. If you touch panel before the switch might not work well.

Common fault diagnosis

1. When the lamp appears shiny or flickering

   When the lamp appears shiny or flickering, please connect the Yellow capacitor between the neutral wire and the live wire of the lamp. Then the switch will work well with the light as shown in the picture
2. Switch is installed, but touch does not react
   First make sure that the wiring is properly connected in accordance with the wiring diagram, ensure that the lamp has been connected (or not damaged).
   1. disconnect power supply for 1 minute
   2. install switch, and glass panel
   3. turn on power
   4. wait 10 seconds and then touch to operate

Must read before installation

Suitable places

Touch switch can be installed in: home, hotel, office, and other similar places. Not suitable for factories, hospitals CT/magnetic resonance, room or other places with strong electromagnetic interference.

Applicable lamps

LED lamp, incandescent lamp, halogen lamp, energy saving lamp, electronic rectifier drive fluorescent lamp. In order to work properly we sugest you use this types of lamps / lightbulbs.
The switch does not work with inductance ballast drived fluorescent lamp.

Warnings

Install the switch with electricity off.
Do not install in damp environment.
Do not exceed the maximum load(see specifications).
Please follow instructions for properly installation.

Note: The switch must be installed without electricity. Electricity must be turn on after the installation (cover the glass touch panel). Touch for test only after 10 seconds. If you touch panel before the switch might not work well.

Industry grade design capacitive touch screen, touch sensitive & quick response. Ultra-low power design, more energy saving, more environmental.

Ultra clear tempered glass panel, fashion design. You can touch it with wet hand safely.

Unique night indicator design, luxury, fashion. Convenient for old people & children.

Single live wire installation, compatible with traditional switch installation method. No need to change the original circuit.

Specifications

Voltage: 170V - 240V

Dimensions: 86x86x34 mm

Material: Front panel - Ultra clear tempered glass

Back case: fire retardant PC

Load power: 5-200W / way (gang) ( Note: If it is used for LED or energy saving bulb, Power load should be less than 100W/gang).

Working environment: Temperature -10 ~ 60°C; Humidity: 10% - 95%

EU Simplified Declaration of Conformity

SC ONLINESHOP SRL declares that Touch Switch PNI SH101, SH202, SH303 complies with the Directive EMC 2014/30/EU, Directive RED 2014/53/UE, Directive ROHS 2011/65/EU and LVD 2014/35/EU Directive. The full text of the EU declaration of conformity is available at the following Internet address:

https://www.mypni.eu/products/6940/download/certifications
