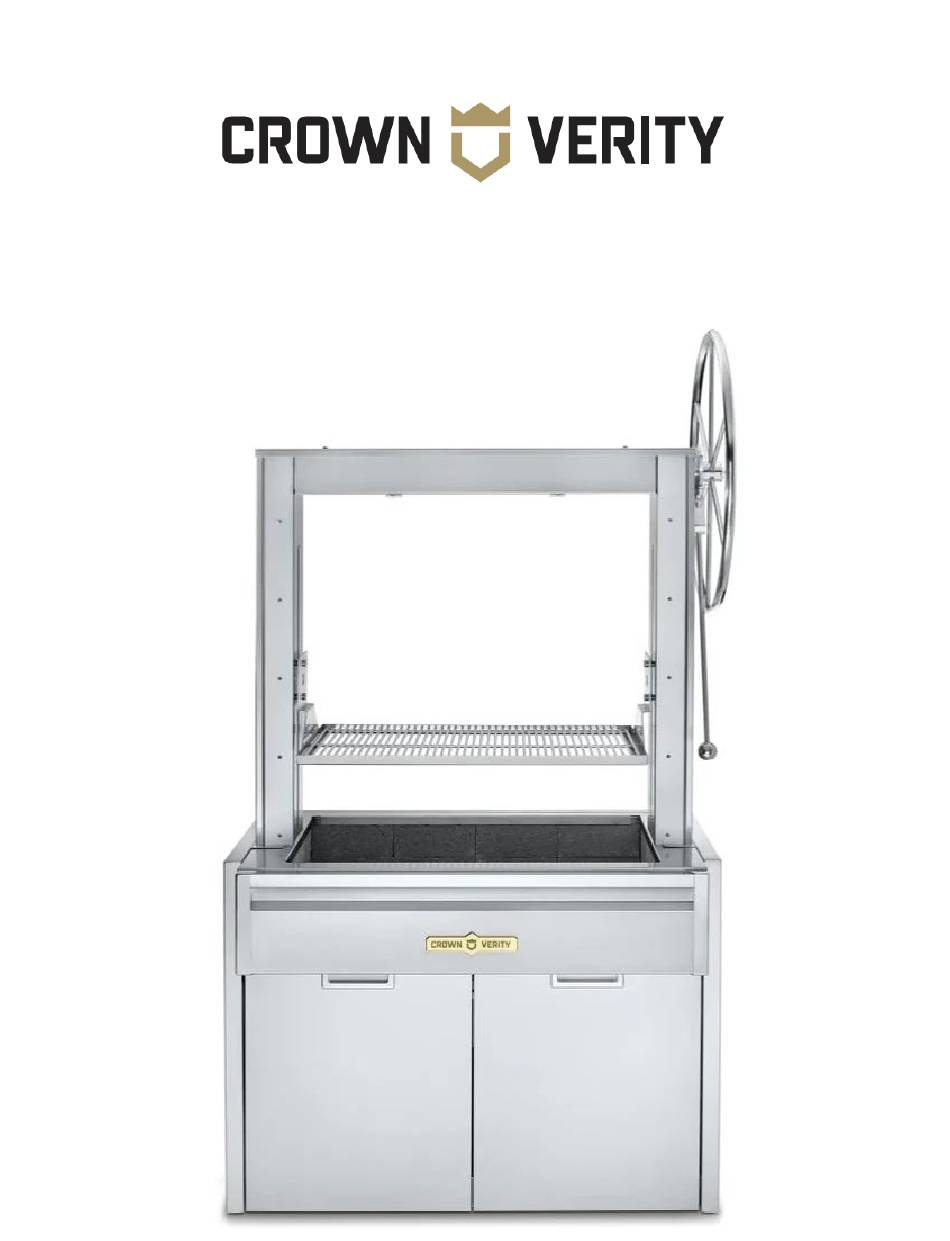

Infinite Series
OWNERS MANUAL
Argentinian Grill
2024
Page 1 of 43

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Infinite Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CROWN VERITY Infinite Series

Summary of Contents for CROWN VERITY Infinite Series

  • Page 1 Infinite Series OWNERS MANUAL Argentinian Grill 2024 Page 1 of 43...
  • Page 2 WARNING: FOR YOUR SAFETY DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. DO NOT store an LP cylinder that is not connected for use in the vicinity of this or any other appliance.
  • Page 3 Crown Verity is here to help. Should you ever have any questions about cooking with or caring for your Crown Verity product, please contact our customer...

  • Page 4: For Your Safety

    For your Safety WARNING: This appliance shall be used only in a well-ventilated space and shall not be used in a building, garage, or any other enclosed area. Ensure that the clearances to combustibles are adhered to as listed in this manual. WARNING: Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death.

  • Page 5: Inspecting Your Shipped Appliances

    Inspecting Your Shipped Appliances IF SHIPMENT ARRIVES DAMAGED This product was carefully inspected and tested before leaving the factory. Upon acceptance of the shipment, all freight damage responsibility is relinquished by the freight carrier. VISIBLE LOSS OR DAMAGE • Be sure any visible damage to the carton is noted on the freight bill or express receipt and signed by the person making the delivery.
  • Page 6 When moving a Crown Verity appliance across uneven surfaces be cautious and move slowly. It is highly recommended that a carpet dolly is used to ensure no damage is caused to the structure of the cart. Failure to do so will not be covered under the warranty.

  • Page 7: Table Of Contents

    Table of Contents For your Safety _______________________________________________________________ 4 California Proposition 65 Warning _______________________________________________ 4 Inspecting Your Shipped Appliances ______________________________________________ 5 Unpacking and Assembly _______________________________________________________ 5 Table of Contents _____________________________________________________________ 7 Safe Operation _______________________________________________________________ 9 Before You Cook- Positioning Your Argentinian Grill ________________________________ 10 CHOOSING A LOCATION ____________________________________________________________ 10 LEVEL GROUND ___________________________________________________________________ 11 Specifications and Installations _________________________________________________ 11...
  • Page 8 COOKING OVER A WOOD FIRE _______________________________________________________ 30 COOKING OVER CHARCOAL _________________________________________________________ 30 Caring for Your Grill __________________________________________________________ 30 Contacting Crown Verity Customer Care __________________________________________ 31 Installation Checklist _________________________________________________________ 32 RESIDENTIAL LIMITED WARRANTY TERMS & CONDITIONS ________________________________ 33 COMMERCIAL LIMITED WARRANTY TERMS & CONDITIONS _______________________________ 35...

  • Page 9: Safe Operation

    Safe Operation This manual covers Crown Verity Argentinian Grill models listed below. Some features and options will vary based upon which model you purchased. Read this manual thoroughly to ensure proper operations of the specific appliance model(s) purchased. CROWN VERITY MODELS COVERED BY THIS MANUAL...

  • Page 10: Before You Cook- Positioning Your Argentinian Grill

    • Never lean on any part of the grill. • The cabinet below the grill is not for storage. It is for service access and cleaning. Do not store combustible materials in the cabinet below the grill or items made with materials that might melt or otherwise be damaged by heat.

  • Page 11: Level Ground

    • DO NOT place the grill on any surface that would allow it to change position easily or inadvertently. • When in use, if applicable, always have the casters in the locked position. NEVER locate the grill in a building, breezeway, shed or other such enclosed areas. •...

  • Page 12: Built-In Installations

    BUILT-IN INSTALLATIONS The Crown Verity Built-In Grills are designed for easy installation into masonry enclosures. NOTE: Crown Verity Built-In Grills are intended either for installation in a built-in enclosure constructed of non-combustible materials or for an installation in a built-in enclosure constructed of combustible material when installed with an insulated jacket.
  • Page 13 FIGURE 1. CLEARANCES TO COMBUSTIBLES IBIAG36 Shown All appliances covered by this manual are subject to the clearances shown in Figure 1. Page 13 of 43...
  • Page 14 FIGURE 2. EXHAUST HOOD REQUIREMENTS IBI36AG Package Shown All appliances covered by this manual are subject to the clearances shown in Figure 2. Page 14 of 43...
  • Page 15 FIGURE 3. REFERENCE DRAWING FOR CUT-OUT DIMENSIONS Page 15 of 43...

  • Page 16: Built-In Cut-Out Dimensions

    The measurements and dimensions detailed below are designed to assist with planning your outdoor kitchen. Due to continuing product innovation, specifications are subject to change without notice. Please reference the Manual for details on the proper installation of your Crown Verity Argentinian Grill. BUILT-IN ARGENTINIAN GRILLS IBIAG36 13.000...

  • Page 17: While You Are Cooking

    Never grill without the ash tray in place. Always ensure that the tray is pushed all the way to the back. WHILE YOU ARE COOKING IMPORTANT: Practice with your grill to understand the temperature variables and nuances of your unit before hosting your guests. The appliance surfaces get very hot as will the food you are cooking.

  • Page 18: Grill Dimensions - Iag36 Modular Grill

    GRILL DIMENSIONS – IAG36 MODULAR GRILL Page 18 of 43...

  • Page 19: Grill Dimensions - Ibiag36 Built-In Grill

    GRILL DIMENSIONS – IBIAG36 BUILT-IN GRILL Page 19 of 43...

  • Page 20: Grill Dimensions - Ibiag36-Ij Built-In Grill With Insulated Jacket

    GRILL DIMENSIONS – IBIAG36-IJ BUILT-IN GRILL WITH INSULATED JACKET Page 20 of 43...

  • Page 21: Installing The Wheel

    INSTALLING THE WHEEL STEP 1: Install the spur gear by sliding it onto the exposed end of the shaft until it stops. Make sure the gear is positioned as shown. STEP 2: Rotate the brake until it engages on the spur washer.
  • Page 22 STEP 3: Slide the wheel onto the shaft until it stops against the spur gear. Rotate the wheel until the wheel keyway aligns with the keyway on the shaft. STEP 4: With the keyways aligned, slide the key into the keyways until it stops. Page 22 of 43...
  • Page 23 STEP 5: Install the wheel plug to secure the wheel in place with the screw provided. Completed wheel assembly. Page 23 of 43...

  • Page 24: Installing The Fire Bricks

    INSTALLING THE FIRE BRICKS STEP 1: Remove the grill face by removing the two screws holding it in place on the underside of the face. Once the screws are removed, gently lift the face up and off. Place the face so that it faces up to avoid scratches or other damage.
  • Page 25 STEP 3: Install the front and rear bricks in the firebox by first installing the upper brick by sliding it up into the channel. Slide the lower brick under the upper brick to hold it in place. There are 8 bricks in the rear and front of the firebox.

  • Page 26: Raising And Lowering The Grill Surface

    RAISING AND LOWERING THE GRILL SURFACE WARNING: Use caution when touching the wheel. The wheel can become hot under certain cooking and wind conditions. Insulated gloves are recommended. To raise the grilling surface, pull the wheel forward in a in a counterclockwise rotation to the desired height.

  • Page 27: Basic Grilling

    Basic Grilling WARNING: DO NOT LEAVE THE GRILL UNATTENDED Argentinian Grills get very hot. Use caution when working with the grill and do not leave the grill unattended. Use insulated gloves with a long cuff to protect your hands and forearms from heat. RECOMMENDED EQUIPMENT •...
  • Page 28 The second layer would be placed perpendicular to the first layer again allowing space for air circulation and. The third layer would be laid in the same orientation as the first. The three layer approach allows the fire to start quickly and will create an even layer of coals as the wood collapses while it burns.
  • Page 29 Cherry wood is a very popular choice for smoking meat because it imparts a mild flavor that compliments the meat. However, it has a low heat output, so it should not be used for cooking over direct heat. Apple: Apple is a great choice for smoking and grilling because it adds a sweet, fruity flavor to foods.

  • Page 30: Cooking Over A Wood Fire

    Caring for Your Grill STAINLESS STEEL CARE: The Crown Verity Grills is built from 304 stainless steel, which is a high-quality, non- magnetic stainless steel that is very corrosion resistant. It is also a highly sanitary surface. The stainless steel components of your grill are warranted for life against structural deterioration or failure (See INDEX: “Commercial and Residential Warranty”...

  • Page 31: Cleaning The Ash Tray

    Dispose of the ash in an appropriate container and reposition the ash tray ensuring that it is pushed all the way back. Contacting Crown Verity Customer Care Before calling Crown Verity Customer Care, please make sure you have the following information: •...

  • Page 32: Installation Checklist

    Installation Checklist Installer should initial next to each item:  Specified clearances maintained.  Initial assembly completed — all tape and internal packaging removed.  Wheel installed.  Ash Tray is in place.  Cooking grates installed.  Raising and lowering of the grill rack is working properly. ...

  • Page 33: Residential Limited Warranty Terms & Conditions

    Commercial & Residential Warranty RESIDENTIAL LIMITED WARRANTY TERMS & CONDITIONS This warranty is limited to products manufactured by Crown Verity Inc., to the original purchaser, commencing on the date of purchase and is valid only with proof of purchase. This warranty page and its coverage only applies to Infinite SeriesTM, Estate SeriesTM and PRO SeriesTM grills.

  • Page 34: Warranty Limitations

    Limited One-Year Warranty: For a period of one (1) year from the original date of purchase, Crown Verity will replace, or repair parts found to be defective at no cost to the original purchaser. This includes the cost of shipping replacement parts and, where necessary, service labor at prevailing local rates by a Crown Verity authorized service person.

  • Page 35: Warranty Exclusions

    Units used in a commercial application. Refer to our Commercial Warranty. COMMERCIAL LIMITED WARRANTY TERMS & CONDITIONS This warranty is limited to products manufactured by Crown Verity Inc., to the original purchaser, commencing on the date of purchase and is valid only with proof of purchase. The warranty covers defects in material and workmanship under normal use, providing that: The equipment is properly installed per Crown Verity’s Operator’s Manual and by a...
  • Page 36 Limited One-Year Warranty: For a period of one (1) year from the original date of purchase, Crown Verity will replace, or repair parts found to be defective at no cost to the original purchaser. This includes the cost of shipping replacement parts and, where necessary, service labor at prevailing local rates by a Crown Verity authorized service person.
  • Page 37 WARRANTY EXCLUSIONS The Crown Verity warranty does not apply to labor or repairs required for: • Batteries, fuses, and other wearable items • Door adjustments and or lid adjustments • Tightening of screws or fasteners • Damage in shipment •...

  • Page 38: Exploded Parts View

    Exploded Parts View – IAG36 Page 38 of 43...
  • Page 39 Page 39 of 43...
  • Page 40 Grill Parts List – IAG36 Item Part Number Description IAG36-1 36" Fire Box Assembly ZCV-IAG-1 Vertical Column Collar ZCV-IAG-4 Vertical Column Weld Assembly ZCV-IAG-2 Vertical Column Cover ZCV-2018 Lock Washer, Internal Tooth, 1/4" ZCV-2501 Machine Screw 1/4-20 x 1/2" SS ZCV-2026 Hex Cap Screw, 1/4-20x5/8"...
  • Page 41 ZCV-IAG-12-5 Washer Plate 3" Diameter with 5/16 Mounting Hole ZCV-2013 LOCK WASHER,5/16", INT. TOOTH (MCB LEGS) ZCV-2506 REVERSE LOCK NUT S/S REV LOK 5/16-18 ZCV-2009 FLAT WASHER, SML. OD, 3/8 ID x .75" OD -- RD'S ZCV-1078 Screw, 3/8" Shoulder Diameter, 1-1/4" Shoulder Length, 5/16"-18 Thread ZCV-1079 Shoulder Screw, 1/4"...
  • Page 42 ZCV-4000 SS304 - Adjustable Leg 100-160mm ZSC-2078 Hex Cap Screw, 5/16-18 X 1/2", Zinc (PHS) Exploded Parts View – IBIAG36 (Shell only) Page 42 of 43...

  • Page 43: Grill Parts List

    Grill Parts List – IBIAG36 (Shell Only) Item Part Number Description IAG36-7-3-1000 IAG36 Built-In Shell Insulating Jacket Weld Assembly ZCV-2026 Hex Cap Screw, 1/4-20x5/8" (Handles) ZCV-2018 Lock Washer, Internal Tooth, 1/4" ZSC-9216 Washer 1/4 - 20 For PHS-5 IAG36-7-1-1000 IAG36 Built-In Ash Drawer ZCV-EMC-DH2 Cast Handle Assembly Small IAG36-7-2...
