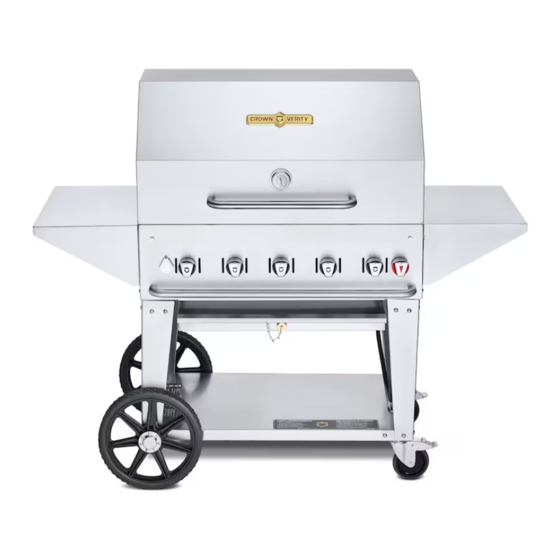

CROWN VERITY MCB Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

OWNERS MANUAL
For Crown Verity Models:
MCB, RCB, PCB, CCB, MCC and MG
2022
Page 1 of 64
MH64834

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CROWN VERITY MCB

Summary of Contents for CROWN VERITY MCB

  • Page 1 OWNERS MANUAL For Crown Verity Models: MCB, RCB, PCB, CCB, MCC and MG 2022 Page 1 of 64 MH64834...
  • Page 2 DANGER: IF YOU SMELL GAS Shut off gas to the appliance. Extinguish any open flame. Open lid and doors and remove any storage cover(s). If the odor continues, keep away from the appliance and immediately call your gas supplier or fire department. Failure to follow these instructions could result in fire or explosion which could cause property damage, personal injury or death.
  • Page 3 Crown Verity is here to help. Should you ever have any questions about cooking with or caring for your Crown Verity product, please contact our customer...

  • Page 4: Understanding Compliance Ratings

    Crown Verity recognizes the commercial and residential distinctions but does not want to compromise commercial performance for residential compliance. As a result, the Infinite series has been designed to meet both the residential and commercial standards for outdoor cooking appliances.

  • Page 5: For Your Safety

    For your Safety WARNING: This appliance shall be used only in a well-ventilated space and shall not be used in a building, garage, or any other enclosed area. Ensure that the clearances to combustibles are adhered to as listed in this manual. WARNING: Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death.

  • Page 6: Inspecting Your Shipped Appliances

    Inspecting Your Shipped Appliances IF SHIPMENT ARRIVES DAMAGED This product was carefully inspected and tested before leaving the factory. Upon acceptance of the shipment, all freight damage responsibility is relinquished by the freight carrier. VISIBLE LOSS OR DAMAGE • Be sure any visible damage to the carton is noted on the freight bill or express receipt and signed by the person making the delivery.
  • Page 7 INTERIOR PACKING Crown Verity takes all necessary measures in securing and protecting the appliance to ensure it arrives in the same condition that it left our factory. BE SURE YOU HAVE REMOVED ALL TIE DOWNS BEFORE USING THE APPLIANCE. BE SURE YOU HAVE REMOVED ALL OF THE PROTECTIVE PAPER ON THE STAINLESS STEEL SURFACES BEFORE USING THE APPLIANCE.

  • Page 8: Table Of Contents

    LIQUID PROPANE GAS REQUIREMENTS (20 and 30 POUND CYLINDERS) ______________ 19 NATURAL GAS REQUIREMENTS _______________________________________________ 23 BULK SUPPLY LIQUID PROPANE GAS REQUIREMENTS _____________________________ 25 SB-MCB Side Burner Option (Commercial Grills Only) _______________________________ 27 INSTALLATION OF A SB-MCB SIDE BURNER _____________________________________ 27 Gas Conversion Kits __________________________________________________________ 32...
  • Page 9 TYPES OF COOKING ________________________________________________________ 41 Burner Adjustments __________________________________________________________ 42 Caring for Your Grill __________________________________________________________ 47 Troubleshooting _____________________________________________________________ 49 Contacting Crown Verity Customer Care__________________________________________ 51 Installation Checklist _________________________________________________________ 52 RESIDENTIAL LIMITED WARRANTY TERMS & CONDITIONS ________________________________ 53 COMMERCIAL LIMITED WARRANTY TERMS & CONDITIONS _______________________________ 55 Appendix “A”...

  • Page 10: Safe Operation

    Safe Operation This manual covers the Crown Verity Mobile Grill models listed below. Some features and options will vary based upon which model that you purchased. Read this manual thoroughly to ensure proper operations of the specific appliance model(s) purchased.
  • Page 11 • Do not obstruct any of the openings on the grill/side burner or otherwise obstruct the flow of combustion and ventilation air. Do not build the grill/side burner into any combustible structure that is closer than 18 inches (45.7 cm) from the sides and 24 inches (60.9 cm) from the back and top.

  • Page 12: Before You Cook- Positioning Your Grill/Side Burner

    • Be sure all control knobs are in the OFF position and the unit is cool before using any aerosol cleaner on it or near it. The chemical used for aerosol propellant could ignite in the presence of heat. Never use aerosol cleaner on the cooking surfaces. •...

  • Page 13: Specifications And Installations

    National Standard CAN/CGA B149.1&.2 - natural gas/ propane installation code. U.S.A.: must conform to national Fuel Gas Code, ANSI Z223.1/NFPA 54 edition. • Use only hoses, regulators and quick disconnects supplied by Crown Verity. • Maintain minimal clearances to combustible materials (See “Figure 1”).

  • Page 14: Rear Hood Clearance

    REAR HOOD CLEARANCE A 3.5 inch (8.9 cm) clearance is required behind the rear flange of the grill to allow the hood to open unobstructed. The grill exhausts combustion products and cooking greases to the back. Do not locate the grill where this exhaust will be difficult to clean. FIGURE 1.

  • Page 15: Overhead Protection And Exhaust Removal

    OVERHEAD PROTECTION AND EXHAUST REMOVAL If installed under any combustible construction the cooking area over the grill/side burner MUST be covered with an exhaust hood. The hood must provide 6 inches (15.2 cm) of overhang on all exposed sides. The exhaust hood shall provide no less than 1,200 CFM for proper exhaust ventilation.

  • Page 16: Gas Connections

    NEVER CONNECT A GAS LINE DIRECTLY TO THE GRILL/SIDE BURNER. A PRESSURE REGULATOR MUST BE INSTALLED ON ALL GAS EQUIPMENT. ALL LOCAL CODES REQUIRE IT AND CROWN VERITY SUPPLIES THE CORRECT REGULATOR WITH YOUR GRILL. REMOVING OR FAILING TO INSTALL THE PRESSURE REGULATOR CAN RESULT IN FIRE AND SERIOUS PERSONAL INJURY AND WILL VOID THE WARRANTY.
  • Page 17 The pressure regulator and hose assembly supplied with the grill must be used. Replacement pressure regulators and hose assemblies must be the type specified by Crown Verity and installed by a licensed gas technician. For replacement parts, contact Crown Verity Customer Service at 1-888-505-7240.

  • Page 18: Note To Gas Technician

    160,000 (149,600) (R) Values in parenthesis () are for Residential Grills only. BTU Side Burners: Table 2 BTU’s BTU’s Total BTU’s LP Burner NG Burner NG/LP Orifice - 57 Orifice - 49 SB-MCB 15,000 15,000 15,000 Page 18 of 64...

  • Page 19: Liquid Propane Gas Requirements (20 And 30 Pound Cylinders)

    For safety and for proper use & care, you must leave this manual with the owner. Make sure you advise them to keep it for future reference. For technical assistance call the Crown Verity customer service desk at: 1-888-505-7240 or service@crownverity.com...
  • Page 20 Connection: The Type I (Q.C.C.1) cylinder valve is recognizable by the large external thread on the outlet part of the valve. Standard valves do not have these exterior threads. Any attempt to fit the regulator(s) with anything other than the mating Type I (Q.C.C.1) connector, (recognized by the large plastic features designed into the Type I (Q.C.C.1) system.
  • Page 21 To connect the LP regulator hose assembly to the LP tank, first make sure the main valve on the tank is completely closed. Make sure also that the control valves on the grill are OFF. Thread the regulator inlet over the tank valve. Use care to ensure proper alignment of the threaded coupler and avoid cross-threading or damaging the coupler.
  • Page 22 TROUBLESHOOTING: If the large thermally sensitive coupling nut is exposed to temperatures above 115°- 150°C (240° & 300°F) it will soften and allow the regulator probe to Disengage from the cylinder valve, thereby shutting off the flow of gas. Should this occur, do not attempt to reconnect the nut. Remove the entire regulator assembly and replace it with a new one.

  • Page 23: Natural Gas Requirements

    NATURAL GAS REQUIREMENTS Verify the type of gas your grill/side burner has been configured for by the factory by checking the rating plate on the appliance (See Appendix “A” for further details). Grills and side burners configured for natural gas (NG) are orificed differently than units configured for liquid propane (LP) gas.
  • Page 24 For Residential appliances, the regulator will need to be adjusted to 3.0” water column. FIGURE 6. NATURAL GAS CONNECTION FOR MCB-SB • In no case should an inlet pipe less than 3/4” inside diameter or 1” outside diameter ever be used to connect this product.

  • Page 25: Bulk Supply Liquid Propane Gas Requirements

    (NG). For appliances configured for use with bulk LP tanks, a regulator is not supplied. To purchase these options, please contact Crown Verity at 1-888-505-7240. For Mobile Grills, the gas connection is positioned on the outside of the grill body on the right hand back rear corner.
  • Page 26 The regulation of gas from the bulk tank must be adjusted to 10.0 inches W.C. for Commercial Grills (9.0 inches W.C. for Residential Grills). Refer to the appliances rating plates in appendix “A” (See “Figure 7” for further details). FIGURE 7. BULK PROPANE CONNECTION FOR MOBILE GRILLS Page 26 of 64...

  • Page 27: Sb-Mcb Side Burner Option (Commercial Grills Only)

    SB-MCB Side Burner Option (Commercial Grills Only) The SB-MCB side burner option is available on Commercial Grills only and can come factory installed at the time of purchase or can be added to an existing grill at a later date. The side burner has a single 15,000 BTU burner and is available in both LP and NG gas configurations.
  • Page 28 FIGURE 8. HANDLE REMOVAL FOR SB-MCB INSTALLATION With the face re-installed, attach the side burner cabinet assembly to the grill by first hanging it on the upper shoulder bolts and then fasten in place with the two lower screws and washers provided (See “Figure 9” and “Figure 10” for further details).
  • Page 29 FIGURE 9. INSTALLATION OF SB-MCB CABINET FIGURE 10. INSTALLATION OF SB-MCB CABINET Page 29 of 64...
  • Page 30 FIGURE 11. INSTALLATION OF “TEE” FOR SB-MCB FIGURE 12. RE-INSTALLATION OF REGULATOR FOR SB-MCB Page 30 of 64...
  • Page 31 Finally, before operating the side burner, perform a leak check by brushing on a soap and water solution at every joint and watch for growing bubbles that indicate a leak. Once you are confident there are no leaks, you may operate your new Crown Verity side burner...

  • Page 32: Gas Conversion Kits

    Gas Conversion Kits Gas conversion kits are available from Crown Verity to allow the grill to operate on either Natural gas or LPG. These kits should be installed by a qualified gas technician. The kits come with complete installation instructions. These instructions should be read completely and fully understood before installing the conversion kit.

  • Page 33: Warning! Natural Hazard - Spiders

    Regulator fitting(s) and cylinder connections. All hose connections. Soap bubbles will appear at any connections with a leak. Turn OFF the gas supply and tighten any leaky connections. Recheck, applying more mild soap solution. IMPORTANT: Do not use the appliance if any leaks cannot be stopped. Turn off the gass supply valve, remove any gas cylinder and call a licensed gas appliance service technician for proper repairs.

  • Page 34: General Operating Procedures

    General Operating Procedures The grill/side burner reach operating temperatures in approximately 5-8 minutes but may vary depending on environmental conditions. For compliance requirements, the temperature gauge for the grill is specific to the air temperature. There is not a direct correlation between the grill air temperature and the grate temperature, so the actual values will differ.

  • Page 35: Pre-Grill Checklist

    The hose must be replaced prior to using the unit. Replace the hose assembly with the exact type specified by Crown Verity. If you do not smell gas, shut everything off and have a qualified technician service the appliance.

  • Page 36: Lighting Your Grill Or Side Burner

    Clean and inspect the gas hose. If there is evidence of abrasion, wear, cuts or leaks, do not use the grill. The hose must be replaced prior to using the unit. Replace the hose assembly with the exact type specified by Crown Verity. Lighting Your Grill or Side Burner...
  • Page 37 FIGURE 14. VALVE POSITIONS FOR GRILLS WITH ELECTRONIC IGNITION FIGURE 15. VALVE POSITION FOR MCB-SB WITH ELECTRONIC IGNITION Page 37 of 64...

  • Page 38: Standard Lighting Procedure - Side Burner

    STANDARD LIGHTING PROCEDURE – SIDE BURNER • Remove the lid on the side burner so gas will not build up within the unit before lighting. Make sure to place the lid where it will not get scratched or damaged. • Make sure the burner valve is in the OFF position (See “Figure 15”).
  • Page 39 FIGURE 16. MANUAL LIGHTING - GRILL FIGURE 17. BURNER Page 39 of 64...

  • Page 40: Grilling In Windy Conditions

    For outdoor grills to sear and grill steaks, they have high performance burners that require constant, steady supply of fresh air to mix with the fuel. Your Crown Verity grill pulls air in through the front of the grill. Using your grill in windy conditions can disrupt the front to back air flow (See “Figure 18”).

  • Page 41: Basic Grilling

    Please note, the surface temperature can be up to 200 degrees higher. TYPES OF COOKING Your Crown Verity grill has the capabilities of creating a range of heat intensities. By varying the heat output, the number of burners used and the position of the hood, you can create either direct or indirect heat or a combination of both.

  • Page 42: Burner Adjustments

    This is a dangerous condition. The grill should NOT be used until the problem is rectified. If you are not comfortable addressing the issue yourself, please hire a licensed technician or contact Crown Verity Service at 1-888-505-7240. TO CLEAN THE AIR SHUTTER: Turn off the gas supply shutoff valve or close the main valve on the LP cylinder.
  • Page 43 FIGURE 19. FACE REMOVAL The shutter is located at the end of the burner tubes closest to the gas orifice (See “Figure 21” for further details). Use a flashlight to view the screened openings of the air shutter from and remove any obvious obstructions from the screen protecting the air shutter.
  • Page 44 With the roll dome open, remove the pins located at the far end of the burner assemblies. Slide the burner gently to either the right or left to disengage them from the retaining bracket. Once clear, lift the burner up and pull it back and away from the back side of the gas valve (See “Figure 20”...
  • Page 45 IMPORTANT: Always ensure that the brass orifices are inserted into the holes in the ends of the air shutters and centered (See “Figure 18” for further details). FIGURE 21. ORIFICE ACCESS AND ALIGNMENT Turn on the gas supply valve or open the main valve on the LP cylinder. Following the lighting instructions (See INDEX:”...
  • Page 46 If the flames are mostly yellow or are noisy and lift off the burner ports, rotate the air shutter to progressively reduce the amount of air entering the venturi. Continue to close the air shutter until the flame no longer lifts from the burner. For a sooty flame, progressively open the air shutter until the flame burns cleanly.

  • Page 47: Caring For Your Grill

    Caring for Your Grill STAINLESS STEEL CARE: The Crown Verity Grills is built from 304 stainless steel, which is a high-quality, non- magnetic stainless steel that is very corrosion resistant. It is also a highly sanitary surface. The stainless steel components of your grill are warranted for life against structural deterioration or failure (See INDEX: “Commercial and Residential Warranty”...
  • Page 48 Clogged orifices create a dangerous condition that must be resolved before the grill may be used. If you are not entirely comfortable with the procedure, please use a licensed technician or contact Crown Verity customer service at 1-888-505-7240 The orifices can be accessed once the burners are removed. Remove the brass orifice using a 1/2 inch ratcheting socket wrench (See “Figure 21”...

  • Page 49: Troubleshooting

    Troubleshooting The troubleshooting tips here are for general information only. The information may save you the trouble of a service call. If your grill requires service, contact Crown Verity customer service at 1-888-505-7240. GRILL WON’T LIGHT: The grill/side burners are equipped with an electronic ignition system.
  • Page 50 SMELL OF GAS WHILE COOKING IF YOU SMELL GAS WHILE THE GRILL IS OPERATING, IMMEDIATELY TURN OFF ALL BURNERS AND SHUT OFF THE MAIN FUEL SUPPLY. • Perform a leak test (See INDEX: “Leal Test Procedure” for further details). • Check for blockages (See INDEX: “Caring for Your Grill”...

  • Page 51: Contacting Crown Verity Customer Care

    Contacting Crown Verity Customer Care Before calling Crown Verity Customer Care, please make sure you have the following information: • Model Number • Date of purchase • Proof of purchase by original owner • Serial number For warranty service, contact Crown Verity Service Department for an authorized service agent near you at: (888) 505-7240 or service@.crownverity.com...

  • Page 52: Installation Checklist

    Installation Checklist Installer should initial next to each item:  Specified clearances maintained.  Initial assembly completed — all tape and internal packaging removed.  Grease/water tray installed.  Burner knobs installed.  Cooking grates installed.  Igniter starts pilot tubes when button is depressed. ...

  • Page 53: Residential Limited Warranty Terms & Conditions

    Commercial & Residential Warranty RESIDENTIAL LIMITED WARRANTY TERMS & CONDITIONS This warranty is limited to products manufactured by Crown Verity Inc., to the original purchaser, commencing on the date of purchase and is valid only with a proof of purchase. This warranty page and its coverage only applies to Infinite SeriesTM, Estate SeriesTM and PRO SeriesTM grills.
  • Page 54 Limited One-Year Warranty: For a period of one (1) year from the original date of purchase, Crown Verity will replace, or repair parts found to be defective at no cost to the original purchaser. This includes the cost of shipping replacement parts and, where necessary, service labor at prevailing local rates by a Crown Verity authorized service person.

  • Page 55: Commercial Limited Warranty Terms & Conditions

    Units used in a commercial application. Refer to our Commercial Warranty. COMMERCIAL LIMITED WARRANTY TERMS & CONDITIONS This warranty is limited to products manufactured by Crown Verity Inc., to the original purchaser, commencing on the date of purchase and is valid only with a proof of purchase. The warranty covers defects in material and workmanship under normal use, providing that: The equipment is properly installed per Crown Verity’s Operator’s Manual and by a...
  • Page 56 Limited One-Year Warranty: For a period of one (1) year from the original date of purchase, Crown Verity will replace, or repair parts found to be defective at no cost to the original purchaser. This includes the cost of shipping replacement parts and, where necessary, service labor at prevailing local rates by a Crown Verity authorized service person.
  • Page 57 WARRANTY EXCLUSIONS The Crown Verity warranty does not apply to labor or repairs required for: • Batteries, fuses, and other wearable items • Door adjustments and or lid adjustments • Tightening of screws or fasteners • Damage in shipment •...
  • Page 58 Appendix “A” GRILL RATING PLATE Page 58 of 64...
  • Page 59 160,000 (149,600) (R) Values in parenthesis () are for Residential Grills only. BTU Side Burners: Table 2 BTU’s BTU’s Total BTU’s LP Burner NG Burner NG/LP Orifice - 57 Orifice - 49 SB-MCB 15,000 15,000 15,000 Page 59 of 64...

  • Page 60: Exploded Parts View

    Exploded Parts View Page 60 of 64...

  • Page 61: Grill Parts List

    MCB 72 (LP) Not Shown COMBUSTION MANIFOLD 48" MCB INF ZCV-CM-48MCB-NG-C MCB 48 (NG COMPLETE Not Shown MANIFOLD - NATURAL GAS MCB 60 ZCV-MCB60-6003 MCB 60 (NG) Not Shown MANIFOLD - NATURAL GAS MCB 48 ZCV-MCB72-6003 MCB 72 (NG) Not Shown...
  • Page 62 LEG, L/H, AXLE END, -- MCB ZCV-2217 LEG, R/H, AXLE END, -- MCB ZCV-2218 WHEEL, 14", STANDARD, MCB’S ZCV-2141 CASTER, 5", W BRAKE, -- ALL MCB & PF'S (with ZCV-2216-P mounting plate) AXLE, MCB, -- 30" 36" 48" ZCV-2215 Not Shown...
  • Page 63 Not Shown HEX CAP SCREW, 1/2-13 x 3/4", SS (MCB ZCV-2031 CASTER) TANK BRACKET, UPPER W/O HDWE -- MCB-LP ZCV-2103 ALL (LP) TANK BRACKET, LOWER W/O HDWE -- MCB-LP ZCV-2104 ALL (LP) HOSE HANGER, SS, -- MCB'S-LP ZCV-2151 ALL (LP)
  • Page 64 Not Shown ROLL DOME OUTER, MCB-60- (single dome 60"), ZCV-8010-1 MCB 60 NOT ASSEMBLED Not Shown ROLL DOME INNER, MCB-60- (single dome 60"), ZCV-8010-2 MCB 60 NOT ASSEMBLED BUN RACK BRACKET RH ZCV-3010-3 BUN RACK BRACKET LH ZCV-3010-4 THERMOMETER, 800 DEG., BI-METAL -- RD'S...
