| 'C-1336

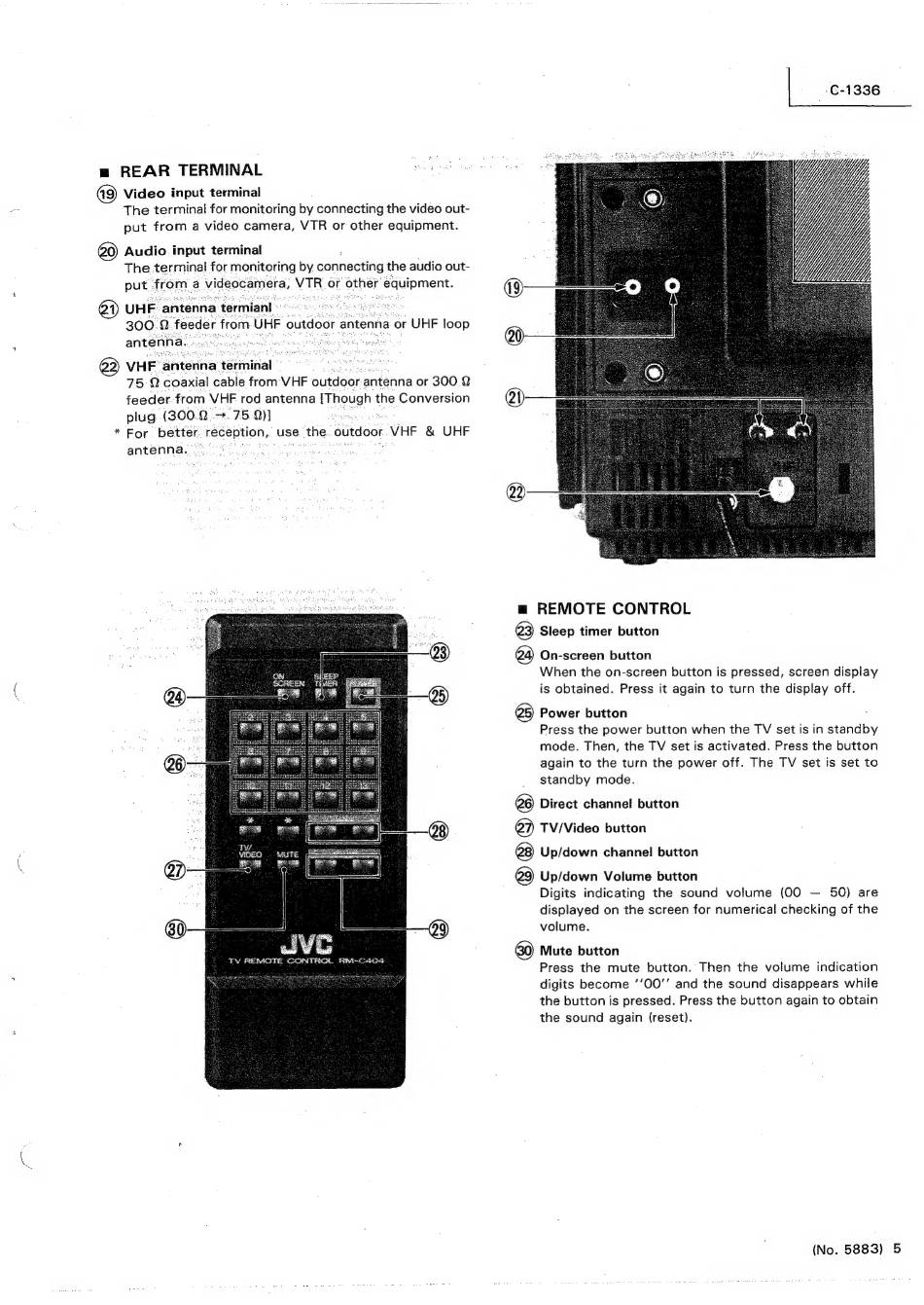

mw REAR TERMINAL
Video input terminal
The terminal for monitoring by connecting the video out-
put from a video camera, VTR or other equipment.
@0) Audio input terminal
The terminal for monitoring by éonnectiad the audio out-
put from a videocamera, VIR or other equipment.
@2) VHF: antenna téiminal
750 coaxial cable from:VHF outdoor antenna or 300 2
feeder. from VHF rod antenna [Though t the Conversion
plug (300.0 >. 75.9)]
* For better pec eetlon, use the outdoor VHF & UHF
antenna...
m# REMOTE CONTROL
@3 Sleep timer button
4) On-screen button
When the on-screen button is pressed, screen display
is obtained. Press it again to turn the display off.
@5) Power button
Press the power button when the TV set is in Sdnaey
mode. Then, the TV set is activated. Press the button
again to the turn the power off. The TV set is set to
standby mode.
6) Direct channel button
@7) TV/Video button
Up/down channel button
@9) Up/down Volume button
Digits indicating the sound volume (OO — 50) are
displayed on the screen for numerical checking of the
volume.
G0) Mute button
Press the mute button. Then the volume indication
digits become ''00'' and the sound disappears while
the button is pressed. Press the button again to obtain
the sound again (reset).
RM-C404
(No. 5883) 5
