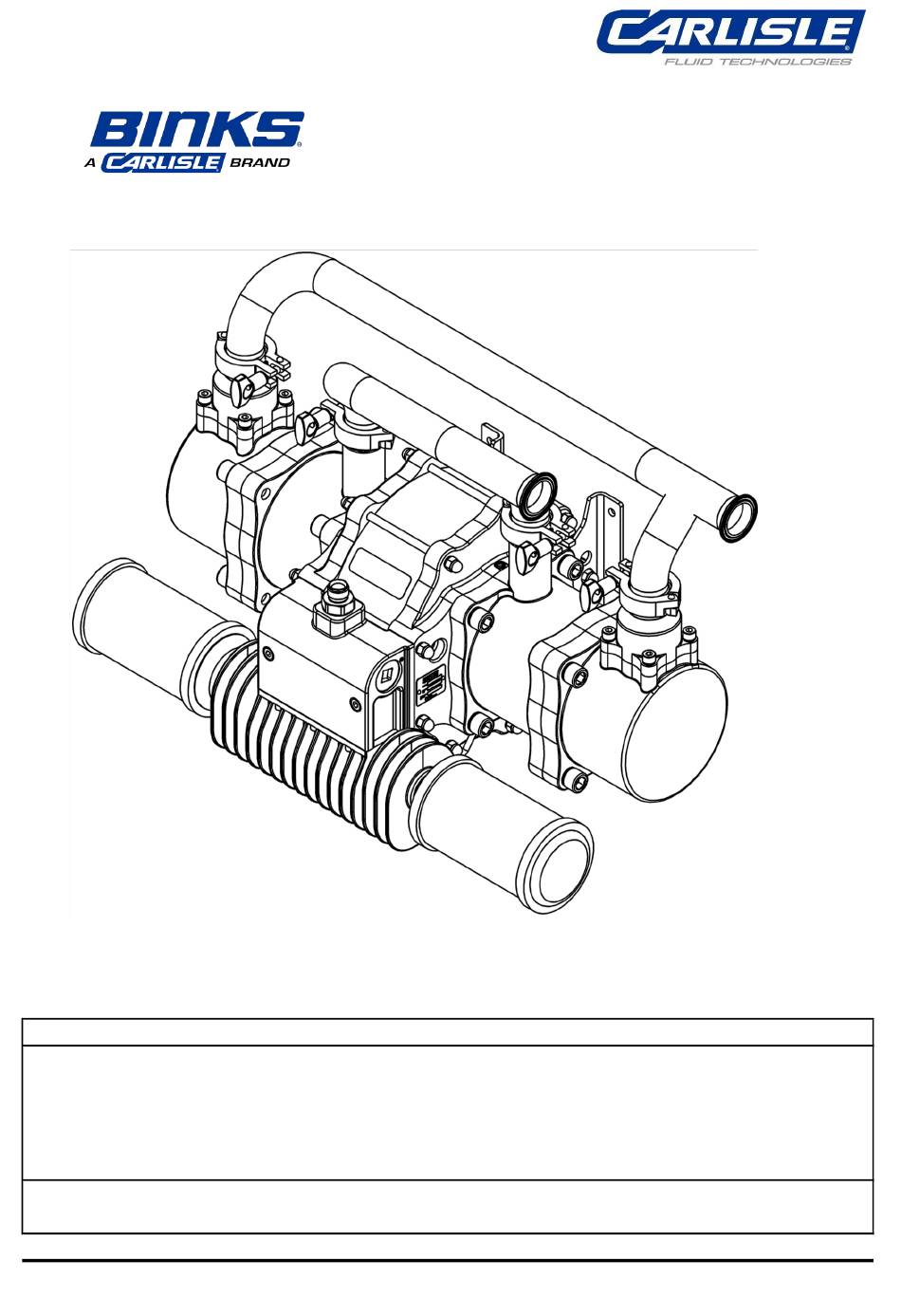

Service Manual
EN
Pump - Maple 60/3
• Model 104020-M2
IMPORTANT! DO NOT DESTROY
It is the Customer's responsibility to have all operators and service personnel read and understand this
manual.
Contact your local Carlisle Fluid Technologies representative for additional copies of this manual.
READ ALL INSTRUCTIONS BEFORE OPERATING THIS PRODUCT
77-3236 R4.3 (10/2021)
1/24
www.carlisleft.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BINKS Maple 60/3 and is the answer not in the manual?

Questions and answers

Related Manuals for Carlisle Fluid Technologies BINKS Maple 60/3

Summary of Contents for Carlisle Fluid Technologies BINKS Maple 60/3

  • Page 1 It is the Customer's responsibility to have all operators and service personnel read and understand this manual. Contact your local Carlisle Fluid Technologies representative for additional copies of this manual. READ ALL INSTRUCTIONS BEFORE OPERATING THIS PRODUCT 77-3236 R4.3 (10/2021) 1/24 www.carlisleft.com...

  • Page 2: Eu Declaration Of Conformity

    II 2 G X IIB T4 Notified body details and role: Element Materials Technology (0891) Lodging of Technical file This Declaration of conformity / incorporation Carlisle Fluid Technologies UK Ltd, is issued under the sole responsibility of the Ringwood Road, manufacturer: Bournemouth, BH11 9LH. UK...
  • Page 3 Ex h IIB T4 Gb X Notified body details and role: Element Materials Technology (0891) Lodging of Technical file This Declaration of conformity/incorporation Carlisle Fluid Technologies UK Ltd, is issued under the sole responsibility of the Ringwood Road, manufacturer: Bournemouth, BH11 9LH. UK...
  • Page 4 In this part sheet, the words WARNING, CAUTION and NOTE are used to emphasize important safety information as follows: WARNING CAUTION NOTE Hazards or unsafe practices which could result in Hazards or unsafe practices which could result in Important installation, operation or maintenance minor personal injury, product or property severe personal injury, death or substantial property information.

  • Page 5: Specification

    Specification Ratio: Maximum air inlet pressure: 7 bar [101.5 psi] Maximum fluid pressure: 21 bar [304.5 psi] Nominal Flow Volume / Cycle: 1.5 l/m [0.4 US gal/m] Fluid Output @ 60 cycles/min: 90 l/m [24 US gal/m] Maximum Recommended Continous Cycle Rate: 20 Cycles / min Maximum Recommended Intermittent Cycle Rate: 40 Cycles / min...

  • Page 6: Dimensions And Mounting Details

    Dimensions and Mounting Details 1 ½" Sanitary outlet 1 ½" Sanitary inlet MOUNTING LOCATIONS SECTION A-A 77-3236 R4.3 (10/2021) 6/24 www.carlisleft.com...

  • Page 7: Installation

    Installation This product should be flushed with a suitable compatible solvent prior to use. • Mount the pump securely and position the pump at a convenient height (below the lid height of the paint container), to allow for maintenance, visual observation, and periodic inspection. The wall mount bracket is included with all pumps.
  • Page 8 Parts list - Pump Assembly 104020-M2 ITEM PART NO. DESCRIPTION SPARES KIT  160513 SPRING  164472 M8 x 25 SOCKET HEAD CAP SCREW 165077 M14 SPRING WASHER 165108 M8 SPRING WASHER 165978 M14 x 40 SOCKET HEAD CAP SCREW ...
  • Page 9 Pump Assembly 104020-M2 GREASE (PART NO. 502375) LOCTITE TORQUE MAINTENANCE ORDER (Reverse for assembly) 77-3236 R4.3 (10/2021) 9/24 www.carlisleft.com...
  • Page 10 Parts list - Air Motor Assembly 193706 ITEM PART NO. DESCRIPTION SPARES KIT 0115-010037 POPPET ASSEMBLY  161993 Ø20.35 x 1.78 O-RING  161994 Ø4.47 x 1.78 O-RING  162729 SHAFT SEAL  162730 SHAFT BEARING  162731 Ø229.5 x 3 O-RING 165108 M8 SPRING WASHER 165135...
  • Page 11 Air Motor Assembly 193706 Orientation of item 4 Applied to all nuts this side only Applied to all nuts this side only GREASE (PART NO. 502375) LOCTITE TORQUE GREASE INTERNAL (AGMD-010) SYNTHETIC GREASE (AGMD-010) 77-3236 R4.3 (10/2021) 11/24 www.carlisleft.com...

  • Page 12: Spares Kit

    Parts list - Air Valve Assembly 193605 ITEM PART NO. DESCRIPTION SPARES KIT  - o-rings 0115-010424 SPOOL AND SLEEVE ASSEMBLY ONLY 0115-010425 VALVE BLOCK END CAP  0115-010427 BUMPER 0115-010428 MAGNET 0115-010431 SPACER  0115-010463 QEV PISTON  162719 Ø47.29 x 2.62 O-RING ...
  • Page 13 Air Valve Assembly 193605 Outer face of o-rings only. Sleeve radial holes and bore to remain clean and dry. GREASE (PART NO. 502375) LOCTITE TORQUE GREASE INTERNAL (AGMD-010) MAGNET HAZARD SYNTHETIC GREASE (AGMD-010) 77-3236 R4.3 (10/2021) 13/24 www.carlisleft.com...
  • Page 14 Parts list - Piston Assembly 193651 ITEM PART NO. DESCRIPTION SPARES KIT  160513 PISTON BALL CHECK SPRING  162805 Ø63.17 x 2.62 O-RING  162806 Ø107.62 x 2.62 O-RING  162807 Ø50.52 x 1.78 O-RING  171784 Ø1 3/4" BALL ...
  • Page 15 Piston Assembly 193651 Use a 36mm Single Hex Socket when tightening or removing ball cage from Piston. Applied to all o-ring grooves and thread. SYNTHETIC GREASE (AGMD-010) TORQUE 77-3236 R4.3 (10/2021) 15/24 www.carlisleft.com...
  • Page 16 Air Motor Piston Assembly 194983 ITEM PART NO. DESCRIPTION SPARES KIT  162728 AIR MOTOR PISTON SEAL 165975 M16 x 60 GRUB SCREW 192882 PISTON SHAFT 192886 PISTON SYNTHETIC GREASE (AGMD-010) LOCTITE TORQUE GREASE INTERNAL (AGMD-010) 77-3236 R4.3 (10/2021) 16/24 www.carlisleft.com...

  • Page 17: Fault Finding

    Fault Finding Symptom Possible Cause Remedy Air getting into the suction hose/manifold. Check seals and hose connections. Pump will not ‘Prime’. Worn piston seal. Replace piston seals. Inspect, clean and/or replace balls Ball checks not seating correctly. and seats. Check air and fluid supply ball valves No air or fluid supply.
  • Page 18 Fault Finding Symptom Possible Cause Remedy Check seals and hose connections. Air getting into fluid line, air supply restricted. Check air supply. Remove, clean, and inspect seat, ball, and ball cage. Obstructed fluid ball checks. Replace if suspect or worn. Worn air motor piston seals.
  • Page 19 Spares Kits for Maple 60/3 Pump KIT No. PART No. DESCRIPTION QTY. REMARKS  250632 Fluid section seal kit ** Check main parts list  250687 Fluid overhaul kit ** details individual kit contents  250656 Air Motor Seal Kit 0115-010037 Poppet Assembly 2 off per pump...

  • Page 20: Maintenance Schedule

    Maintenance schedule Inspection Operation Daily Check for any general fluid or air leakage. Inspect pump for correct operation. Weekly Check for any excessive mechanical noise. Check for excessive fluid pressure pulsation. Perform a pump stall test to ensure correct operation. If pump does not stall, check fluid piston seals and ball checks, replace as required.

  • Page 21: Bellows Replacement

    Bellows Replacement ITEM PART NO. DESCRIPTION REMARKS 502682 Bellows positioning tool 502681 Bellows assembly spigot Screw Item No. 2 (assembly spigot) onto the piston shaft Using Item No. 1, push bellows over spigot until located in groove. Smear loctite 572 over nose of bellows, thread nut onto bellows ensuring the thread starts squarely.
  • Page 22 Accessories PART NO. DESCRIPTION REMARKS 192008 1 ½'' Sanitary Gasket 192009 1 ½'' Sanitary Clamp 192779 Exhaust Tube Adapter (1” NB hose) For piped exhaust 192803 1'' Manifold Plug For piped exhaust Exhaust Tube Adapter (1.25” Nominal Bore 192820 For piped exhaust hose) 192821 1'' BSP Heavy Duty Mufflers...
  • Page 23 NOTES 77-3236 R4.3 (10/2021) 23/24 www.carlisleft.com...

  • Page 24: Warranty Policy

    WARRANTY POLICY This product is covered by Carlisle Fluid Technologies’ materials and workmanship limited warranty. The use of any parts or accessories, from a source other than Carlisle Fluid Technologies, will void all warranties. Failure to reasonably follow any maintenance guidance provided, may invalidate any warranty.
