SERVICE MANUAL
EN
Models: MX1231PL (PTFE/LEATHER CHEVRONS), MX1231PP (PTFE CHEVRONS),
MX1231PU (PTFE/UHMW CHEVRONS), MX1231UC (UHMW U-CUP)
77-2918-R6 (5/2019)
MX1231 BARE PUMP ASSEMBLIES
Patent 7,603,855

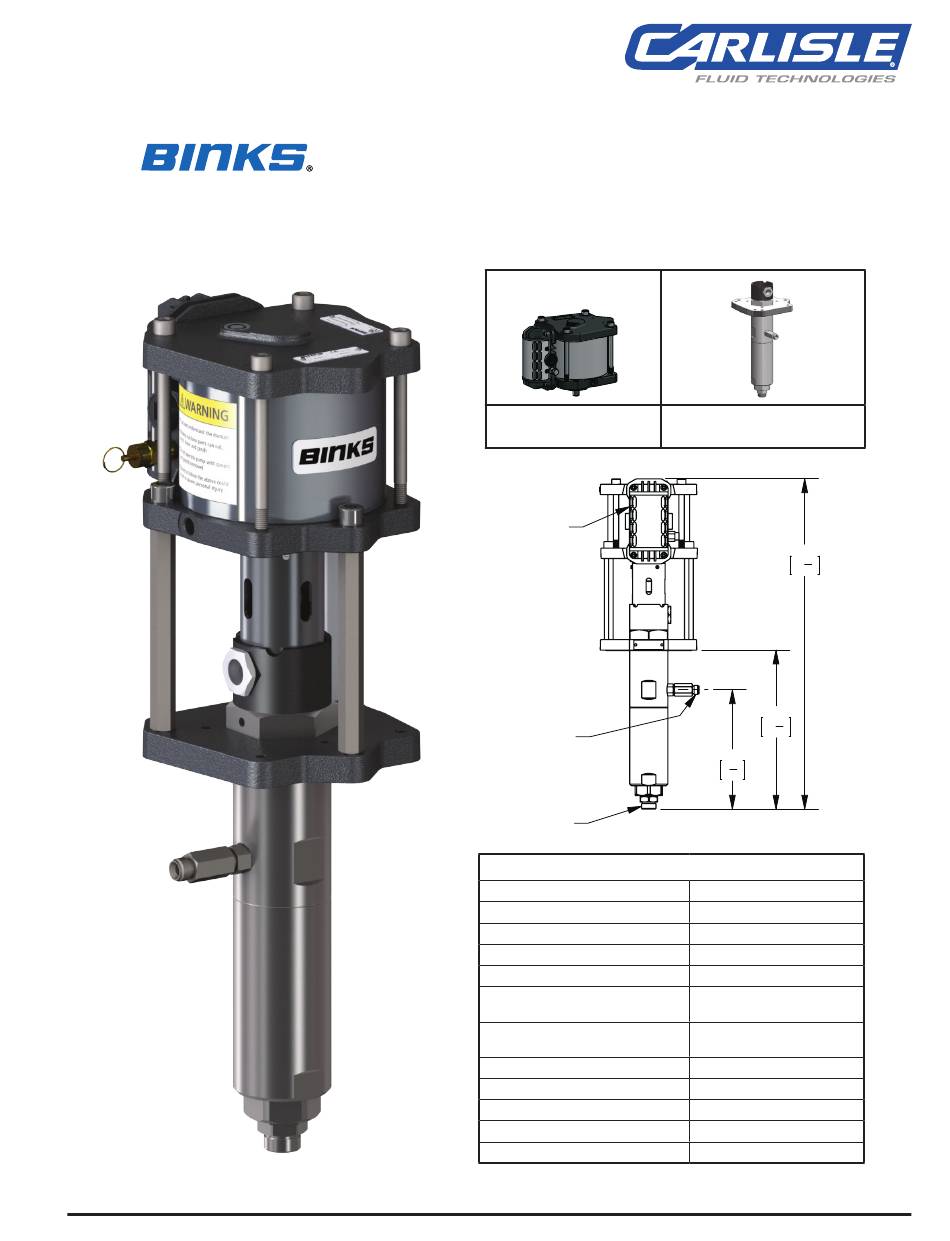

AX140S Air Motor Assembly
Air inlet
Fluid outlet
Fluid outlet
Ratio:
Fluid inlet
Maximum air inlet pressure:
Maximum fluid pressure:
Displacement per cycle:
Output @ 60 cycles/min:
Air consumption @ 20 cycles/min
and 8 bar [116 psi] air inlet pressure:
Maximimum recommended
continuous cycle rate:
Air inlet connection:
Fluid inlet connection:
Fluid outlet connection:
Sound level:
Weight:
1 / 12
FX12 Fluid Pump Assembly
77-2967
Air inlet
606mm
23
292mm
1
11
2 "
Fluid inlet
219mm
5
8
8 "
SPECIFICATIONS
77-2970
606mm
7
23
8 "
7
8 "
292mm
1
11
2 "
219mm
5
8
8 "
31:1
8 bar [116 psi]
248 bar [3596 psi]
72 cc [2.4 oz]
4.3 L/m [1.2 gal/m]
498 LPM [17.6 SCFM]
20 cycles/min
3/8" BSP(f)
3/4" NPS(m)
3/8" BSP(m) and 3/8" NPS(m)
97.3 dB
16 kg [35.5 lbs]
www.carlisleft.com
Advertisement
Related Manuals for Carlisle Fluid Technologies BINKS MX1231
Summary of Contents for Carlisle Fluid Technologies BINKS MX1231
- Page 1 SERVICE MANUAL MX1231 BARE PUMP ASSEMBLIES Models: MX1231PL (PTFE/LEATHER CHEVRONS), MX1231PP (PTFE CHEVRONS), MX1231PU (PTFE/UHMW CHEVRONS), MX1231UC (UHMW U-CUP) Patent 7,603,855 AX140S Air Motor Assembly FX12 Fluid Pump Assembly 77-2967 77-2970 Air inlet 606mm 8 " Air inlet 606mm 8 " 292mm 2 "...
- Page 2 In this part sheet, the words WARNING, CAUTION and NOTE are used to emphasize important safety information as follows: WARNING NOTE CAUTION Hazards or unsafe practices which could Important installation, operation or Hazards or unsafe practices which could result in severe personal injury, death or maintenance information.
- Page 3 WARNING HIGH PRESSURE CAN CAUSE SERIOUS INJURY IF EQUIPMENT IS INSTALLED OR USED INCORRECTLY— READ, UNDERSTAND, AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS MANUAL. INSTALL, OPERATE OR SERVICE THIS EQUIPMENT ONLY AFTER ALL INSTRUCTIONS ARE CLEARLY UNDERSTOOD. It is the responsibility of the employer to place this information into the hands of the operator. WARNING CAUTION NOTE...
- Page 4 HAZARD CAUSE SAFEGUARDS EXPLOSION STATIC ELECTRICITY 1. If installing this equipment in a potentially explosive atmosphere, check the ATEX equipment category and Use of this equipment in temperature ratings meet the requirements for the a potentially explosive zoned area. atmosphere. 2.
- Page 5 MX1231 BARE PUMP ASSEMBLIES GROUND WIRE 98mm 3.9 in If this dimension is approximately 98mm [3.9 in] with motor rod fully extended, then you will require 0115-010650 rod adapter and quantity 2 of 0115-010113 rod clip. ITEM MX1231PL MX1231PP MX1231PU MX1231UC SERVICE PART NUMBER...
- Page 6 MX1231 BARE PUMP ASSEMBLIES – MAINTENANCE 7.9 - 8.5 Nm [70 - 75 in-lbs] 14mm 16mm 7.9 - 8.5 Nm [70 - 75 in-lbs] RECOMMENDED LUBRICANT LEVEL MAINTENANCE SYMBOLS ITEM NUMBER MAINTENANCE ORDER (Reverse for assembly) www.carlisleft.com 6 / 12 77-2918-R6 (5/2019)
- Page 7 MX1231 BARE PUMP ASSEMBLIES – TROUBLESHOOTING PROBLEM CAUSE SOLUTION Pump will not start No compressed air. Check compressed air supply. Spray tip is blocked. Clean or replace the spray tip. Erratic operation of air Worn poppet assemblies. Replace the poppet assemblies. motor, air motor stops Worn or dirty spool and sleeve Clean or replace the spool and sleeve...
- Page 8 ACCESSORIES FOR YOUR MX1231 BARE PUMP BRACKET TROLLEY ASSEMBLY LUBRICATING OIL FOR 0115-010179 0115-010186 FX-12 FLUID PUMP Service Bulletin 77-2919 0114-009433 (Solvent Based Materials) 0114-014871 (Water Based Materials) SIPHON KITS AIR CONTROLS FLUID FILTER (100 MESH) 41-17262 (5 GAL) 0115-010180 (Air Assist) 0115-010326 0115-010381 (55 GAL) Service Bulletin 77-2919...
- Page 9 NOTES 77-2918-R6 (5/2019) 9 / 12 www.carlisleft.com...
- Page 10 NOTES www.carlisleft.com 10 / 12 77-2918-R6 (5/2019)
- Page 11 NOTES 77-2918-R6 (5/2019) 11 / 12 www.carlisleft.com...
- Page 12 This product is covered by Carlisle Fluid Technologies’ materials and workmanship limited warranty. The use of any parts or accessories, from a source other than Carlisle Fluid Technologies, will void all warranties. Failure to reasonably follow any maintenance guidance provided may invalidate any warranty.
