Summary of Contents for NuWave OXYPURE ZERO E500

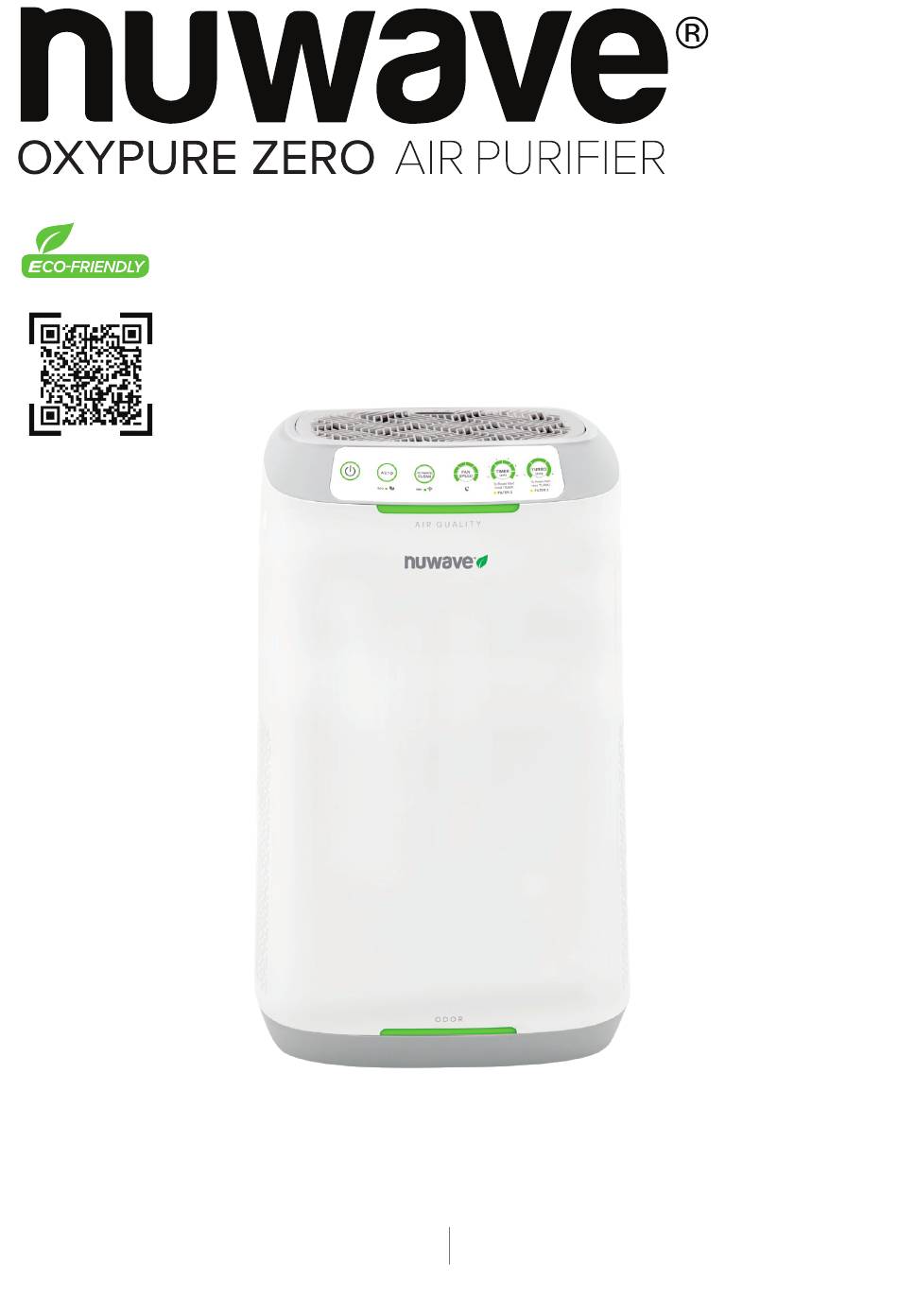

- Page 1 E500 ® Owner’s Manual Master Your OxyPure Zero Model: 47351 47361 Rev.1 Scan the code to watch how-to videos and more! Questions or Concerns? Amazon Purchases: support@nuwavenow.com All Other Purchases: help@nuwavenow.com 1-888-502-7807 1-877-689-2838 Mon-Fri 7:30am-4:30pm CST...
- Page 2 THANK YOU! Congratulations on your Nuwave® purchase. We know there are many options available and sincerely appreciate the trust you have placed in us. For the last 30 years, we have committed to introducing products that promote healthy living at affordable prices. By combining the highest quality designs with cutting edge technology, we have always strived to blend feature, function, and innovation into every product we make.
-
Page 3: Table Of Contents
CONTENTS Important Safeguards ......................4-5 Electrical Information ......................5 Parts & Accessories......................6 Assembly ........................... 7 WiFi Connectivity ....................... 8-9 Instructions ........................10-12 Cleaning & Maintenance ....................12-14 Trouble Shooting ....................... 15 Limited Warranty ....................... 16-17 Meets California ozone emissions limit. U.S Environmental CARB certified Protection Agency... -
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS HOUSEHOLD USE ONLY • READ ALL INSTRUCTIONS BEFORE USE ALWAYS KEEP THIS MANUAL HANDY FOR FUTURE REFERENCE. READ ALL INSTRUCTIONS and WARNINGS: The failure to follow any of the important safeguards, warnings, or instructions for safe use is a misuse of the OxyPure that can void your warranty and create the risk of serious injury. -
Page 5: Electrical Information
4. ALWAYS clean your filters according to the directions in this manual. If water is used for cleaning, immerse your filter. DO NOT attempt to clean with a hose. 5. If necessary, replace your filters ONLY with Nuwave filters made for your model of air purifier. ELECTRICAL INFORMATION The service instructions are for qualified personnel only. -
Page 6: Parts & Accessories
Keeping your unit up and running with new filters is a breeze. 1. Locate the part number on the above images, then 2. Contact Nuwave Customer Service by emailing: For Amazon Purchases: support@nuwavenow.com For All Other Purchases: help@nuwavenow.com , or order online at www.nuwavenow.com. -
Page 7: Before Use
ASSEMBLY Stainless Steel Prefilter (2) Bio-Guard Filter (2) Cylindrical Bio-Guard Filter ® ® BEFORE USE: 1. Make sure the unit is unplugged. Open the panel on the back to expose the filters. 2. Pull the filters from their slots. 3. Remove the plastic wrapping from the filters. The Bio-Guard Filters are ®... -
Page 8: Connect App
Mode by pressing and holding AUTO until the light next to the Wi-Fi symbol begins to blink rapidly. 3. In the Nuwave® Connect app, tap the + 2. It will take you to the App’s download page symbol, then tap Auto Scan and select your on either the Google Play Store or the Apple device. - Page 9 5. Connect your phone to the available hotspot following the instructions on the screen. 6. Once connected, return to the Nuwave Connect app and the unit will begin connecting automatically. 7. Once your unit is successfully connected, tap Done.
-
Page 10: Instructions
Low PM Level High PM Level Measuring Air Quality: The OxyPure Sensors The Nuwave OxyPure has two sensors to monitor the state of your air, one for air quality and the otherfor odor. AIR AND ODOR LEDS The unit will display the Air/Odor quality based on the particulate matter in the air from low to high as represented below. - Page 11 OPERATING THE NUWAVE OXYPURE ® POWER MODE FAN SPEED 1. Press POWER to turn on the unit. You can adjust from 6 different speeds. 2. POWER will be light green when on. 1. Press FAN to desired speed. 3. When powered off the light will be red.
-
Page 12: Cleaning & Maintenance
CLEANING & MAINTENANCE FILTER MAINTENANCE • SENSOR MAINTENANCE FILTER INDICATORS RESET FILTERS 2/3 Once cleaned or replaced, the filter indicators can be reset. When FILTER 2 indicator is lit, the filter should be Reset Filter 2 cleaned. 1. Press and hold TIMER for 2 seconds, will hear a beep. - Page 13 CLEANING & MAINTENANCE CLEANING THE GRID & FAN AREA STAINLESS-STEEL PREFILTERS To clean the surface, underneath and Inner Vent 1. Use a dry cloth or soft brush to Screen. remove any dust or lint. 1. Be sure the Oxypure is off and unplugged. 2.
-
Page 14: Cleaning The Air Quality Sensor
CLEANING & MAINTENANCE CLEANING THE ODOR SENSOR The Odor Sensor is located on the right side of the OxyPure next to the Air Quality Sensor. Dust and debris can accumulate. 1. With a brush tipped vacuum, gently brush across the area. •... -
Page 15: Trouble Shooting
4. If you are unable to close the Filter Access Panel for any reason, the unit will not operate and you will need to contact Nuwave Customer Service. Exercise caution to ensure the tabs are not damaged when securing the Filter Access Panel. -
Page 16: Limited Warranty
Manufacturer’s written instructions. The Limited Warranty covers the Original Purchaser only. The Manufacturer will provide the necessary parts and labor to repair the product at the Nuwave LLC Service Department. After the expiration of the warranty, the cost of the parts and labor will be the responsibility of the owner. - Page 17 You will have 30 days from the date of product delivery to opt out of arbitration with re- spect to any dispute arising out of or relating to use or purchase of any Nuwave product. If more than 30 days have passed, you are not eligible to opt out of arbitration and will have waived your right to sue or participate in a class action with respect to the dispute arising out of your purchase or use of a Nuwave product.
- Page 18 NOTES 18 | nuwavenow.com...
- Page 19 NOTES nuwavenow.com | 19...
- Page 20 For patent information please go to: www.nuwavenow.com/legal/patent Designed in France & Developed in USA Nuwave LLC 560 Bunker Ct. Vernon Hills, IL 60061, U.S.A. Made in China Item No:BM47361 ©2024 Nuwave LLC • All Rights Reserved. Rev1-V7-YK EPA Establishment Number: 101594-CHN-1 12-16-24...
