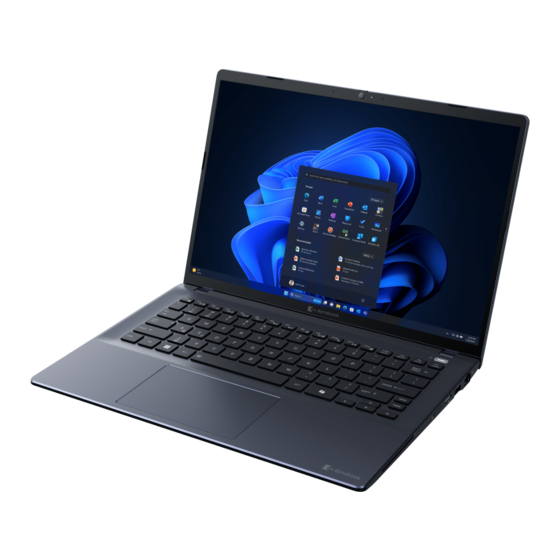

dynabook TECRA A40-M User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User's Manual
TECRA A40-M/A60-M
PORTEGE X40-M
dynabook GX40L-M/GX60L-M
Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TECRA A40-M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dynabook TECRA A40-M

Summary of Contents for dynabook TECRA A40-M

  • Page 1 User's Manual TECRA A40-M/A60-M PORTEGE X40-M dynabook GX40L-M/GX60L-M Series...

  • Page 2: Table Of Contents

    Table of Contents Chapter 1 Legal, Regulatory, and Safety Copyright, Disclaimer and Trademarks ..........1-1 Regulatory Information ................. 1-2 Video Standard Notice ................ 1-10 OpenSSL Toolkit License Issues ............1-10 FreeType License Issues ..............1-12 ENERGY STAR® Program ..............1-16 Disposing of the computer and the computer's battery ....
  • Page 3 Specifications ..................7-1 AC Power Cord and Connectors ............7-2 Information for Wireless Devices ............7-3 Information about Intel® AMT ............7-14 Accessibility ..................7-16 Accessibility for Dynabook notebook ..........7-17 Legal Footnotes ................... 7-20 Glossary ....................7-22 Index User's Manual...

  • Page 4: Chapter 1 Legal, Regulatory, And Safety

    Copyright, Disclaimer and Trademarks Copyright © 2024 Dynabook Inc. All Rights Reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of Dynabook Inc. No patent liability is assumed, with respect to the use of the information contained herein.

  • Page 5: Regulatory Information

    Only peripherals complying with the FCC class B limits can be attached to this equipment. Operation with non-compliant peripherals or peripherals not recommended by Dynabook is likely to result in interference to radio and TV reception. Shielded cables must be used between the external devices and the computer’s Universal Serial Bus (USB 3.2 Gen1) port,...

  • Page 6: Fcc Conditions

    Thunderbolt™ 4/USB Type-C™ port and HDMI™ out port. Changes or modifications made to this equipment, not expressly approved by Dynabook or parties authorized by Dynabook could void the user’s authority to operate the equipment. FCC conditions This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference.

  • Page 7: Eu Declaration Of Conformity

    CE compliance Hereby, Dynabook declares that the model(s) described in this manual is/ are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://public.support.emea.dynabook.com/declarationsofconformity.

  • Page 8: Vcci Class B Information (Japan Only)

    Note that Canadian Department of Communications (DOC) regulations provide, that changes or modifications not expressly approved by Dynabook could void your authority to operate this equipment. This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
  • Page 9 Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

  • Page 10: Disposal Of Products

    Disposal of products The crossed-out wheeled bin symbol indicates that products must be collected and disposed of separately from household waste.

  • Page 11: Disposal Of Batteries And/Or Accumulators

    Evaluation, Authorization and Restriction of Chemicals), entered into force on 1 June 2007, with phased deadlines to 2018. Dynabook will meet all REACH requirements and is committed to provide our customers with information about the presence in our articles of substances included on the candidate list according to REACH regulation.

  • Page 12: Following Information Is Only For Turkey

    Dynabook meets all requirements of Turkish regulation 28300 “Restriction of the use of certain hazardous substances in electrical and electronic equipment”.

  • Page 13: Video Standard Notice

    Video Standard Notice THIS PRODUCT IS LICENSED UNDER THE AVC, THE VC-1 AND MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (I) ENCODING VIDEO IN COMPLIANCE WITH THE ABOVE STANDARDS ("VIDEO") AND/OR (II) DECODING AVC, VC-1 AND MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE SUCH...
  • Page 14 Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit"...

  • Page 15: Freetype License Issues

    This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.
  • Page 16 Copyright 1996-2002, 2006 by David Turner, Robert Wilhelm, and Werner Lemberg Introduction ============ The FreeType Project is distributed in several archive packages; some of them may contain, in addition to the FreeType font engine, various tools and contributions which rely on, or relate to, the FreeType Project. This license applies to all files found in such packages, and which do not fall under their own explicit license.
  • Page 17 authors (David Turner, Robert Wilhelm, and Werner Lemberg) as the `FreeType Project', be they named as alpha, beta or final release. `You' refers to the licensee, or person using the project, where `using' is a generic term including compiling the project's source code as well as linking it to form a `program' or `executable'.
  • Page 18 -------------- Neither the FreeType authors and contributors nor you shall use the name of the other for commercial, advertising, or promotional purposes without specific prior written permission. We suggest, but do not require, that you use one or more of the following phrases to refer to this software in your documentation or advertising materials: `FreeType Project', `FreeType Engine', `FreeType library', or `FreeType Distribution'.

  • Page 19: Energy Star® Program

    If the model you purchased is compliant, it uses the ENERGY STAR logo and the following information applies. Dynabook is a partner in the ENERGY STAR program and has designed this computer to meet the latest ENERGY STAR guidelines for energy efficiency. Your computer...

  • Page 20: General Precautions

    General Precautions Your computer is designed to optimize safety, minimize strain and withstand the rigors of portability. However, certain precautions should be observed to further reduce the risk of personal injury or damage to the computer. Be certain to read the following general precautions and to note the cautions included in the text of the manual.
  • Page 21 Stress injury Carefully read the Instruction Manual for Safety and Comfort. It contains information on the prevention of stress injuries to your hands and wrists that can be caused by extensive keyboard use. It also includes information on work space design, posture, and lighting that can help reduce physical stress.

  • Page 22: Moving The Computer

    Moving the computer While the computer is designed for flexible day-to-day usage, you should exercise a few simple precautions when moving it in order to help ensure trouble-free operation. Make sure all disk/disc activity has ended before moving the computer. Turn off (shut down) the computer.
  • Page 23 Indicates a potentially hazardous situation, which could result in death or serious injury, if you do not follow instructions. A caution informs you that improper use of equipment or failure to follow instructions might cause data loss, equipment damage, or might result in minor or moderate injury.

  • Page 24: Chapter 2 Getting Started

    This chapter provides an equipment checklist, and basic information to start using your computer. If you use an operating system that was not pre-installed by Dynabook, some of the features described in this manual might not function properly. You might not have all the software/features mentioned in this manual depending on the model you purchased.

  • Page 25: Using Your Computer For The First Time

    Right-click Click the right Touch Pad control button once. Right-click the mouse once. Press and hold on the touch screen (only for touch screen models). Double-click Tap the Touch Pad or click the left Touch Pad control button twice. Left-click the mouse twice. Tap the touch screen twice (only for touch screen models).

  • Page 26: Connecting The Ac Adaptor

    Always use the AC adaptor that was included with your computer, or use AC adaptors specified by Dynabook to avoid any risk of fire or other damage to the computer. Use of an incompatible AC adaptor might cause fire or damage to the computer, possibly resulting in serious injury.
  • Page 27 DC IN 19V jack connection type Connect the power cord to the AC adaptor. Figure 2-1 Connecting the power cord to the AC adaptor (2-pin plug) Figure 2-2 Connecting the power cord to the AC adaptor (3-pin plug) Either a 2-pin or 3-pin adaptor/cord is included with the computer depending on the model.

  • Page 28: Opening The Display

    Figure 2-5 Connecting the power cord to the AC adaptor (3-pin plug) Product appearance depends on the model you purchased. Either a 2-pin or 3-pin adaptor/cord is included with the computer depending on the model. Plug the power cord into a live wall outlet. Connect the DC output plug of the AC adaptor to one of the Thunderbolt™...

  • Page 29: Turning On The Power

    Figure 2-7 Opening the display panel 1. Display panel Product appearance depends on the model you purchased. Open and close the display panel with reasonable care. Opening it vigorously or slamming it shut might damage the computer. Be careful not to open the display panel too far as this might put stress on the display panel’s hinges and cause damage.

  • Page 30: Initial Setup

    After you turn on the power for the first time, do not turn it off until you have set up the operating system. Volume cannot be adjusted during Windows Setup. Do not touch the display screen while turning on the computer. Open the display panel.

  • Page 31: Windows Taskbar

    Windows taskbar By default, the bottom of the desktop is Windows taskbar. You can see all of your currently running apps on the Windows taskbar. Task view Task view ( ) is launched from the Windows taskbar at the bottom of the screen.

  • Page 32: Sign-In Options

    Under Sign-in options, you will see options for Face Recognition and Fingerprint if your computer has fingerprint sensor and if your computer has face recognition sensor that supports it. Once you have set up, you will be able to sign in with a quick touch or glance. You might need to add a PIN under PIN (Windows Hello) before you can set up Facial recognition (Windows Hello) and Fingerprint recognition (Windows Hello).

  • Page 33: Restarting The Computer

    Do not turn the computer or peripheral devices back on immediately. Wait a short period to avoid any potential damage. Restarting the computer Certain conditions require that you restart the computer, for example if you change certain computer settings. To restart the computer, there are several ways this can be achieved: Click Start ->...

  • Page 34: Hibernation Mode

    When the AC adaptor is connected, the computer will go into Sleep Mode according to the settings in the Power Options. (To access it, click Start -> All apps -> Windows Tools and double-click Control Panel. In the Control Panel window, click System and Security -> Power Options.) If the computer enters Sleep Mode while a network application is active, the application might not be restored when the computer is...
  • Page 35 turned on, the previous state is restored. Note that the Hibernation Mode feature does not save the status of any peripheral devices connected to the computer. Save your data. While entering Hibernation Mode, the computer saves the contents of memory to the internal storage drive. However, for safety sake, it is best to save your data manually.

  • Page 36: System Recovery

    Media Restoring the pre-installed software from the Recovery Partition If you choose dynabook Maintenance Utility to erase the internal storage drive, all data including the operating system and recovery partition will be deleted. In that case, you cannot create recovery media or restore the pre- installed software from the recovery partition.
  • Page 37 Follow the on-screen instructions to finish creating the Recovery Media. dynabook Recovery Wizard option in dynabook Maintenance Utility will not exist if you restore the computer from the recovery media you created by recovery drive creating option in Windows system.

  • Page 38: Restoring The Pre-Installed Software From Your Created Recovery Media

    Restoring the pre-installed software from your created Recovery Media If the pre-installed files are damaged, you are able to use the Recovery Media you have created to restore the computer to the state it was in when you originally received it. To perform this restoration, do the following: Make sure that the AC adaptor is connected during the restoring process.
  • Page 39 (Power) and then select Restart. Hold down 0 (zero) key and then release this key just after the computer is powered on. Select Troubleshoot -> dynabook Maintenance Utility -> dynabook Recovery Wizard. Follow the on-screen instructions to finish the recovery.

  • Page 40: Chapter 3 The Grand Tour

    Chapter 3 The Grand Tour This chapter identifies the various components of the computer. It is recommended that you become familiar with each before you operate the computer. Legal Footnote (Non-applicable Icons) For more information regarding Non-applicable Icons, refer to the Legal Footnotes section.
  • Page 41 Note that you must use the AC adaptor that was included with your computer, or use AC adaptors specified by Dynabook. Use of an incompatible AC adaptor might cause fire or damage to the computer, possibly resulting in serious injury.

  • Page 42: Right Side

    Keep foreign metal objects, such as screws, staples, and paper clips, out of the USB port. Foreign metal objects can create a short circuit, which can cause damage and fire, possibly resulting in serious injury. Thunderbolt™ 4/USB Two Thunderbolt™ 4/USB Type-C™ ports, which Type-C™...
  • Page 43 Figure 3-3 The right side of the computer 1. Smart Card slot* 4. Universal Serial Bus (USB 3.2 Gen1) port 2. SIM card slot* 5. LAN jack 3. Memory media slot * Provided with some models. Product appearance depends on the model you purchased. Smart Card slot This slot allows you to install a Smart Card device.

  • Page 44: Back

    LAN jack This jack lets you connect to a LAN. The adapter has built-in support for Ethernet LAN (10 megabits per second, 10BASE-T), Fast Ethernet LAN (100 megabits per second, 100BASE-TX) or Gigabit Ethernet LAN (1000 megabits per second, 1000BASE-T). Refer to Operating Basics, for details.

  • Page 45: Front With The Display Open

    Figure 3-5 The underside of the computer 1. Cooling vents Product appearance depends on the model you purchased. Cooling vents The cooling vents help the processor to avoid overheating. Do not block the cooling vents. Keep foreign metal objects, such as screws, staples, and paper clips, out of the cooling vents.
  • Page 46 Figure 3-6 The front of the computer with the display panel open 1. Infrared LED* 9. Wireless communication antennas (Wireless LAN) (not shown) 2. Face recognition sensor* 10. Power button 3. Web Camera 11. Power indicator 4. Web Camera LED 12.
  • Page 47 Infrared LED The infrared LED blinks when Windows Hello Face is operating. Only models which support face recognition feature are equipped with the infrared LED. Face recognition Face recognition sensor captures the face image sensor for the operating system for enrolling and signing in.
  • Page 48 Display screen 40.6 cm (16.0") or 35.6 cm (14.0") LCD screen, is configured with the following resolution: FHD, 1920 horizontal x 1200 vertical pixels Be aware that, when the computer is operating on the AC adaptor, the image displayed on the internal screen is somewhat brighter than when it operates on battery power.

  • Page 49: Internal Hardware Components

    Fingerprint sensor This sensor enables you to enroll and sign in with a fingerprint in Windows Hello. For more information, refer to the on-screen instructions in Windows Hello. Some models are equipped with a fingerprint sensor. Touch Pad The Touch Pad located in the palm rest is used to control the movement of the mouse pointer.

  • Page 50: Intel ® Display Power Saving Technology

    Legal Footnote (Internal Storage Drive Capacity) For more information regarding Internal Storage Drive Capacity, refer to the Legal Footnotes section. Video RAM The memory in the graphics adaptor of the computer, used to store the image displayed on a bitmap display. The amount of Video RAM available depends on the system memory of the computer.

  • Page 51: Dc In/Battery Indicator

    DC IN/Battery indicator Check the DC IN/Battery indicator to determine the status of the battery pack and the power status with the AC adaptor connected. The following indicator conditions should be noted: Flashing Amber The battery charge is low. The AC adaptor must be connected to recharge the battery.

  • Page 52: Chapter 4 Operating Basics

    Chapter 4 Operating Basics This chapter describes the basic operations of your computer, and highlights the precautions that must be taken when using it. Using the Touch Screen Some models are equipped with a touch screen. You can use your finger to manipulate icons, buttons, menu items, the on- screen keyboard, and other items on the touch screen.

  • Page 53: Using The Touch Pad

    For details and more advanced touch screen gestures to interact with Windows operating system, refer to Get Started in the Start menu. Do not press or push with excessive force on the touch screen. Do not apply excessive force when cleaning the touch screen. Never touch the screen with a sharp object such as a ball-point pen which might scratch or damage the surface.

  • Page 54: The Keyboard

    Three-Finger Scroll Place three fingers down and slide them vertically or horizontally from anywhere on the Touch Pad. Slide towards left/right: switches between your open apps. Slide your fingers slowly across the Touch Pad to flip through them all. Slide up: views all your open apps in task view. Slide down: shows the desktop.

  • Page 55: Function Keys

    When the CAPS LOCK indicator glows, the keyboard produces capitals when any letter is typed. When the NUM LOCK indicator glows, the ten key allows you to enter numbers. Figure 4-1 Keyboard indicators CAPS LOCK CAPS LOCK LOCK 1. CAPS LOCK indicator 2.
  • Page 56 Key Combination Function FN + F3 Increases the playback volume of the computer. FN + F4 Turns the sound on or off. FN + F5 Changes the active display device. To use a simultaneous mode, you must set the resolution of the internal display panel to match the resolution of the external display device.

  • Page 57: Windows Special Keys

    Those toast notifications are enabled by default. You can disable them in dynabook Settings. To access it, click Start -> All apps -> dynabook Settings -> Keyboard. Windows special keys The keyboard provides two keys that have special functions in Windows.

  • Page 58: Points To Note About The Fingerprint Sensor

    By enrolling the ID and password onto the fingerprint authentication feature, it is no longer necessary to input the password from the keyboard. Fingerprint feature enables you to: Sign-in to Windows Authentication of the User Password (and, if applicable, the HDD/SSD Password) when booting up the computer (Pre-Boot authentication) Single Sign-On feature Figure 4-2 Using the fingerprint sensor...

  • Page 59: Battery

    Remove static electricity from your fingers by touching any metal surface. Static electricity is a common cause of sensor failures, especially when the weather is dry. Clean the sensor with a lint-free cloth. Do not use detergent or any other chemicals to clean the sensor. Avoid the following finger conditions for enrollment or recognition as they might result in fingerprint enrollment errors or a drop in the fingerprint recognition success rate:...

  • Page 60: Care And Use Of The Battery Pack

    RTC lasting time completely runs out, the system will lose this information and the real-time clock and calendar will stop working. You can change the Real-Time Clock settings in the dynabook Setup Utility. Refer to Real-Time Clock for further information.

  • Page 61: Charging Notice

    Be aware that the charging time when the computer is on is affected by ambient temperature, the temperature of the computer and how you are using the computer. If you make heavy use of external devices for example, the battery might scarcely charge at all during operation.

  • Page 62: Maximizing Battery Operating Time

    Clicking the battery icon on the Windows Taskbar Via the Battery Status in the Windows Mobility Center window Wait several seconds to monitor the remaining operating time because the computer needs time to check the remaining capacity of the battery pack and then calculate the remaining operating time, based on this together with the current power consumption.

  • Page 63: Extending Battery Life

    Battery type Sleep Mode Shut Down Mode Battery pack about 6 days about 35 days (60 Wh, 4 cell) Be aware that the battery pack exhausted time is affected if there are any external devices connected. Extending battery life To maximize the life of your battery pack, do the following at least once a month: Turn off the computer's power.

  • Page 64: Points To Note About The Memory Media Card

    Figure 4-3 Example of memory media (microSD card) Points to note about the memory media card microSD/SDHC/SDXC memory cards comply with SDMI (Secure Digital Music Initiative), which is a technology adopted to prevent unlawful copy or playback of digital music. For this reason, you cannot copy or play back protected material on another computer or other device, and you cannot reproduce any copyrighted material except for your personal enjoyment.

  • Page 65: Inserting Memory Media

    For more details on using memory cards, see manuals accompanying the cards. Inserting memory media The following instructions apply to all types of supported media devices. To insert memory media, do the following: Turn the memory media so that the contacts (metal areas) face down. Insert the memory media into the memory media slot on your computer.

  • Page 66: Smart Card

    Push the memory media until you hear a click to partially release it. Grasp the media and remove it. If you remove the memory media or turn off the power while the computer is accessing the memory media, you might lose data or damage the media.

  • Page 67: Wireless Wan Device

    Failure to follow these instructions might result in damage to the computer and/or damage to the Smart Card. After inserting the Smart Card, you should refer to its documentation and also check the configuration in Windows to ensure that it is correct.

  • Page 68: Removing A Sim Card

    Insert the SIM card tray into the SIM card slot, and push the center of the tray to close it. Press gently until it locks into place. Figure 4-5 Installing the SIM card Nano SIM 1. SIM card slot 3. SIM card tray 2.

  • Page 69: Hdmi™ Out Port

    Your current location might not be shown depending on the status of GPS or the location. If you are obtaining your current location information from the computer, your current location might not be detected due to the information accuracy. Specifically, your current location might not be detected in the following places or situations: Inside or directly under a building Inside a bag or box...

  • Page 70: Settings For Display Video On Hdmi

    Figure 4-6 Connecting the HDMI™ out port 1. HDMI™ out port 2. HDMI™ cable Product appearance depends on the model you purchased. Do not plug/unplug an HDMI™ device under the following conditions: The system is starting up. The system is shutting down. When you unplug the HDMI™...

  • Page 71: Lan Cable Types

    The Wake-up on LAN function consumes power even when the system is off. Leave the AC adaptor connected while using this feature. The link speed (10/100/1000 megabits per second) changes automatically depending on the network conditions (connected device, cable or noise and so on). LAN cable types The computer must be configured properly before connecting to a LAN.

  • Page 72: Wireless Display

    Plug one end of the cable into the LAN jack. Press gently until you hear the latch click into place. Figure 4-7 Connecting the LAN cable 1. LAN jack 2. LAN cable Product appearance depends on the model you purchased. Plug the other end of the cable into a LAN hub connector or router.

  • Page 73: Security Lock

    To make your computer even more powerful and convenient to use, you can add a number of accessories. For reference, the following list details some of the items that are available from your reseller or Dynabook dealer: AC Adaptor If you frequently use your computer at more than...

  • Page 74: Sound System And Video Mode

    Dynabook computers. Refer to Thunderbolt™ 4 Dock's User's Manual for more details. dynabook USB-C™ dynabook USB-C™ Dock is the docking station Dock that enables you to connect your computer peripherals through one USB Type-C™ cable to selected Dynabook computers. Refer to dynabook USB-C™...

  • Page 75: Realtek Audio Console

    If you feel the microphone volume level is inadequate while using an external microphone, move the Microphone Boost slider to a higher level. DTS Audio Processing DTS Audio Processing is a premium audio enhancement suite that utilizes revolutionary audio technology to provide the most immersive and realistic listening experience ever offered for a two speaker playback environment.

  • Page 76: Video Mode

    To choose the type of headphone or microphone, do the following: Plug a headphone or microphone into the headphone/microphone jack. Click the Device advanced settings tab. Select one from the device list under ANALOG for the device you plugged into. Information This tab shows the driver version and UI version as well.

  • Page 77: Chapter 5 Utilities And Advanced Usage

    Settings dynabook Settings is the configuration management tool available through the Windows operating system. To run dynabook Settings, click Start -> All apps -> dynabook Settings. This utility allows you to configure your computer settings by the following tabs: Home—Allows you to view the current BIOS/EC version or change...

  • Page 78: Eco Utility

    To access this utility, click Start -> All apps -> dynabook Settings -> eco Utility. For details on eco Utility, click Please click here for more information before you use eco Utility in this tab to see the help file.
  • Page 79 When the Power Off and Charge function is enabled, USB bus power (DC 5V) is supplied to compatible ports even when the computer is powered OFF. USB bus power (DC 5V) is similarly supplied to the external devices which are connected to the compatible ports. However, some external devices cannot be charged solely by supplying USB bus power (DC 5V).
  • Page 80 CDP Charge Mode" is enabled, your computer can supply USB bus power (DC 5V, 1.5A) to the compatible ports while the computer is turned on. To set System ON CDP Charge Mode, click Start -> All apps -> dynabook Settings -> USB Charge. Enabled Rapid USB battery charge at maximum 1.5A while PC is powered On.

  • Page 81: System Password

    Passwords set by the System Password function are different from the Windows password. User Password To set a user password, click Start -> All apps -> dynabook Settings -> System Password. User authentication may be required to validate user rights when using System Password to delete or change passwords.
  • Page 82 Apply. When the computer is started, this text is displayed together with the prompt asking you to enter a password. If you forget your HDD User Password, Dynabook will NOT be able to assist you, and your HDD will be rendered COMPLETELY and PERMANENTLY INOPERABLE.
  • Page 83 External display message—Show a message when the screen did not rotate because an external display is connected. dynabook Setup Utility dynabook Setup Utility is a BIOS setup utility that provides you a menu- based user interface so that you can easily view and change BIOS settings.

  • Page 84: Special Features

    When you choose LCD + External Display under Power On Display option in dynabook Setup Utility while two or more external display devices are connected to your computer, the operating system will select the internal LCD and one of the external display devices to be used when the computer is started.
  • Page 85 System automatic This feature automatically shuts down the system into Sleep Mode when there is no input or Sleep Mode hardware access for a specified time. This can be specified in the Power Options. Power on password Two levels of password security, supervisor and user, are available to prevent unauthorized access to your computer.

  • Page 86: Troubleshooting

    Chapter 6 Troubleshooting Dynabook has designed this computer for durability, however, should problems occur, you are able to use the procedures detailed in this chapter to help determine the cause. You should become familiar with this chapter as knowing what might go wrong can help prevent problems from occurring in the first place.

  • Page 87: Analyzing The Problem

    Check all cables to ensure that they are correctly and firmly attached to the computer - loose cables can cause signal errors. Inspect all connecting cables for loose wires and all connectors for loose pins. Check that your disc media is correctly loaded. Always try to make detailed notes of your observations and keep them in a permanent error log - this helps you to describe your problems to Technical Support.

  • Page 88: If Something Goes Wrong

    Hardware If you cannot find a software problem, you should then check the setup and configuration of your hardware. First run through the items in the preliminary checklist as described previously, then, if you still cannot correct the problem, try to identify the source.

  • Page 89: Hardware And System Checklist

    By holding down one of the following keys during startup, your computer can load the following advanced options: Advanced option dynabook Setup Utility Boot Menu 0 (zero) Recovery options If your computer starts to load the Operating System instead of desired advanced options, do the following: Click Start ->...

  • Page 90: Overheating Power Down

    Overheating power down If the processor's temperature reaches an unacceptably high level with either setting, the computer automatically shuts down to prevent any damage. In this instance, all unsaved data in memory is lost. Problem Procedure Computer shuts Leave the computer off until it reaches room down automatically temperature.

  • Page 91: Real Time Clock

    The lasting time of the Real-Time Clock (RTC) has system date/time are run out. You must set the date and time in the lost dynabook Setup Utility by using the following steps: Launch the dynabook Setup Utility. Refer to the...

  • Page 92: Internal Display Panel

    Check to see whether there is a disc in the external boot from internal optical disc drive - if so remove it and try to start storage the computer again. If this has no effect, check the Boot Priority Options setting under Boot within the dynabook Setup Utility. User's Manual...

  • Page 93: Memory Media Card

    Problem Procedure Slow performance The files on the internal storage drive might be fragmented. In this instance you should run the disk defragmentation utility to check the condition of your files and the internal storage drive. Refer to the operating system's documentation or online help file for further information on operating and using the defragmentation utility.
  • Page 94 Problem Procedure Mouse pointer does In this instance, the system might be busy. Try not respond to moving the mouse again after waiting a short pointing device while. operation Double-tapping In this instance, you should initially try changing (Touch Pad) does the double-click speed setting within the Mouse not work Control utility.
  • Page 95 Problem Procedure Double-clicking does In this instance, you should initially try changing not work the double-click speed setting within the Mouse Control utility. To access this utility, click Start -> Settings -> Bluetooth & devices -> Touchpad -> More touchpad settings. Within the Mouse Properties window, click the Buttons tab.

  • Page 96: Fingerprint Sensor

    Restart. Hold down the F2 key and then release this key just after the computer is powered on to show the dynabook Setup Utility. Select Security -> BIOS Password -> Supervisor, and then register the Supervisor Password. (If the User Password has been registered, clear it first.)
  • Page 97 Charge function Enable the Power Off and Charge function under cannot be used USB Charge within the dynabook Settings. When there is a current overflow of the external device connected to the compatible port, USB power (DC 5V) supply might be stopped for safety reasons.

  • Page 98: Sound System

    Problem Procedure "USB Wake-up When "System ON CDP Charge Mode" or "Power function" does not Off and Charge function" is enabled, the "USB work Wake-up" function does not work for ports that support the Power Off and Charge function. In that case, use a USB port that does not have the Power Off and Charge function or change to disable both "System ON CDP Charge Mode"...
  • Page 99 Problem Procedure Monitor does not After confirming that the monitor's power switch is turn on on, check the connections to make sure that the power cord/adaptor is firmly connected to the monitor and to a working power outlet. No display Try adjusting the contrast and brightness controls on the external monitor.

  • Page 100: Wireless Lan

    Problem Procedure Cannot access LAN Check for a firm cable connection between the LAN jack and the LAN hub. Wake-up on LAN Make sure the AC adaptor is connected. The does not work Wake-up on LAN function consumes power even when the system is off.

  • Page 101: Technical Support

    Technical support If you require any additional help using your computer or if you are having problems operating the computer, you might need to contact us for additional technical assistance. Before you call Some problems you experience might be related to software or the operating system, so it is important that you investigate other sources of assistance first.

  • Page 102: Appendix Specifications

    Chapter 7 Appendix Specifications This section summarizes the technical specifications of the computer. Physical Dimensions The physical dimensions vary depending on the model you purchased. Size Approximately 313.2 (w) x 220.9 (d) x 19.9 (h) millimeters Approximately 313.2 (w) x 221.75 (d) x 18.6 (h) millimeters Approximately 357.0 (w) x 248.85 (d) x 19.9 (h) millimeters (not including parts that extend beyond the main body) Environmental Requirements...

  • Page 103: Ac Power Cord And Connectors

    AC Power Cord and Connectors The AC input plug of the power cord must be compatible with the various international AC power outlets and the cord must meet the standards for the country/region in which it is used. All cords must meet the following specifications: Wire size: Minimum 0.75 mm...

  • Page 104: Information For Wireless Devices

    United Kingdom, South Africa, Middle-East UL approved BS approved Australia Europe, Africa, South Africa, Middle-East AS approved Approved by the appropriate agency Canada China CSA approved CCC approved State of Israel Africa Approved by the appropriate SII approved agency Switzerland Italy Approved by the appropriate Approved by the appropriate...

  • Page 105: Wireless Devices And Your Health

    Because wireless products operate within the guidelines found in radio frequency safety standards and recommendations, Dynabook believes wireless products are safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.

  • Page 106: Wireless Lan Technology

    If this occurs, the outsider might illegally access your system, eavesdrop, or cause the loss or destruction of stored data. Dynabook is not liable for the loss of data due to eavesdropping or illegal access through the wireless LAN and the damage thereof. Card Specifications Compatibility IEEE 802.11 standard for Wireless LANs...

  • Page 107: Radio Frequency Interference Requirements

    Country/region where the product was purchased Type of product Wireless communication is often subject to local radio regulations. Although Wireless LAN networking products have been designed for operation in the license-free 2.4 GHz, 5 GHz and 6 GHz band, local radio regulations might impose a number of limitations to the use of wireless communication equipment.

  • Page 108: Worldwide Operation

    Encryption prevents eavesdropping and maintains link privacy. Worldwide operation ® The Bluetooth radio transmitter and receiver operate in the 2.4 GHz band, which is license-free and compatible with radio systems in most countries in the world. Radio links You can easily establish links between two or more devices, with these links being maintained even if the devices are not within a line-of-sight of each other.
  • Page 109 Russian Limited Using SRD (Short Range Device) with Federation: implementation FHSS (Frequency-Hopping Spread Spectrum) modulation. Maximum 2.5 mW (4 dBm) EIRP (Equivalent Isotropically Radiated Power) is permitted to use. Maximum 100 mW (20 dBm) EIRP is permitted to use with the following conditions: Permitted to use SRD for outdoor applications without restriction on...
  • Page 110 Using SRD with DSSS (Direct Sequence Spread Spectrum) and other than FHSS wideband modulation. Maximum EIRP density is 2 mW/ MHz. Maximum 100 mW (20 dBm) EIRP is permitted to use. Maximum EIRP density is 20 mW/MHz. Maximum 100 mW (20 dBm) EIRP is permitted to use with the following condition: It is permitted to use SRD for...
  • Page 111 Restrictions for Use of 5150 - 5350 MHz Frequencies in Europe Austria, Limited This product is for indoor use only. Belgium, implementation Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Great Britain and Northern Ireland, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg,...
  • Page 112 (2400 - 2483.5 MHz) IEEE 802.11 Maximum 100 mW (20 dBm) EIRP b/g/n/ax mode / Bluetooth (2400 - 2483.5 MHz) BLE Maximum 10 mW (10 dBm) EIRP (5150 - 5725 MHz) IEEE 802.11 a/ Maximum 200 mW (23 dBm) EIRP n/ac/ax mode The low band 5.15 - 5.35 GHz is for indoor use only.

  • Page 113: Usa - Federal Communications Commission (Fcc)

    USA - Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 114 Before using this equipment, ensure that it does not interfere with any of the equipment listed above. If this equipment causes RF interference to other radio stations, promptly change the frequency being used, change the location of use, or turn off the source of emissions. Contact an authorized service provider if you have problems with interference caused by this product to other radio stations.

  • Page 115: Device Authorization

    HDD/SSD erasure, or file overwritten. To disable the AMT function, do the following: Turn on the computer while pressing the F2 key. On the dynabook Setup Utility screen, select MEBx -> Intel(R) ME Password, and enter the default password “admin” in the password field.
  • Page 116 Enter a new password. Password must comply with the following requirements concerning character types and length: Must be between 8 and 32 characters long. Must contain at least one number (“0”, “1-9”). Must contain a mix of lower-case (“a”, “b”, “z”, etc.) and upper-case (“A”, “B”, “Z”, etc.) letters.

  • Page 117: Notes For System Administrators

    AMT configurations and is not an error. Enabling the AMT function might cause the network LAN Enable/ Disable items to be no longer changeable in dynabook Setup Utility. Consult with your system administrator about details. AMT function cannot be operated using a USB-LAN adapter.

  • Page 118: Accessibility For Dynabook Notebook

    Dynabook notebook the way you want to use it. To see the available features in one of the following ways: Go to Start and select Settings ( Using a keyboard, press the ( Windows key ) + I, scroll up to the word Settings, then press Enter.
  • Page 119 Hearing Audio: For those with hearing difficulties, this option makes it easier to hear with features like Hear all sounds in one channel, and Display audio alerts visually. Captions: Lets you read the word spoken in the audio portion of a video, TV show or movie that supports Closed Caption technology.
  • Page 120 Touch Screen: Some notebook configurations have touch screen capability, refer to Using the Touch Screen section for more information. Touch Pad: The Touch Pad on the palm rest supports several features, refer to Using the Touch Pad section for more information. Keyboard: The number of keys available on your keyboard depends on which region your computer is configured for, with keyboards being available for numerous languages.

  • Page 121: Legal Footnotes

    Utilities and Advanced Usage: Your computer comes with pre- installed utilities such as dynabook Settings, eco Utility USB Charging, Power Off and Charge, System ON CDP Charge, System Password, User Password, Supervisor Password, Pre-Boot Authentication, dynabook Setup Utility, and dynabook Maintenance Utility. Refer to Utilities and Advanced Usage section for more information.

  • Page 122: Memory (Main System)

    Published battery life numbers are achieved on select models and configurations tested by Dynabook at the time of publication. Recharge time varies depending on usage. Battery might not charge while computer is consuming full power.

  • Page 123: Graphics Processing Unit (Gpu)

    powers of 2 for the definition of 1 GB = 2 = 1,073,741,824 bytes, and therefore shows less storage capacity. Available storage capacity will also be less if the product includes one or more pre-installed operating systems, such as Microsoft Operating System and/or pre-installed software applications, or media content.
  • Page 124 AMT: ® Intel Active Management Technology ASCII: American Standard Code for Information Interchange BIOS: Basic Input/output System BD-ROM: Blu-ray Disc™ Read-only Memory bps: bits per second Compact Disc CD-ROM: Compact Disc Read-only Memory CD-RW: Compact Disc-rewritable CMOS: Complementary Metal-oxide Semiconductor CPU: Central Processing Unit Direct Current...
  • Page 125 IRQ: interrupt request ISP: Internet Service Provider kilobyte LAN: Local Area Network LCD: Liquid Crystal Display LED: Light Emitting Diode megabyte MBps: megabytes per second MMC: MultiMediaCard OCR: Optical Character Recognition (Reader) Personal Computer PCI: Peripheral Component Interconnect PCMCIA: Personal Computer Memory Card International Association RAM: Random Access Memory...

  • Page 126: Index

    Index AC adaptor Graphics Processing Unit additional 4-22 3-11 connecting 2-3 Internal storage drive automatic power off 5-8 Battery extending life 4-12 monitoring capacity 4-10 real time clock 4-8 Keyboard function keys 4-4 Bluetooth® 7-6 function keys F1...F12 4-4 problems 6-6 Windows special keys 4-6 Cleaning the computer 1-18 Cooling vents 3-5, 3-6...
  • Page 127 note 4-13 Moving the computer 1-19 Recovery internal storage drive 2-15 Password Recovery Media 2-15 power on 5-9 Starting the computer by password 5-6 Supervisor 5-6 SD/SDHC/SDXC card User 5-5 formatting 4-13 Pointing device Security lock 4-22 Touch Pad 6-8 SIM card installing 4-16 Power...
  • Page 128 Video RAM 3-11 Web Camera 3-8 Wireless communication 7-5 User's Manual Index-3...
  • Page 129 Instruction Manual for Safety and Comfort...
  • Page 130 Transporting the product ................29 Seeking additional help ................29 Check list ....................30 © 2023 Dynabook Inc. All Rights Reserved. The product system you purchased may include Recordable and/or ReWritable optical media drive(s) and associated software, among the most advanced data storage technologies available. As with any new technology, you must read and follow all set-up and usage instructions in the applicable user guides and/or manuals enclosed or provided electronically.
  • Page 131 FROM THE USE OF THE PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY THEREOF. While Dynabook has made every effort at the time of publication to ensure the accuracy of the information provided herein, such information is subject to change without notice.

  • Page 132: Introduction

    Introduction All of the Safety Instructions contained in this Manual must be read carefully and must be fully understood before you attempt to use your product, in order to avoid potential hazards that could cause bodily injury, property damage, or damage the product. Not all components or functions introduced in this Manual will be provided with your product.

  • Page 133: Safe Use Of Product, Components And Accessories

    Power Safe Use of Product, Components and Accessories Power WARNING Handling of the battery ❖ Never attempt to dispose of a battery by burning or by throwing it into a fire, and never allow exposure to a heating apparatus (e.g., microwave oven).

  • Page 134: Battery Safety

    Power WARNING ❖ Never allow a battery to become wet. A wet battery will overheat or ignite causing rupture or fire, possibly resulting in death or serious injury. ❖ Never store a battery in an area of high humidity. This could cause a fire or explosion possibly resulting in serious injury.

  • Page 135: Disposal Of Used Batteries

    Power WARNING Battery warning indicators ❖ Always immediately turn the power off and disconnect the power cable/ cord plug from the plug socket and stop using the battery if you observe any of the following conditions: • Offensive or unusual odor •...
  • Page 136 Power WARNING Do not disassemble, modify, tamper with or repair your product ❖ Do not attempt to disassemble, modify, tamper with or repair product (including AC adaptor). Disassembly, modification, tampering or repairing your product could cause fire or electric shock, possibly resulting in serious injury.
  • Page 137 ❖ Always use the Dynabook AC adaptor that was provided with your product, or use AC adaptors specified by Dynabook to avoid any risk of fire or other damage to your product. Use of an incompatible AC adaptor could cause fire or damage to your product possibly resulting in serious injury.

  • Page 138: Inserting The Battery

    Power WARNING Only use approved power cables/cords ❖ Always use or purchase power cables/cords that comply with the legal voltage and frequency specifications and requirements in the country of use. Failure to do so could result in a fire or electric shock, possibly resulting in serious injury.
  • Page 139 Power NOTE Handling of the battery ❖ Never attempt to install batteries in reverse polarity. For more information on batteries, please refer to your product User's Manual. Storing your product ❖ If you do not intend to use your product for a long period of time, disconnect the power plug from the plug socket and store your product in a plastic bag to avoid dust accumulation.

  • Page 140: Communication

    Communication Communication WARNING ® ™ Turn Wi-Fi , Bluetooth and Wireless WAN Functionalities off for Cardiac Pacemakers ❖ Turn Wi-Fi, Bluetooth and Wireless WAN Functionalities off when near a person who may have a cardiac pacemaker implant or other medical electric device.
  • Page 141 You can exchange data between products and other devices on the LAN without the restrictions inherent in cabling. Dynabook strongly recommends that you take appropriate steps to ensure that the proper security is in place whenever you use a wireless connection to protect your privacy and guard against identity and/or data theft.

  • Page 142: Main Unit

    Main Unit Main Unit DANGER Choking hazards ❖ Never leave small parts such as covers, small batteries, small memory cards, caps and screws within the reach of infants or small children. Swallowing a small part may cause choking and suffocation resulting in death or serious injury.
  • Page 143 Main Unit WARNING ❖ Always provide sufficient space around your product. Overheating your product or AC adaptor could cause system failure, product or AC adaptor damage or a fire, possibly resulting in serious injury. Avoid liquids, moisture and foreign objects ❖...
  • Page 144 Main Unit WARNING Do not use liquid cleaners or aerosol cleaners ❖ Always turn off the power and unplug the product from the electrical outlet before cleaning. The injected combustible gas produced by these types of cleaners may remain inside of your product. The electrostatic spark from the motor or contact point of switch may ignite the gas residue, which could result in an explosion, fire, or burn injury.

  • Page 145: Disposal Of This Product

    Main Unit CAUTION Avoid placing your product on unstable surfaces ❖ Never place your product on a shaky table, uneven, tilted surface or other unstable location. your product may fall, causing damage to your product or possibly injury. Depending on the direction and/or angle of tilt of your product, your product could automatically shut down to avoid overheating.
  • Page 146 Main Unit CAUTION Never place your product in a dusty location ❖ Do not expose your product to dusty environments. If dust gets inside your product, it could cause a system failure, malfunction or loss of data. If dust contaminates your product, do not turn on the power. Take it to an authorized service provider before you use it.
  • Page 147 Main Unit CAUTION Never place or drop heavy objects onto your product ❖ Never place a heavy object on your product and be careful not to drop a heavy object onto your product. It could damage your product or cause system failure.
  • Page 148 Use your product at temperatures and humidity levels within the recommended environmental ranges. These ranges may vary depending on the specific product model - please refer to your product documentation or Dynabook website for details. ❖ Always avoid abrupt changes of temperature or humidity.

  • Page 149: Systems/Peripherals

    Systems/Peripherals Systems/Peripherals DANGER Do not disassemble or repair your optical drive ❖ The product may contain a Optical Disk Drive (ODD), such as a CD-ROM, CDR/W, DVD, Blu-ray Disc™ drive or similar which have built-in laser device. To prevent any risk of exposure to laser radiation, do not disable or open any ODD assembly for any reason.

  • Page 150: Connecting Peripheral Devices

    Systems/Peripherals CAUTION Connecting peripheral devices ❖ Always turn the power off before connecting a peripheral device that is not approved for Hot Insertion. An electrical shock or system failure may result if the peripheral device is connected while the power is turned on. ❖...

  • Page 151: Formatting Storage Media

    Systems/Peripherals CAUTION Never remove the key caps ❖ Never remove the key caps on your keyboard. Doing so could cause damage to the parts under the key caps. Do not turn off power while application software is running ❖ Never turn off the power while an application is running. Doing so could cause loss of data.

  • Page 152: Antivirus Software

    Systems/Peripherals CAUTION • Never place a heavy object on a CD/DVD/Blu-ray Disc™. • Never write on, or otherwise mar, the read surface of a CD/DVD/ Blu-ray Disc™. Always use AC power when writing to the optical drive ❖ When writing to media using an optical drive, always connect the AC adaptor to a power plug socket or power source to ensure maximum performance.
  • Page 153 Systems/Peripherals NOTE The procedures above delete only the initial part of the data used for file management. This makes the file invisible to the operating system, but the data can still be read by specialized utilities. If you dispose of your product, please delete all the data on its Hard Disk Drive/Solid State Drive.

  • Page 154: Computer User Comfort Recommendations

    Good Working Posture Computer User Comfort Recommendations Good Working Posture ❖ Adjust your chair height: your feet should be flat on the floor and the bottom of your thighs should be evenly supported by the seat. If your feet cannot reach the floor, use a foot rest. Avoid pressure points behind the knee or under the thigh.

  • Page 155: Viewing Recommendations

    Viewing Recommendations Viewing Recommendations / Using the product with an external keyboard, mouse or monitor ❖ Certain product displays have a brightness approaching that of a TV device. We recommend that you adjust the brightness of your product display to a comfortable level to prevent possible eye strain. ❖...

  • Page 156: Typing Style

    Typing style Typing style / Taking breaks and varying tasks ❖ Don’t rest your wrists on the edge of the keyboard or on the work surface when typing. ❖ The monitor should be about an arm length away while sitting back in the chair.

  • Page 157: Mobile Computing Tips

    Mobile computing tips Mobile computing tips / Transporting the product / Seeking additional help Mobile computing tips ❖ When using the product at airports, on airplanes or trains, or at meetings, make sure that you take the time to consider the points just mentioned. ❖...

  • Page 158: Check List

    Check list Check list ❏ Is your chair comfortable - does it support your back and arms well? ❏ Are your feet flat on the ground? ❏ Is there adequate space under your desk for your legs? ❏ Are the keyboard and mouse at elbow level? ❏...

This manual is also suitable for:

Tecra a60-mPortege x40-mGx40l-mGx60l-m

Table of Contents
