2.4. TECHNICAL DATA

→ DEFAULT DIRECTION OF ROTATION
The initial direction of rotation (default) is engraved on the drive housing.
It is possible to change the direction of rotation using a Somfy io
unidirectional control point (see section 4.2 Checking the direction
of rotation of the drive).
→ LIMIT SWITCH CAPACITY
The drive is supplied in its lower end limit position. The upper end limit
position is pre-set at 120 turns of the drive shaft above the lower end
limit position.
The lower end limit position can be set to a maximum of 200 turns of
the drive shaft. In this case, the upper end limit position will also have
to be set.

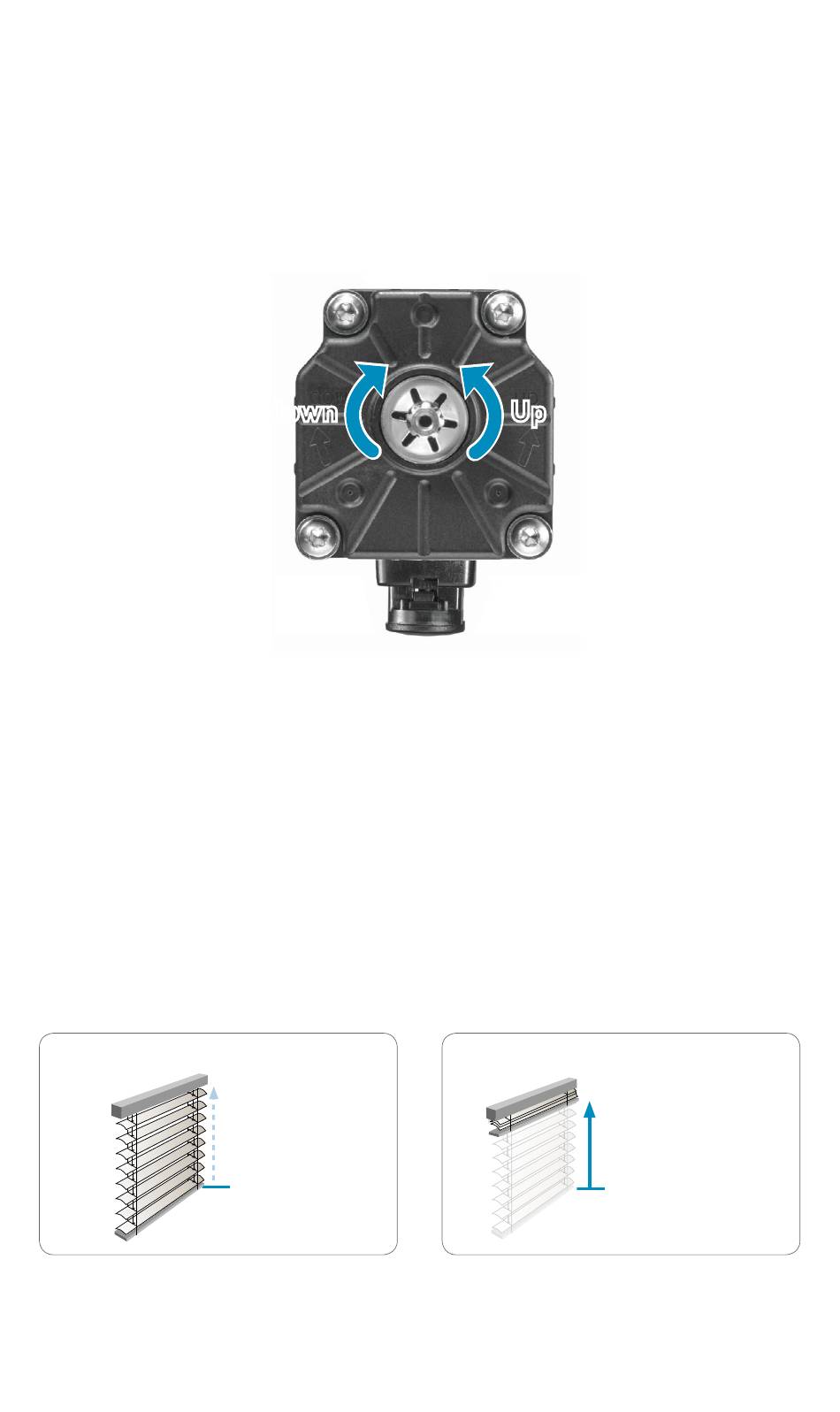

Lower end limit position
Copyright © 2017-2019 SOMFY ACTIVITES SA. All rights reserved.
Non contractual images.
J4 io Protect Drive
Down
0 turns
Up
Upper end limit position
Factory setting:
120 turns
Max. 200 turns
