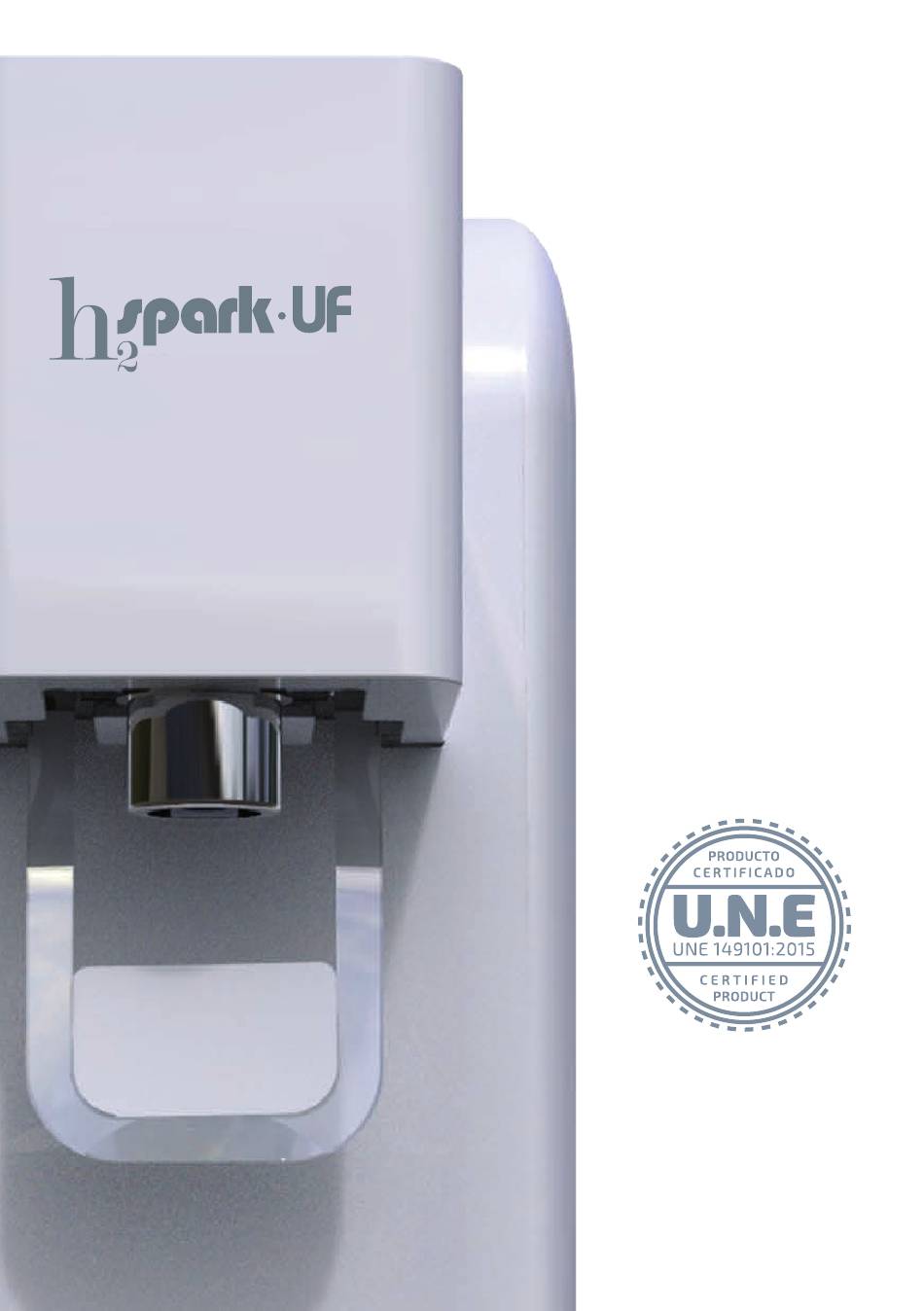

  • Page 1 A G U A H I D R O G E N A D A User manual Hydrogenated water equipment...

  • Page 2: Table Of Contents

    Table of Contents System features Pag. 2 User manual Pag. 3 System installation Pag. 6 System operation Pag. 7 System cleaning and maintenance Pag. 8 Changing the system filter Pag. 9 Troubleshooting Pag. 10 Equipment warranty Pag. 11 Equipment installation log Pag.

  • Page 3: System Features

    SYSTEM FEATURES 363 mm 119 mm 1. TECHNICAL DATA OF THE EQUIPMENT · Model: H Spark UF. · Consumption: 65W. · Hydrogen concentration: up to 1.000 ppb. · ORP: between 450 ~ 580 mV. · Working temperature: 5 ºC ~ 40 ºC. ·...
  • Page 4 4. QUALITY OF LIFE The secret of this force that contains hydrogen, is One of the greatest advantages of H2 Spark UF is because of its molecular size, since being the first that because it contributes to a decrease in...

  • Page 5: User Manual

    USER MANUAL That is why hydrogen is so important, because this Check the box and the condition of the equip- antioxidant load of hydrogenated water regulates ment. Check for transport damage. Notify your the level of oxidation of our body and facilitates the supplier within 48 hours if you notice any transformation of these foods into energy.
  • Page 6 USER'S MANUAL Attention The equipment may not be installed lying down or inclined. Do not install the equip- ment in inclined or unstable places. Doing so could result in malfunction or dropping of the equipment. The installation site must have sufficient space for the appliance itself, its accessories, and connections and for convenient maintenance.

  • Page 7: System Installation

    SYSTEM INSTALLATION 1. INSTALLATION Connect a pipe from ¼" that comes from the reverse osmosis equipment or from a water inlet Authorized service personnel must install the equip- that complies with the recommended operating ment. It is recommended to install low reverse limits.

  • Page 8: System Operation

    SYSTEM'S OPERATION 2. PARTS OF THE SCHEMATIC 1. INTERNAL FUNCTIONING 1. Water dispenser. What process does the water inside your equipment follow? 2. Pushbutton. 3. Hydrogen generator module. The flow enters through the inlet connection, 4. Inner casing. enters the first cartridge, which is activated 5.

  • Page 9: System Cleaning And Maintenance

    SYSTEM CLEANING AND MAINTENANCE PRELIMINARY ADVICE: 1. tion, is designed so that it does not contact the negative part of the plate with the water, thus avoiding the incrustation of minerals and subse- quent maintenance. For cleaning, an annual drainage of the module is recommended for the elimination of precipitated Drain Hose minerals, and in the event of a sudden drop of...
  • Page 10 SYSTEM FILTER CHANGE HOW TO CHANGE THE FILTER: Close the water inlet valve on the back of the unit. Hold the water switch until the unit has been emptied. Remove the screws on the back of the unit and slide the right panel to open the cover. Turn the filter counterclockwise and pull the cartridge down to remove it.

  • Page 11: System Troubleshooting

    SYSTEM TROUBLESHOOTING PROBLEM POSITION SOLUTION The cold-water shutoff Make sure all shutoff valves are fully open. valve is not fully open. Make sure that the power adapter is fully Less water installed on the back of the electronics The power adapter is not fully installed.

  • Page 12: Equipment Warranty

    EQUIPMENT WARRANTY CUSTOMER DATA: THE GUARANTEE IS NOT EXCESSIVE FOR: Mr/Mrs: 1. The replacement, repair of parts or organs Address: caused by wear due to normal use of the equip- C.P. and town: ment, such as resins, polyphosphates, sediment Contact telephone number: cartridges, etc.

  • Page 13: Equipment Installation Log

    EQUIPMENT INSTALLATION LOG WARNING: Read this manual carefully. If in doubt, Given the importance of correct maintenance of the contact your dealer's technical support (S.A.T.). The equipment to guarantee the quality of the water data marked with (*) must be stamped by the produced, the owner must be offered a maintenan- installer and transcribed by him to the company.
  • Page 14 CONTROL AND MONITORING OF THE SYSTEM PURPOSE OF THE NOTICE DATE TECHNICIAN DATA Installation Name:........... Maintenance Signature or stamp: Warranty Proofreading Repair Installation Name:........... Maintenance Signature or stamp: Warranty Proofreading Repair Installation Name:........... Maintenance Signature or stamp: Warranty Proofreading Repair Installation Name:...........
  • Page 15 CONTROL AND MONITORING OF THE SYSTEM PURPOSE OF THE NOTICE DATE TECHNICIAN DATA Installation Name:........... Maintenance Signature or stamp: Warranty Proofreading Repair Installation Name:........... Maintenance Signature or stamp: Warranty Proofreading Repair Installation Name:........... Maintenance Signature or stamp: Warranty Proofreading Repair Installation Name:...........
  • Page 16 User Manual...
