Shuttle SPCEL Series Installation Manual

Component
Hide thumbs

Advertisement

Quick Links

Download this manual
SPCEL series component installation guide

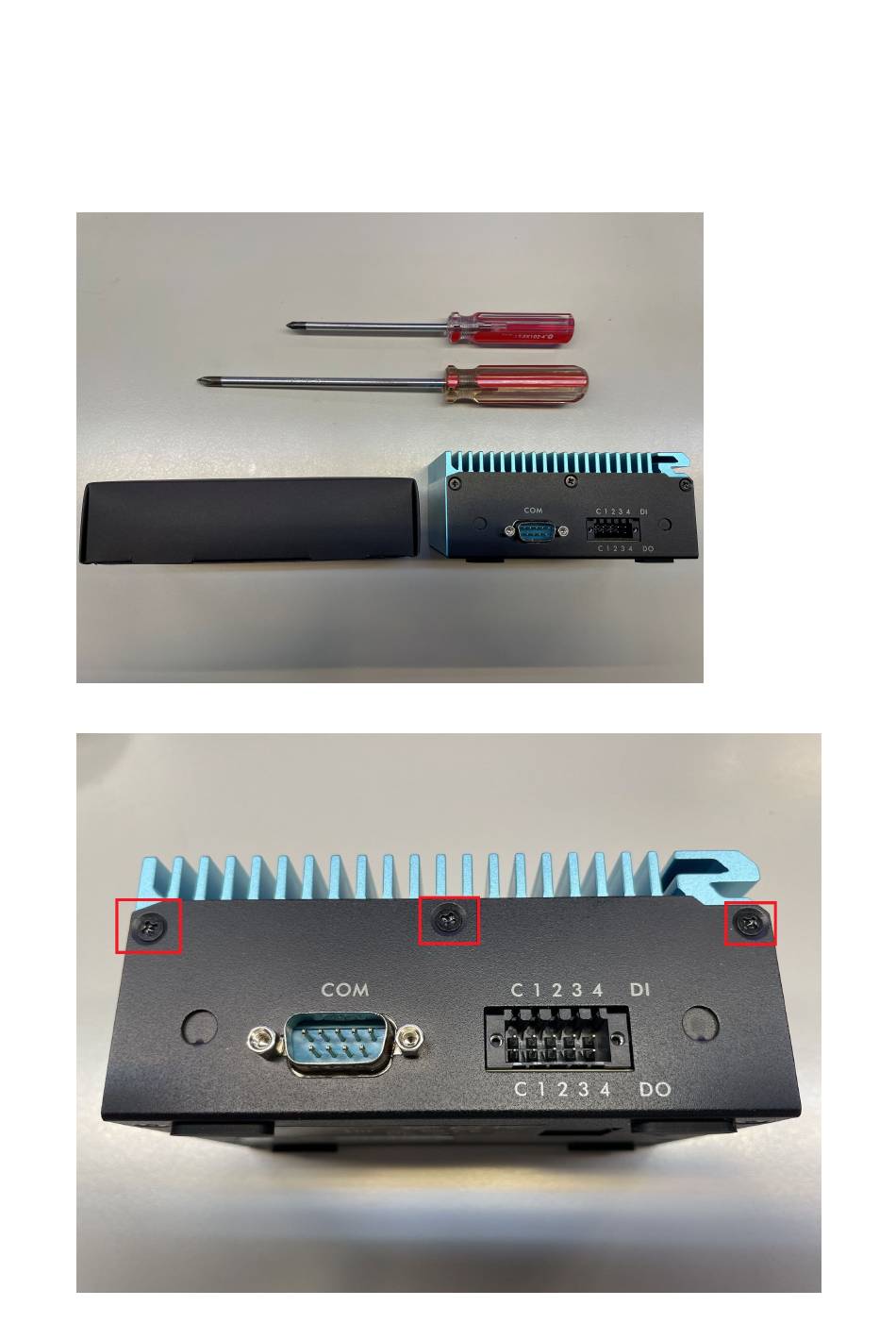

1. Prepare 2 screwdrivers of different sizes.
A thick screwdriver is used to loosen the case screws.
Another thin screwdriver for installing the SSD.
Prepare a paper box or book that is the same height as the casing.

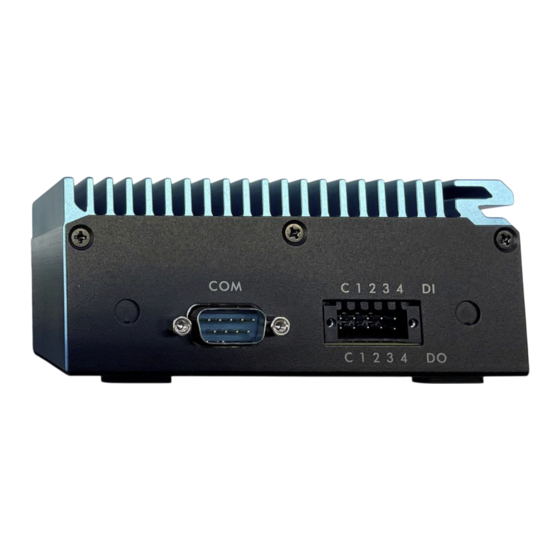

2. Loosen the 3 screws on the back IO panel.
