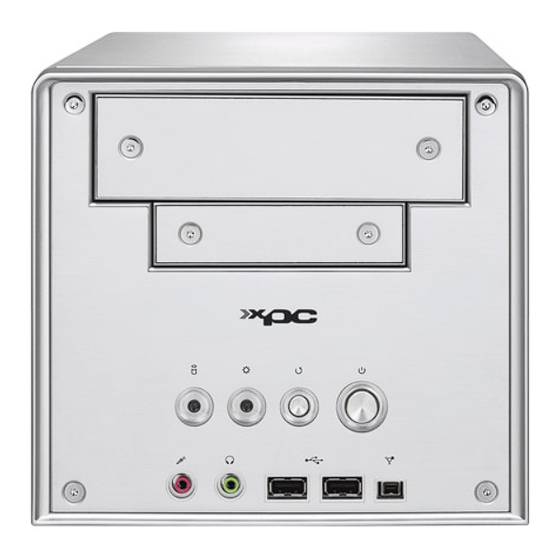

Shuttle XPC User Manual

Hide thumbs Also See for XPC:
Table of Contents

Advertisement

Quick Links

Download this manual
XPC User Guide
For the : SS21T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XPC and is the answer not in the manual?

Questions and answers

Related Manuals for Shuttle XPC

Summary of Contents for Shuttle XPC

  • Page 1 XPC User Guide For the : SS21T...
  • Page 2 Shuttle XPC EMI Test Statement Shuttle XPC have been via the EMI test in terms of series of regulations: EN55022/CISPR22/ AS/NZS3548 Class B, EN55024 (1998/AS/NZS), EN4252.1 (1994), EN61000, ANSI C63.4 (1992), CFR47 Part 15 Subpart B, and CNS13438 (1997). The items tested are illustrated as follows: (A) Voltage: AC 110V/60HZ &...
  • Page 3 (C) Remedy for the Tested Product & Its EMI Interference: Remedy: N/A EMI Interference: Crystal : 14.318MHz(Y2)/ 25MHz(Y3)/ 32.768KHz(Y1)/ 24.576MHz(X1,X2). Clock Generator: CLK1 (D) Supported Host Peripherals: Host Peripheral Product Name Model Name Case SS21T Power Supply FSP250W Serial ATA Seagate ST312G026A8 DVD Player PC40...
  • Page 4 2. This device must accept any interference received, including interference that may cause undesired operation. Trademarks Shuttle is a registered trademark of Shuttle Inc. Intel and Pentium are registered trademarks of Intel Corporation. PS/2 is a registered trademark of IBM Corporation.
  • Page 5 Read the following precautions before setting up a Shuttle XPC. CAUTION Incorrectly replacing the battery may damage this computer. Replace only with the same or equivalent as recommended by Shuttle. Dispose of used batteries according to the manufacturer's instructions. Installation Notices Do not place this device underneath heavy loads or in an unstable position.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS 1 Driver and Software Installation ................1 1.1 Mainboard Driver CD ..................1 1.1.1 Install Mainboard Software ..............2 Appendix ........................3 Enter the BIOS ..................... 3 THE MAIN MENU ....................4 Standard CMOS Features ................6 Advanced BIOS Features ................

  • Page 7: Driver And Software Installation

    Note : The CD contents attached in SS21T mainboard are subject to change without notice. The Mainboard Driver CD contains all the motherboard driver necessary to optimize the performance of this XPC in a Windows(R) OS. Install these drivers after installing Microsoft(R) Windows(R). Navigation Bar Description : Install Mainboard Software - SiS VGA Driver, SiS RAID Driver, SiS LAN Driver, Realtek Audio Driver, SiS USB2.0 Driver, DirectX9 Utility.

  • Page 8: Install Mainboard Software

    Insert the attached CD into your CD-ROM drive. The CD AutoRun screen should appear. If the AutoRun screen does not appear, double click on Autorun icon in My Computer to bring up Shuttle Main-board Software Setup screen. Click the “Install Main-board Software“ bar. Individually install the following drivers.

  • Page 9: Appendix

    Appendix BIOS Settings The SS21T BIOS ROM has a built-in Setup program that allows users to modify basic system configuration. This information is stored in battery-backed RAM so that it re- tains Setup information even if the system power is turned off. The system BIOS manages and executes a variety of hardware related functions including: System date and time...

  • Page 10: The Main Menu

    The Main Menu Once you enter the AwardBIOS(tm) CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter>...
  • Page 11 Power Management Setup Use this menu to specify your power management settings. PnP / PCI Configurations This entry appears if your system supports PnP / PCI. PC Health Status This entry displays the current system temperature, Voltage, and FAN settings. Frequency Control Use this menu to specify your settings for frequency control.

  • Page 12: Standard Cmos Features

    Standard CMOS Features The items in the Standard CMOS Setup Menu are divided into several categories. Each category includes none, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item.
  • Page 13 Video Select the default video device. Ø The choice: EGA/VGA, CGA 40, CGA 80, or MONO. Halt On Select the situation in which you want the BIOS to stop the POST process and notify you. Ø The choice: All Errors, No Errors, All, But Keyboard, All, But Diskette, or All, But Disk/Key.
  • Page 14 Access Mode Choose the access mode for this hard disk. Ø The choice: CHS, LBA, Large, or Auto. Capacity Disk drive capacity (Approximated). Note that this size is usually slightly greater than the size of a formatted disk given by a disk checking program. Ø...

  • Page 15: Advanced Bios Features

    Advanced BIOS Features This section allows you to configure your system for basic operation. You have the opportunity to select the system's default speed, boot-up sequence, keyboard operation, shadowing, and security. Hard Disk Boot Priority This item allows you to select Hard Disk Book Device Priority. Bios Write Protect This item allows you to enable or disable the Bios Write Protect.
  • Page 16 CPU Internal Cache All processors that can be installed in this mainboard use internal level 1 (L1) cache memory to improve performance. Leave this item at the default value for better performance. Ø The choice: Enabled or Disabled. External Cache Most processors that can be installed in this system use external level 2 (L2) cache memory to improve performance.
  • Page 17 Typematic Delay (Msec) Sets the delay time after the key is held down before it begins to repeat the keystroke. Ø The choice: 250, 500, 750 or 1000. Security Option Select whether the password is required every time the system boots or only when you enter setup.

  • Page 18: Advanced Chipset Features

    Advanced Chipset Features This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and access to system memory resources, such as DRAM and the external cache. It also coordinates communica- tions between the conventional ISA bus and the PCI bus.
  • Page 19 Bottom of UMA DRAM [31:24] Ø The Choice: Min:0000~Max:00FC. DDRII Timing Item This item allows you to enable/disable the DDRII Timing Item. Ø The Choice: Enabled or Disabled. (Trl)CAS Latency Time Ø The Choice: 3~6 clocks. (Trcd)RAS to CAS R/W Delay Ø...
  • Page 20 Graphics Engin Clock This item allows the user to adjust Graphics Engin Clock. Ø The Choice: 100MHz,133MHz,166MHz or200MHz. GUI Memory Clock This item allows the user to adjust GUI Memory Clock. Ø The Choice: 133MHz,166MHz,183MHz or200MHz. System BIOS Cacheable Selecting Enabled allows caching for the system BIOS ROM at F0000h- FFFFFh, resulting in better system performance.

  • Page 21: Integrated Peripherals

    Integrated Peripherals SIS OnChip IDE Device Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options. Internal PCI/IDE This chipset contains and internal PCI IDE interface with support for two IDE channels. Ø The choice: Disabled, or Primary. IDE Primary Master/Slave PIO The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE inter-...
  • Page 22 IDE HDD Block Mode If your IDE hard drive supports block mode select Enabled for auto- matic detection of the optimal number of block read/writes per sector the drive can support. Ø The Choice: Enabled or Disabled. SIS OnChip PCI Device Options are in its sub-menu.
  • Page 23 Onboard SuperIO Device Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options. Onboard FDC Controller Select Enabled if your system has a floppy disk controller (FDC) installed on the system board and you want to use it. If you install add-on FDC or the system has no floppy drive, select Disabled in this field.

  • Page 24: Power Management Setup

    Power Management Setup The Power Management Setup allows you to configure your system to most effectively saving energy while operating in a manner consistent with your own style of computer use. ACPI Function This item allows you to enable/disable the Advanced Configuration and Power Management (ACPI) Ø...
  • Page 25 All Modes --> Off Monitor is blanked when the system enters any power saving mode. Ø The choice: Always On, Suspend ->Off, Susp,stby -> Off, or All Modes -> Off. Video Off Method This determines the manner in which the monitor is blanked. V/H SYNC+Blank: This selection will cause the system to turn off the vertical and horizontal synchronization ports and write blanks to the video buffer.
  • Page 26 PM Wake Up Events Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options. IRQ [3-7, 9-15], NMI When enabled, any event occurring at IRQs 3 through 15 (excluding IRQ 8) will awaken a system, which has been powered down. Ø...
  • Page 27 Power Up by Alarm When set to Enabled, the following three fields become available and you can set the month, date (day of the month), hour, minute and second to turn on your system. Ø The choice: Enabled, Disabled. Month Alarm This is for specifying the alarm month which system will awaken the system from suspend mode.

  • Page 28: Pnp/Pci Configurations

    PnP/PCI Configurations This section describes the configuration of PCI bus system. PCI or Personal Computer Interconnection is a system which allows I/O devices to operate at the speed CPU itself keeps when CPU communicat- ing with its own special components. This section covers some very technical items, and it is strongly recom- mended that only experienced users should make any changes to the default settings.
  • Page 29 choose specific resources by going into each of the sub-menu that fol- lows this field (a sub-menu is proceeded by a ">"). Ø The choice: Auto(ESCD) or Manual. IRQ Resources When resources are controlled manually, assign each system interrupt a type, depending on the type of device using the interrupt.

  • Page 30: Pc Health Status

    PC Health Status CPU Fan Speed Control Set the CPU Fan Speed. Ø The choice: Smart Fan, Ultra-Low, Low, Mid or Full. Note: Before manually modifying the CPU fan setting, please make sure fan connectors are plug into the correct fan connector designations on the mainboard.

  • Page 31: Frequency Control

    Frequency Control Auto Detect PCI Clk This item allows you to enable/disable auto detection PCI Clock. Ø The choice: Enabled, or Disabled. Spread Spectrum This item allows you to enable/disable the spread spectrum modulation. Ø The choice: Enabled, or Disabled. Async PCI Clock Control This item allows you to adjust the Async PCI Clock Control.

  • Page 32: Load Fail-Safe Defaults

    Load Fail-Safe Defaults When you press <Enter> on this item, you will get a confirmation dialog box with a message similar to: Load Fail-Safe Defaults (Y/N) ? N Pressing 'Y' loads the BIOS default values for the most stable, minimal system performance. Load Optimized Defaults When you press <Enter>...

  • Page 33: Save & Exit Setup

    2. Key in a new password. The password can not be over eight characters or numbers. 3. The system will then request you to confirm the new password by asking you to key in the new password again. 4. Once the confirmation is completed, new code is in effect. No Password Setting: 5.
