IntelliXcap™ S1 User Manual
Semi-Automated Screw Cap Decapper Re-capper, 1-channel,
compatible with large format sample storage tubes and vials
393573 Revision A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IntelliXcap S1 and is the answer not in the manual?

Questions and answers

Related Manuals for AZENTA IntelliXcap S1

Summary of Contents for AZENTA IntelliXcap S1

  • Page 1 IntelliXcap™ S1 User Manual Semi-Automated Screw Cap Decapper Re-capper, 1-channel, compatible with large format sample storage tubes and vials 393573 Revision A...
  • Page 2 U.S. trademarks of Azenta, Inc. All other trademarks are properties of their respective owners. © 2025 Azenta, Inc. All rights reserved. The information included in this manual is proprietary information of Azenta, Inc. and is provided for the use of Azenta, Inc.

  • Page 3: Cover

    Azenta Life Sciences Cover Part Number: 393573 Rev. A Corporate Headquarters 200 Summit Drive, 6th Floor Burlington, MA 01803 U.S.A. European Union Representative Im Leuschnerpark 1B 64347 Griesheim, Germany Copyright © 2025, Azenta, Inc.
  • Page 4 For Customer Service/Sales Inquiries: Location Contact Number Website +1-888-2AZENTA (+1-888-229- North America 3682) www.azenta.com Europe +44-161-777-2000 Japan +81-3-6628-2950 For Technical Support: Location Contact Number Website North America +1-800-379-7221 +41-31-770-7373 / +44-161-777- Europe www.azenta.com 2107 Japan +81-3-6628-2950 Copyright © 2025, Azenta, Inc.

  • Page 5: Table Of Contents

    4. Operation Operation Modes Capping and Decapping Cycle Time Setting 5. Maintenance Gripper Replacement Cleaning and Decontamination Transportation and Storage 6. Appendices Appendix A: Ordering Information Appendix B: Compliance Appendix C: WEEE Statement (European Union) Copyright © 2025, Azenta, Inc.

  • Page 6: Safety

    1. Safety The IntelliXcap S1 is intended to be used by trained personnel to perform screw cap decapping/capping. In this manual, it is assumed that the user has knowledge of basic laboratory procedures. Use of the instrument in a manner, or for purposes not specified by Azenta may result in personal injury or damage to the device.
  • Page 7 Only use the original power adapter supplied by the manufacturer. To ensure proper ventilation, make sure the device has at least 30 cm of free space all around. Do not place this device where it is difficult to disconnect the power adapter. Copyright © 2025, Azenta, Inc.

  • Page 8: Regulatory Compliance And Declaration Of Conformity

    Declaration of Conformity Regulatory Compliance and Declaration of Con- formity The IntelliXcap S1 meets the requirements of the European Union’s Machinery Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, and 2011/65/EU Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment.. In accordance with the Directive, Azenta Life Sciences has issued a Declaration of Conformity and the IntelliXcap S1 has a CE mark affixed.
  • Page 9 Azenta Life Sciences 1. Safety Part Number: 393573 Rev. A Regulatory Compliance and Declaration of Conformity Copyright © 2025, Azenta, Inc.

  • Page 10: Introduction

    2. Introduction The IntelliXcap S1 is an Automated Screw Cap Decapper that utilizes motors, gears and grippers to decap and cap screw cap tubes. It is designed to handle screw caps of a broad range of diameters without changing the grippers.

  • Page 11: Product Overview

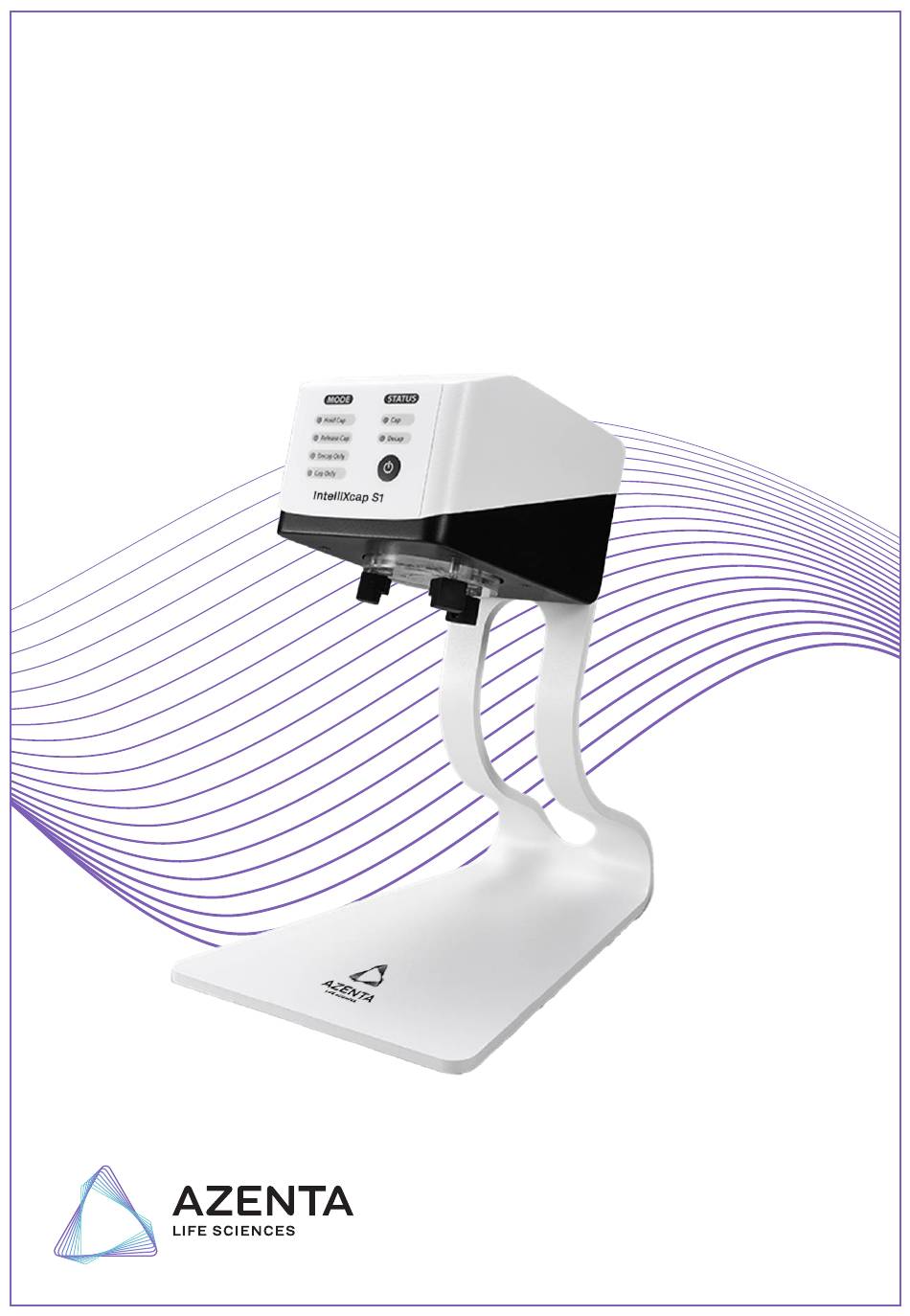

    Azenta Life Sciences 2. Introduction Part Number: 393573 Rev. A Product Overview Product Overview Number Description Operation panel Power/Selection Button USB-C socket (on back of device) Grippers Stand Copyright © 2025, Azenta, Inc.

  • Page 12: Product Specifications

    11 - 40 mm diameter screw cap tubes Sensing Method Pressure sensor Operation Modes Five modes Power Adapter Input: AC100 - 240 V, 50/60 Hz; Output: DC 24 V, 2.7 A, 65 W Power Jack USB-C Certification Copyright © 2025, Azenta, Inc.

  • Page 13: Installation

    3. Installation Unpacking Preparation Step Action Find an appropriate location to install the device. See "Safety" on page 6 for information regarding environmental and electrical safety requirements for installing the device. Part Number: 373573 Rev. A...
  • Page 14 Azenta Life Sciences 3. Installation Part Number: 393573 Rev. A Step Action Move the box to an appropriate unpack area. Copyright © 2025, Azenta, Inc.
  • Page 15 Part Number: 393573 Rev. A Step Action Unpack the kit and inspect and confirm the contents (as described in "Package Contents" on page 16) are present and correct. Report any missing or damaged items to Azenta Life Sciences. Copyright © 2025, Azenta, Inc.

  • Page 16: Package Contents

    Azenta Life Sciences 3. Installation Part Number: 393573 Rev. A Package Contents Item Description Quantity Image IntelliXcap S1 device Power Supply with International Adapter Set Power cord User manual Declaration of Conformity Copyright © 2025, Azenta, Inc.

  • Page 17: Setting Up The Device

    Part Number: 393573 Rev. A Setting up the Device Step Action Plug the USB-C jack of the power adapter into the USB-C socket on the back of the device. Plug the power adapter into an external power source. Copyright © 2025, Azenta, Inc.

  • Page 18: Operation

    4. Operation Operation Modes The following table describes the function of each of the operation modes. Mode Function(s) Decaps the tube and holds the cap Recaps the tube using the held cap Decaps the tube and leaves the cap loose on the tube Caps a loose cap on the top of a tube Decaps the tube and releases the cap immediately Caps a loose cap on the top of a tube...

  • Page 19: Capping And Decapping

    If the cap is not closed correctly, repeat steps 3 and 4. If the cap needs to be extremely tight, tighten it manually. Press the power button for 3 seconds to turn off the device. Copyright © 2025, Azenta, Inc.

  • Page 20: Cycle Time Setting

    Part Number: 393573 Rev. A Cycle Time Setting The IntelliXcap S1 is built with three different cycle times for selection to accommodate most tubes. The shorter time setting provides express operation, while the longer time setting is intended for tubes with longer threads, requiring longer decapping/recapping times Copyright ©...
  • Page 21 Press the power button for 3 seconds to turn on the device. In Hold Cap mode, use a tube to press up on the center of the disc to trigger the motor. The Hold Cap mode and Cap status indicators are illuminated. Copyright © 2025, Azenta, Inc.
  • Page 22 Cap blink Use a tube again to press up on the center of the disc to trigger the motor and complete the setting. NOTE: The cycle time setting will be kept after rebooting the IntelliXcap Copyright © 2025, Azenta, Inc.

  • Page 23: Maintenance

    5. Maintenance Gripper Replacement The grippers will require occasional replacement, particularly when the grippers cannot grip the cap firmly. To replace the grippers, carry out the following steps: Step Action Ensure that the power is turned off. Part Number: 373573 Rev. A...
  • Page 24 Azenta Life Sciences 5. Maintenance Part Number: 393573 Rev. A Step Action Move the grippers to the center. Copyright © 2025, Azenta, Inc.
  • Page 25 5. Maintenance IntelliXcap S1 Part Number: 393573 Rev. A Step Action Use a 1.5 mm hex key to loosen the screw on the inside of each gripper. Copyright © 2025, Azenta, Inc.
  • Page 26 5. Maintenance Part Number: 393573 Rev. A Step Action Remove the grippers. Attach the new grippers with the 1.5 mm hex key, ensuring the screw is locked in place and does not protrude from the gripper. Copyright © 2025, Azenta, Inc.

  • Page 27: Cleaning And Decontamination

    Transportation and Storage This device should be transported in the box provided and stored in an environment with a temperature between -10 and 60 °C and with a relative humidity of 20 - 80%. Copyright © 2025, Azenta, Inc.

  • Page 28: Appendices

    6. Appendices This chapter contains the appendices for the IntelliXcap S1 User Manual. Part Number: 373573 Rev. A...

  • Page 29: Appendix A: Ordering Information

    Azenta Life Sciences 6. Appendices Part Number: 393573 Rev. A Appendix A: Ordering Information Appendix A: Ordering Information Order Description IntelliXcap Semi-Automated Screw Cap Decapper Re-capper, 1-channel, 46-0001 compatible with large format sample storage tubes and vials Copyright © 2025, Azenta, Inc.

  • Page 30: Appendix B: Compliance

    6. Appendices IntelliXcap S1 Appendix B: Compliance Part Number: 393573 Rev. A Appendix B: Compliance The IntelliXcap S1 is compliant with the following: Low voltage directive 2014/35/EU EMC 2014/30/EU Directive 2011/65/EU WEEE Directive 2002/96/EC RoHS China RoHS REACH Copyright © 2025, Azenta, Inc.

  • Page 31: Appendix C: Weee Statement (European Union)

    Such treatment is the most effective means of protecting the customer’s environment. The waste collection, reuse, recycling, and recovery programs available to Azenta Life Sciences customers vary by customer location. Please contact the responsible body (e.g., your laboratory manager) for information about local requirements.
