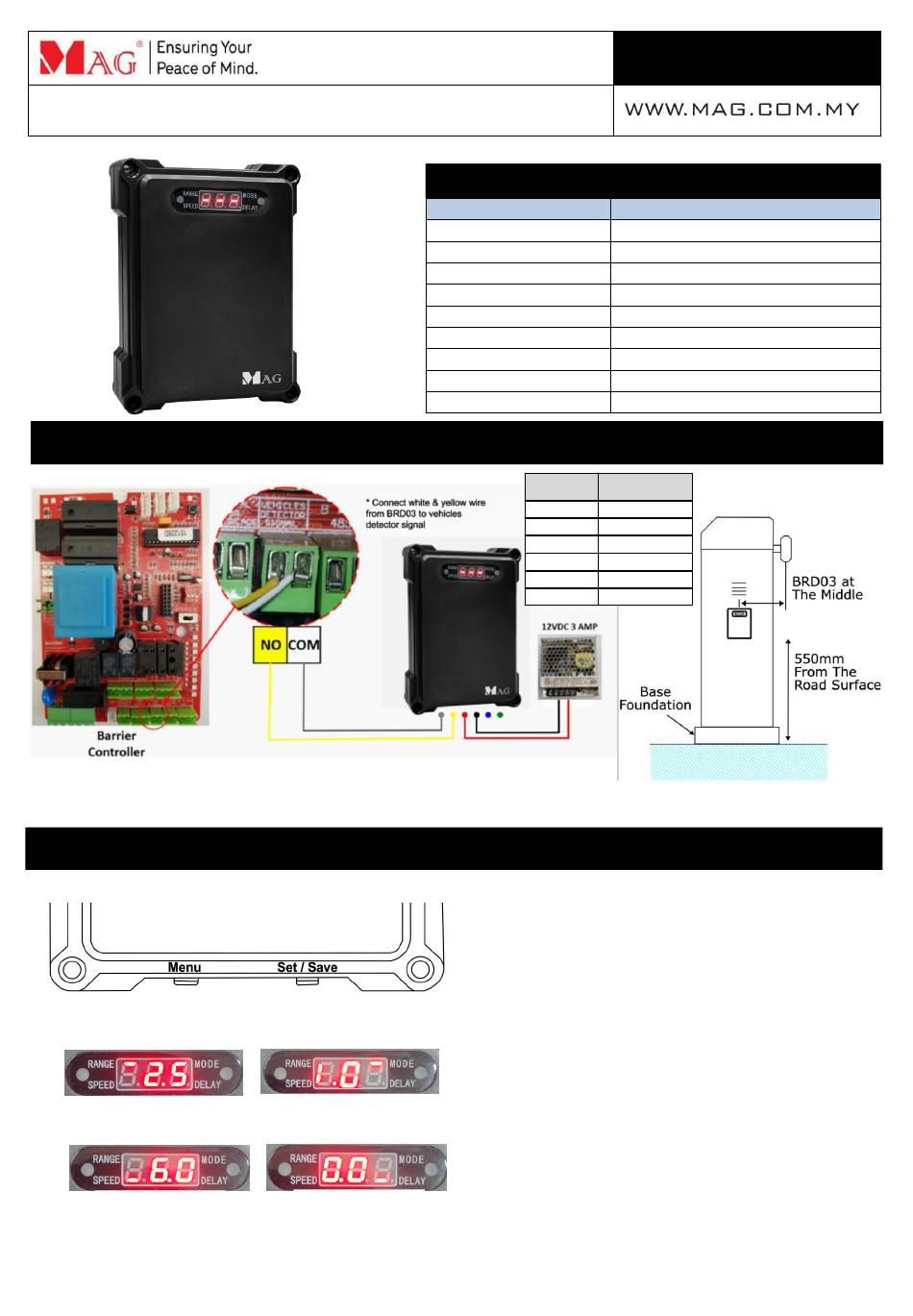

MAG BRD03 Quick Manual

Dual ray and led display traffic detector

Advertisement

Quick Links

BRD03 Dual Ray and LED Display Traffic Detector
Installation and Wiring
Menu Selection
RANGE Setting
SPEED Setting
©
2025 QG V3 BRD03 MAG DUAL RAY TRAFFIC DETECTOR
Description
Input Voltage
Detection
Working Frequencies
Modulation Mode
Transmission Power
Detection Distance
Working Temperature
IP Rating
Dimension
MODE Setting
DELAY Setting
Technical Specification
Parameter
DC 12V, 250mA
Dual Lens for 3D Detection
24 - 24.5 Ghz
FMCW
10 - 15 dBm
1 - 6 meters, ± 0.2 meters
-40°C - 85°C
IP67
126mm(L) x 96mm(W) x 26mm(H)
Cable Colour
Description
12V
Red
Black
GND
Yellow
N.O SIGNAL
Blue
N.C SIGNAL
White
COM SIGNAL
Green
Not In Use
Setting instruction:
1. Press and hold the "MENU" button for 3 seconds.
2. The LED Display will enter first menu which is "RANGE".
3. Press the "MENU" button again to switch to other
parameters.
4. To change the value, press "SET/SAVE" button.
5. Press and hold the "SET/SAVE" button until the LED
flash then release the button to save the settings.
6. Once complete, LED Display will return to working
mode.
*(Note: After modifying any setting, it must be saved for
the changes to take effect; otherwise the setting will not
change and the detector will automatically exit the
settings menu after 10 seconds.)
QUICK GUIDE
1 January 2025, V3
