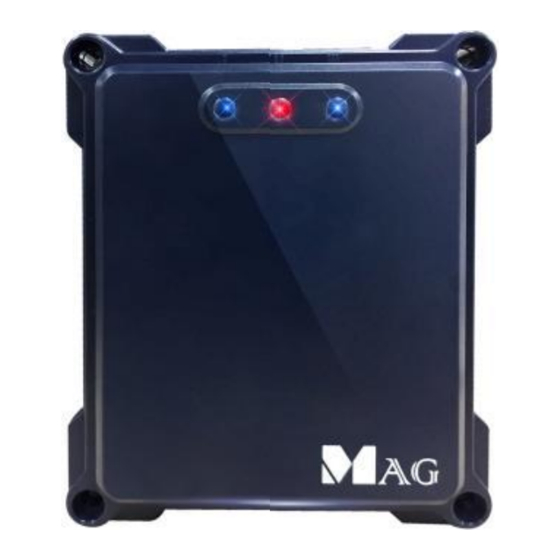

BRD02 DualRay Traffic Detector
Installation and Wiring
Menu selection
©
2021 QG V2 BRD02 DualRay
Setting instruction:
1. Press and hold the button for 3 seconds.
2. The red light will be blinking from left to right.
3. Let go the button when the blinking LED is the menu you
desired. (Refer to Table 1)
4. The LED will turn blue once in the parameter setting.
5. Adjust setting by using the button.
6. After done, press and hold the button until all red LED flash
then let go the button, it will automatically save and exits the
menu.
7. Once complete only red light LED 2 will remain ON.
*(Note: After done any setting, it must be saved; otherwise the
setting will not change and the detector will automatically exit
the menu setting after 10 seconds)
QUICK GUIDE
25 Nov 2021, V1
1
Advertisement
Related Manuals for MAG BRD02
Summary of Contents for MAG BRD02
- Page 1 7. Once complete only red light LED 2 will remain ON. *(Note: After done any setting, it must be saved; otherwise the setting will not change and the detector will automatically exit the menu setting after 10 seconds) © 2021 QG V2 BRD02 DualRay...
- Page 2 5. After setting is done only LED 2 red light will 3) Compulsory Reset & Update Background Calibration It is compulsory to perform background calibration for BRD02 DualRay to SPECIAL NOTE learn the new ambient environment to ensure accurate detection.
