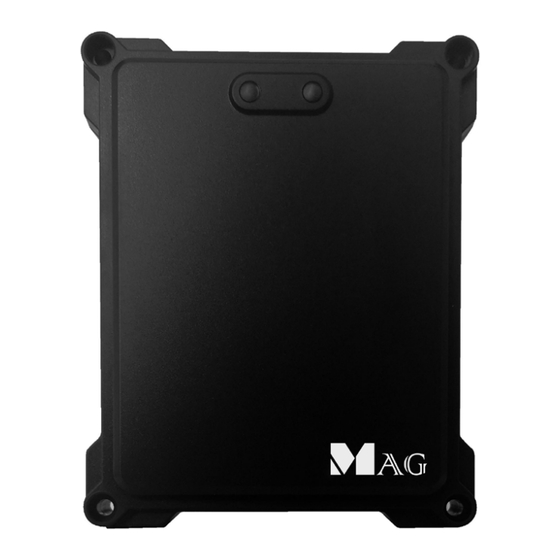

BRD02 TRAFFIC DETECTOR

Product Description

BRD02 is a traffic detector that adopts 24 - 24.25GHz Frequency Modulated Continuous Wave (FMCW) and high
speed digital signal processing technology to calculate the target distance by calculating the frequency difference
between the received echo frequency and the transmission frequency. After logical operation, it performs external
control and data transmission.

Installation

Wiring Description

Color
Definition
Red
Power Input +12VDC
Black
Power Input GND
Blue
Not in use
Green
Not in use
Purple
Program Button Input
Brown
Program Button Input Gnd
White
Relay Output NO
Yellow
Relay Output COM
©
2019 MAG BRD02 TRAFFIC DETECTOR
TH COMMUNICATION SDN BHD

Technical Specification

Description
Input Voltage
Working Frequencies
Modulation Mode
Sending Power
Angle between Beam & Pole
Detection Distance
Working Temperature
IP Rating
Dimension
Barrier Gate Panel
www.thcomm.com.my
QUICK GUIDE
Parameter
DC 12V, 150 mA
24 - 24.25 GHz
10 - 15 dBm
Wide wave <15, Narrow wave <12
1 - 6 Meter
-40°C - 85°C
131mm (L) x 106mm (W) x 28.5mm (H)
Output wires from detector
(White & Yellow wires)
info@thcomm.com.my
20 DEC 2019, V1
FMCW
IP 67
