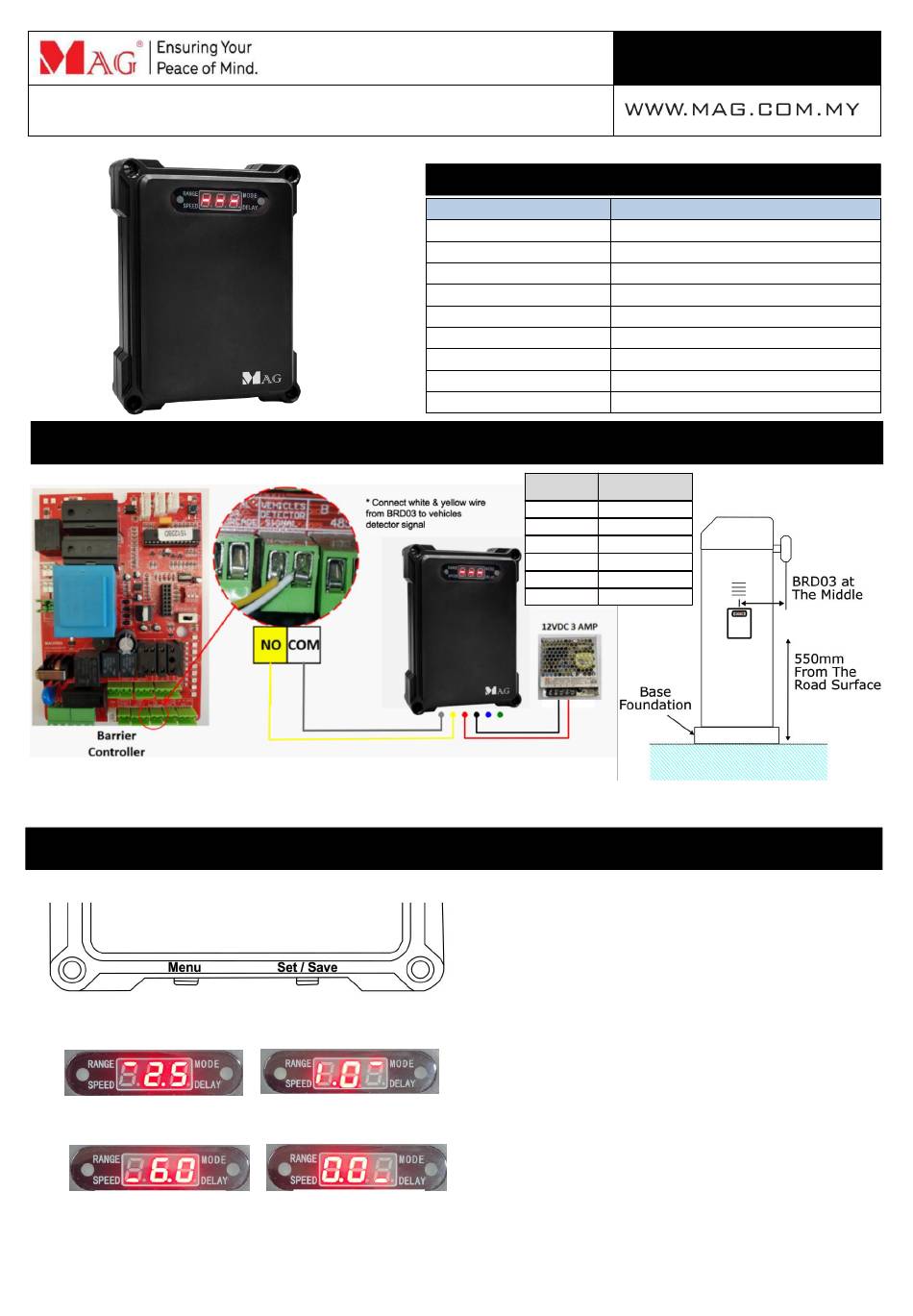

MAG BRD03 Quick Manual

BRD03 DualRay and LED Display Traffic Detector

Installation and Wiring

Menu selection

RANGE Setting
SPEED Setting
©
2023 QG V2 BRD03 DualRay and LED Display
Description
Input Voltage
Detection
Working Frequencies
Modulation Mode
Transmission Power
Detection Distance
Working Temperature
IP Rating
Dimension
MODE Setting
DELAY Setting

Technical Specification

Parameter
DC 12V, 250mA
Dual Lens for 3D Detection
24 - 24.5 Ghz
FMCW
10 - 15 dBm
1 - 6 meters, ± 0.2 meters
-40°C - 85°C
IP67
126mm(L) x 96mm(W) x 26mm(H)
Cable Colour Description
12V
Red
Black GND
Yellow N.O SIGNAL
Blue N.C SIGNAL
White
COM SIGNAL
Green Not In Use
Setting instruction:
1. Press and hold the "MENU" button for 3 seconds.
2. The LED Display show first menu which is "RANGE".
3. Press the "MENU" button again to change to other
parameters
4. To set the value, press "SET/SAVE" button
5. After done, press and hold the "SET/SAVE" button until
the LED flash then let go the button, it will automatically
save and exits the menu.
6. Once complete, LED Display will back to Normal.
*(Note: After done any setting, it must be saved;
otherwise the setting will not change and the detector will
automatically exit the menu setting after 10 seconds)
QUICK GUIDE
25 August 2023, V2
1
